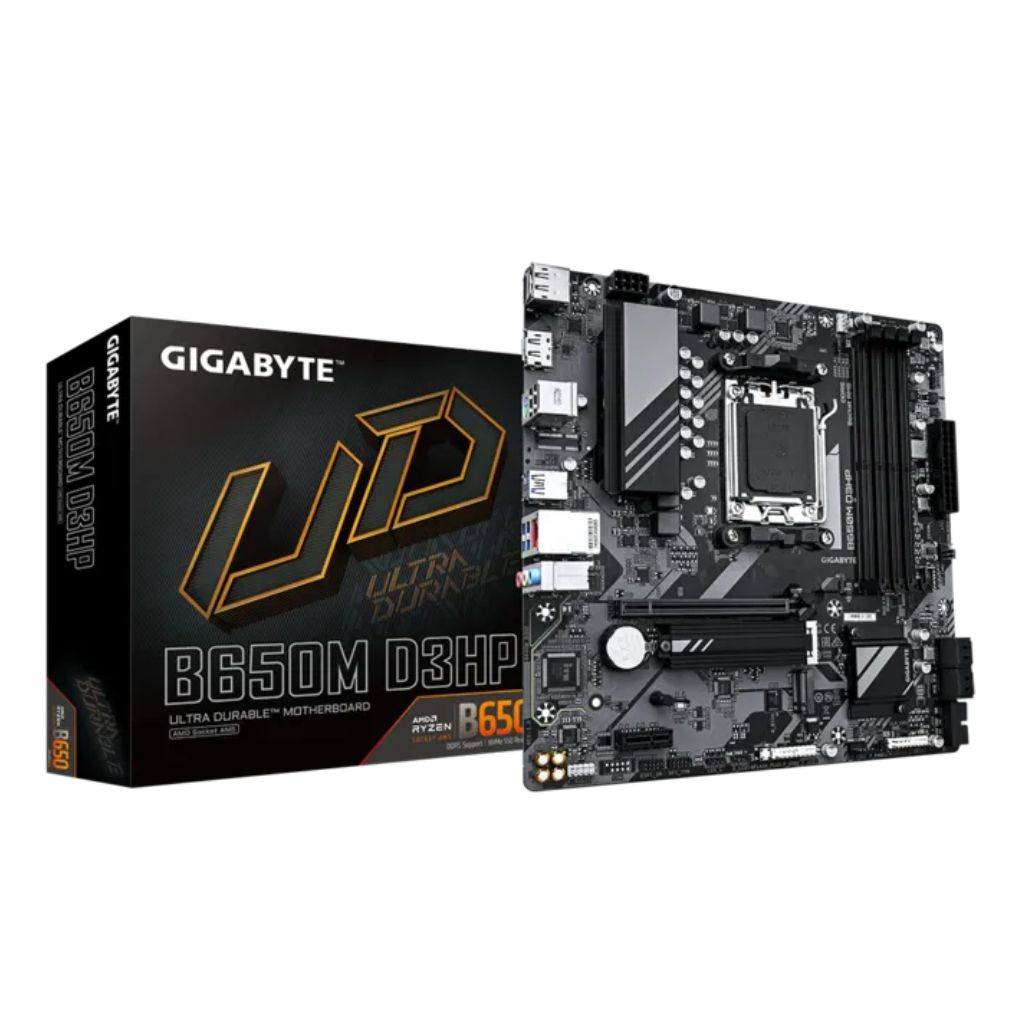

Gigabyte B650M D3HP DDR5 Micro-ATX AM5 AMD Motherboard – GA-B650M-D3HP
Full description Gigabyte.
- AMD AM5 Platform Support – Compatible with AMD Ryzen 7000, 8000 & 9000 Series desktop processors.
- DDR5 Memory Support – Supports next-generation DDR5 memory for faster system responsiveness.
- PCIe 4.0 Storage Ready – Supports high-speed PCIe 4.0 NVMe SSDs for fast boot and load times.
- Compact Micro-ATX Design – Ideal for smaller gaming, home, or office PC builds.
- Gigabyte Ultra Durable Design – Built with quality components for stable, long-term performance.
| Specifications | |
|---|---|
| Brand: | Gigabyte |
| Model: | B650M D3HP |
| Product Type: | Desktop Motherboard |
| CPU Support | |
| CPU Socket: | AM5 |
| Chipset: | AMD B650 |
| Supported CPUs: | AMD Ryzen 7000 / 8000 / 9000 Series |
| Memory | |
| Memory Type: | DDR5 |
| Memory Slots: | 4 × DDR5 DIMM |
| Max Memory Support: | Up to 192GB |
| Memory Speed Support: | Up to DDR5-7600 (OC) |
| Expansion Slots | |
| PCIe x16 (GPU): | 1 × PCIe 4.0 x16 |
| PCIe x16 (Chipset): | 1 × PCIe 4.0 x4 |
| PCIe x1: | 1 × PCIe 3.0 x1 |
| Storage | |
| M.2 Slots: | 2 × M.2 PCIe 4.0 x4 |
| SATA Ports: | 4 × SATA 6Gb/s |
| Graphics Output | |
| HDMI: | 1 × HDMI |
| DisplayPort: | 1 × DisplayPort |
| Internal I/O Connectors | |
| 24-pin ATX Power: | 1 |
| 8-pin CPU Power: | 2 |
| CPU Fan Header: | 1 |
| System Fan Headers: | 3 |
| USB 3.2 Gen 1 Header: | 1 (Supports 2 Ports) |
| USB 2.0 Headers: | 2 (Supports 4 Ports) |
| Front Panel Header: | Yes |
| Front Panel Audio Header: | Yes |
| TPM Header: | Yes |
| RGB Headers: | 1 × RGB (12V) |
| ARGB Headers: | 1 × Addressable RGB (5V) |

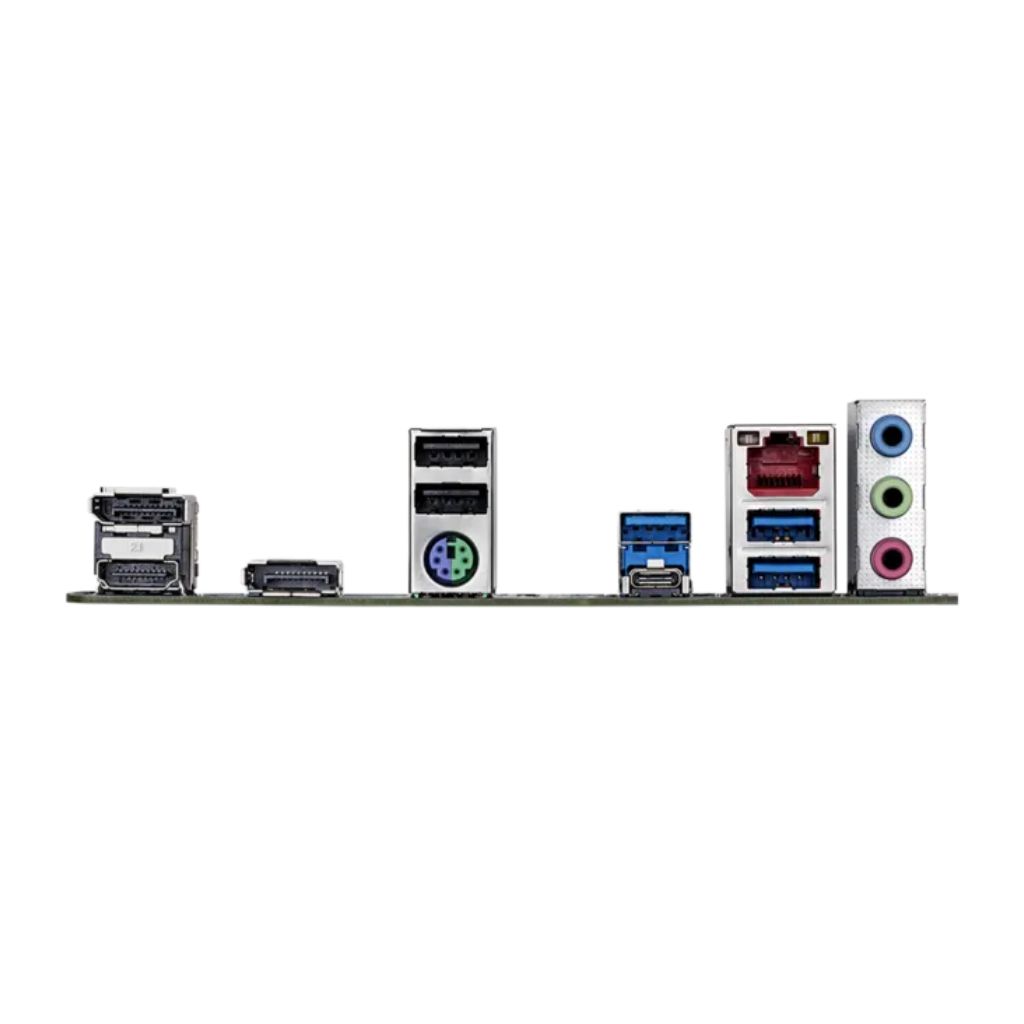

| Back Panel Connectors | |
| USB 3.2 Gen 1 Type-A: | 4 |
| USB 2.0: | 2 |
| HDMI: | 1 |
| DisplayPort: | 1 |
| Ethernet: | 1 × Gigabit LAN (RJ-45) |
| Audio Jacks: | 3 × 3.5mm |
| Networking | |
| LAN Controller: | Realtek Gigabit LAN |
| Wireless: | Not Included |
| Operating System Support | |
| Supported OS: | Windows 11 64-bitWindows 10 64-bit |
| Form Factor | |
| Form Factor: | Micro-ATX |
| General | |
| Use Case: | Gaming PC, Home PC, Office Builds |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
Gigabyte B650M D3HP DDR5 Micro-ATX AM5 AMD Motherboard – GA-B650M-D3HP
Contact us if you would like to enquire about this product.
