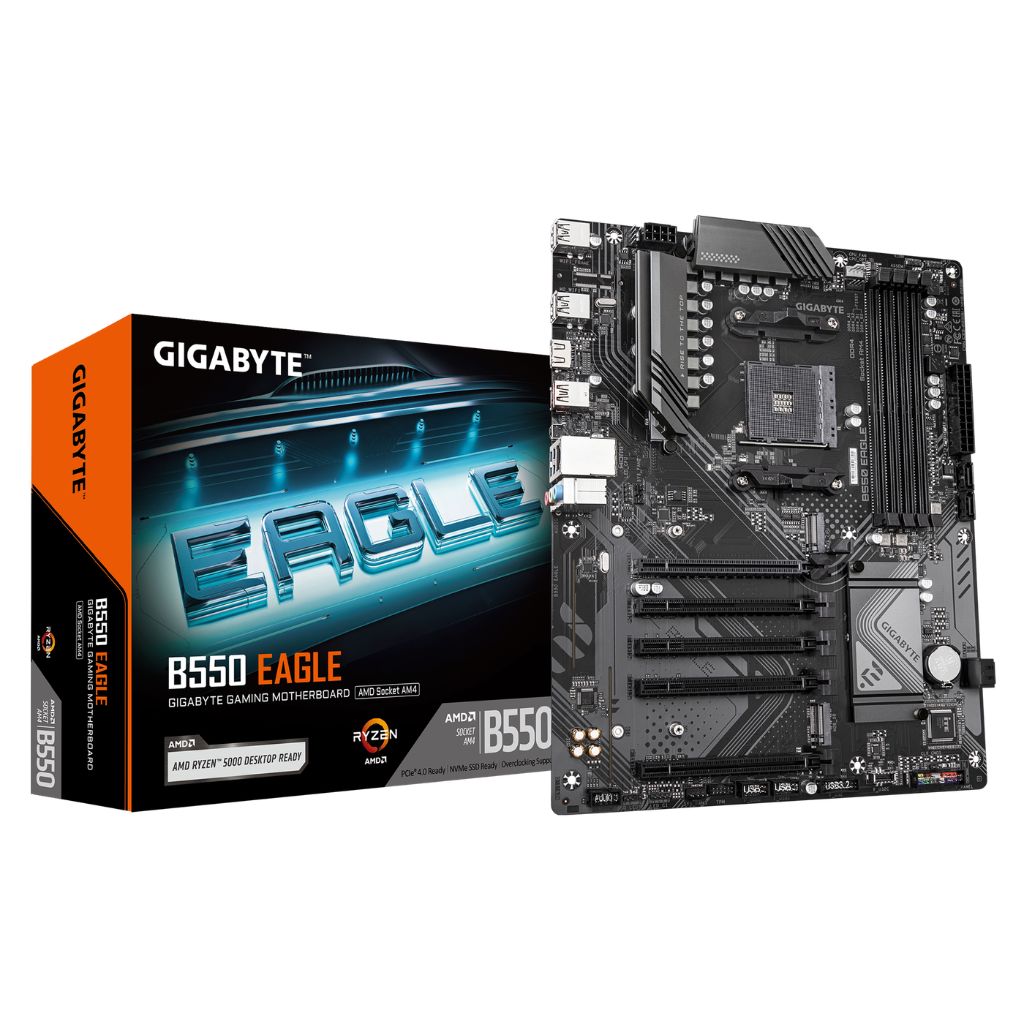

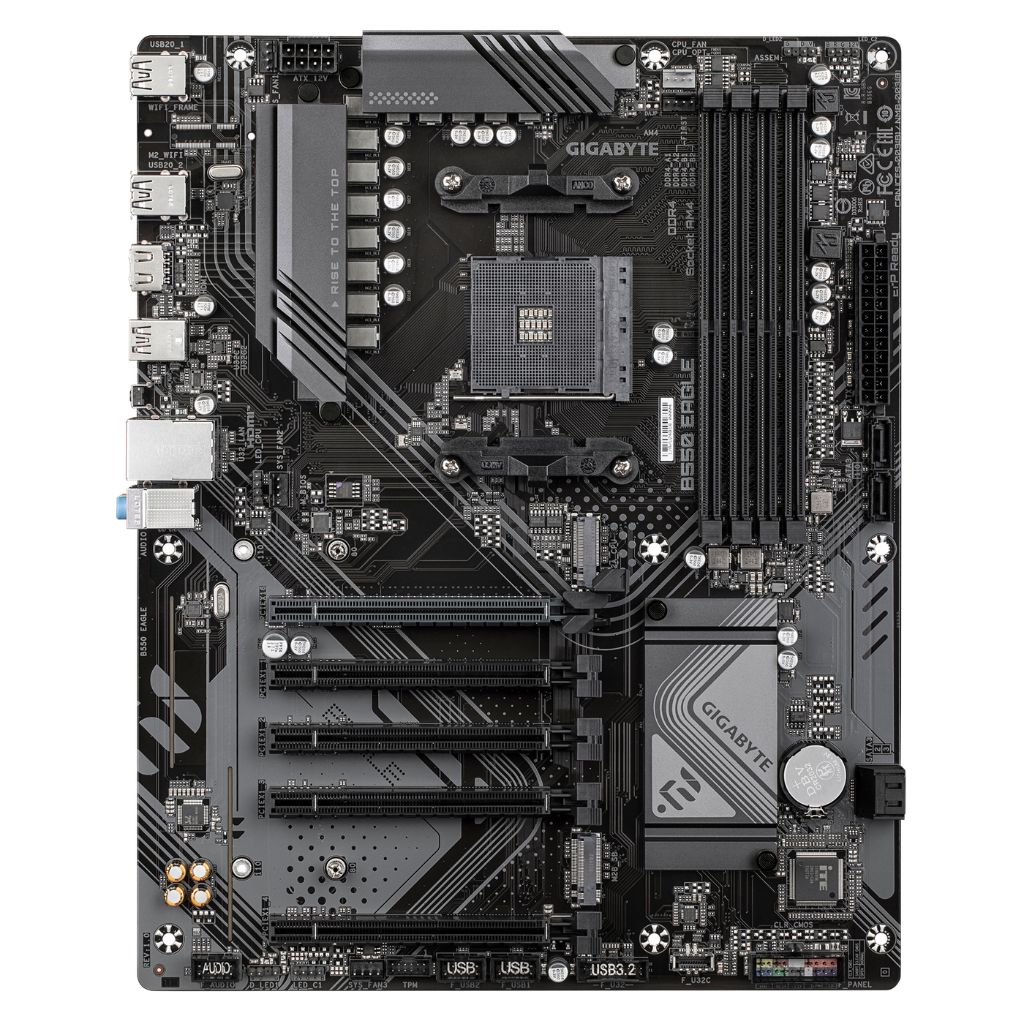

Gigabyte B550 EAGLE DDR4 ATX AM4 AMD Motherboard – GA-B550-EAGLE
Full description Gigabyte.
- Build a versatile AM4 system with support for AMD Ryzen 5000, 4000 G-Series, 3000, and 3000 G-Series processors, giving the Gigabyte B550 EAGLE broad compatibility for mainstream gaming, productivity, and upgrade-focused desktop builds.
- Support fast multitasking and everyday responsiveness with 4 DDR4 DIMM slots and up to 128GB memory capacity, plus support for XMP memory profiles, helping users tune memory performance more easily for smoother system operation.
- Keep storage and expansion practical with 2 x M.2 slots, 4 x SATA 6Gb/s ports, and a primary PCIe 4.0 x16 slot, giving the board the core connectivity needed for modern SSDs, graphics cards, and balanced AM4 gaming systems.
- Cover essential connectivity with Realtek GbE LAN, USB 3.2 Gen 2 Type-A, USB Type-C, HDMI, DVI-D, and multiple internal headers, making this motherboard a strong fit for builders who need reliable everyday desktop and gaming I/O.
- Add builder-friendly functionality with RGB LED strip headers, Smart Fan support, Q-Flash Plus, and APP Center utilities, while the full ATX form factor gives the Gigabyte B550 EAGLE practical room for expansion and clean system building.
| Specifications | |
|---|---|
| Brand | Gigabyte |
| Series | EAGLE |
| Model | GA-B550-EAGLE |
| Form Factor | ATX |
| Platform | |
| CPU Socket | AM4 |
| CPU Support | AMD Ryzen 5000 G-Series, Ryzen 5000 Series, Ryzen 4000 G-Series, Ryzen 3000 Series, Ryzen 3000 G-Series |
| Chipset | AMD B550 |
| Memory | |
| Memory Slots | 4 x DDR4 DIMM |
| Maximum Memory | 128GB |
| Memory Support | DDR4 3200/2933/2667/2400/2133 MT/s |
| Memory Features | Dual Channel, ECC/Non-ECC support, XMP support |
| Graphics | |
| Display Outputs | 1 x HDMI, 1 x DVI-D |
| Graphics Features | Maximum shared memory of 16GB |
| Expansion | |
| PCIe x16 Slots | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 |
| PCIe x1 Slots | 4 x PCI Express x16 slots supporting PCIe 3.0 running at x1 |
| Storage | |
| M.2 Slots | 2 x M.2 Socket 3 |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID Support | RAID 0, RAID 1, RAID 10 |
| Networking | |
| Ethernet | Realtek GbE LAN |
| Audio | |
| Audio Codec | Realtek Audio CODEC |
| Audio Channels | 2/4/5.1/7.1-channel High Definition Audio |
| Back Panel Connectors | |
| Back Panel I/O | 4 x USB 2.0/1.1 1 x HDMI1 x DVI-D 1 x USB 3.2 Gen 2 Type-A 1 x USB Type-C with USB 3.2 Gen 1 support 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks |
| Internal I/O Connectors | |
| Power Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector |
| Fan Headers | 1 x CPU fan header1 x CPU fan/water cooling pump header3 x system fan headers |
| USB Headers | 1 x USB Type-C header with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers |
| Storage Connectors | 2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors |
| RGB Headers | 2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header |
| Other Internal Connectors | 1 x front panel header1 x front panel audio header1 x Trusted Platform Module (TPM) header1 x Clear CMOS jumper |
| Special Features | |
| Gigabyte Features | APP Center, Q-Flash Plus, Q-Flash, Smart Backup, System Information Viewer, RGB Fusion, EasyTune |
| Accessories | |
| Included Items | 2 x SATA cables |
| Operating System Support | |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Warranty Information | |
| Warranty | 3 Year Warranty |
