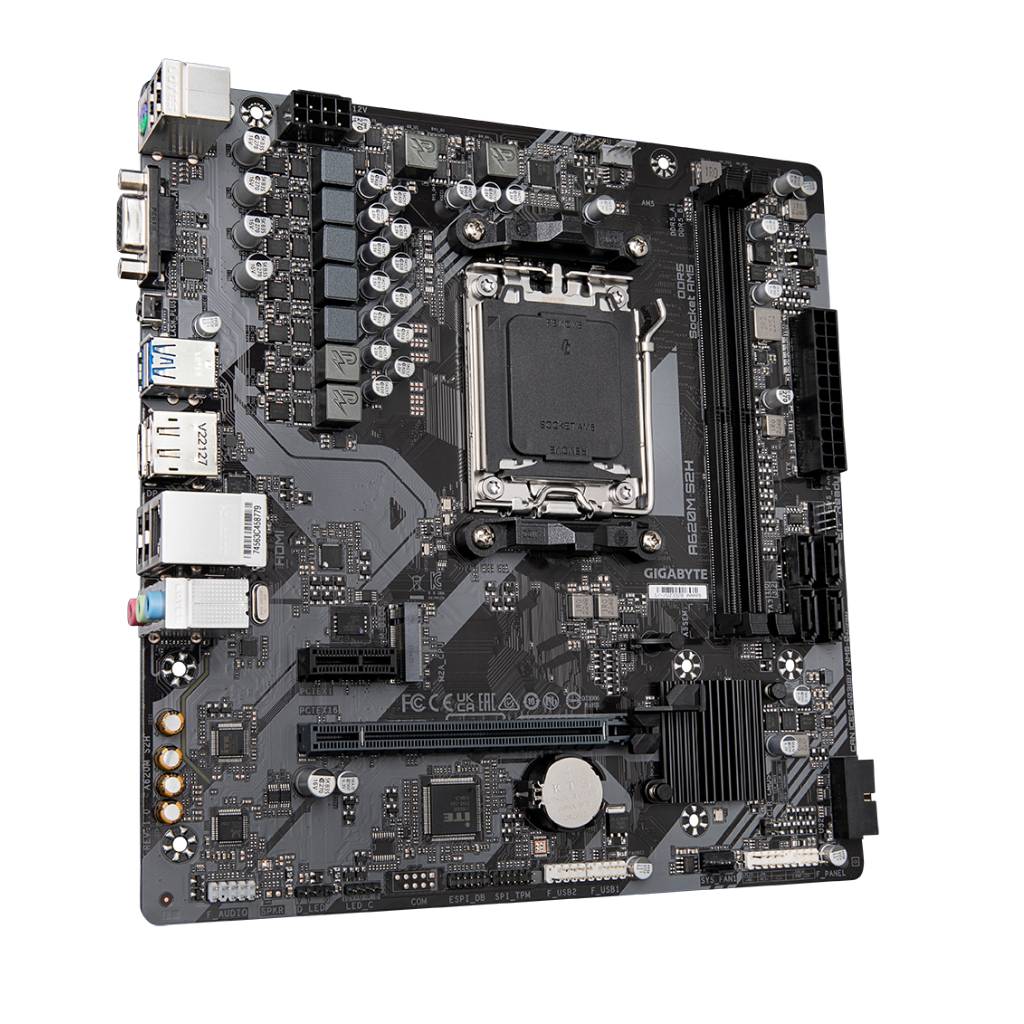

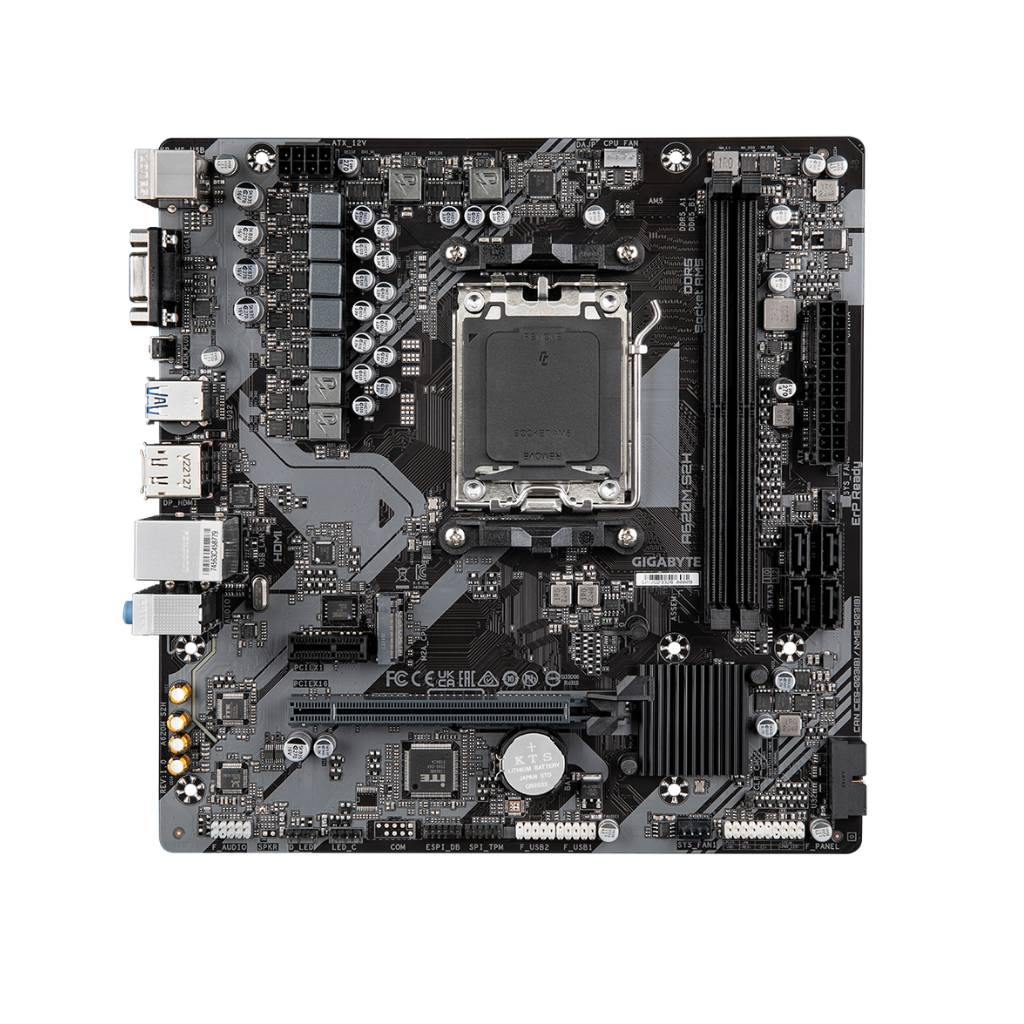

Gigabyte A620M S2H AM5 Micro-ATX Motherboard
Full description Gigabyte.
- AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
- Unparalleled Performance：5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
- EZ-Latch：PCIe x16 Slot with Quick Release Design
Specifications |
|
| Brand: | Gigabyte |
| Series: | A620 Series |
| Model: | GA-A620M-S2H |
| Technical Specs | |
| CPU Support: | AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors |
| Chipset: | AMD A620 |
| Memory: | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics: | Integrated Graphics Processor: – 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version. – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz |
| Audio: | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Connectivity | |
| LAN: | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Wireless: | N/A |
| Bluetooth: | N/A |
| Expansion Slots: | CPU: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Storage Interface: | CPU: – 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) Chipset: – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| On-Board Connectors | |
| USB: | CPU: – 2 x USB 3.2 Gen 1 ports on the back panel – 1 x USB 2.0/1.1 port on the back panel Chipset: – 2 x USB 3.2 Gen 1 ports available through the internal USB header – 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors: | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Clear CMOS jumper |
| Back Panel Connectors: | 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x DisplayPort 1 x HDMI port 1 x RJ-45 port 3 x audio jacks |
| Software & Features | |
| BIOS: | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Software: | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Features: | Support for Q-Flash |
| Support for Q-Flash Plus | |
| Water cooling flow rate detection | |
| Fan speed control | |
| Fan fail warning | |
| General | |
| Operating System: | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor: | Micro ATX Form Factor; 23.0cm x 22.5cm |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
