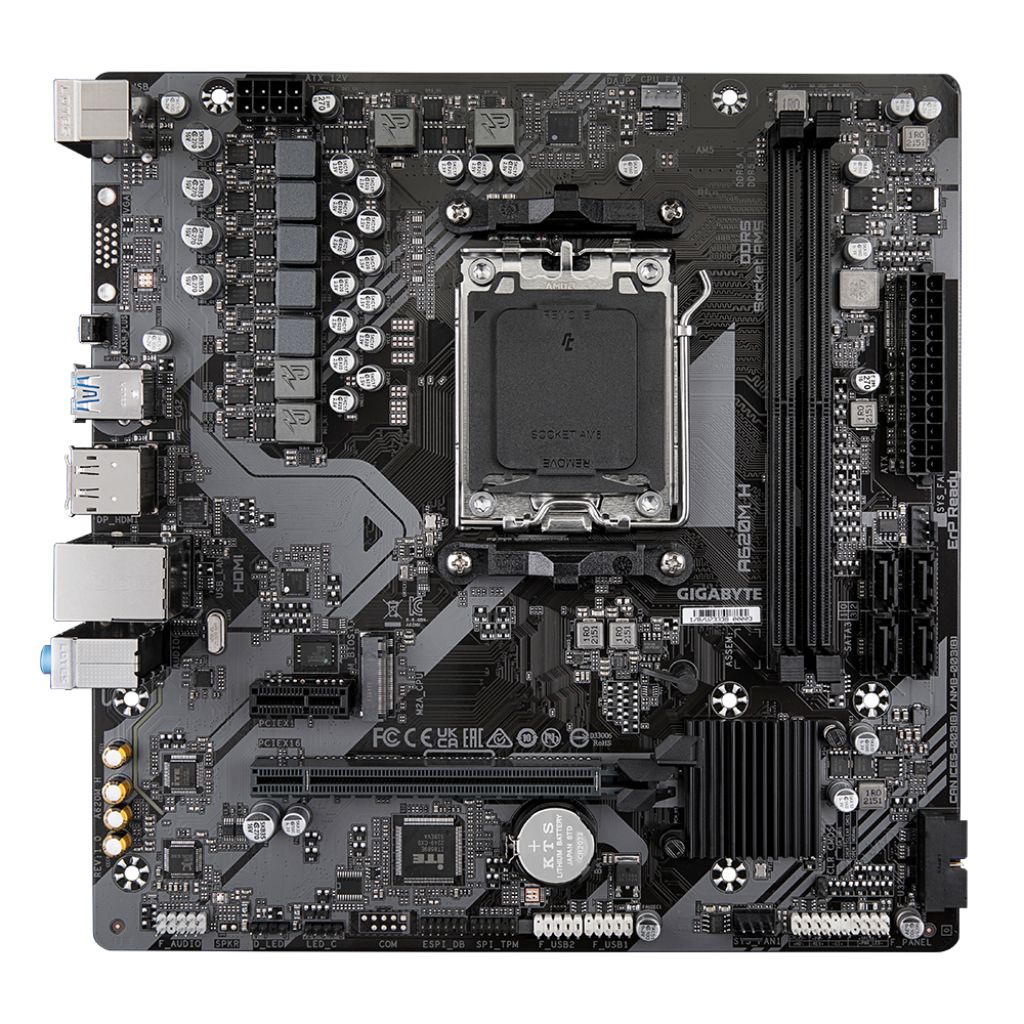

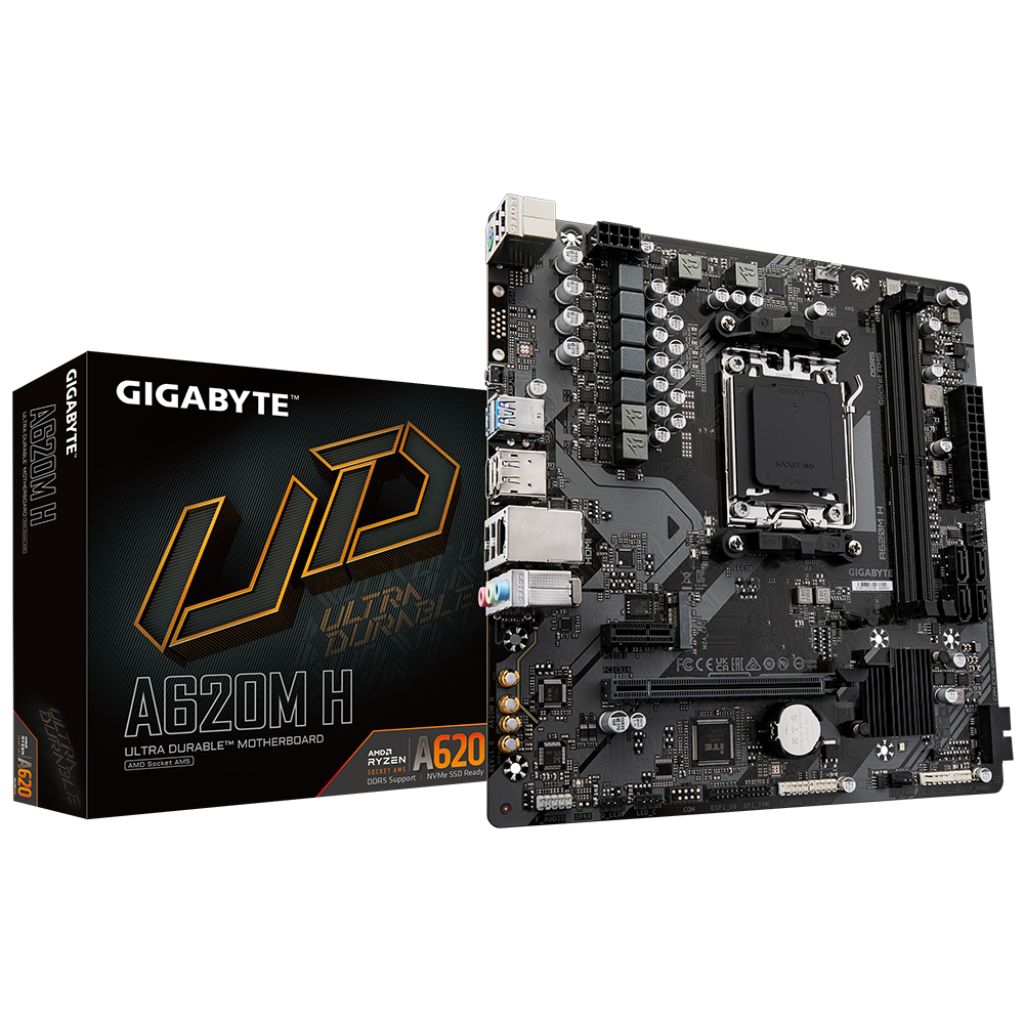

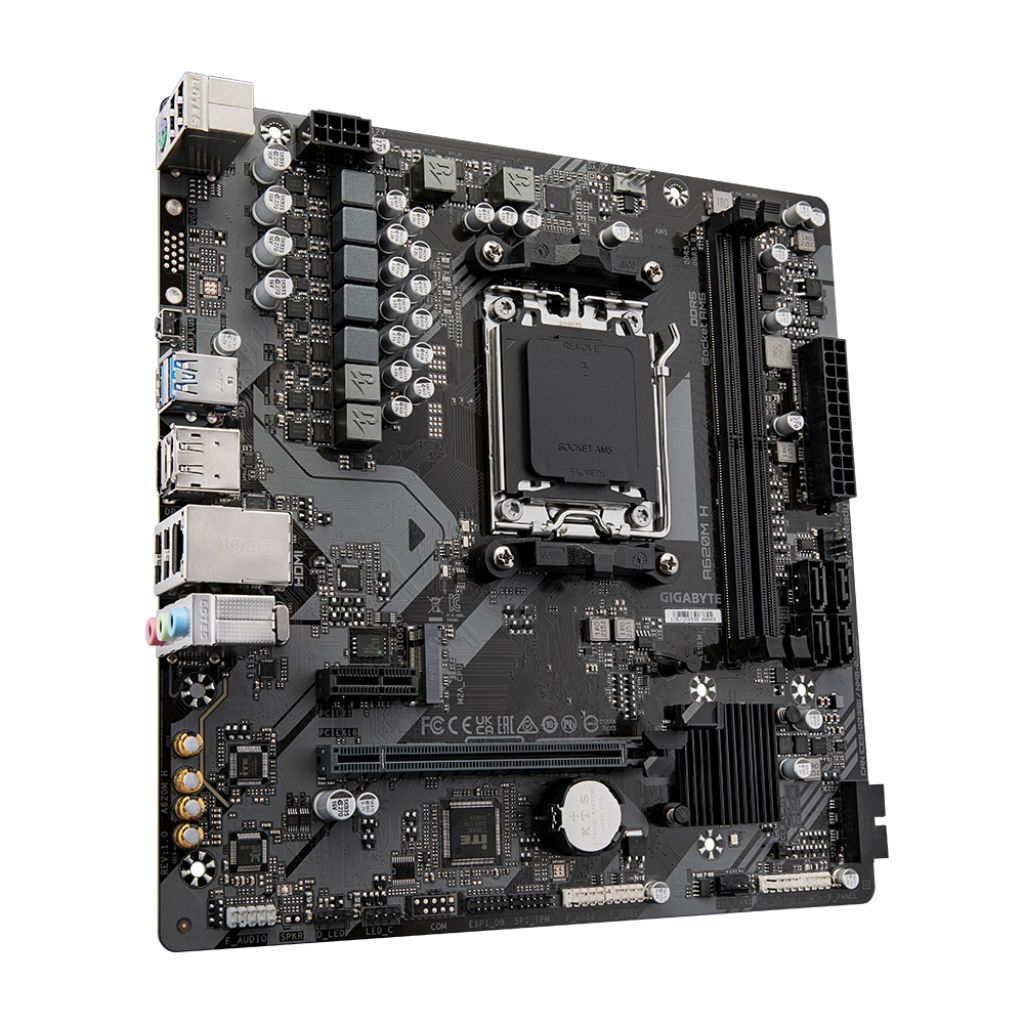

Gigabyte A620M H DDR5 Micro-ATX AM5 AMD Motherboard – GA-A620M-H
Full description Gigabyte.
- AM5 Socket with AMD A620 Chipset – Supports Ryzen 7000, 8000 & 9000 Series desktop processors.
- DDR5 Memory Support up to 6400MT/s (OC) – Dual DIMM design supporting up to 128GB capacity.
- PCIe 4.0 x16 Graphics Slot – Full-length PCIe slot for modern GPUs plus additional PCIe expansion.
- M.2 NVMe & SATA Storage – 1x PCIe 4.0 M.2 slot and 4x SATA 6Gb/s ports with RAID support.
- Reliable Everyday Performance – Gigabit LAN, HDMI & DisplayPort outputs, Realtek HD audio.
| Specifications | |
|---|---|
| Brand: | Gigabyte |
| Model: | GA-A620M-H |
| Chipset: | AMD A620 |
| Socket: | AM5 |
| Form Factor: | Micro-ATX |
| CPU Support | |
| Supported Processors: | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Memory | |
| Memory Type: | DDR5 |
| DIMM Slots: | 2 |
| Maximum Capacity: | 128GB |
| Memory Speed: | Up to 6400MT/s (OC) |
| Memory Support: | Dual Channel, AMD EXPO |
| Expansion Slots | |
| PCIe x16 Slot: | 1x PCIe 4.0 x16 |
| PCIe x1 Slot: | 1x PCIe 3.0 x1 |
| Storage | |
| M.2 Slots: | 1x M.2 (PCIe 4.0 x4) |
| SATA Ports: | 4x SATA 6Gb/s |
| RAID Support: | RAID 0/1/10 |
| Graphics Outputs | |
| HDMI: | 1x HDMI |
| DisplayPort: | 1x DisplayPort |
| Networking | |
| LAN: | Realtek Gigabit Ethernet (1GbE) |
| Audio | |
| Audio Codec: | Realtek High Definition Audio |
| Audio Channels: | 7.1 Channel |
| Back Panel I/O Ports | |
| USB 3.2 Gen 1: | 2x USB 3.2 Gen 1 |
| USB 2.0: | 4x USB 2.0 |
| PS/2 Port: | 1x PS/2 Combo |
| Display Outputs: | 1x HDMI, 1x DisplayPort |
| LAN Port: | 1x RJ-45 |
| Audio Jacks: | 3x Audio Jacks |
| Q-Flash Button: | Yes |
| Internal I/O Connectors | |
| 24-pin ATX Power: | 1 |
| 8-pin CPU Power: | 1 |
| CPU Fan Header: | 1 |
| System Fan Headers: | 2 |
| M.2 Slot: | 1 |
| SATA Connectors: | 4 |
| USB 3.2 Header: | 1 |
| USB 2.0 Headers: | 2 |
| RGB Header: | Yes |
| Addressable RGB: | Yes |
| Front Panel Header: | Yes |
| Clear CMOS: | Yes |
| BIOS | |
| BIOS Type: | 256 Mbit Flash, UEFI AMI BIOS |
| Operating System Support | |
| OS Support: | Windows 11 / Windows 10 64-bit |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
