| Specifications |
| Brand: |
Gigabyte |
| Series: |
A520 Series |
| Model: |

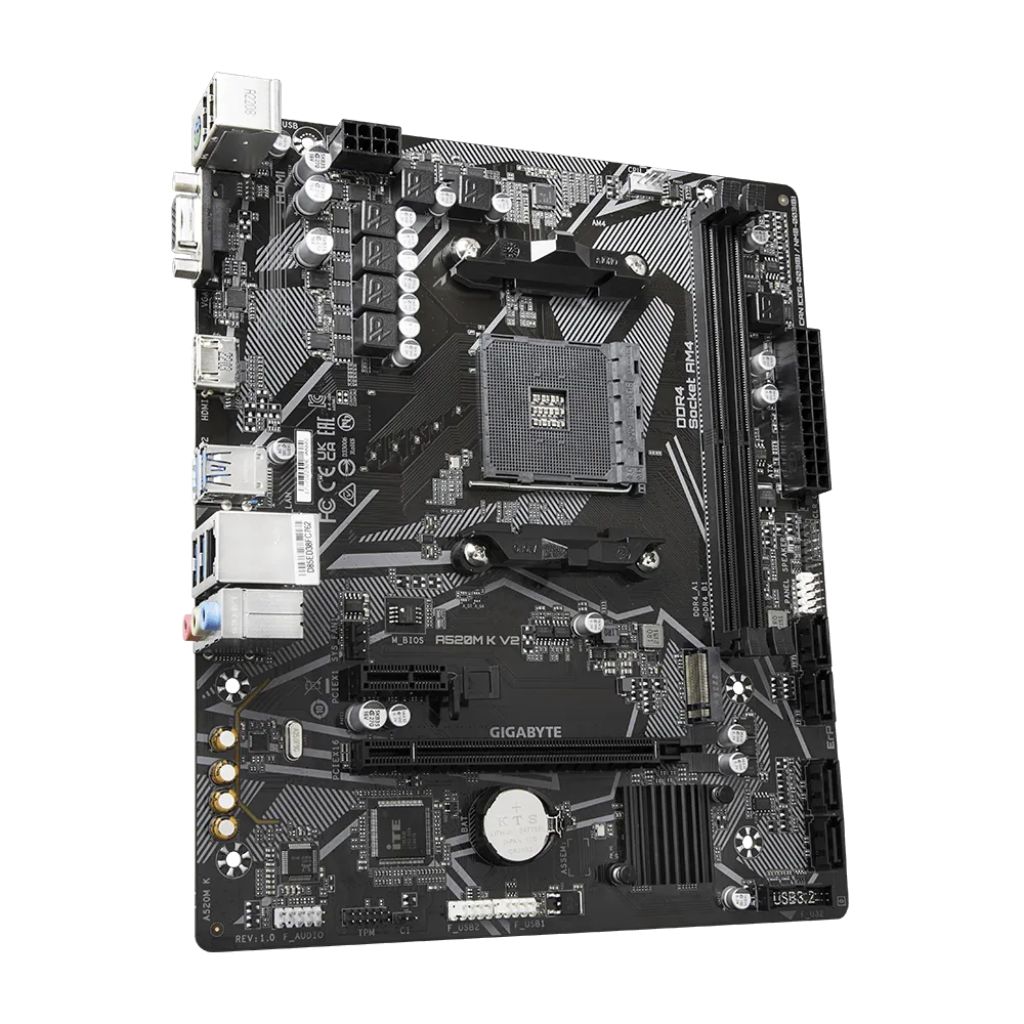

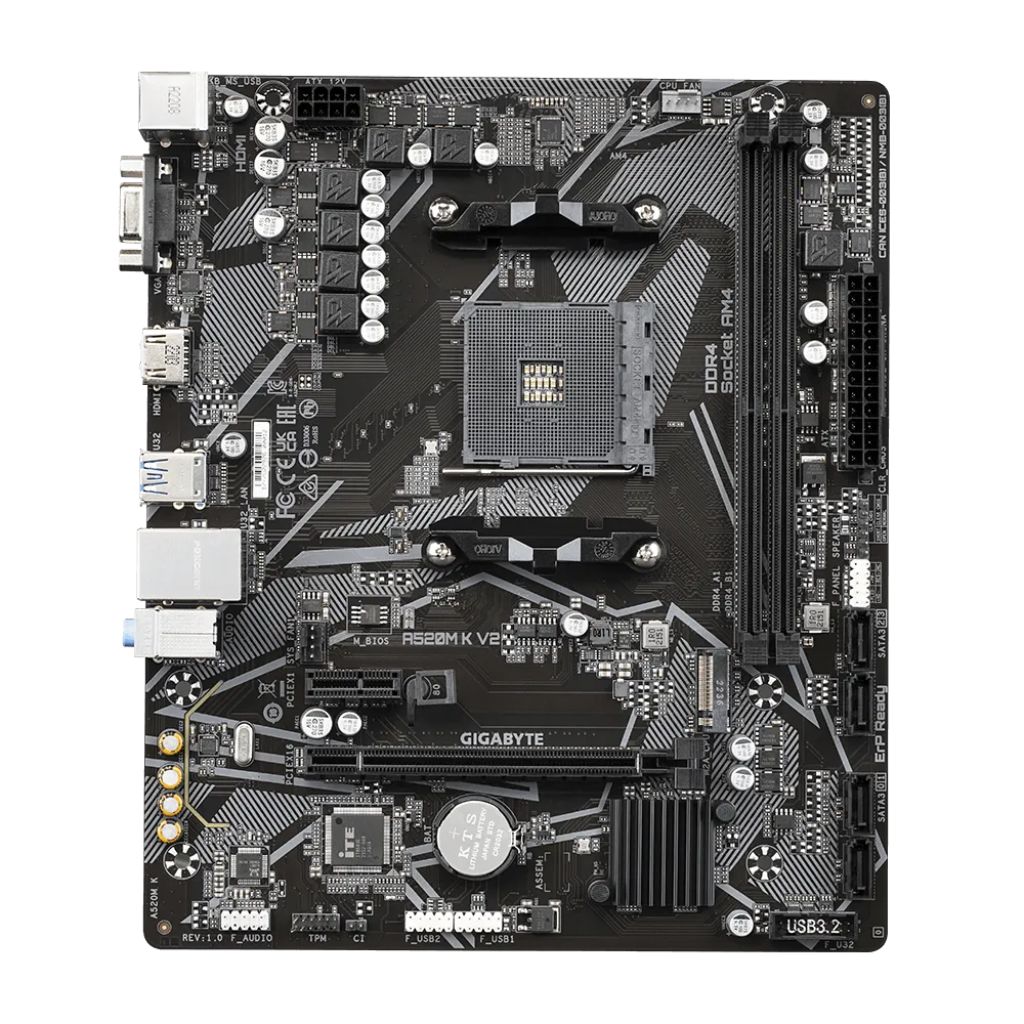

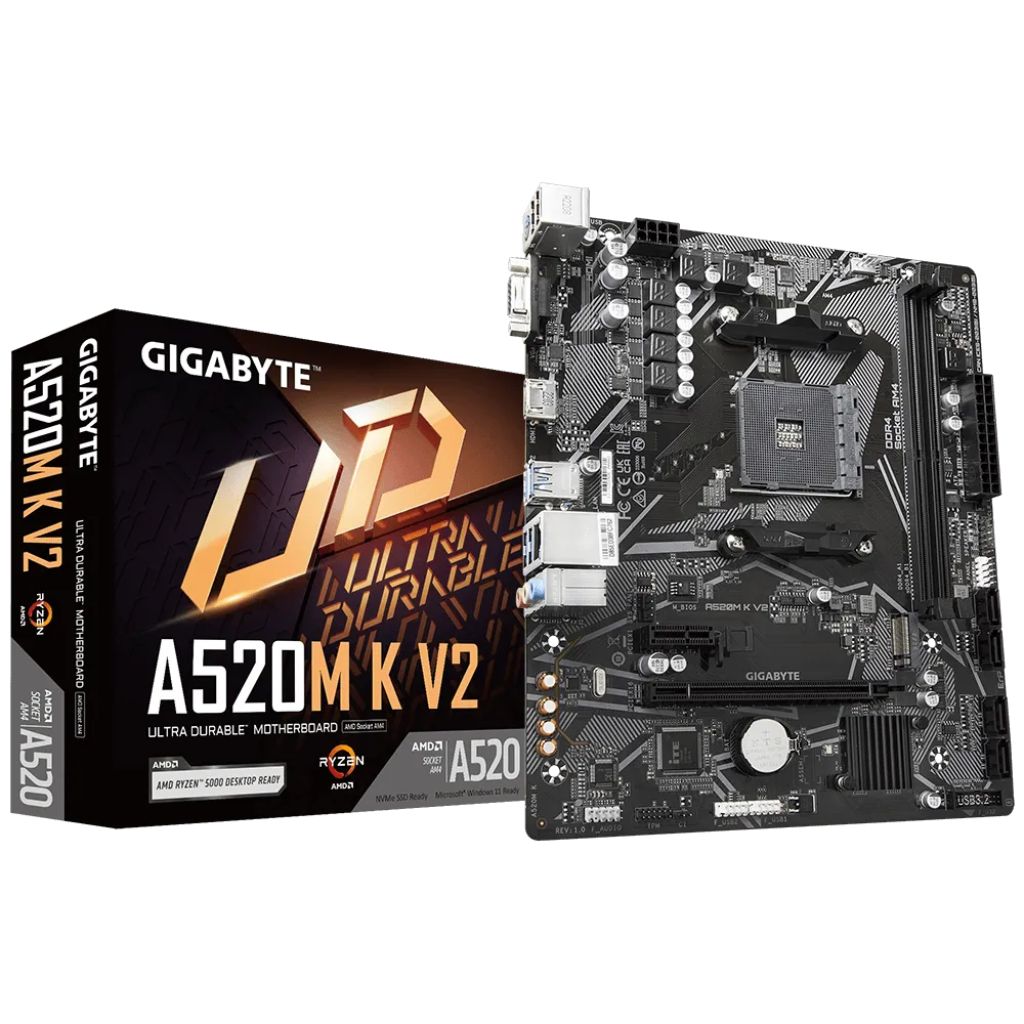

GA-A520M-K V2 |
| Technical Specs |
| CPU Support: |
- AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
|
| Chipset: |
- AMD A520
|
| Memory: |
- 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
- Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
|
| Onboard Graphics: |
Integrated Graphics Processor:
- 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
|
| Audio: |
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
|
| Connectivity |
| LAN: |
- Realtek® GbE LAN chip (1 Gbps/100 Mbps)
|
| Wireless: |
– |
| Bluetooth: |
– |
| Expansion Slots: |
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
|
| Storage Interface: |
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
- 4 x SATA 6Gb/s connectors
|
| On-Board Connectors |
| USB: |
CPU:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
|
| Internal I/O Connectors: |
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x system fan header
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
- 1 x speaker header
- 1 x Clear CMOS jumper
- 1 x chassis intrusion header
|
| Back Panel Connectors: |
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x HDMI port
- 4 x USB 3.2 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks
|
| Software & Features |
| BIOS: |
- 1 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
| Software: |
- Norton® Internet Security (OEM version)
- LAN bandwidth management software
|
| Features: |
GbE LAN with Bandwidth Management |
| 8-Channel HD Audio with High Quality Audio Capacitors |
| Rear HDMI and D-sub for Multi-display Support |
| Smart Fan 5 Features Multiple Temperature Sensors |
| GIGABYTE APP Center, Simple and Easy Use |
| General |
| Operating System: |
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
|
| Form Factor: |
- Micro ATX Form Factor; 23.3cm x 19.8cm
|
| Warranty Information |
| Warranty: |
3 Year Warranty |
