DeepCool CC560 V2 Tempered Glass Mid-Tower ATX Desktop Gaming Chassis – Black
Full description DeepCool.
- The DeepCool CC560 Mid-Tower Case offers outstanding value with spacious component compatibility, a full-sized tempered glass window, and a total of four pre-installed LED fans that gets any build started right.
- Well ventilated throughout the entire chassis, the CC560 sports an airflow front panel and a large mesh top panel to ensure fresh air is circulating.
- A total of 4 pre-installed LED fans delivers big airflow performance ensuring any system build is receiving top-notch cooling capacity.
- Enough space to support high-performance AIO liquid coolers with room for 360mm radiators in front or 240mm on top. Cooling fan support for up to 6x 120mm or 4x 140mm.
- Install up to 2x 2.5” SSDs directly on the backplate and 2x 3.5” HDDs underneath the shroud in a removeable drive cage for adjustability.
Specifications |
|
| Brand: | Deepcool |
| Series: | CC560 Series |
| Model: | R-CC560-BKGAA4-G-1 |
| Technical Specs | |
| Motherboard Support: | Supports ATX, Micro-ATX, Mini-ITX Motherboards |
| Drive Bays: | 2x 2.5″ HDD/SSD Drive Bay 1x 2.5″/3.5″ Combo Drive Bay (Removable) |
| 1x 3.5″ Drive Bay (Removable) | |
| Expansion Slots: | 7x PCI Slots |
| Dust Filters: | Yes |

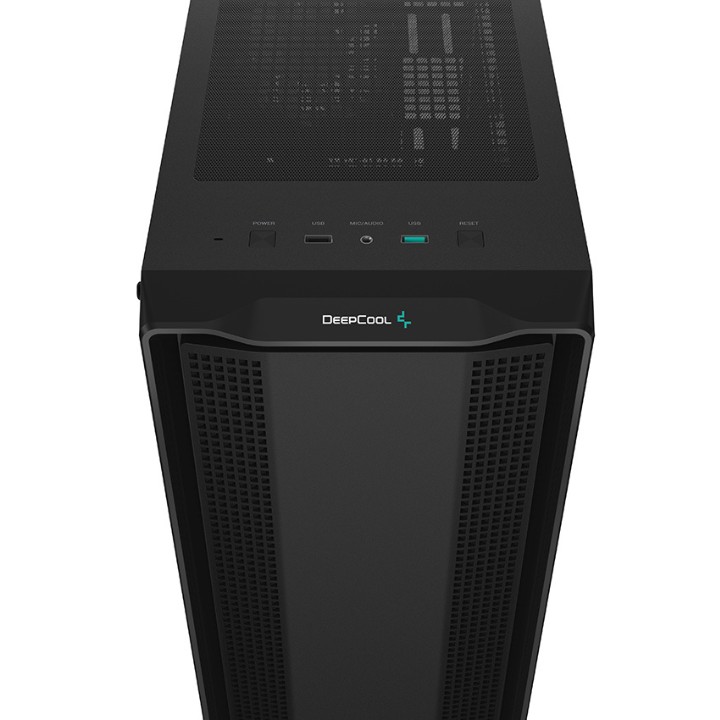

| Front I/O: | 1x Top-Panel USB 5Gbps Type-A Port 1x Top-Panel USB 2.0 Type-A Port 1x 3.5mm Combination Audio Jack |
| Side Panel: | Tempered Glass |
| Fan Specs | |
| Pre-Installed Fans: | 4x DeepCool 120mm Blue LED Fans |
| Fan Support: | Front 3x 120mm Fans or 3x 140mm Fans Top 2x 120mm Fans or 2x 140mm Fans Rear 1x 120mm Fan PSU Shroud 2x 120mm Fans |
| Radiator Support | |
| Front: | 120/140/240/280/360mm Radiator |
| Top: | 120/140/240mm Radiator |
| Rear: | 120mm Radiator |
| Side: | – |
| Chassis Clearance Specs | |
| Cooler Height Clearance: | 165mm |
| GPU Length Clearance: | 370mm |
| PSU Length Limit: | Up to 170mm |
| Software & Features | |
| Software Support: | – |
| Features: | Well ventilated throughout the entire chassis |
| A total of 4 pre-installed LED fans | |
| Enough space to support high-performance AIO liquid coolers | |
| Max CPU Cooler Height: 163mm | |
| Install up to 2x 2.5” SSDs directly on the backplate | |
| General | |
| Chassis Lighting: | Blue Lighting |
| PSU Support: | ATX |
| Dimensions: | 432 x 483 x 215 mm (D x H x W) |
| Weight: | 5.25Kg |
| Colour: | Black |
| Warranty Information | |
| Warranty: | 2 Year Warranty |
DeepCool CC560 V2 Tempered Glass Mid-Tower ATX Desktop Gaming Chassis – Black
Contact us if you would like to enquire about this product.
