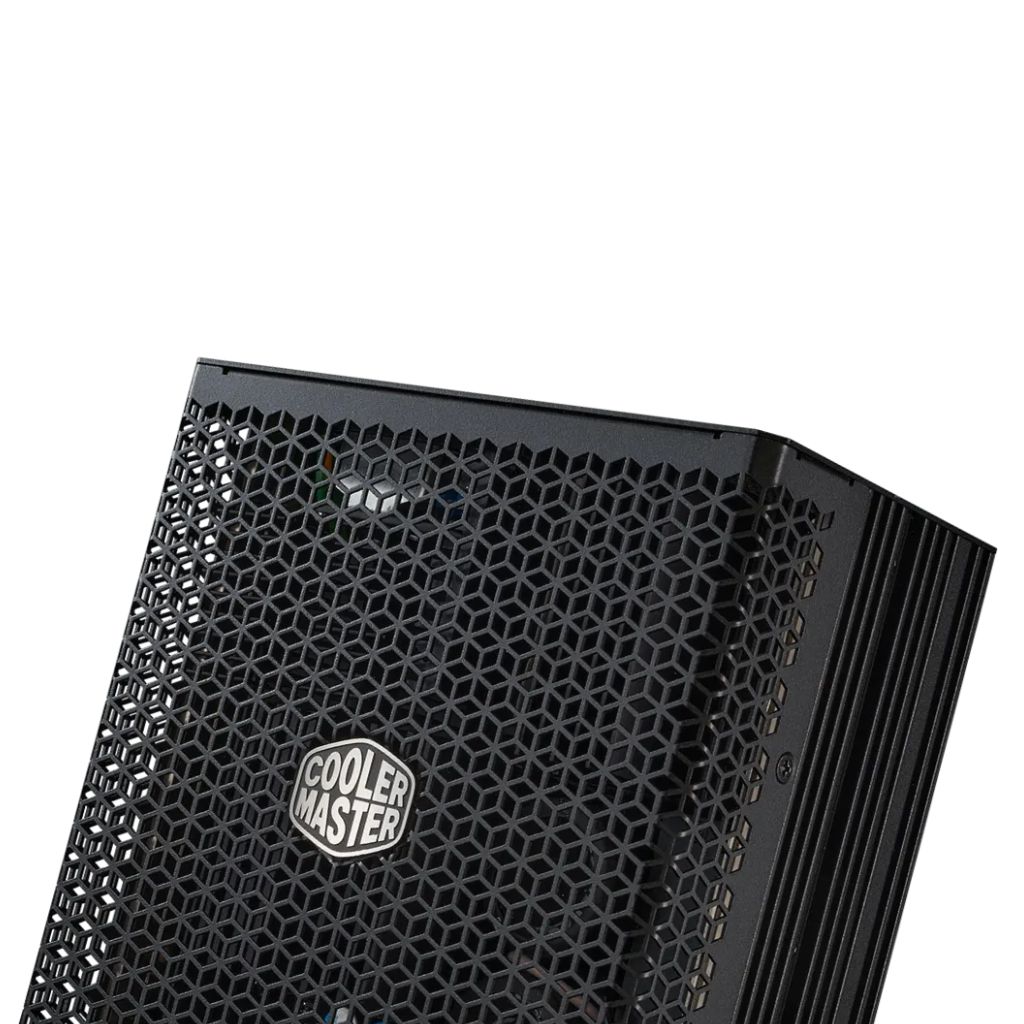

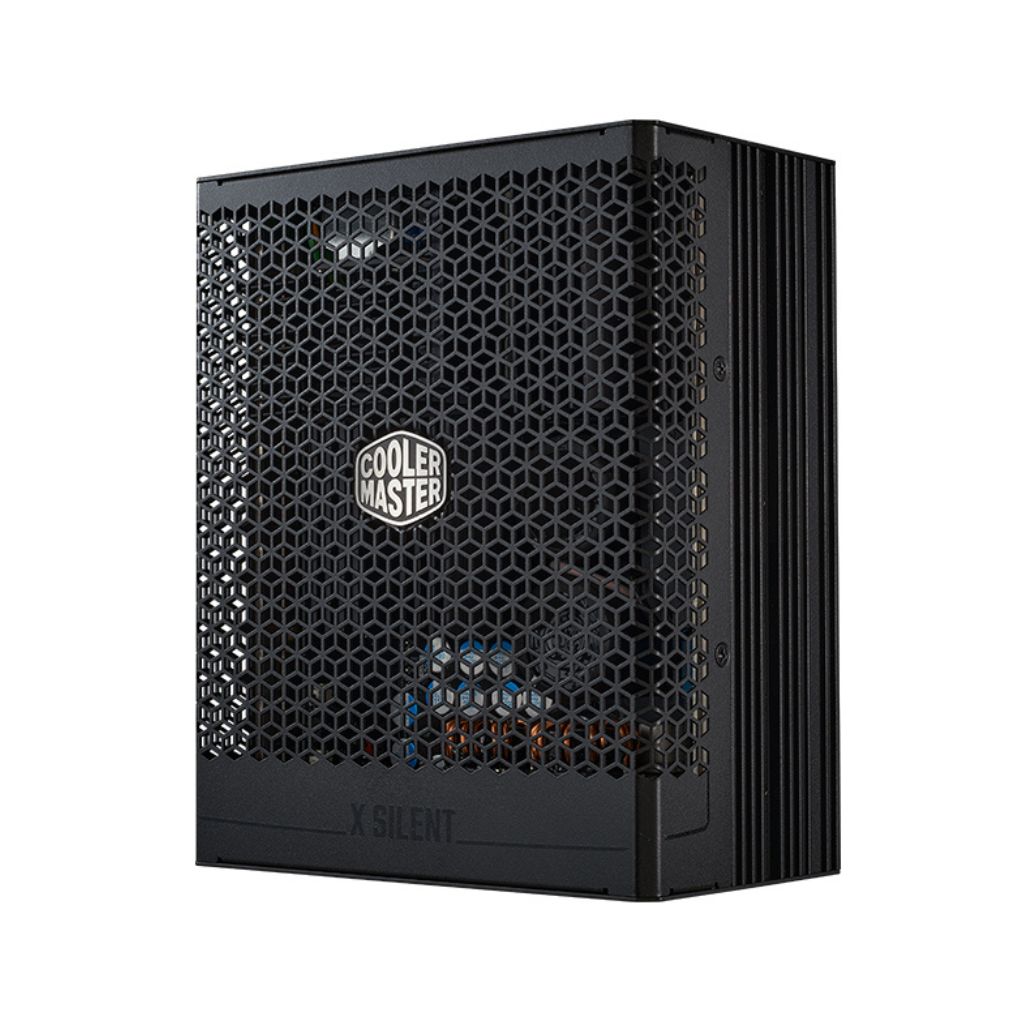

Cooler Master X Silent Edge Platinum 1100w 80 PLUS Platinum ATX 3.1 Desktop Power Supply Black – MPS-B001-AZBP-NBEU
Full description Cooler Master.
- Power demanding gaming and creator systems with 1100W output and ATX 3.1 compliance, giving modern high-performance builds the stable headroom needed for flagship GPUs, heavy multitasking, and sustained workloads without compromising long-session reliability.
- Maximise efficiency with 80 PLUS Platinum certification and ≥94% efficiency at typical load, helping reduce wasted energy, lower excess heat, and support quieter overall system operation for premium desktops built around performance and long-term value.
- Build cleaner and upgrade easier with a fully modular design and modern 12V-2×6 connector, making this power supply a strong choice for current-generation graphics cards while improving cable routing, airflow, and overall internal case organisation.
- Protect valuable hardware with comprehensive safeguards including OPP, OVP, OTP, OCP, SCP, UVP, and surge and inrush protection, helping defend your system against common electrical risks while maintaining dependable stability in demanding daily use.
- Designed for serious enthusiasts, the Cooler Master X Silent Edge Platinum 1100W combines ATX 12V Ver. 3.1, broad connector support, PMBus, and an external fan 4-pin connector, delivering premium flexibility for advanced desktop power management.
| Specifications | |
|---|---|
| Brand | Cooler Master |
| Series | X Series |
| Model | MPS-B001-AZBP-NBEU |
| Colour | Black |
| Power Supply | |
| Rated Output Power | 1100W |
| Form Factor | ATX |
| ATX Version | ATX 3.1 |
| Certification | 80 PLUS Platinum |
| Efficiency | ≥ 94% @ Typical Load |
| PFC | Active PFC |
| Modularity | Fully Modular |
| ErP 2014 Lot 3 | Yes |
| Hold Up Time | ≥ 16ms |
| MTBF | >100,000 Hours |
| Protection | |
| Protection | OPP, OVP, OTP, OCP, SCP, UVP, Surge & Inrush Protection |
| Connectors | |
| ATX 24-Pin | 1 |
| EPS 4+4 Pin | 1 |
| EPS 8 Pin | 1 |
| PCI-E 6+2 Pin | 4 |
| 12V-2×6 | 1 |
| SATA | 12 |
| Peripheral 4-Pin | 4 |
| USB 10P Connector | 1 |
| PMBus 5 Pin Connector | 1 |
| External Fan 4Pin Connector | 1 |
| Compliance & Design | |
| Regulatory | TUV, CE, CCC, EAC, RCM, UKCA/BIS, KC |
| Category | Above 750W |
| Physical | |
| Dimensions | 180 x 150 x 86 mm |
| Warranty Information | |
| Warranty | 5 Year Warranty |
