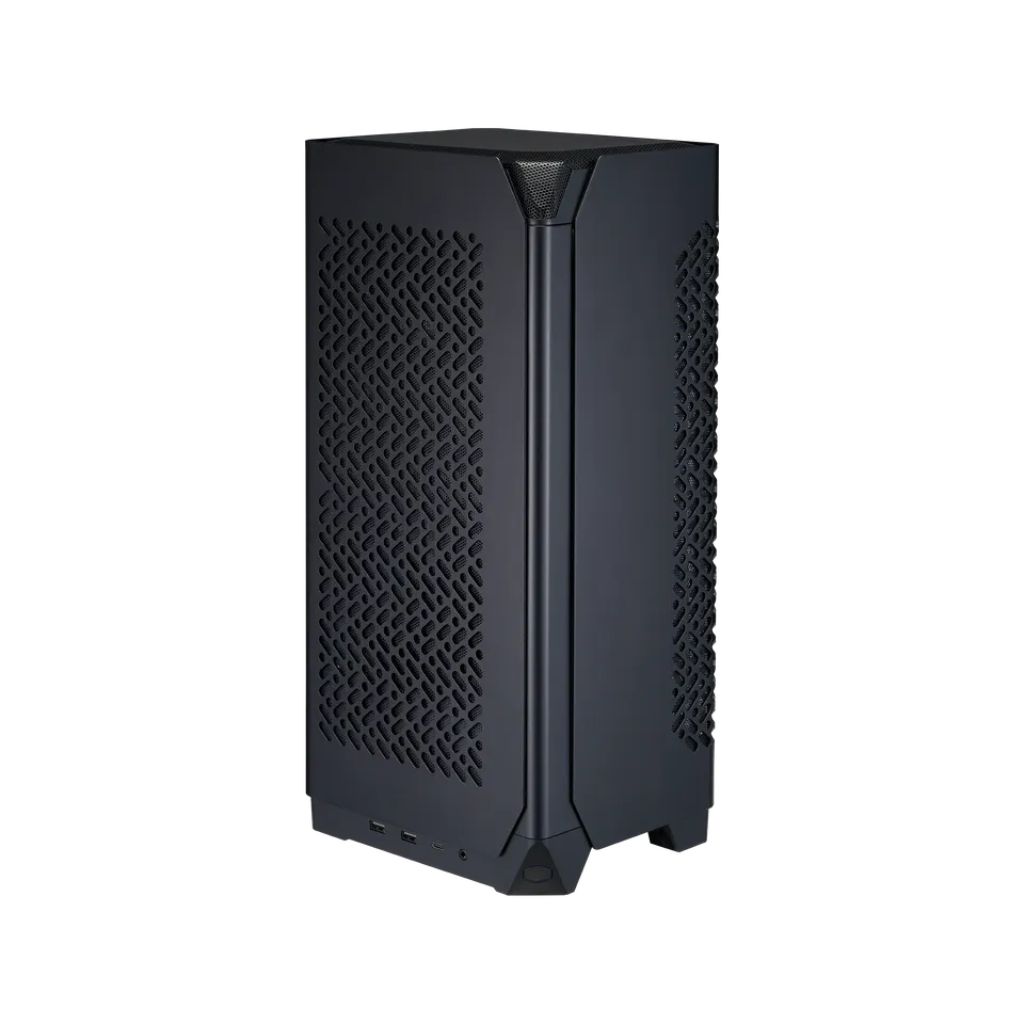

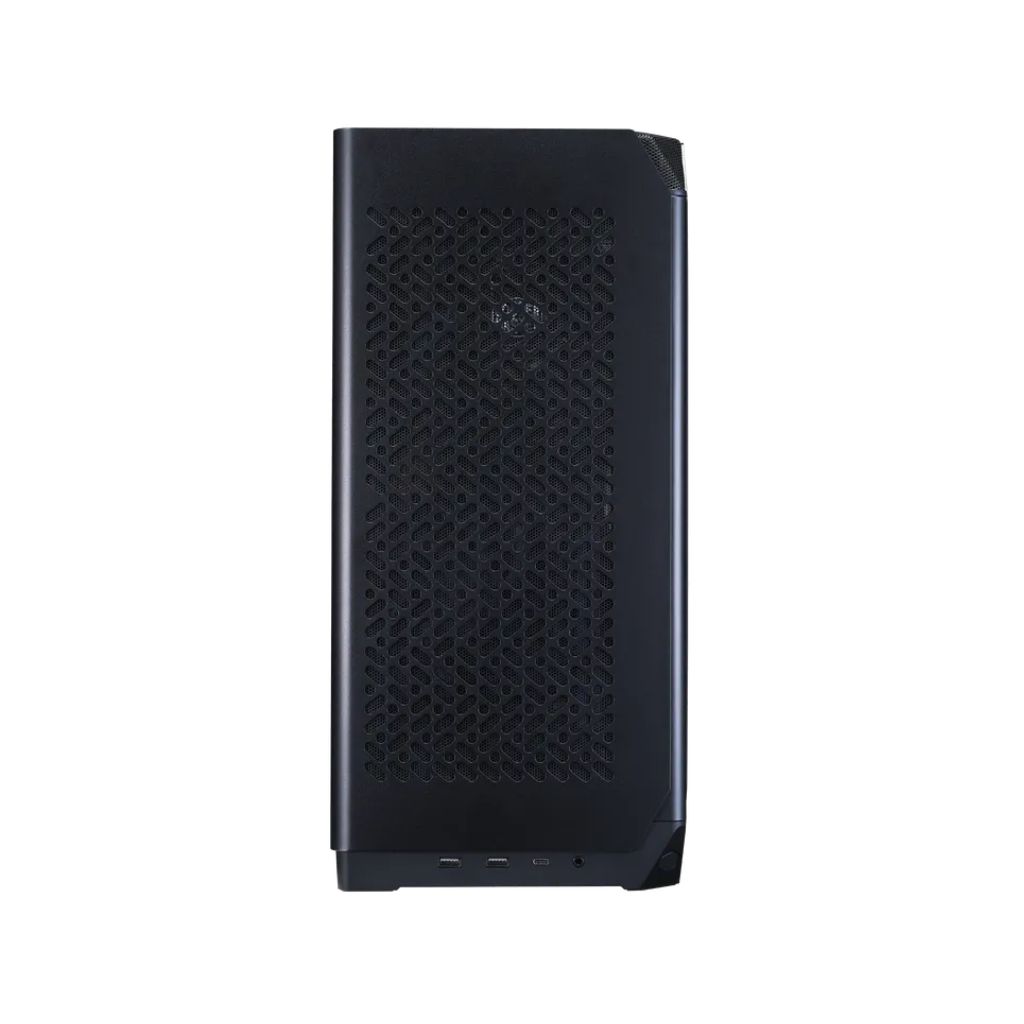

Cooler Master NCORE 100 AIR Aluminum Mini-ITX Desktop PC Case Black – NR100-KNNN-S00
Full description Cooler Master.
- Build a compact high-airflow system with support for Mini-ITX motherboards in a premium aluminium, steel, and plastic chassis, giving the Cooler Master NCORE 100 AIR a slim footprint without sacrificing modern hardware support or everyday usability.

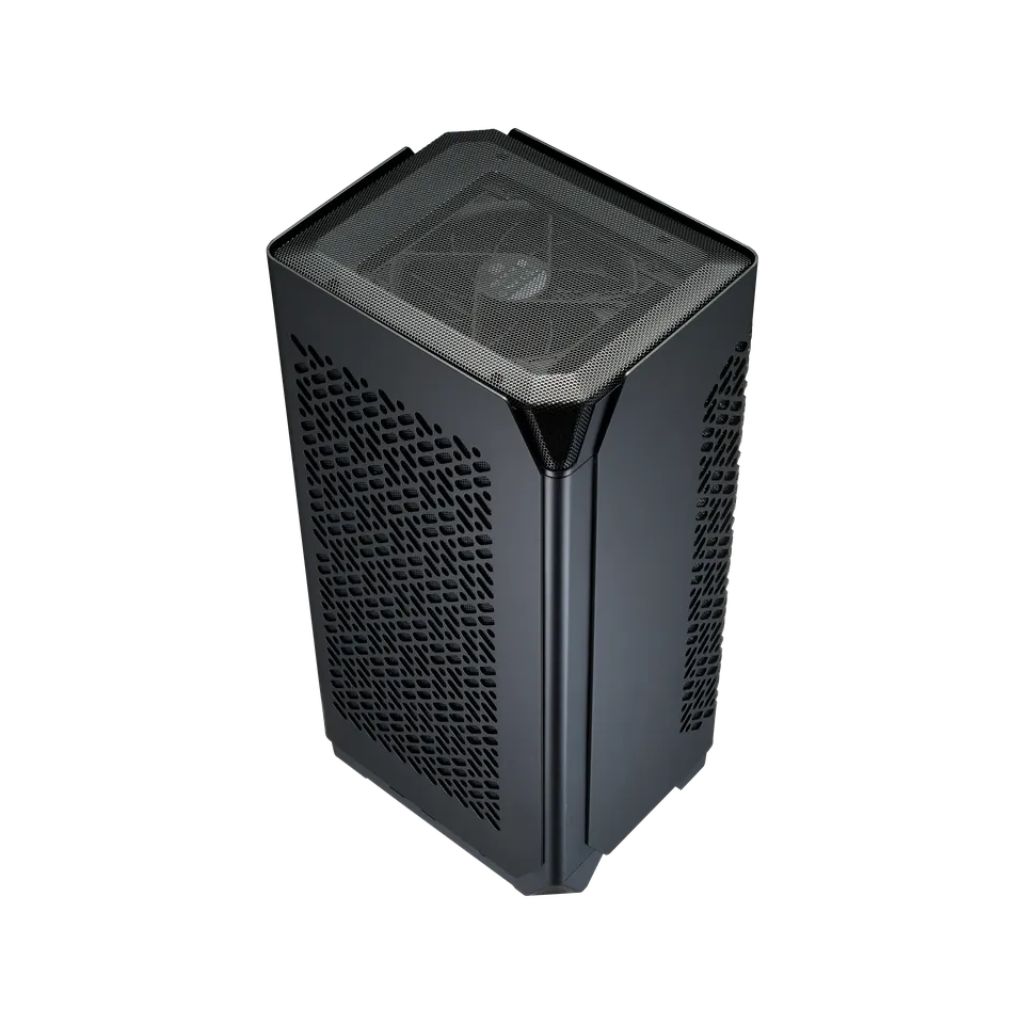

- Maximise cooling in a small form factor with partial mesh side panels and two pre-installed 120mm PWM fans, including top and side exhaust airflow, helping the case maintain strong ventilation for performance-focused compact desktop builds.
- Support powerful compact hardware with adjustable GPU accommodation up to 357 x 79 x 180mm in expanded mode, while the PCIe slot can be adjusted for longer cards, making the chassis more flexible for modern small-form-factor gaming systems.
- Keep your setup practical with front I/O including USB 20Gbps Type-C, dual USB 5Gbps Type-A, and a 3.5mm combo audio jack, giving easy access for fast peripherals, storage devices, and everyday audio connectivity on the front panel.
- Designed for efficient Mini-ITX builds, the Cooler Master NCORE 100 AIR supports SFX power supplies, includes fine-mesh dust filters, and offers 11mm cable management space, helping create a cleaner and more manageable compact system layout.
| Specifications | |
|---|---|
| Brand | Cooler Master |
| Series | NCORE Series |
| Model | NCORE 100 Air (NR100-KNNN-S00) |
| Colour | Black |
| Chassis | |
| Form Factor | Mini-ITX |
| Materials | Steel, Plastic, Aluminium |
| Side Panel | All-Round Partial Mesh Side Panels |
| Motherboard Support | Mini-ITX |
| Expansion Slots | 3 x PCI Slots |
| Drive Bays | 1 x 2.5″ HDD/SSD Drive Bay |
| PSU Support | SFX |
| Front I/O | |
| USB Type-C | 1 x Front-Panel USB 20Gbps Type-C |
| USB Type-A | 2 x Front-Panel USB 5Gbps Type-A |
| Audio Jack | 1 x 3.5mm Combination Audio Jack |
| Cooling | |
| Included Fans | 1 x Cooler Master CS120 120mm PWM Fan (Top Exhaust) 1 x Cooler Master CS120 120mm PWM Fan (Side Exhaust) |
| Fan Support Top | 1 x 120mm |
| Fan Support Side | 1 x 120mm |
| Clearance | |
| RAM Height Limitation | 50mm with taller GPUs (62mm)70mm with shorter GPUs (42mm) |
| CPU Cooler Height Limitation | 50mm with taller GPUs (62mm)70mm with shorter GPUs (42mm) |
| GPU Limitation | Normal Mode, 50mm CPU Cooler: 337 x 62 x 180mm Expanded Mode, 50mm CPU Cooler: 357 x 79 x 180mm Normal Mode, 70mm CPU Cooler: 337 x 42 x 180mm Expanded Mode, 70mm CPU Cooler: 357 x 59 x 180mm |
| PSU Length Limit | Up to 100mm |
| Cable Management | Yes, 11mm behind motherboard tray |
| Features | |
| Dust Filters | Yes, dust filters on side panels (fine mesh) |
| Physical | |
| Dimensions Normal Mode | 155 x 212 x 449 mm |
| Dimensions Expanded Mode | 172 x 212 x 449 mm |
| Weight | 3.9kg |
| Warranty Information | |
| Warranty | 2 Year Warranty |
Cooler Master NCORE 100 AIR Aluminum Mini-ITX Desktop PC Case Black – NR100-KNNN-S00
Contact us if you would like to enquire about this product.
