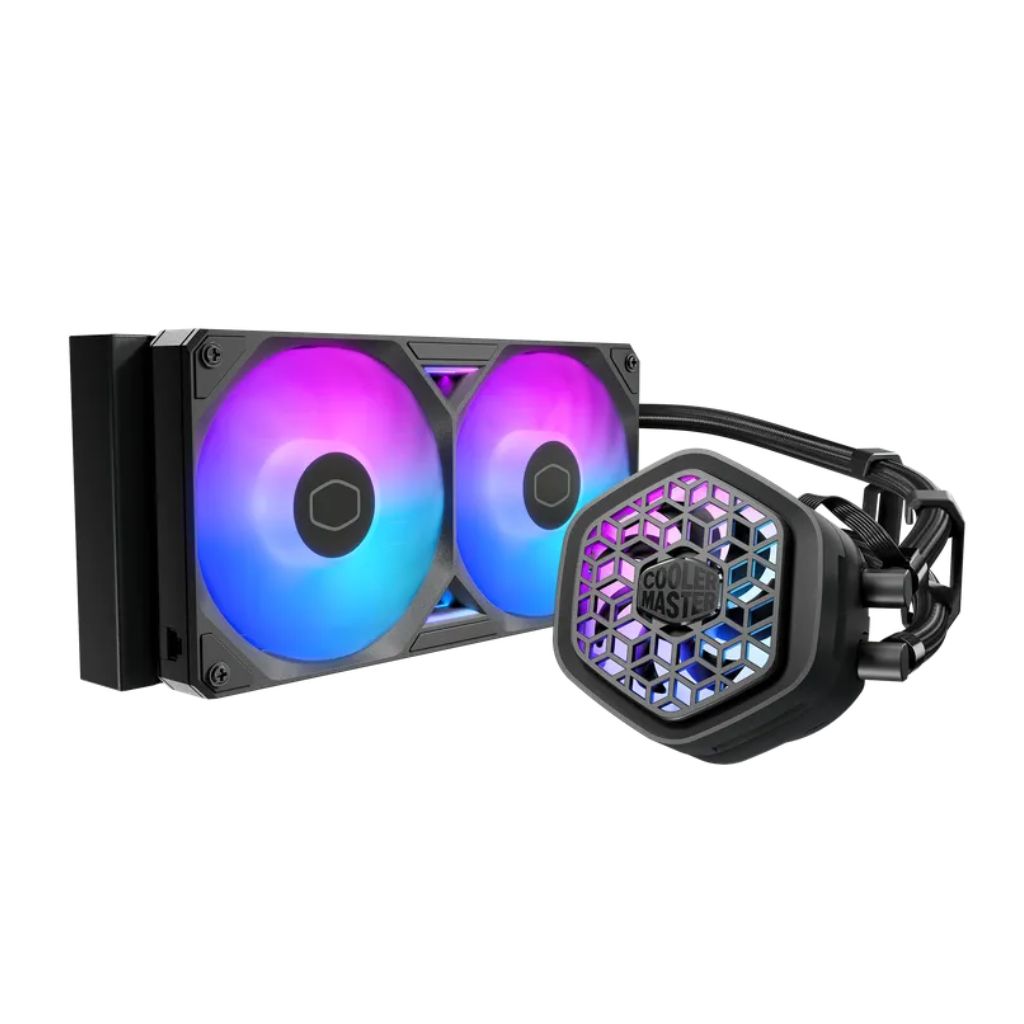

Cooler Master MasterLiquid Atmos II VRM Fan ARGB 240mm Liquid CPU Cooler Black – MLX-D24M-A25SZ-V1
Full description Cooler Master.
- Keep modern CPUs cooler under demanding workloads with a 240mm aluminium radiator, dual 120mm ARGB fans, and a dedicated VRM fan, giving this liquid cooler the airflow and thermal control needed for gaming, streaming, and heavy desktop multitasking.
- Improve motherboard power delivery cooling with the integrated VRM fan, helping direct airflow where it matters most for more stable operation under load, especially in performance-focused systems running higher-end processors and sustained workloads.
- Add vibrant system style with ARGB lighting across the pump and fans, while the Cooler Master MasterLiquid Atmos II VRM Fan combines strong cooling performance with a cleaner, more premium look for modern showcase PC builds.
- Balance cooling and acoustics with fan speeds from 690 to 2500 RPM, up to 141.4 CFM max airflow, and a pump noise level of just 25 dB(A) max, supporting strong heat dissipation without excessive everyday noise.
- Install across a wide range of current systems with support for Intel LGA 1851/1700/1200/115X and AMD AM5/AM4, while a 6 Year Warranty adds long-term confidence for builders investing in premium liquid cooling.
| Specifications | |
|---|---|
| Brand | Cooler Master |
| Series | MasterLiquid Atmos II VRM Fan |
| Model | MLX-D24M-A25SZ-V1 |
| Colour | Black |
| Cooling System | |
| Cooler Type | 240mm Liquid CPU Cooler |
| Radiator Size | 240mm |
| Radiator Dimensions | 277mm x 119.2mm x 27mm |
| Radiator Material | Aluminium |
| Tube Length | 350mm |
| Compatibility | |
| Intel Support | LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156 |
| AMD Support | AM5 / AM4 |
| Pump Specifications | |
| Pump Dimensions | 92.5mm x 87mm x 38.5mm |
| Pump Power Consumption | 3.84W |
| Pump Rated Voltage | 12 VDC |
| Pump Speed | 3400 ± 300 RPM |
| Pump Connector | 3-Pin ARGB + 4-Pin PWM |
| Pump Life Expectancy | >210,000 Hours |
| Pump Noise Level | 25 dB(A) Max |
| Fan Specifications | |
| Included Fans | 2 x 120mm ARGB Fans |
| Fan Dimensions | 241mm x 122mm x 26.5mm |
| Fan Speed | 690 ~ 2500 RPM |
| Max Air Flow | 141.4 CFM |
| Max Static Pressure | 3.61 mmH2O |
| Noise | 36 dB(A) |
| Connector | 7-Pin PWM + ARGB |
| Fan MTTF | >160,000 Hours |
| VRM Fan Specifications | |
| VRM Fan Dimensions | 85mm x 78.5mm x 25.5mm |
| Wire Length | 1000 mm |
| VRM Fan Speed | 450~4000 RPM ±10% |
| Airflow | 9.3 CFM |
| Air Pressure | 2.8 mmH2O |
| Noise Level | 36 dB(A) |
| MTTF | >50,000 Hours |
| Bearing Type | Loop Dynamic Bearing |
| Connector Type | 4-Pin PWM |
| Warranty Information | |
| Warranty | 6 Year Warranty |
