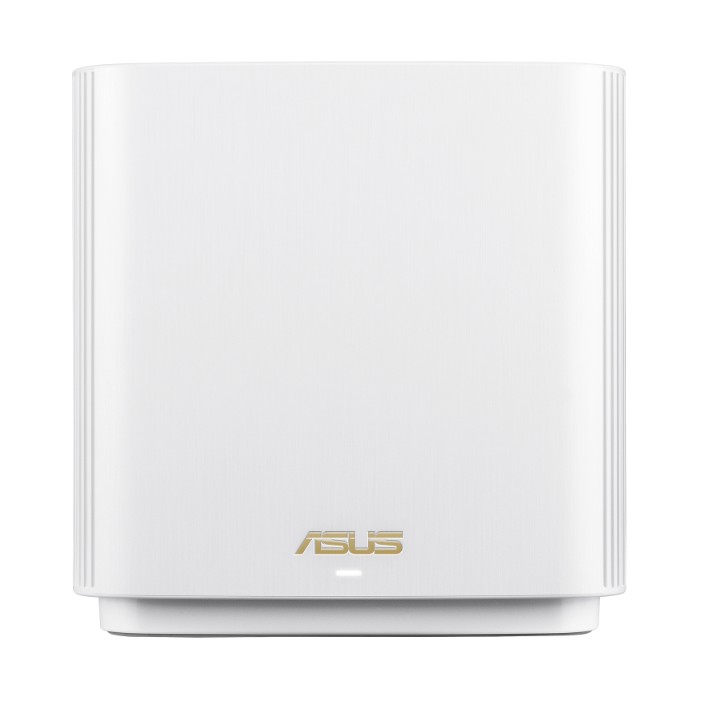

ASUS ZenWiFi XT9 (W-1PK) AX7800 AiProtection tri-band WiFi 6 AiMesh WiFi Router – Single Pack
Full description ASUS.
- The latest ASUS RangeBoost Plus technology, along with the flagship Broadcom WiFi 6 chipset, significantly improves WiFi signal range and overall coverage by up to 38%*, offering expansive coverage in spaces up to 5700 square feet.
- The ASUS Router mobile app with its intuitive interface makes managing your mesh WiFi system simple right from your smartphone.
- ASUS ZenWiFi XT9 gives you flexible backhaul options: wireless or wired Ethernet speeds. You can use either the second 5GHz band or an Ethernet cable to connect to a local network node. Or just let the ZenWiFi XT9 choose the best connection type for you. The choice is always yours!
Specifications |
|
| Brand: | ASUS |
| Series: | ZenWifi Series |
| Model: | XT9 (W-2PK) 90IG0740-MO3B40 |
| Technical Specs | |
| Network Standard: | – IEEE 802.11a – IEEE 802.11b – IEEE 802.11g – WiFi 4 (802.11n) – WiFi 5 (802.11ac) – WiFi 6 (802.11ax) – IPv4 – IPv6 |
| WiFi Data Rate: | – 802.11a : up to 54 Mbps – 802.11b : up to 11 Mbps – 802.11g : up to 54 Mbps – WiFi 4 (802.11n) : up to 300 Mbps – WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps – WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps – WiFi 6 (802.11ax) (5GHz-1) : up to 2402 Mbps – WiFi 6 (802.11ax) (5GHz-2) : up to 4804 Mbps |
| Antenna: |
Internal antenna x 6
|
| Transmit / Receive: | – 2.4GHz 2×2 – 5GHz-1 2×2 – 5GHz-2 4×4 |
| Processor: | 1.7 GHz quad-core processor |
| Memory: | – 256 MB Flash – 512 MB RAM |
| Boosts Speed: | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions. |
| Operating Frequency: | 2.4G Hz, 5 GHz-1, 5 GHz-2 |
| Operating Mode: | Wireless router mode Access point mode |
| I/O Ports: | RJ45 for 2.5G BaseT for WAN x 1 RJ45 for Gigabits BaseT for LAN x 3 USB 3.2 Gen 1 x 1 |
| Buttons: | WPS Button, Reset Button, Power Switch |
| LED Indicator: | Power x 1 |
| Game Mode: | – |
| Security: | – WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise – WPS – Let’s Encrypt – DNS-over-TLS – Security Scan – Firewall • Maximum Firewall Keyword Filter : Max 64 rules • Maximum Firewall Network Service Filter : Max 32 rules • Maximum Firewall URL Filter : Max 64 rules |
| LAN: | – IGMP Snooping – IPTV – LAN Link Aggregation – Wake on LAN (WOL) |
| Wireless: | UTF-8 SSID WiFi MAC Address Filter • Maximum MAC Filters : Max 64 rules Wireless Scheduler Airtime Fairness RADIUS Client Universal Beamforming Explicit Beamforming |
| Features: | Support 160MHz Channel |
| ASUS RangeBoost Plus technology | |
| ASUS AiMesh technology | |
| Router mobile app | |
| AiProtection | |
| General | |
| Dimensions: | 160 x 75 x 161.5 mm |
| Weight: | 740g |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
