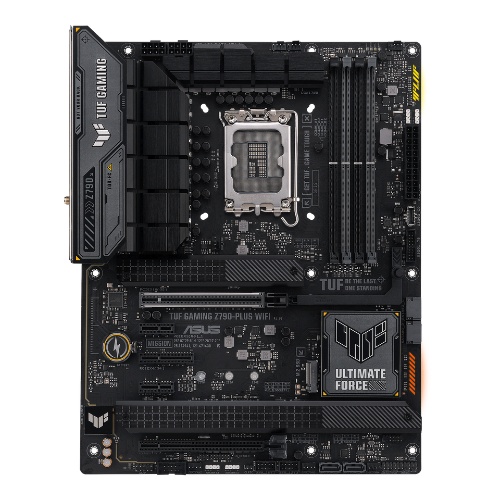

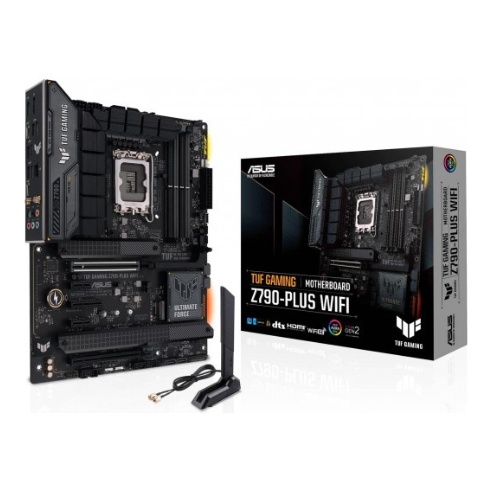

ASUS TUF Gaming Z790-PLUS WiFi DDR5 ATX LGA1700 Motherboard
Full description ASUS.
- TUF GAMING Z790-PLUS WIFI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability.
- Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming.
- TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail.
- Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
Specifications |
|
| Brand: | ASUS |
| Series: | Intel Z790 Series |
| Model: | TUF GAMING Z790-PLUS WIFI (90MB1D80-M0EAY0) |
| Technical Specs | |
| CPU Support: | Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core , Pentium Gold and Celeron Processors – Intel Turbo Boost Technology 2.0 – Intel Turbo Boost Max Technology 3.0 |
| Chipset: | Intel Z790 Chipset |
| Memory: | 4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| Onboard Graphics: | 1 x DisplayPort 1 x HDMI port |
| Audio: | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback*” Audio Features – Audio Shielding – Rear optical S/PDIF out port – Premium audio capacitors – Dedicated audio PCB layers – Audio Cover |
| Connectivity | |
| LAN: | 1 x Intel® 2.5Gb Ethernet TUF LANGuard |
| Wireless: | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* |
| Bluetooth: | Bluetooth v5.3 |
| Expansion Slots: | Intel® 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot Intel® Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x4 slot 2 x PCIe 3.0 x1 slots |
| Storage Interface: | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 – Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode Intel® Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| On-Board Connectors | |
| USB: | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Internal I/O Connectors: | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header |
| Back Panel Connectors: | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| Software & Features | |
| BIOS: | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Software: | ASUS Exclusive Software |
| Features: | ASUS TUF PROTECTION |
| ASUS Q-Design | |
| ASUS Thermal Solution | |
| ASUS EZ DIY | |
| AURA Sync | |
| General | |
| Operating System: | Windows® 11, Windows® 10 64-bit |
| Form Factor: | ATX Form Factor (30.5 cm x 24.4 cm) |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
ASUS TUF Gaming Z790-PLUS WiFi DDR5 ATX LGA1700 Motherboard
