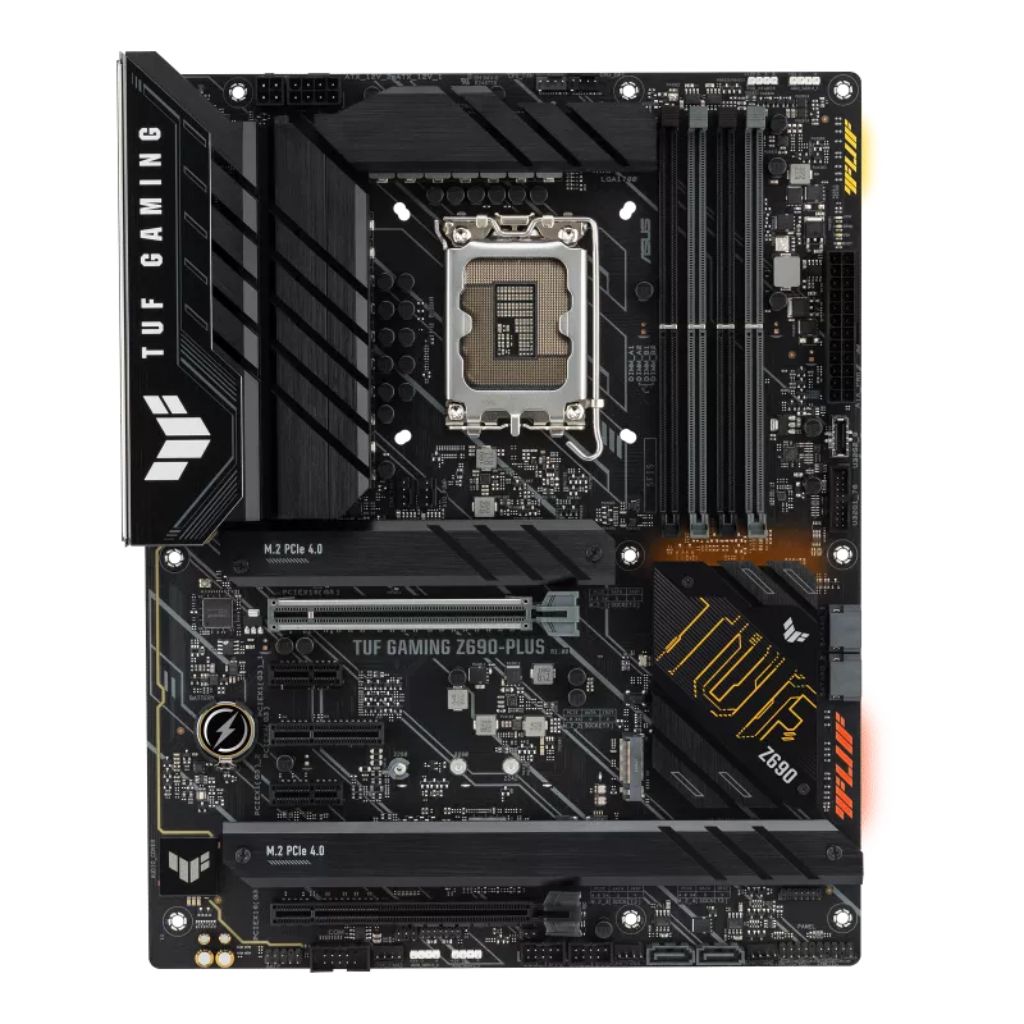

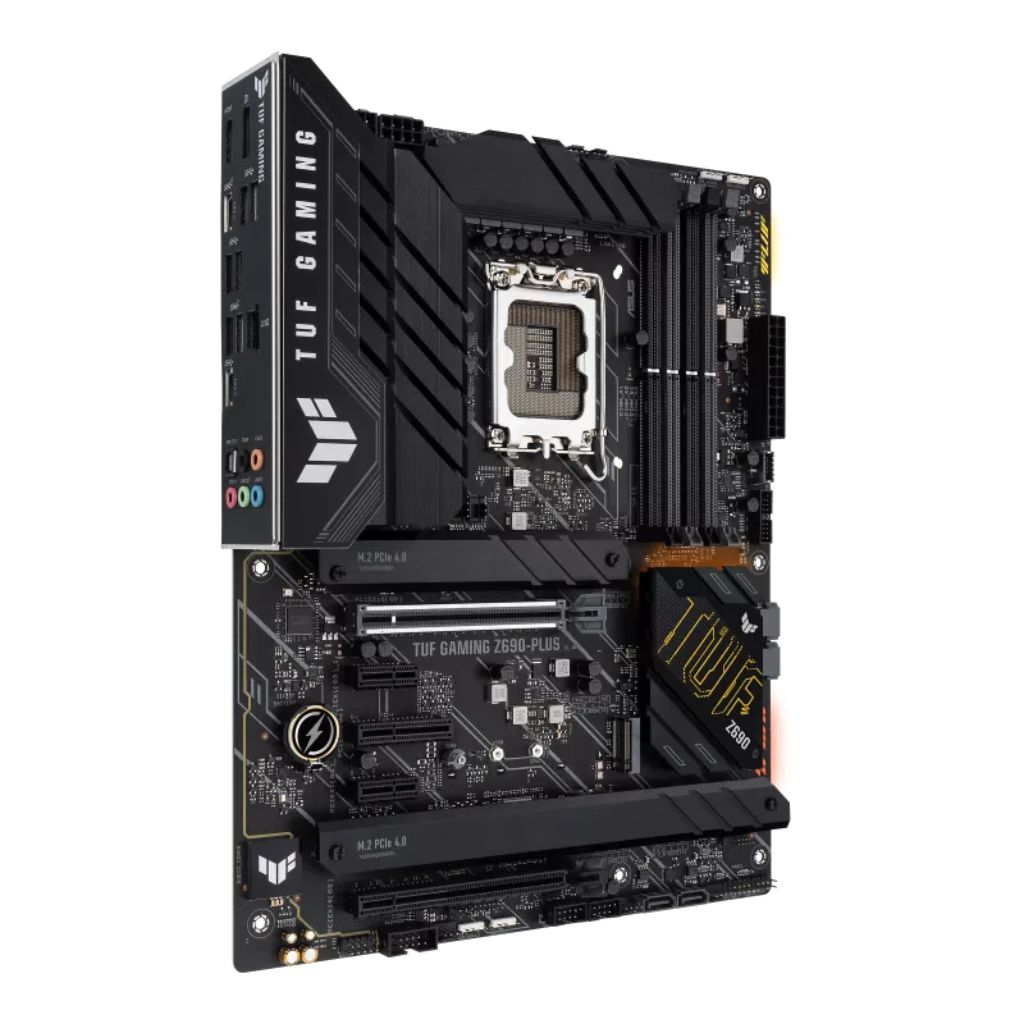

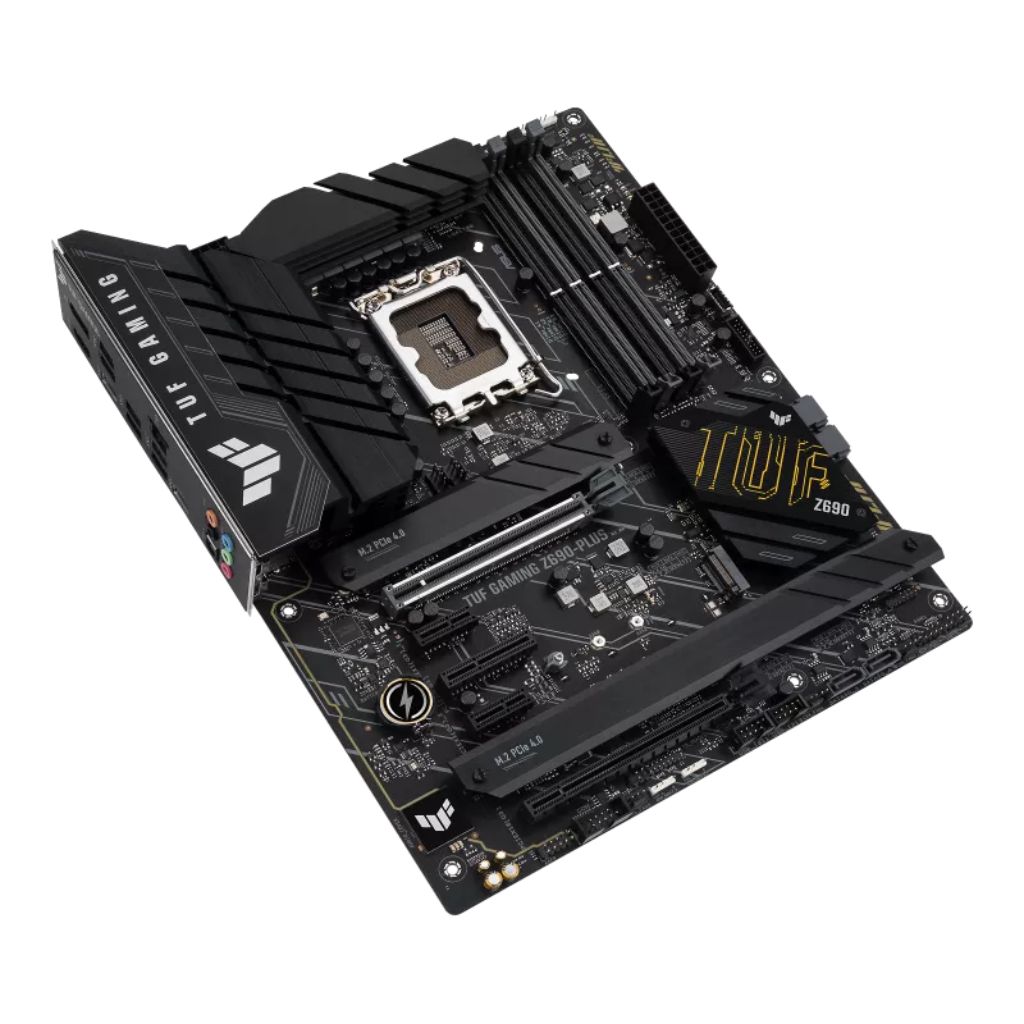

Asus TUF Gaming Z690-Plus DDR5 Motherboard
Full Decription Asus.
- Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™ processors
- Enhanced power solution: 14+1 DrMOS rated for 80 amps, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
- Next-gen connectivity: PCIe® 5.0, USB 3.2 Gen2x2 Type-C®, front USB 3.2 Gen 2 Type-C, Thunderbolt™ 4 header support
- Made for online gaming: Intel 2.5 Gb Ethernet and TUF LANGuard
- Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
- Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate
- Outshine RGB Aura Effect: Stylish edge and PCH lighting design, addressable RGB headers and RGB strip header support
SPECIFICATIONS |
|
| Brand | ASUS |
| Series | TUF GAMING |
| Model | TUF Gaming-PLUS |
| CPU Support | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* |
| Chipset | Z690 (LGA 1700) |
| Memory Support | |
| Inetl 12th gen processor | 4x DIMM, Max. 128GB, DDR5 |
| 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* | |
| Supports Intel® Extreme Memory Profile (XMP) | |
| OptiMem II | |
| OptiMem II | |
| * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to http://www.asus.com for memory support list. | |
| Video | |
| DisplayPort | 1 x DisplayPort** 1 x HDMI® port*** |
|
* Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4
***Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors’ or graphic cards’ resolution.
|
|
| Expansion Slots | |
| CPU Direct |
Intel® 12th Gen Processors*
1 x PCIe 5.0 x16 slot
|
|
Intel® Z690 Chipset**
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x4 slot
2 x PCIe 3.0 x1 slots
|
|
|
* Please check PCIe bifurcation table in support site.
** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot
|
|
| Intel® Z690 Chipset | -1 x PCIe 4.0 x4 slots |
Storage |
|
| CPU Direct | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Intel® 12th Gen Processors | |
|
M.2_1 slot (Key M), type 2242/2260/2280/22110
– Intel® 12th Gen processors support PCIe 4.0 x4 mode
|
|
| Intel® Z690 Chipset |
Z690 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
|
| * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. | |
| ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. | |
| Networking | |
| LAN |
1 x Intel® 2.5Gb Ethernet
|
| TUF LANGuard | |
| WiFi |
None
|
| Bluetooth | Bluetooth v5.2 hardware ready**, |
| Audio | |
| Codec | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| – Supports up to 24-Bit/192 kHz playback | |
| Audio Features | – Audio Shielding |
| – Rear optical S/PDIF out port | |
| – Premium audio capacitors | |
| – Audio cover | |
| – Dedicated audio PCB layers | |

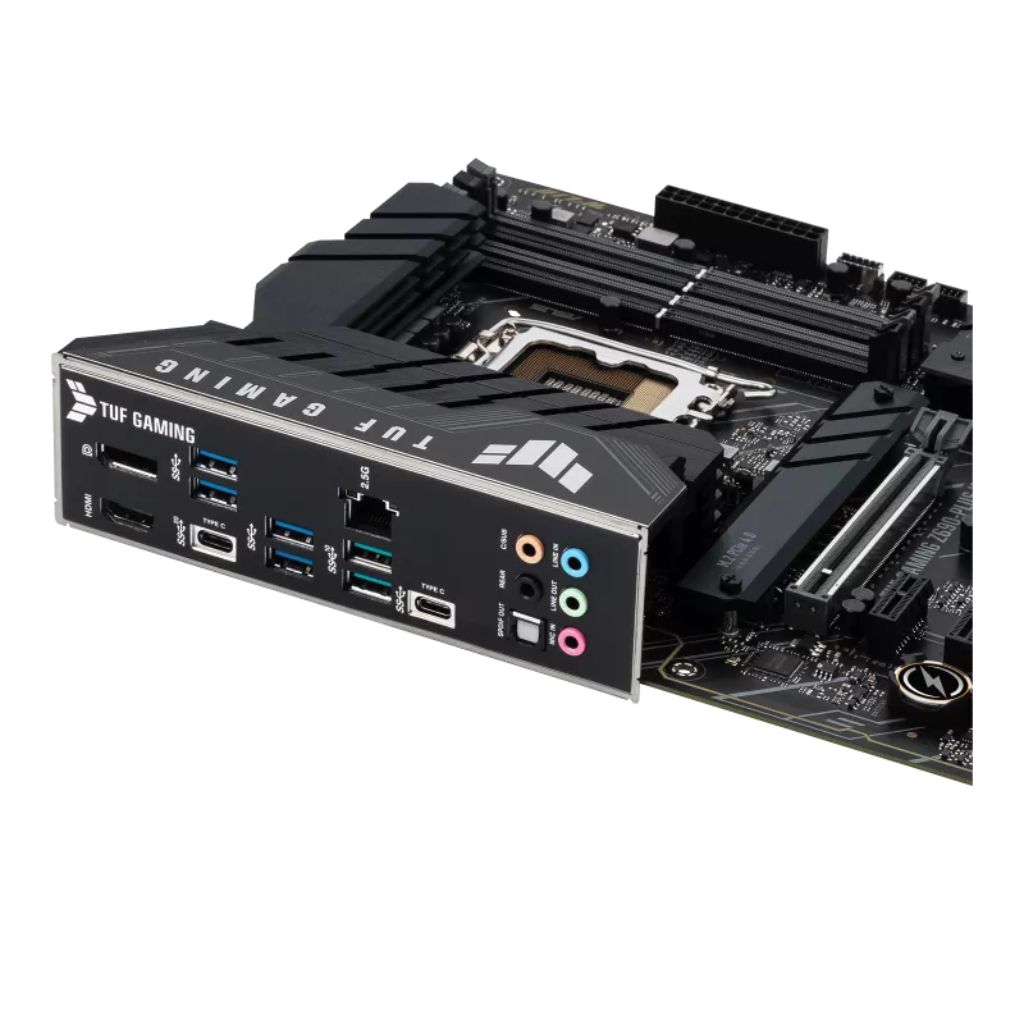

Connectivity |
|
| Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) |
| 2 x USB 3.2 Gen 2 ports (2 x Type-A) | |
| 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®) | |
| 1 x DisplayPort | |
| 1 x HDMI® port | |
| 1 x Intel® 2.5Gb Ethernet port | |
| 5 x Audio jacks | |
| 1 x Optical S/PDIF out port | |
| Buttons | 1x BIOS FlashBack Button |
| 3 Year Warranty | |
