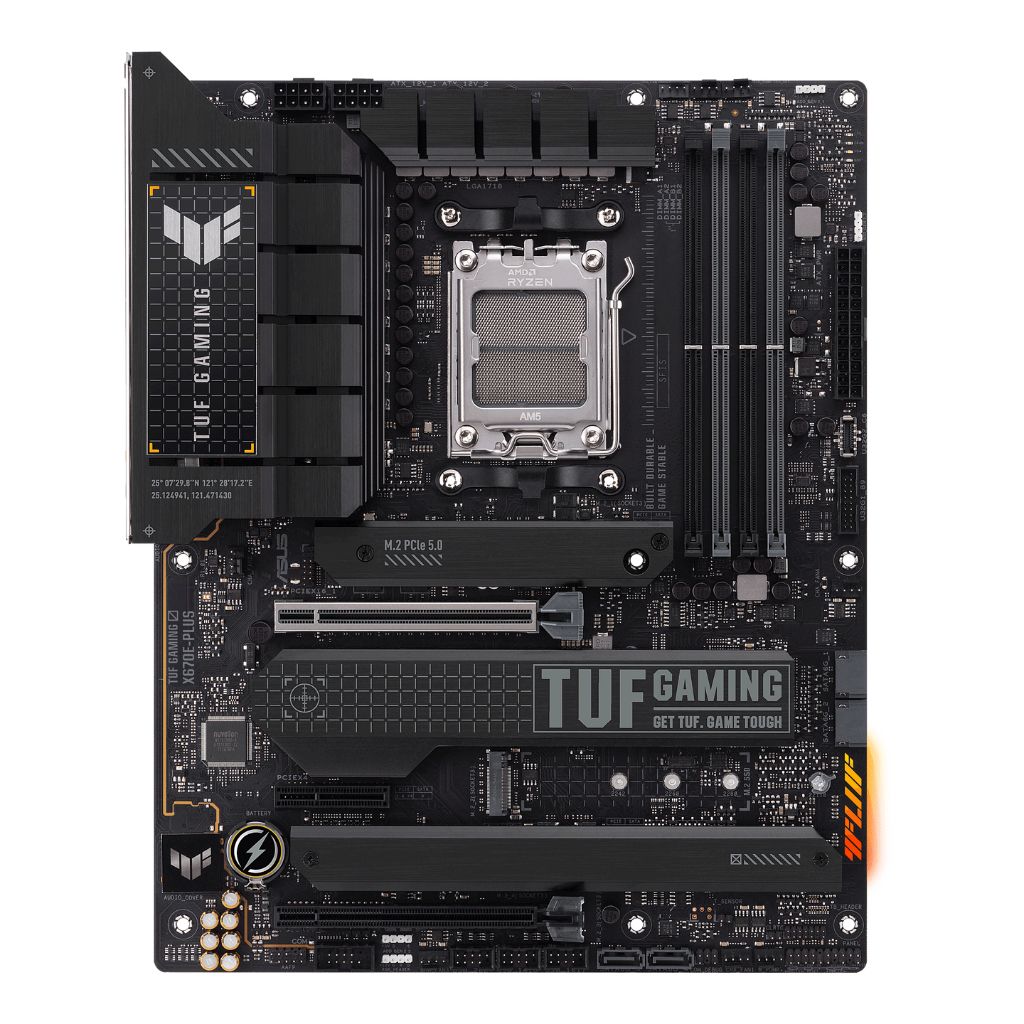

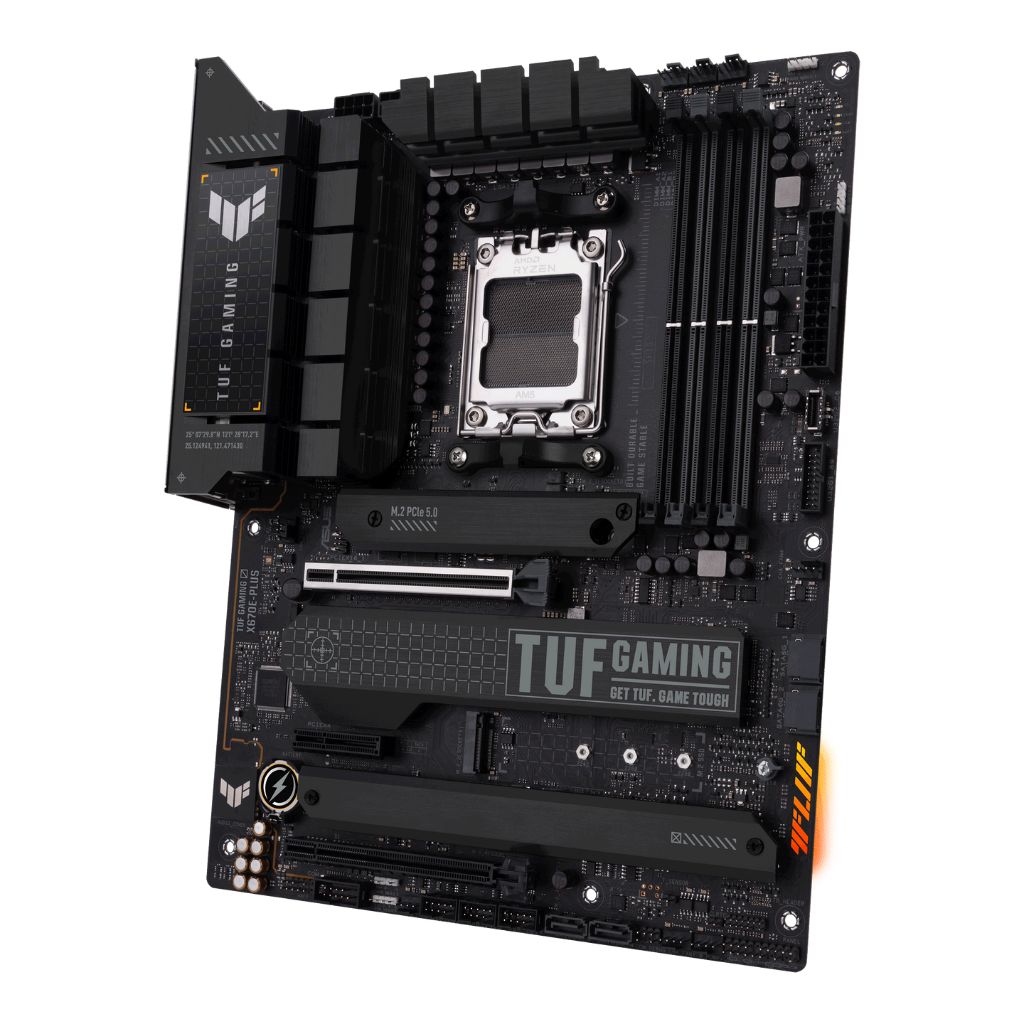

Asus TUF Gaming X670E-PLUS Motherboard
Full description Asus.
- ASUS TUF GAMING X670E-PLUS takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability.
- Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming.
- TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail.
- Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
Specifications |
|
| Brand: | ASUS |
| Series: | AMD X670E Series |
| Model: | ASUS TUF GAMING X670E-PLUS (90MB1BJ0-M0EAY0) |
| Technical Specs | |
| CPU Support: | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors |
| Chipset: | AMD X670 |
| Memory: | 4 x DIMM, Max. 192GB, DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II |
| Onboard Graphics: | 1 x DisplayPort** 1 x HDMI® port*** * Graphics specifications may vary between CPU types. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Audio: | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback* Audio Features – Audio shielding – Premium audio capacitors – Dedicated audio PCB layers – Audio cover – Unique de-pop circuit |
| Connectivity | |
| LAN: | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Wireless: | N/A |
| Bluetooth: | N/A |
| Expansion Slots: | AMD Ryzen™ 7000 Series Desktop Processors* -1 x PCIe 5.0 x16 slot AMD X670 Chipset -1 x PCIe 4.0 x16 slot (supports x4 mode) -1 x PCIe 4.0 x4 slots |
| Storage Interface: | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD X670 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| On-Board Connectors | |
| USB: | Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) 5 x USB 3.2 Gen 1 ports (5 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports |
| Internal I/O Connectors: | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header |

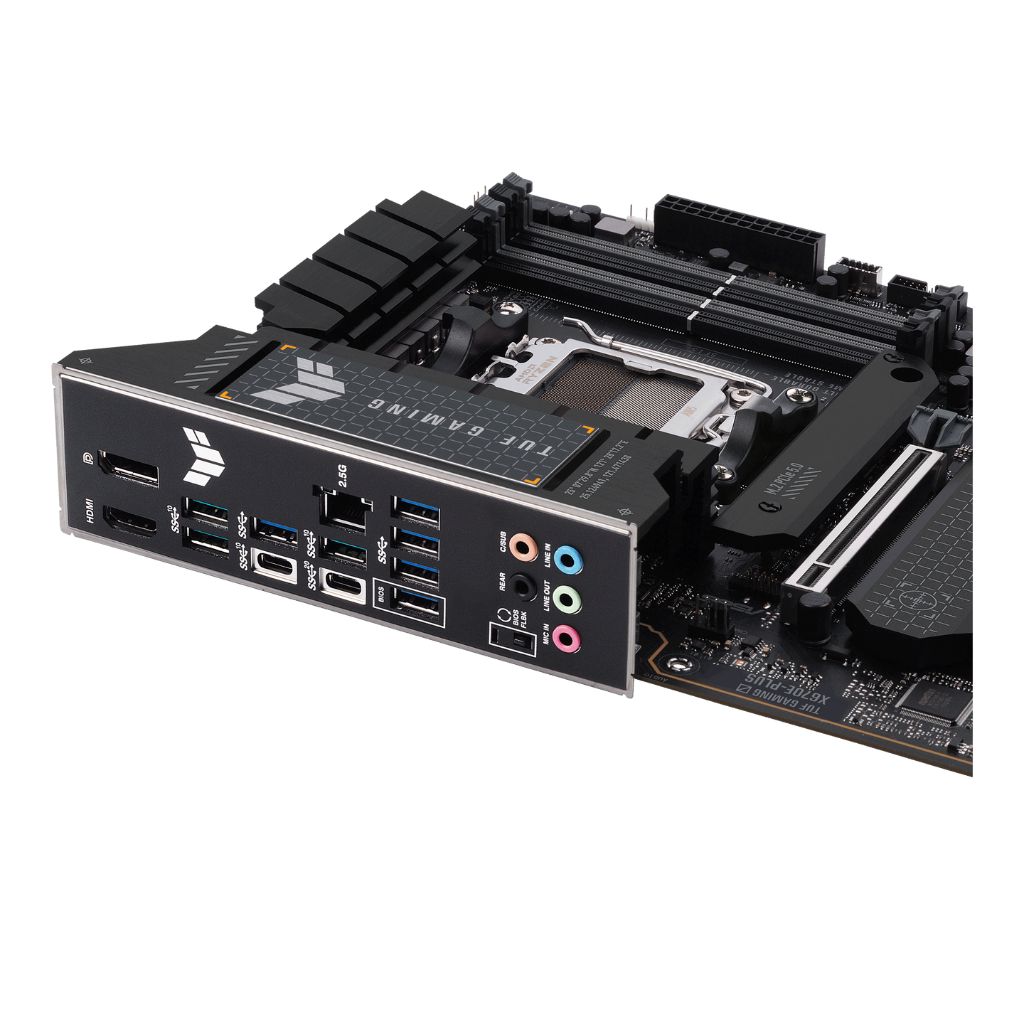

| Back Panel Connectors: | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C®) 5 x USB 3.2 Gen 1 ports (5 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button |
| Software & Features | |
| BIOS: | 256 Mb Flash ROM, UEFI AMI BIOS |
| Software: | ASUS Exclusive Software Armoury Crate UEFI BIOS |
| Features: | ASUS Q-Design |
| ASUS EZ DIY | |
| TUF PROTECTION | |
| ASUS Thermal Solution | |
| AURA Sync | |
| General | |
| Operating System: | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor: | ATX Form Factor (30.5 cm x 24.4 cm) |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
