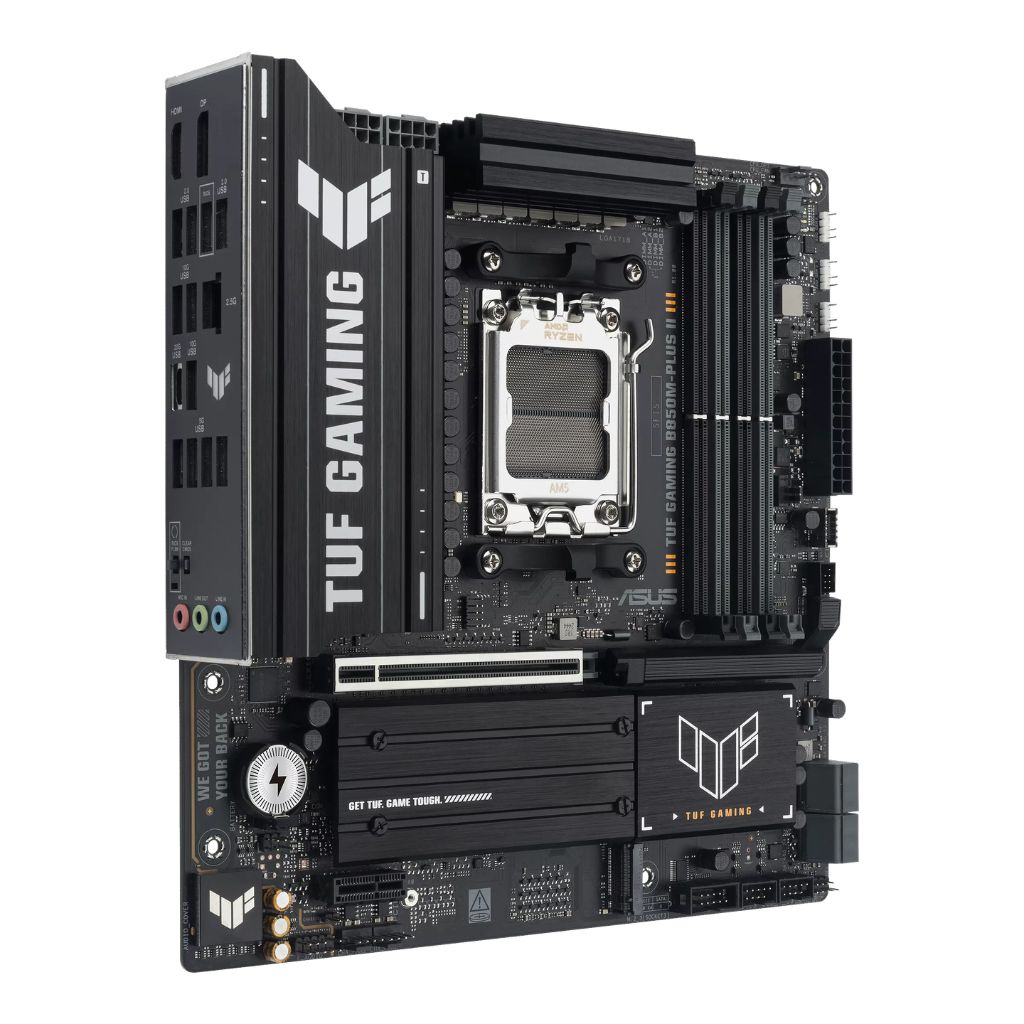

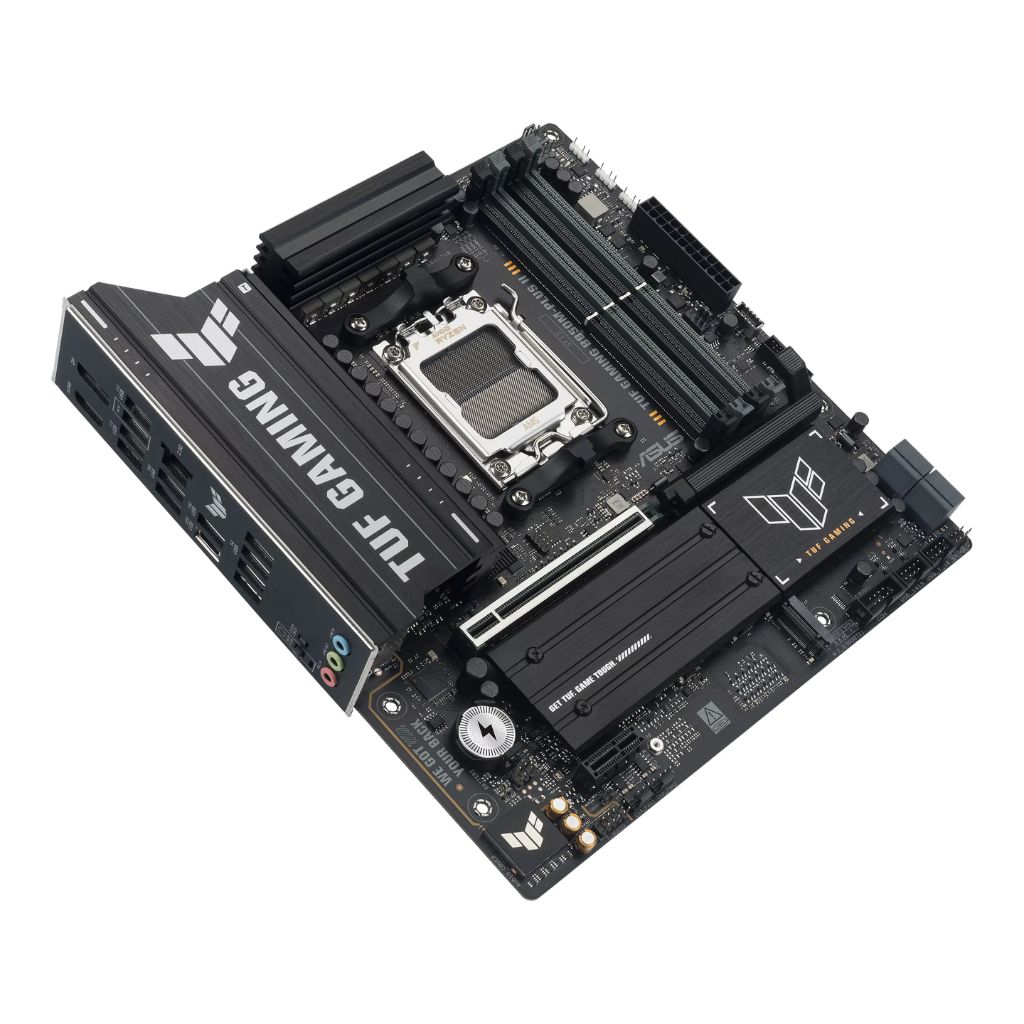

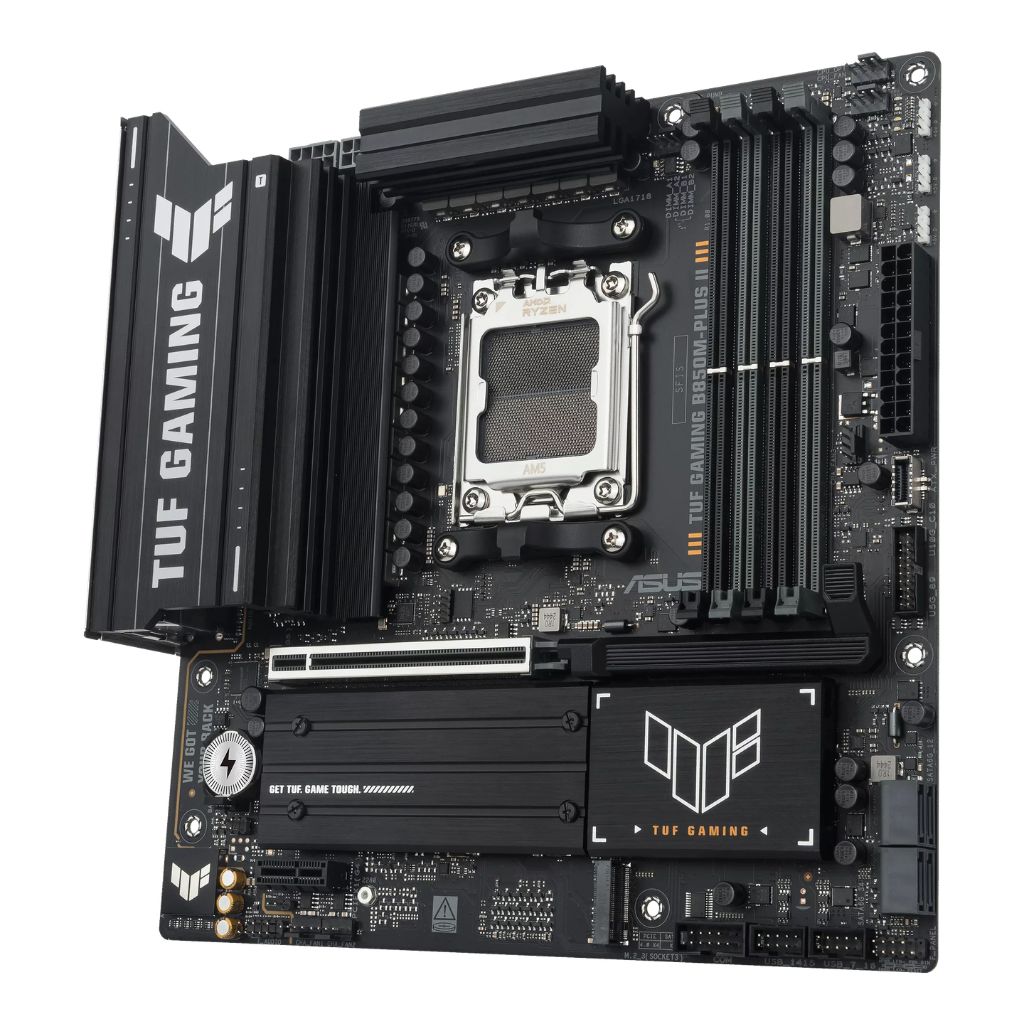

ASUS TUF Gaming B850M-PLUS II DDR5 Micro-ATX AM5 AMD Motherboard
Full description ASUS.
- AM5 Socket with AMD B850 Chipset – Supports Ryzen 9000, 8000 & 7000 Series desktop processors.
- DDR5 Performance – 4x DIMM slots supporting up to 256GB DDR5 with EXPO & AEMP memory tuning.
- PCIe 5.0 Ready – PCIe 5.0 x16 slot for next-gen GPUs plus PCIe 5.0 M.2 support for ultra-fast NVMe storage.
- TUF Durability & Power Design – Military-grade components, DIGI+ VRM and reinforced PCIe slot.
- 2.5Gb LAN & USB 20Gbps Type-C – High-speed networking and modern connectivity options.
| Specifications | |
|---|---|
| Brand: | ASUS |
| Series: | TUF Gaming |
| Model: | TUF Gaming B850M-PLUS II |
| Chipset: | AMD B850 |
| Socket: | AM5 |
| Form Factor: | Micro-ATX |
| CPU Support | |
| Supported Processors: | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Memory | |
| Memory Type: | DDR5 |
| DIMM Slots: | 4 |
| Maximum Capacity: | 256GB |
| Memory Speed: | Up to 8000+ MT/s (OC) |
| Memory Support: | Dual Channel, AMD EXPO, AEMP |
| Expansion Slots | |
| PCIe x16 Slot: | 1x PCIe 5.0 x16 |
| PCIe x1 Slot: | 1x PCIe 4.0 x1 |
| Storage | |
| M.2 Slots: | 3x M.2 (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) |
| SATA Ports: | 4x SATA 6Gb/s |
| RAID Support: | RAID 0/1/5/10 |
| Networking | |
| LAN: | Realtek 2.5Gb Ethernet |
| Audio | |
| Audio Codec: | Realtek ALC1220P 7.1 HD Audio |

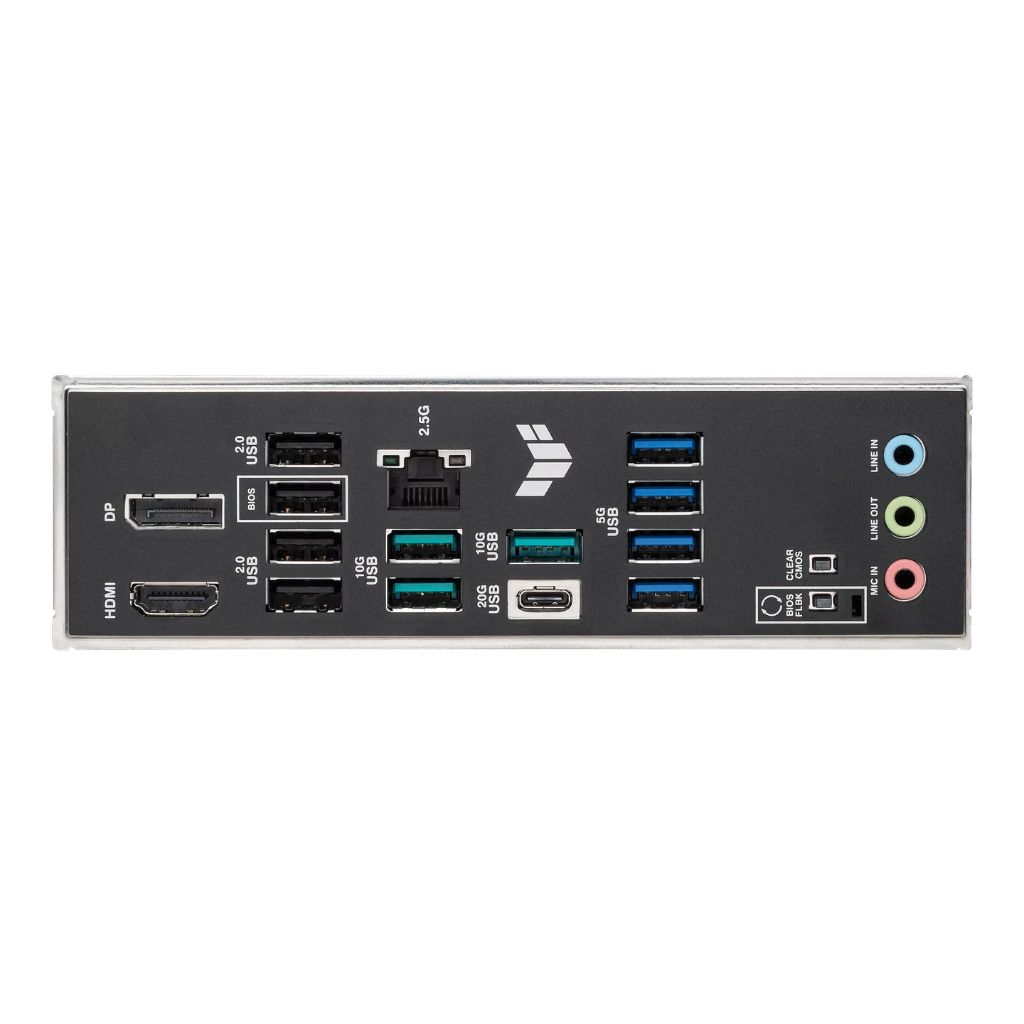

| Back Panel I/O Ports | |
| USB Type-C: | 1x USB 20Gbps |
| USB 10Gbps: | 3x USB 3.2 Gen 2 |
| USB 5Gbps: | 4x USB 3.2 Gen 1 |
| Display Outputs: | 1x HDMI, 1x DisplayPort |
| LAN Port: | 1x 2.5Gb Ethernet |
| Audio Jacks: | 3x Audio Jacks |
| Clear CMOS Button: | Yes |
| Internal I/O Connectors | |
| CPU Fan Header: | 1 |
| AIO Pump Header: | 1 |
| Chassis Fan Headers: | 3 |
| M.2 Slots: | 3 |
| USB 3.2 Gen 1 Header: | Yes (Front USB-C Support) |
| USB 2.0 Headers: | Yes |
| RGB Header: | Yes |
| Addressable RGB Gen 2: | Yes |
| Front Panel Header: | Yes |
| Operating System Support | |
| OS Support: | Windows 11, Windows 10 64-bit |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
ASUS TUF Gaming B850M-PLUS II DDR5 Micro-ATX AM5 AMD Motherboard
Contact us if you would like to enquire about this product.
