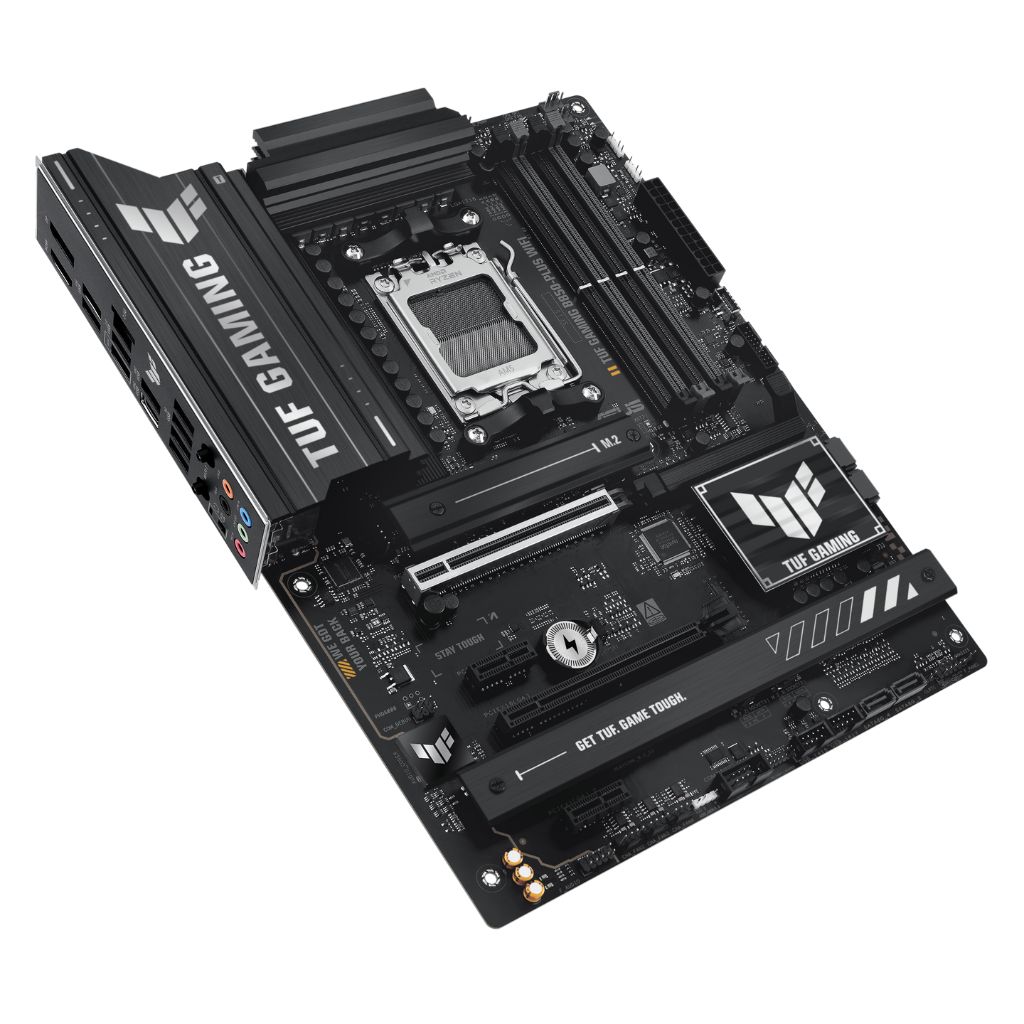

ASUS TUF Gaming B850-PLUS WiFi DDR5 ATX AM5 AMD Motherboard – 90MB1J30-M0EAY0
Full description ASUS.
- ASUS TUF GAMING B850-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability.
- Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming.
- TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail.
- This platform delivers the power and connectivity that advanced AI PC applications demand.
| Specifications | |
| Brand: | ASUS |
| Series: | AMD B850 Series |
| Model: | 90MB1J30-M0EAY0 |
| Technical Specs | |
| CPU Support: | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset: | AMD B850 Chipset |
| Memory: | 4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM – Dual channel memory architecture – Supports AMD Extended Profiles for Overclocking (EXPO™) – ASUS Enhanced Memory Profile (AEMP) |
| Onboard Graphics: | 1 x DisplayPort 1 x HDMI port |
| Audio: | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback*” Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers – Audio cover – Unique de-pop circuit |
| Connectivity | |
| LAN: | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Wireless: | Wi-Fi 7 – 2×2 Wi-Fi 7 (802.11be) – Supports 2.4/5/6GHz frequency band – Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate |
| Bluetooth: | Bluetooth v5.4 |
| Expansion Slots: | AMD Ryzen 9000 & 7000 Series Desktop Processors – 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors – 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B850 Chipset – 1 x PCIe 4.0 x16 slot (supports x4 mode) – 2 x PCIe 4.0 x1 slots |
| Storage Interface: | Total Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors – M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) – M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors – M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) – M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode) AMD B850 Chipset – M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) – 4 x SATA 6Gb/s ports |
| On-Board Connectors | |
| USB: | Rear USB (Total 10 ports) 1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Internal I/O Connectors: | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header |

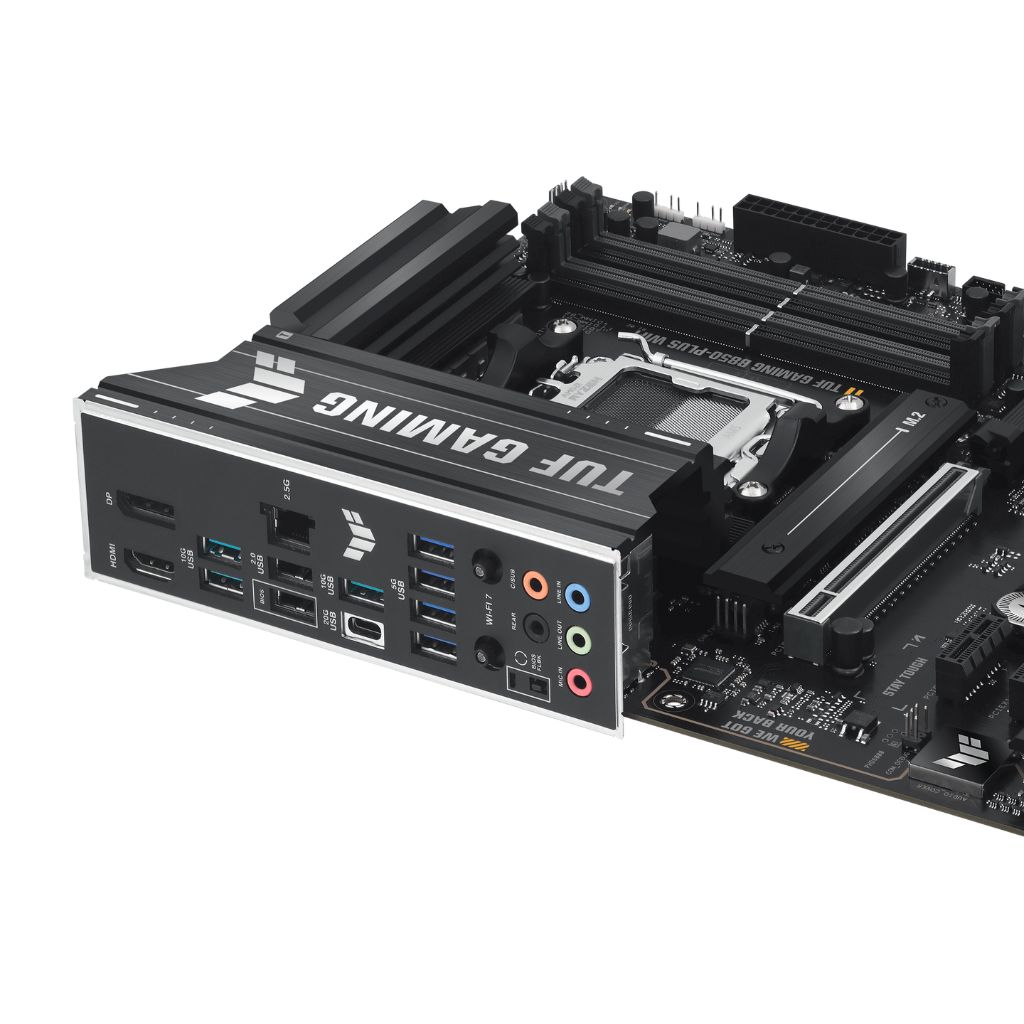

| Back Panel Connectors: | 1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button |
| Software & Features | |
| BIOS: | 256 Mb Flash ROM, UEFI AMI BIOS |
| Software: | – ASUS Exclusive Software – UEFI BIOS |
| Features: | ASUS TUF PROTECTION |
| ASUS Q-Design | |
| Aura Sync | |
| ASUS EZ DIY | |
| ASUS Thermal Solution | |
| General | |
| Operating System: | Windows 11 |
| Form Factor: | ATX Form Factor (30.5 cm x 24.4 cm) |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
