ASUS ROG Strix Z890-F Gaming Wi-Fi 7 DDR5 ATX LGA 1851 Intel Motherboard – 90MB1I40-M0EAY0
Full description ASUS.
| Specifications | |
| Brand: | ASUS |
| Series: | Z890 Series |
| Model: | 90MB1I40-M0EAY0 |
| Technical Specs | |
| CPU Support: | Intel Socket LGA1851 for Intel Core Ultra Processors (Series 2) – Supports Intel Turbo Boost Technology 2.0 – Intel Turbo Boost Max Technology 3.0 |
| Chipset: | Intel Z890 Chipset |
| Memory: | 4 x DIMM slots, max. 192GB, DDR5 Support up to 8600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) – Dual channel memory architecture – Supports Intel® Extreme Memory Profile (XMP) memory module – Supports DIMM Flex – DIMM Fit – ASUS Enhanced Memory Profile II (AEMP II) |
| Onboard Graphics: | 1 x DisplayPort 1 x HDMI port 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt™ video outputs |
| Audio: | Intel Core Ultra Processors(Series 2) 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes) Intel Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Connectivity | |
| LAN: | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless: | Wi-Fi 7 – 2×2 Wi-Fi 7 (802.11be) – Supports 2.4/5/6GHz frequency band – Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. |
| Bluetooth: | Bluetooth v5.4 |
| Expansion Slots: | Intel Core Ultra Processors(Series 2) 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes) Intel Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Storage Interface: | Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors(Series 2) – M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) – M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel Z890 Chipset – M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) – M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) – M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| On-Board Connectors | |
| USB: | Rear USB (Total 14 ports) 2 x Thunderbolt 4 ports (1 x USB Type-C) 6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C + 1 x USB Type-C with up to 30W PD Fast-charge) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports) 1 x USB 20Gbps (1 x USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Internal I/O Connectors: | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan header Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® ) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header |

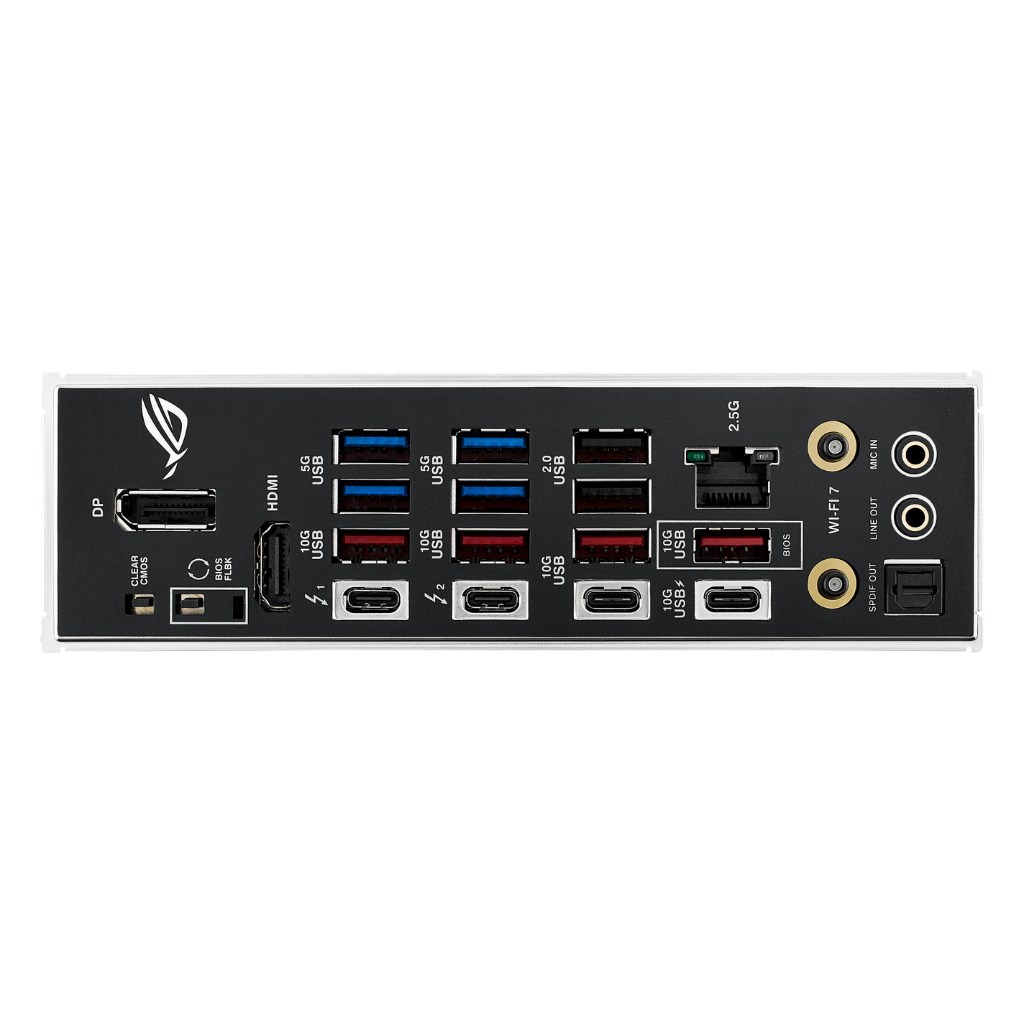

| Back Panel Connectors: | 2 x Thunderbolt 4 (2 x USB Type-C) 6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C + 1 x USB Type-C with up to 30W PD Fast-charge) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
| Software & Features | |
| BIOS: | 256 Mb Flash ROM, UEFI AMI BIOS |
| Software: | ROG Exclusive Software – ROG CPU-Z – Dolby Atmos ASUS Exclusive Software Armoury Crate |
| Features: | ASUS Q-Design Extreme Engine Digi+ |
| ASUS Thermal Solution | |
| Aura Sync | |
| ASUS EZ DIY | |
| Rear USB 10Gbps with PD Fast Charge Support | |
| General | |
| Operating System: | Windows 11 (22H2 & later) |
| Form Factor: | ATX Form Factor (30.5 cm x 24.4 cm) |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
