ASUS ROG Strix Z790-F GAMING WiFi II 7 DDR5 LGA1700 ATX Motherboard

R 10 380.00

Prices Displayed are for EFT Only.

  • Brand: ASUS
  • Series: Intel Z790 II Series
  • Model: ASUS ROG STRIX Z790-F GAMING WIFI II (90MB1FM0-M0EAY0)
  • CPU Support: Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors
  • Chipset: Intel® Z790 Chipset
SKU ASUS ROG STRIX Z790-F GAMING WIFI II Categories , ,
Add to wishlist

In stock

Only 1 items left in stock!

Gauteng: 1 - 3 Business days

Cape Town & Durban: 2 - 4 Business days

Other: 2 - 7 Business days


ASUS ROG Strix Z790-F GAMING WiFi II 7 DDR5 LGA1700 ATX motherboard

Full description ASUS.

  • The ROG Strix Z790-F II strikes from the shadows with a flurry of advanced power and features to elevate the latest Intel® processors, graphics cards, storage and wireless networking to the next level.
  • Armed with enhanced DDR5 support, ample cooling, PCIe 5.0 and WiFi 7, this high-performance ninja is ready for the toughest of missions.
  • Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.





Specifications
Brand: ASUS
Series: Intel Z790 II Series
Model: ASUS ROG STRIX Z790-F GAMING WIFI II (90MB1FM0-M0EAY0)
Technical Specs
CPU Support:
  • CPU Support:

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors,
Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset: Intel® Z790 Chipset
Memory:
  • Memory:

4 x DIMM slots, Max. 192GB, DDR5
8000+(OC)/7800(OC)/7600(OC)/
7400(OC)/7200(OC)/7000(OC)/
6800(OC)/6600(OC)/6400(OC)/
6200(OC)/ 6000(OC)/ 5800(OC)/
5600/ 5400/ 5200/ 5000/ 4800
Non-ECC, Un-buffered Memory*”
– Dual Channel Memory Architecture
– Supports Intel® Extreme Memory Profile (XMP)
– OptiMem II
– ASUS Enhanced Memory Profile II (AEMP II)
– Supports DIMM Flex
Onboard Graphics: 1 x DisplayPort
1 x HDMI port
Audio:
  • ROG SupremeFX 5.1 Surround Sound High Definition Audio CODEC ALC4080*

– Impedance sense for front and rear headphone outputs
– Jack-detection, Multi-streaming,
Front and Rear Panel MIC Jack-retasking
– High quality 120 dB SNR stereo
playback output and 110 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
Connectivity
LAN: 1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless: – Intel Wi-Fi 7
– 2×2 Wi-Fi 7 (802.11be)
– Supports 2.4/5/6GHz frequency band
– Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate.
Bluetooth: – Bluetooth® v5.4
Expansion Slots:
  • Intel® CoreTM Processors (14th & 13th & 12th Gen)*

1 x PCIe 5.0×16 slot (supports x16 mode)
Intel® Z790 Chipset**
1 x PCIe 4.0 x16 slot (supports x4 mode)
1x PCIe 3.0 x1 slot
Storage Interface:
  • Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*

– Intel® CoreTM Processors (14th & 13th & 12th Gen)
– M.2_1 slot (Key M), type 2242/2260/2280/22110
(supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
– M.2_2 slot (Key M), type 2280
(supports PCIe 4.0 x4 mode)
– M.2_3 slot (Key M), type 2280
(supports PCIe 4.0 x4 mode)
– M.2_4 slot (Key M), type 2242/2260/2280/22110
(supports PCIe 4.0 x4 mode)
– M.2_5 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 & SATA modes)
On-Board Connectors
USB:
  • Rear USB (Total 14 ports)

1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
6x USB 2.0 ports (6 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector
(supports USB Type-C® with up to 30W PD Fast-charge* )
1 x USB 5Gbps header supports 2 additional USB 5G ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Internal I/O Connectors: Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector
(supports USB Type-C® with up to 30W PD)
1 x USB 5Gbps header supports 2 additional USB 5G ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header

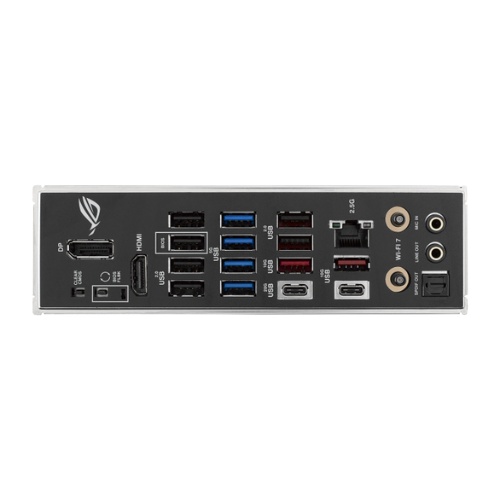

Back Panel Connectors:
  • Connectors

1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (2 x Type-A+1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
6 x USB 2.0 ports (6 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Software & Features
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Software: – UEFI BIOS
– AI Overclocking Guide
– ASUS EZ DIY
– ASUS Exclusive Software
– ROG Exclusive Software
Features: Extreme Engine Digi+
ASUS Q-Design
ASUS Thermal Solution
ASUS EZ DIY
Aura Sync
Front Panel USB 20Gbps with PD Fast Charge Support
General
Operating System: Windows® 11, Windows® 10 64-bit
Form Factor: ATX Form Factor – (30.5 cm x 24.4 cm)
Warranty Information
Warranty: 3 Year Warranty



ASUS ROG Strix Z790-F GAMING WiFi II 7 DDR5 LGA1700 ATX motherboard

Contact us if you would like to enquire about this product.

← Back

Thank you for your response. ✨

Additional information

Global Brands

ASUS
Global Manufacturer

Intel
Global CPU Socket

LGA 1700
Global Motherboard Chipset

Intel Z790
Global MB Form Factor

ATX
