ASUS ROG Strix B860-G Gaming WiFi DDR5 Micro-ATX LGA1851 Intel Motherboard
Full description ASUS.
- LGA1851 Intel Core Ultra Platform – Built for next-generation Intel® Core™ Ultra processors, delivering powerful gaming and high-performance desktop computing.
- DDR5 Performance up to 256GB – Supports ultra-fast DDR5 memory with Intel® XMP for improved bandwidth, stability and smoother multitasking.
- PCIe 5.0 x16 & Gen5 M.2 Ready – Future-proof expansion with PCIe 5.0 graphics support and next-gen NVMe SSD compatibility.
- WiFi 7 & 2.5Gb Ethernet Networking – Experience ultra-low latency gaming and high-speed downloads with next-gen wireless and wired connectivity.
- ROG Thermal & Power Design – Advanced VRM cooling, M.2 heatsinks and premium ROG components for stable performance under load.
| Specifications | |
|---|---|
| Brand: | ASUS |
| Series: | ROG Strix |
| Model: | B860-G Gaming WiFi |
| Chipset: | Intel® B860 Express |
| Socket: | LGA1851 |
| Form Factor: | Micro-ATX (24.4cm x 24.4cm) |
| CPU Support | |
| Supported Processors: | Intel® Core™ Ultra Processors |
| Memory | |
| Memory Type: | DDR5 |
| DIMM Slots: | 4 |
| Maximum Capacity: | 256GB |
| Memory Speed: | Up to 8800MT/s (OC) |
| Memory Support: | Dual Channel, Intel® XMP |
| Expansion Slots | |
| PCIe x16 Slot: | 1x PCIe 5.0 x16 |
| PCIe x1 Slot: | 1x PCIe 4.0 x1 |
| Storage | |
| M.2 Slots: | 4x M.2 (1x PCIe 5.0 x4, 3x PCIe 4.0 x4) |
| SATA Ports: | 4x SATA 6Gb/s |
| RAID Support: | RAID 0 / 1 / 5 / 10 |
| Networking | |
| Ethernet: | Intel® 2.5Gb Ethernet |
| Wireless: | WiFi 7 (802.11be) |
| Bluetooth: | Bluetooth 5.4 |
| Graphics Outputs | |
| HDMI: | 1x HDMI |
| DisplayPort: | 1x DisplayPort |
| Audio | |
| Audio Codec: | ROG SupremeFX 7.1 Surround Sound |
| Optical Output: | 1x S/PDIF Out |

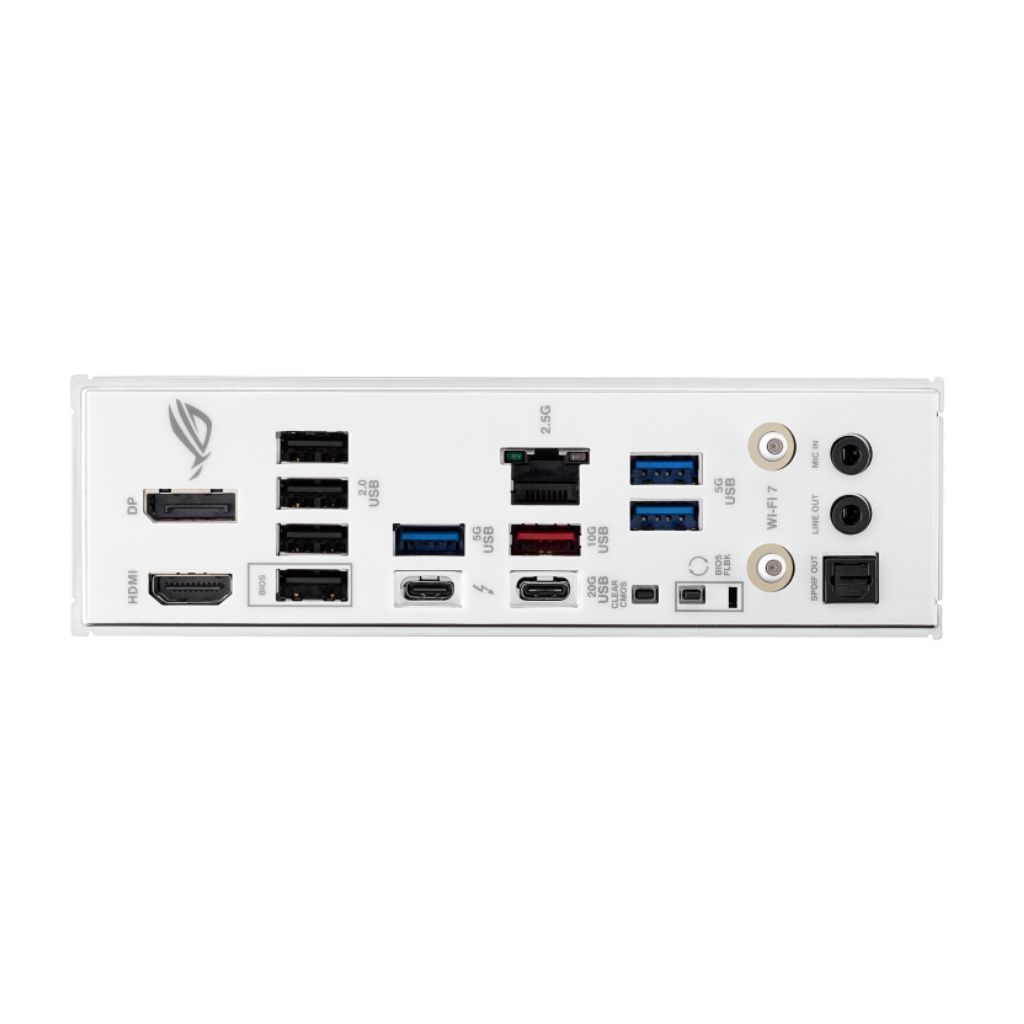

| Back Panel I/O Ports | |
| USB Type-C: | 1x Thunderbolt™ 4 (USB-C) |
| USB 20Gbps: | 1x USB 3.2 Gen 2×2 |
| USB 10Gbps: | 2x USB 3.2 Gen 2 |
| USB 5Gbps: | 3x USB 3.2 Gen 1 |
| USB 2.0: | 4x USB 2.0 |
| LAN Port: | 1x RJ-45 (2.5GbE) |
| WiFi Antenna Connectors: | 2 |
| Audio Jacks: | 5 |
| BIOS Flashback: | Yes |
| Clear CMOS: | Yes |
| Internal I/O Connectors | |
| 24-pin ATX Power: | 1 |
| 8-pin CPU Power: | 2 |
| CPU Fan Header: | 1 |
| CPU OPT Header: | 1 |
| AIO Pump Header: | 1 |
| Chassis Fan Headers: | 2 |
| USB 20Gbps Header: | 1x Front USB-C |
| USB 5Gbps Header: | 1 (supports 2 ports) |
| USB 2.0 Headers: | 2 (supports 4 ports) |
| SATA Connectors: | 4 |
| RGB Headers: | 2x Addressable Gen 2 |
| Front Panel Header: | Yes |
| TPM Header: | Yes |
| Thermal Sensor Header: | Yes |
| BIOS | |
| BIOS Type: | 256Mb Flash ROM, UEFI AMI BIOS |
| Operating System Support | |
| OS Support: | Windows 11 64-bit |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
ASUS ROG Strix B860-G Gaming WiFi DDR5 Micro-ATX LGA1851 Intel Motherboard
Contact us if you would like to enquire about this product.
