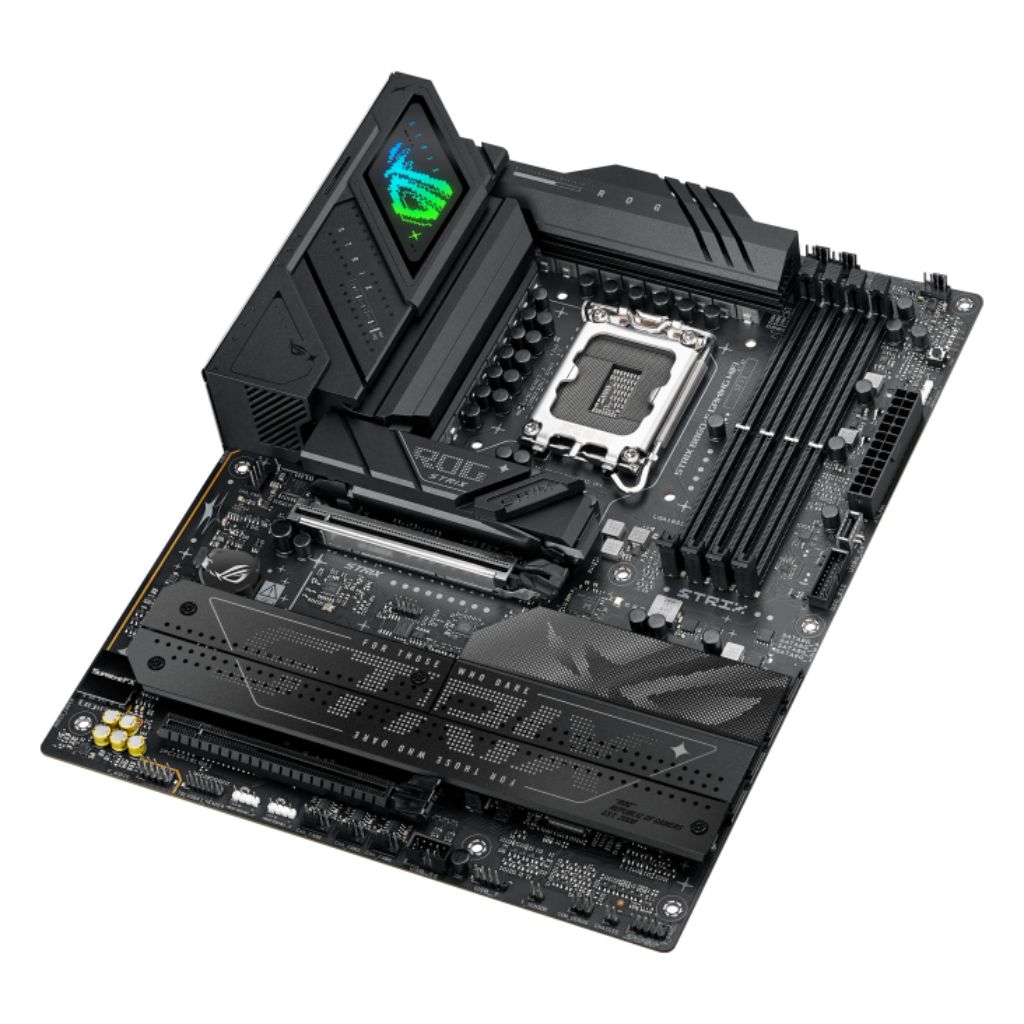

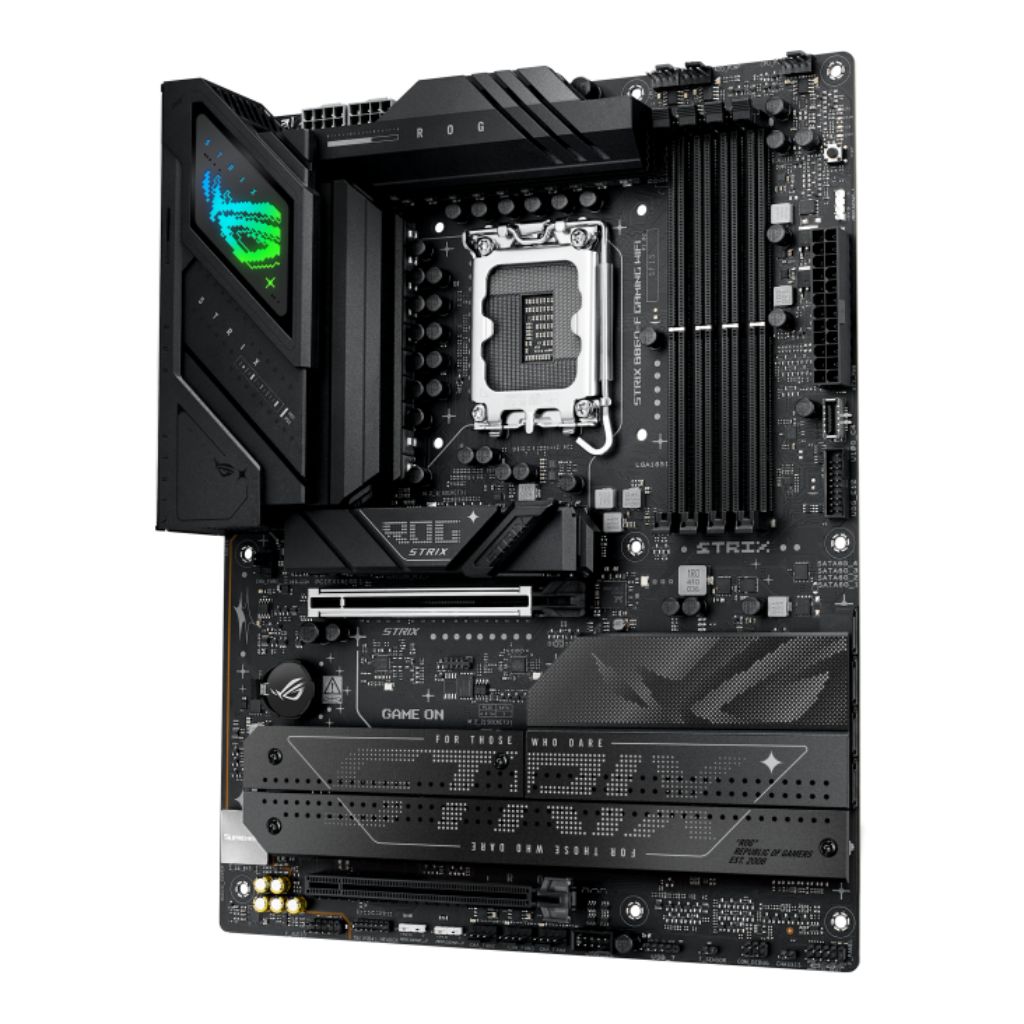

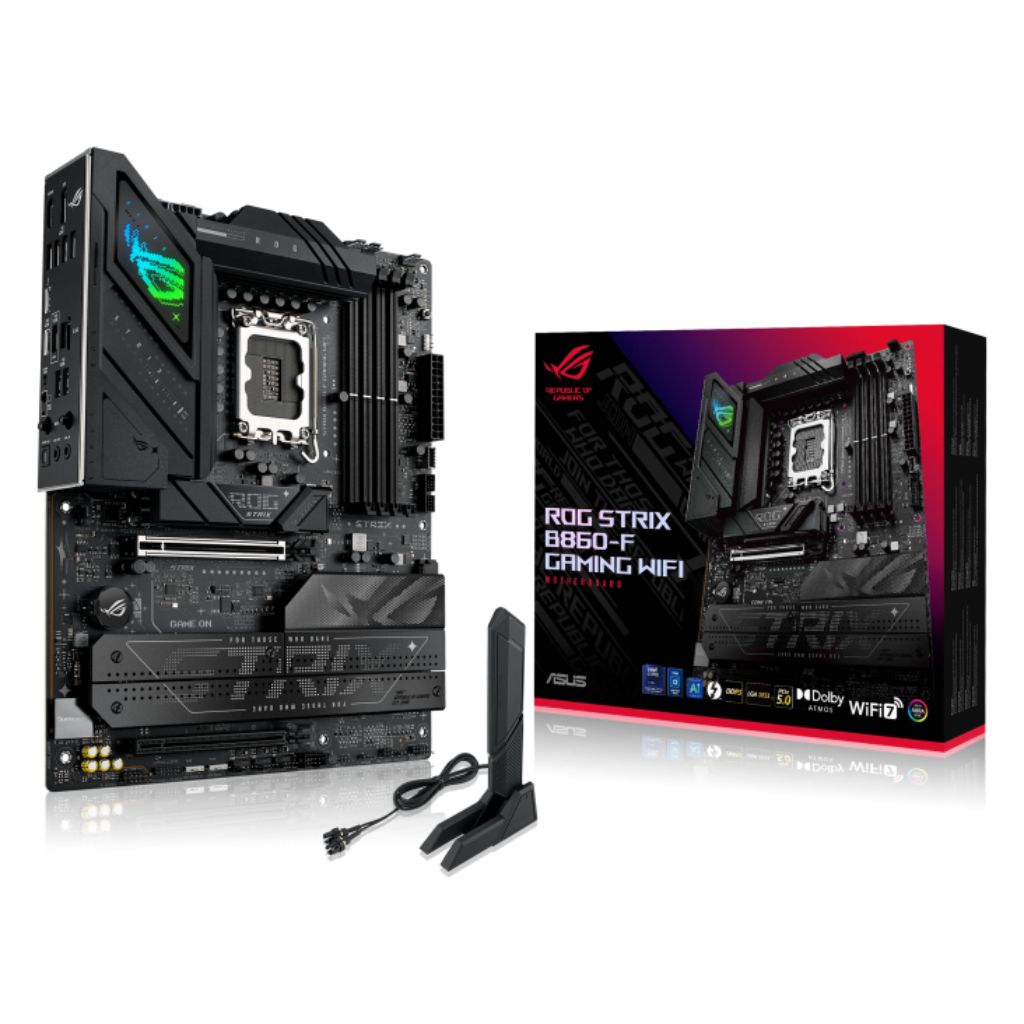

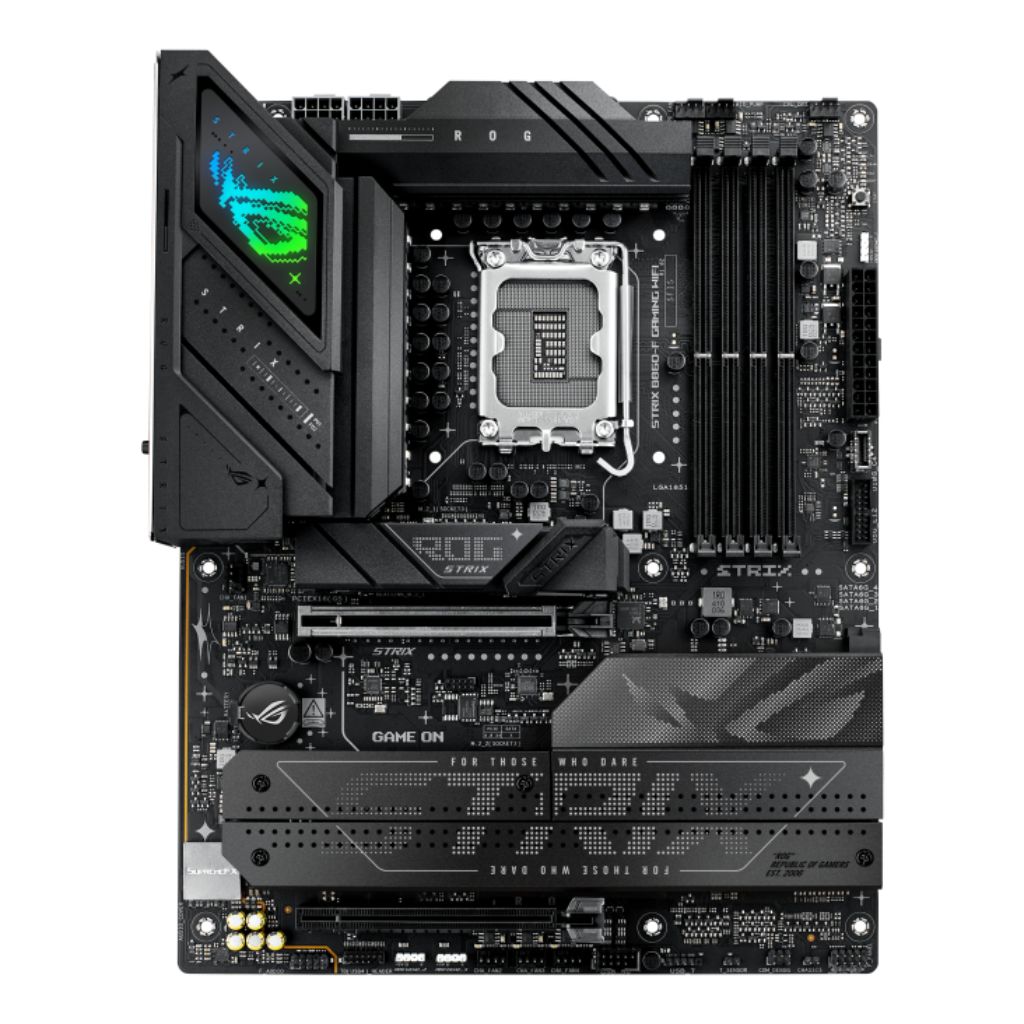

ASUS ROG Strix B860-F Gaming WiFi 7 DDR5 ATX LGA 1851 Intel Motherboard – 90MB1JG0-M0EAY0
Full description ASUS.
- With NPU boosting and cutting-edge AI solutions, the ROG STRIX B860-F Gaming WiFi supports advanced AI PC applications.
- Featuring Thunderbolt 4, PCIe 5.0, and Aura Sync lighting, it offers ultra-fast data transfer speeds, exceptional connectivity, and a versatile aesthetic that suits both bold and subtle styles.
- Enhanced signal routing can push enthusiast-grade kits well beyond the 9 GT/s threshold on the Strix B860-F.
- Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
| Specifications | |
| Brand: | ASUS |
| Series: | B860 Series |
| Model: | 90MB1JG0-M0EAY0 |
| Technical Specs | |
| CPU Support: | Intel Socket LGA1851 for Intel Core Ultra Processors(Series 2) |
| Chipset: | Intel B860 Chipset |
| Memory: | 4 x DIMM slots, max. 256GB, DDR5 Support up to 9066MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* – Dual channel memory architecture – Supports Intel Extreme Memory Profile (XMP) memory module – DIMM Fit – ASUS Enhanced Memory Profile III (AEMP III) |
| Onboard Graphics: | 1 x DisplayPort 1 x HDMI port 1 x Intel Thunderbolt 4 port (USB Type-C) supports DisplayPort and Thunderbolt video outputs |
| Audio: | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input – Supports up to 32-Bit/384 kHz playback on front panel Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Rear optical S/PDIF out port – Premium audio capacitors- Audio cover |
| Connectivity | |
| LAN: | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Wireless: | Wi-Fi 7 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. |
| Bluetooth: | Bluetooth v5.4 |
| Expansion Slots: | Intel Core Ultra Processors(Series 2) 1 x PCIe 5.0 x16 slot (supports x16 mode) Intel B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Storage Interface: | Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors(Series 2) – M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset – M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) – M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) – M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)* – 4 x SATA 6Gb/s ports |
| On-Board Connectors | |
| USB: | Rear USB (Total 9 ports) 1 x Thunderbolt™ 4 port (1 x USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 6 x USB 5Gbps ports (6 x Type-A) Front USB (Total 6 ports) 1 x USB 10Gbps (1 x USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports |
| Internal I/O Connectors: | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Chassis Intrusion header 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4) header |

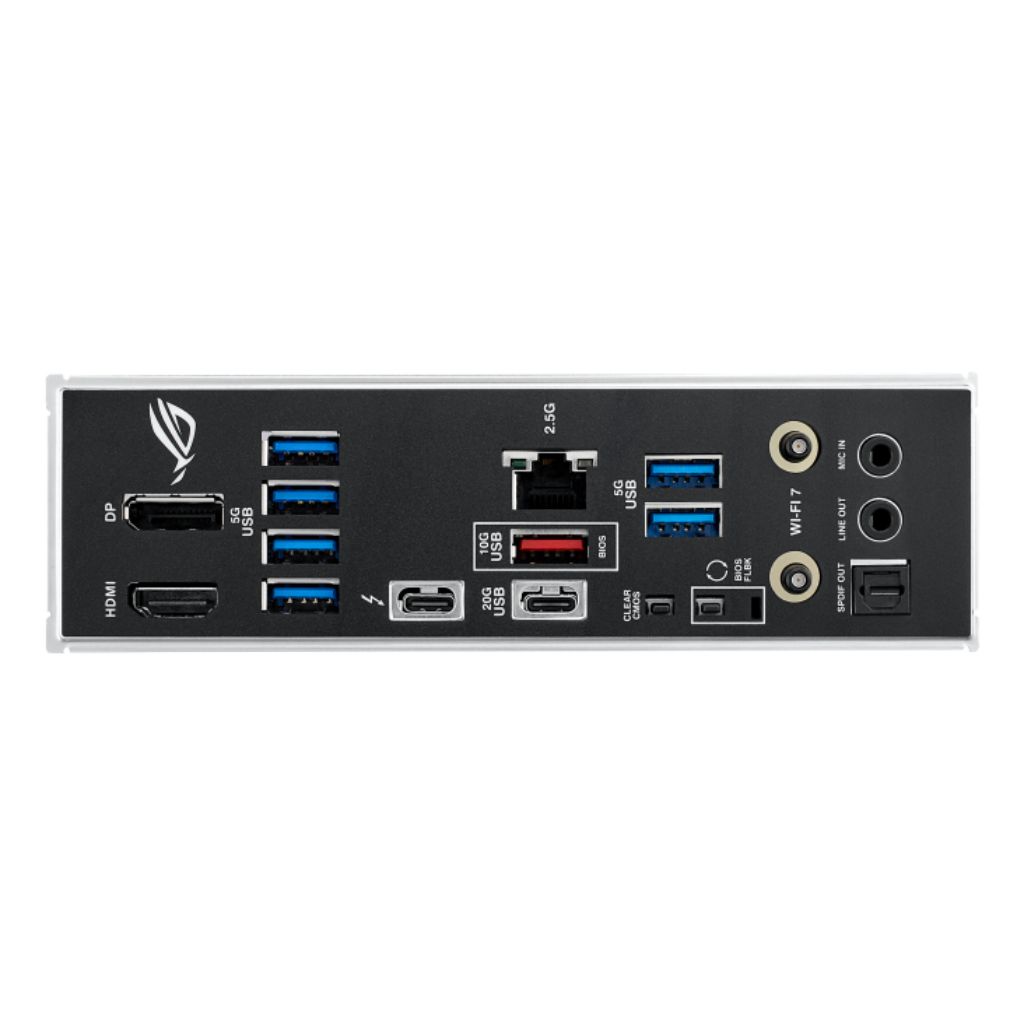

| Back Panel Connectors: | 1 x Thunderbolt™ 4 (1 x USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 6 x USB 5Gbps ports (6 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 2 x audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
| Software & Features | |
| BIOS: | 256 Mb Flash ROM, UEFI AMI BIOS |
| Software: | ROG Exclusive Software ASUS Exclusive Software |
| Features: | Extreme Engine Digi+ |
| ASUS Thermal Solution | |
| ASUS Q-Design | |
| ASUS EZ DIY | |
| Aura Sync | |
| General | |
| Operating System: | Windows 11 (22H2 & later) |
| Form Factor: | ATX Form Factor – (30.5 cm x 24.4 cm) |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
