ASUS ROG Strix B850-A Gaming WiFi DDR5 ATX AM5 AMD Motherboard – 90MB1J50-M0EAY0
Full description ASUS.
- Elevate your build with the ROG Strix B850-A Gaming WiFi.
- Featuring a sleek white PCB and support for AMD Ryzen™ 9000 Series processors, this motherboard delivers the power and connectivity needed for advanced AI applications.
- With DDR5 support, full PCIe 5.0 capabilities, USB 20Gbps port, and WiFi 7, it’s the ultimate blend of style and performance.
- AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance.
| Specifications | |
| Brand: | ASUS |
| Series: | AMD B850 Series |
| Model: | 90MB1J50-M0EAY0 |
| Technical Specs | |
| CPU Support: | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset: | AMD B850 Chipset |
| Memory: | 4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors – ECC and Non-ECC, Un-buffered DIMM – Dual channel memory architecture – Supports AMD Extended Profiles for Overclocking (EXPO) – ASUS Enhanced Memory Profile (AEMP) |
| Onboard Graphics: | 1 x DisplayPort 1 x HDMI port |
| Audio: | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input – Supports up to 32-Bit/384 kHz playback on front panel” Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover |
| Connectivity | |
| LAN: | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Wireless: | Wi-Fi 7 – 2×2 Wi-Fi 7 (802.11be) – Supports 2.4/5/6GHz frequency band – Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. |
| Bluetooth: | Bluetooth v5.4 |
| Expansion Slots: | AMD Ryzen 9000 & 7000 Series Desktop Processors – 1 x PCIe 5.0 x16 slot with Q-Release Slim AMD Ryzen 8000 Series Desktop Processors – 1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8/x4 mode) AMD B850 Chipset – 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Storage Interface: | Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen 7000 & 9000 Series Desktop Processors – M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0×4 mode) – M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors – M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0×4 mode) – M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode) AMD B850 Chipset – M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4) – M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4) – 2 x SATA 6Gb/s ports |
| On-Board Connectors | |
| USB: | Rear USB (Total 10 ports) 1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Internal I/O Connectors: | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Power button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4) header |

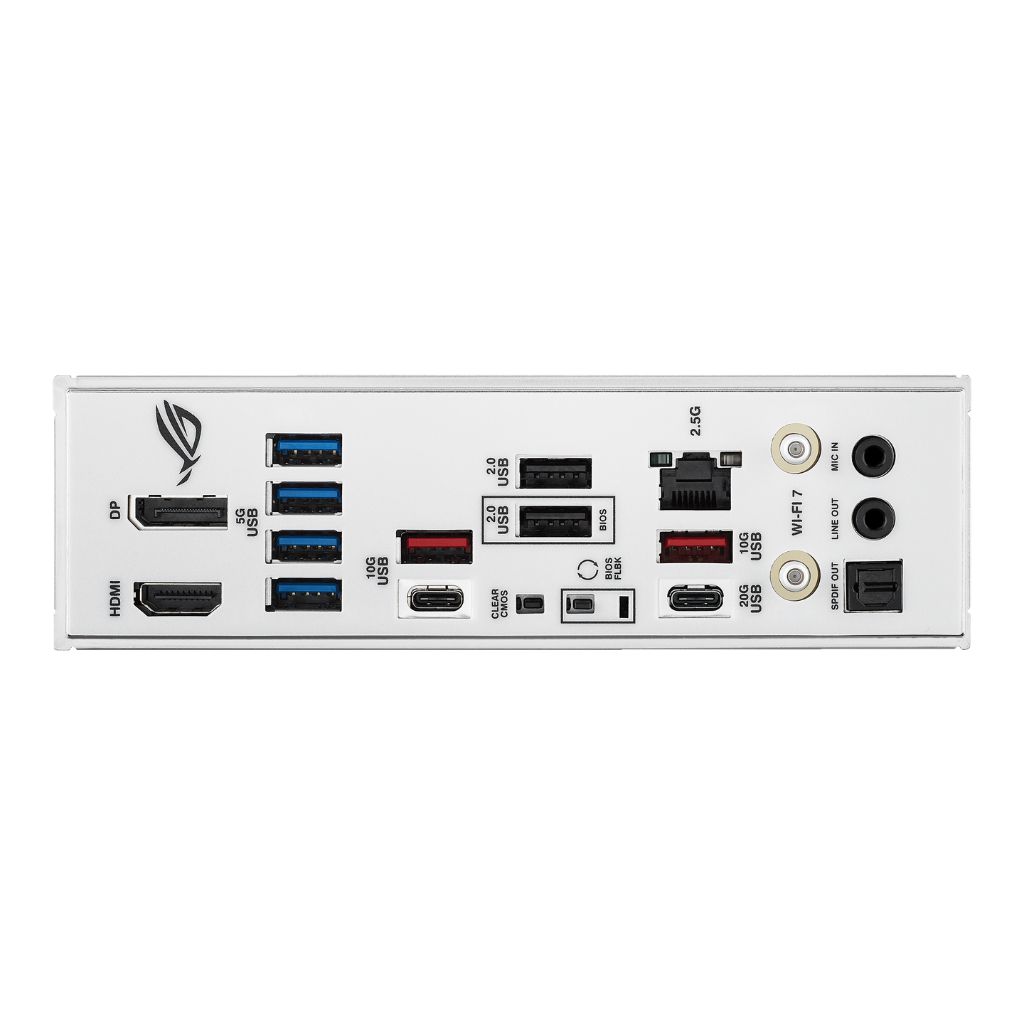

| Back Panel Connectors: | 1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Software & Features | |
| BIOS: | 256 Mb Flash ROM, UEFI AMI BIOS |
| Software: | ROG Exclusive Software ASUS Exclusive Software Armoury Crate UEFI BIOS |
| Features: | Extreme Engine Digi+ |
| ASUS Q-Design | |
| ASUS Thermal Solution | |
| ASUS EZ DIY | |
| Aura Sync | |
| General | |
| Operating System: | Windows 11 |
| Form Factor: | ATX Form Factor (30.5 cm x 24.4 cm) |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
ASUS ROG Strix B850-A Gaming WiFi DDR5 ATX AM5 AMD Motherboard – 90MB1J50-M0EAY0
Contact us if you would like to enquire about this product.
