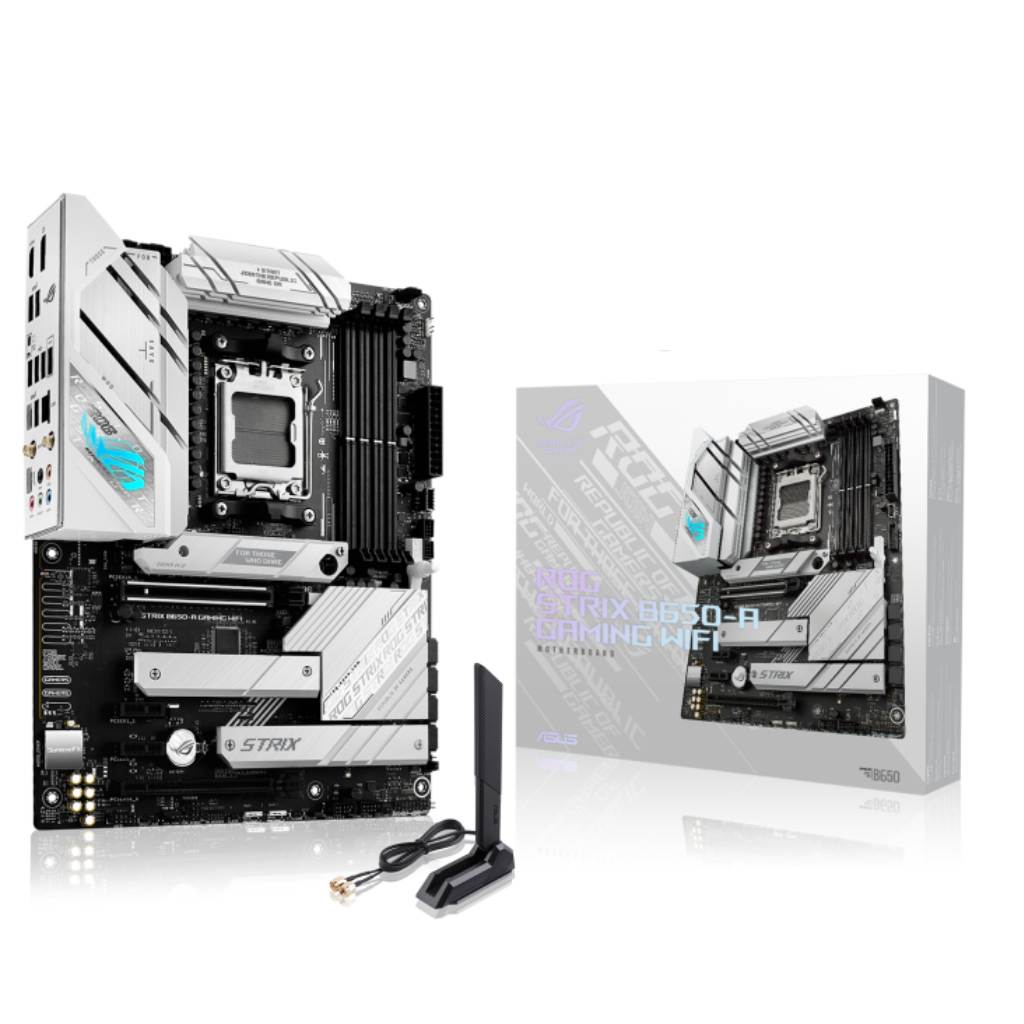

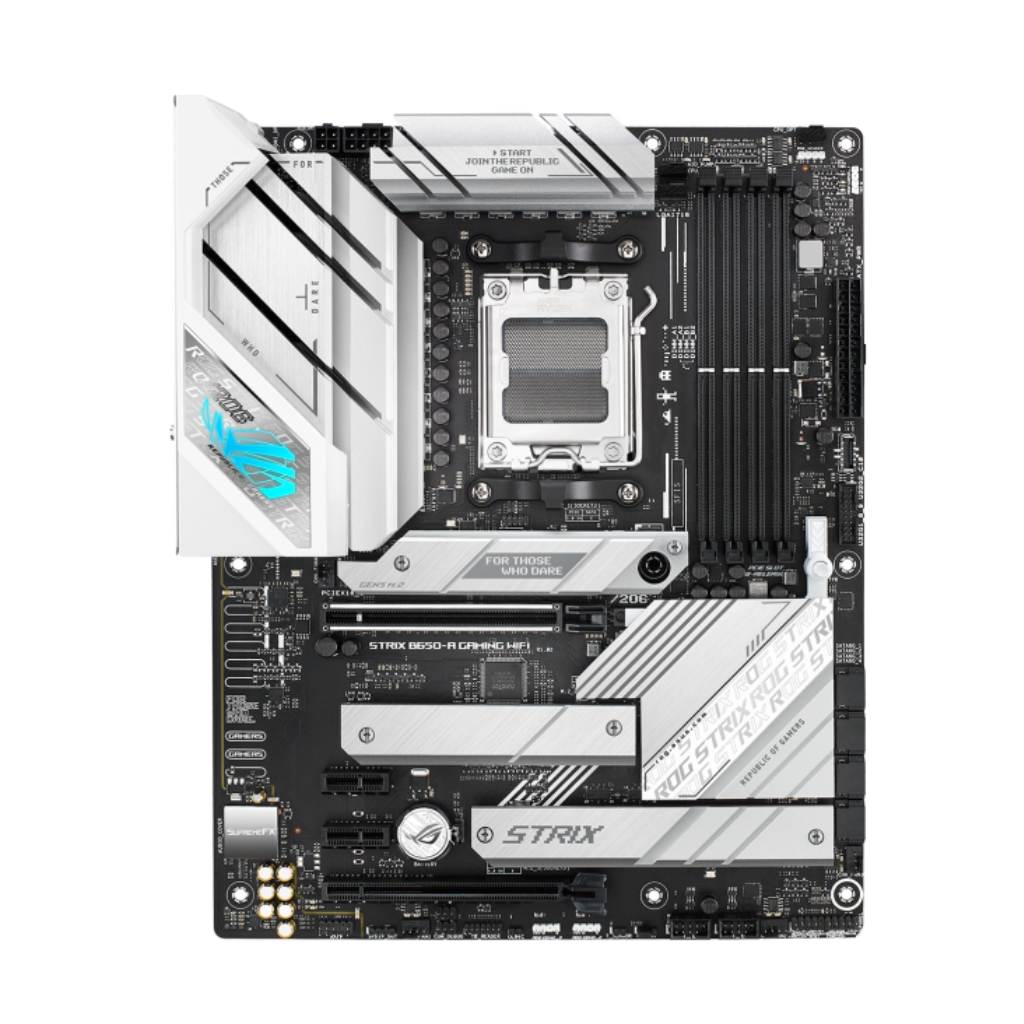

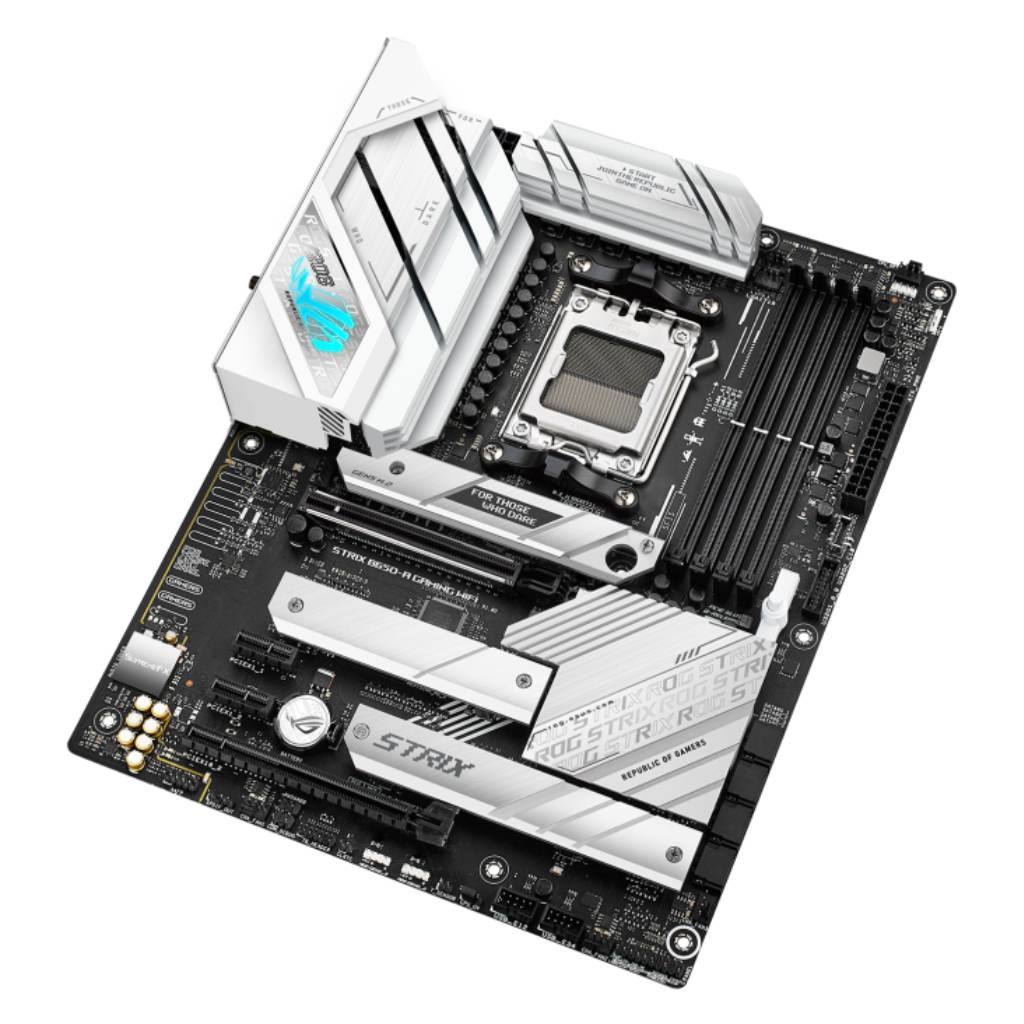

ASUS ROG Strix B650-A Gaming WiFi DDR5 Motherboard
Full description ASUS.
- AMD Socket AM5: Ready for AMD Ryzen™ 7000 Series desktop processors
- Robust Power Solution: 12 + 2 power stages with 8 + 4 pin ProCool power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors
- Optimized Thermal Design: Massive VRM heatsinks with strategically cut airflow channels and high conductivity thermal pads
- Next-Gen M.2 Support: One PCIe® 5.0 M.2 slot and two PCIe 4.0 M.2 slots, all with heatsinks to maximize performance
- Advanced Connectivity: One USB 3.2 Gen 2×2 Type-C® and eight additional rear USB ports, USB 3.2 Gen 2 Type-C® front-panel connector, HDMI® 2.1, DisplayPort™ 1.4, and one PCIe 4.0 x16 SafeSlot
- High-Performance Networking: On-board WiFi 6E (802.11ax), Bluetooth® 5.2, and Intel® 2.5G Ethernet with ASUS LANGuard
- Intelligent Control: ASUS-exclusive Two-Way AI Noise Cancelation and AI Networking
- Immersive Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
- DIY-Friendly Design: PCIe® Slot Q-release, M.2 Q-Latch, Pre-mounted I/O shield, and BIOS FlashBack™ button
- Intuitive Software: Easy-to-use UEFI BIOS dashboard, Armoury Crate RGB and device manager, and bundled 60-day AIDA64 Extreme trial
Specifications |
|
| Brand: | ASUS |
| Series: | AMD B650 Series |
| Model: | 90MB1BP0-M0EAY0 |
| Technical Specs | |
| CPU Support: | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors |
| Chipset: | AMD B650 |
| Memory: | 4 x DIMM, Max. 192GB, DDR5 7600(OC)/7200(OC)/7000(OC)/ 6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/ 5600(OC)/5400(OC)/5200/5000/ 4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II |
| Onboard Graphics: | 1 x DisplayPort* 1 x HDMI® port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. **Supports 4K@60Hz as specified in HDMI 2.1 |
| Audio: | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/384 kHz playback Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover |
| Connectivity | |
| LAN: | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless: | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band |
| Bluetooth: | Bluetooth v5.2 |
| Expansion Slots: | AMD Ryzen™ 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)* 2 x PCIe 4.0/3.0 x1 slots |
| Storage Interface: | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s port |
| On-Board Connectors | |
| USB: | Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers supports additional 4 USB 2.0 ports |
| Internal I/O Connectors: | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers supports additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™header 1 x COM_DEBUGheader |
| Back Panel Connectors: | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button |
| Software & Features | |
| BIOS: | 256 Mb Flash ROM, UEFI AMI BIOS |
| Software: | ROG Exclusive Software ASUS Exclusive Software Armoury Crate AI Suite 3 UEFI BIOS ASUS EZ DIY |
| Features: | Extreme Engine Digi+ |
| ASUS Q-Design | |
| ASUS Thermal Solution | |
| ASUS EZ DIY | |
| AURA Sync | |
| General | |
| Operating System: | Windows® 11 64-bit |
| Form Factor: | ATX Form Factor ( 30.5 cm x 24.4 cm ) |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
