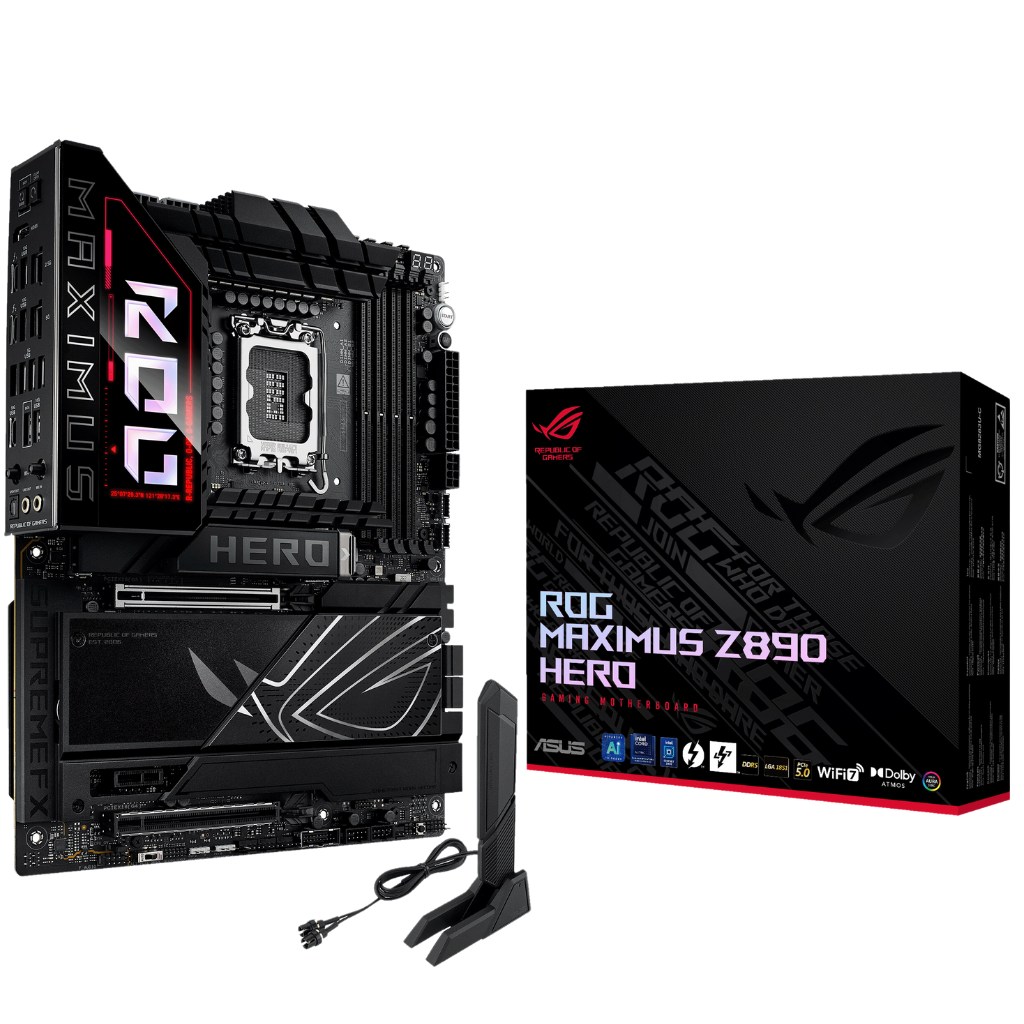

ASUS ROG Maximus Z890 HERO DDR5 Wi-Fi 7 LGA 1851 Intel Motherboard – 90MB1ID0-M0EAY0
Full description ASUS.
| Specifications | |
| Brand: | ASUS |
| Series: | Z890 Series |
| Model: | 90MB1ID0-M0EAY0 |
| Technical Specs | |
| CPU Support: | Support Intel Core Ultra Processors (Series 2), LGA1851 – Supports Intel Turbo Boost Technology 2.0 – Supports Intel Turbo Boost Max Technology 3.0 |
| Chipset: | Intel Z890 Chipset – LGA1851 |
| Memory: | 4 x DIMM slots, max. 192GB, DDR5 Support up to 8800+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM) – Dual channel memory architecture – Supports Intel® Extreme Memory Profile (XMP) memory module – Supports DIMM Flex – NitroPath DRAM Technology – DIMM FIT – ASUS Enhanced Memory Profile III (AEMP III) |
| Onboard Graphics: | 1 x HDMI port 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs |
| Audio: | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input – Supports up to 32-Bit/384 kHz playback on front panel” Audio Features – SupremeFX Shielding Technology – ESS ES9219 QUAD DAC – Gold-plated audio jacks – Rear optical S/PDIF out port – Premium audio capacitors |
| Connectivity | |
| LAN: | 1 x Intel 2.5Gb Ethernet 1 x Realtek 5Gb Ethernet ASUS LANGuard |
| Wireless: | Wi-Fi 7 2×2 Wi-Fi 7 (802.11be) – Supports 2.4/5/6GHz frequency band – Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. |
| Bluetooth: | Bluetooth v5.4 |
| Expansion Slots: | Intel Core Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes) Intel Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot |
| Storage Interface: | Supports 6 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2) – M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) – M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) – M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) – M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel Z890 Chipset – M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) – M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| On-Board Connectors | |
| USB: | Rear USB (Total 11 ports) 2 x Thunderbolt 4 ports (2 x USB Type-C) 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 10 ports) 1 x USB 20Gbps connector (supports USB Type-C with up to 60W PD/QC4+) 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A |
| Internal I/O Connectors: | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors 1 x 8-pin PCIe Power connector Storage Related 6 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x SlimSAS connector USB 1 x USB 20Gbps connector (supports USB Type-C® ) 1 x USB 10Gps connector (supports USB Type-C® ) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Alteration PCIe mode switch 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x ReTry button 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header |

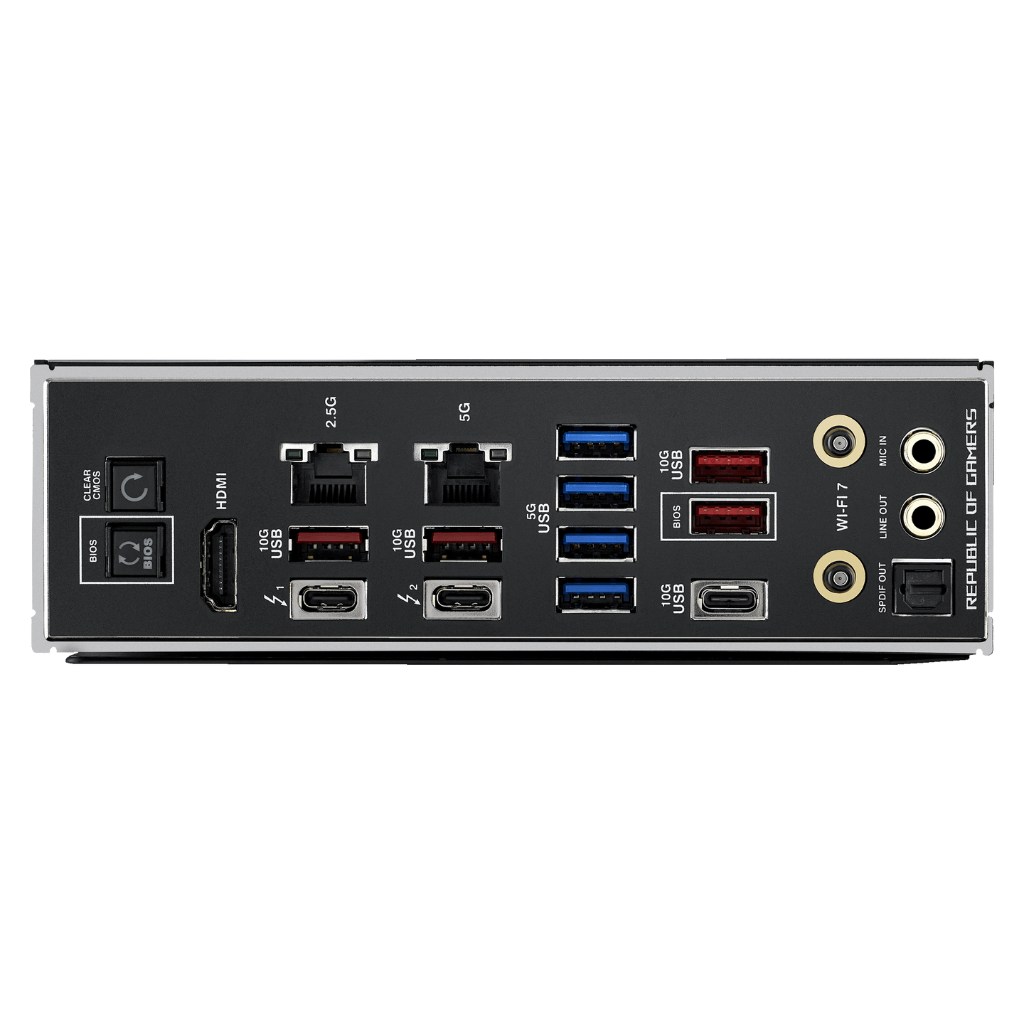

| Back Panel Connectors: | 2 x Thunderbolt 4 USB Type-C ports 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C) 4 x USB 5Gbps ports (4 x Type-A) 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Software & Features | |
| BIOS: | 256 Mb Flash ROM, UEFI AMI BIOS |
| Software: | ROG Exclusive Software – ROG CPU-Z – Dolby Atmos – Polymo Lighting II – Internet Security (1-year full version) ASUS Exclusive Software |
| Features: | Extreme OC Kit Extreme Engine Digi+ ASUS Q-Design |
| ASUS Thermal Solution | |
| ASUS EZ DIY | |
| Aura Sync | |
| ROG M.2 PowerBoost | |
| General | |
| Operating System: | Windows 11 (22H2 & later) |
| Form Factor: | ATX Form Factor (30.5 cm x 24.4 cm) |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
