ASUS ProArt Z890-CREATOR WIFI DDR5 ATX LGA 1851 Intel Motherboard
Full description ASUS.
- Create a premium high-performance workstation with support for Intel Core Ultra processors (Series 2) on the LGA 1851 socket, giving this creator-focused motherboard the platform strength needed for demanding production, multitasking, and professional desktop workflows.
- Handle advanced workloads with DDR5 support up to 256GB across 4 DIMM slots, plus AEMP III and DIMM Fit memory tuning features, helping improve memory optimisation, stability, and responsiveness for heavy creative and productivity applications.
- Build around fast storage and expansion with 5 x M.2 slots, 4 x SATA 6Gb/s, PCIe 5.0 x16, and an additional PCIe 5.0 x8 slot, giving the board strong flexibility for GPUs, high-speed SSDs, and professional workstation expansion.
- Stay connected with premium networking including Marvell 10Gb Ethernet, Intel 2.5Gb Ethernet, and Wi-Fi 7 with Bluetooth 5.4, making it ideal for creators who need high-speed wired and wireless connectivity for large transfers, collaboration, and modern studio setups.
- Designed for professional creators, the ASUS ProArt Z890-CREATOR WIFI adds dual Thunderbolt 5, rich USB connectivity, extensive internal headers, and creator-focused features like ProArt Creator Hub, helping streamline high-end workstation builds and peripheral-heavy workflows.
| Specifications | |
|---|---|
| Brand | ASUS |
| Series | ProArt |
| Model | ProArt Z890-CREATOR WIFI |
| Form Factor | ATX |
| Platform | |
| CPU Socket | LGA 1851 |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel Z890 |
| Memory | |
| Memory Slots | 4 x DIMM |
| Maximum Memory | 256GB |
| Memory Support | DDR5 |
| Memory Features | Dual Channel, AEMP III, DIMM Fit |
| Graphics | |
| Display Outputs | 1 x HDMI, 1 x Mini DisplayPort |
| Maximum Resolution | Up to 8K@60Hz via HDMI, up to 4K@60Hz via Mini DisplayPort |
| Expansion | |
| PCIe x16 Slots | 1 x PCIe 5.0 x16, 1 x PCIe 5.0 x8, 1 x PCIe 4.0 x16 (x4 mode) |
| Storage | |
| M.2 Slots | 5 x M.2 |
| SATA Ports | 4 x SATA 6Gb/s |
| Networking | |
| Ethernet | 1 x Marvell AQtion 10Gb Ethernet, 1 x Intel 2.5Gb Ethernet |
| Wireless | Wi-Fi 7 |
| Bluetooth | Bluetooth 5.4 |
| USB | |
| Rear USB | 2 x Thunderbolt 5 USB Type-C 1 x USB 20Gbps USB Type-C 1 x USB 10Gbps USB Type-A 5 x USB 5Gbps USB Type-A 1 x USB 2.0 |
| Front USB | 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 10Gbps header 1 x USB 5Gbps header 2 x USB 2.0 headers |
| Audio | |
| Audio Codec | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC |
| Audio Features | Supports up to 32-Bit/192 kHz playback |
| Back Panel Connectors | |

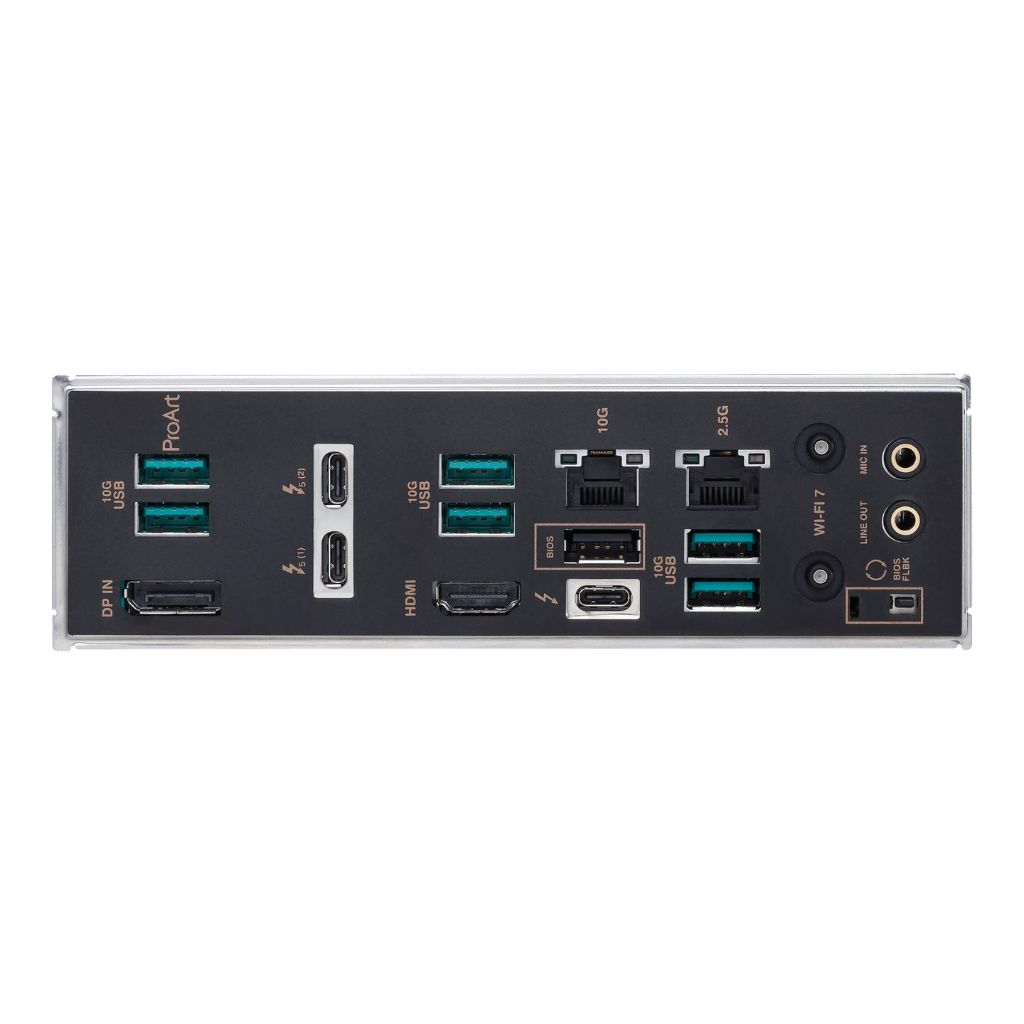

| Back Panel I/O | 2 x Thunderbolt 5 USB Type-C 1 x USB 20Gbps USB Type-C 1 x USB 10Gbps USB Type-A 5 x USB 5Gbps USB Type-A 1 x USB 2.0 1 x HDMI 1 x Mini DisplayPort in 1 x Marvell AQtion 10Gb Ethernet port 1 x Intel 2.5Gb Ethernet port 2 x Audio Jacks 1 x BIOS FlashBack Button |
| Internal I/O Connectors | |
| Fan Headers | 1 x 4-pin CPU Fan Header1 x 4-pin CPU OPT Fan Header1 x 4-pin AIO Pump Header5 x 4-pin Chassis Fan Headers |
| Power Connectors | 1 x 24-pin Main Power Connector2 x 8-pin +12V CPU Power Connectors |
| USB Headers | 1 x USB 20Gbps connector1 x USB 10Gbps header1 x USB 5Gbps header2 x USB 2.0 headers |
| Storage Connectors | 5 x M.2 slots4 x SATA 6Gb/s ports |
| RGB Headers | 3 x Addressable Gen 2 Headers |
| Other Internal Connectors | 1 x COM Port Header1 x CPU Over Voltage Jumper1 x Thermal Sensor Header1 x Front Panel Audio Header (F_AUDIO)1 x SPI TPM Header1 x 10-1 pin System Panel Header |
| Special Features | |
| ASUS Features | ASUS 5X Protection III, Q-Release, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, SafeSlot, SafeDIMM, ProArt Creator Hub, AI Advisor, AI Overclocking |
| Accessories | |
| Included Items | 2 x SATA 6Gb/s Cables1 x ASUS Wi-Fi Q-Antenna1 x Q-connector2 x M.2 Q-Latch Packages2 x M.2 Rubber Packages1 x ACC Express Activation Key Card1 x Quick Start Guide |
| Operating System Support | |
| Operating System | Windows 11 (22H2 64-bit) |
| Warranty Information | |
| Warranty | 3 Year Warranty |
