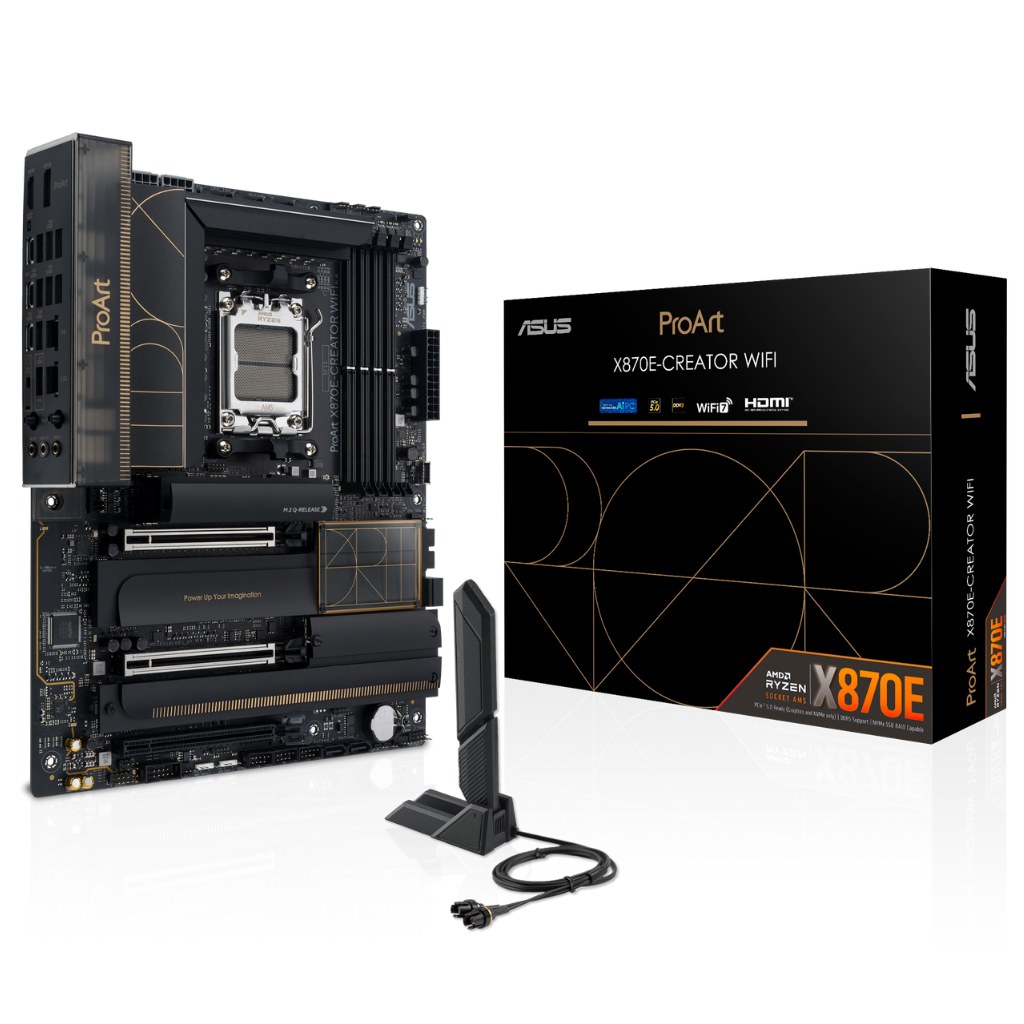

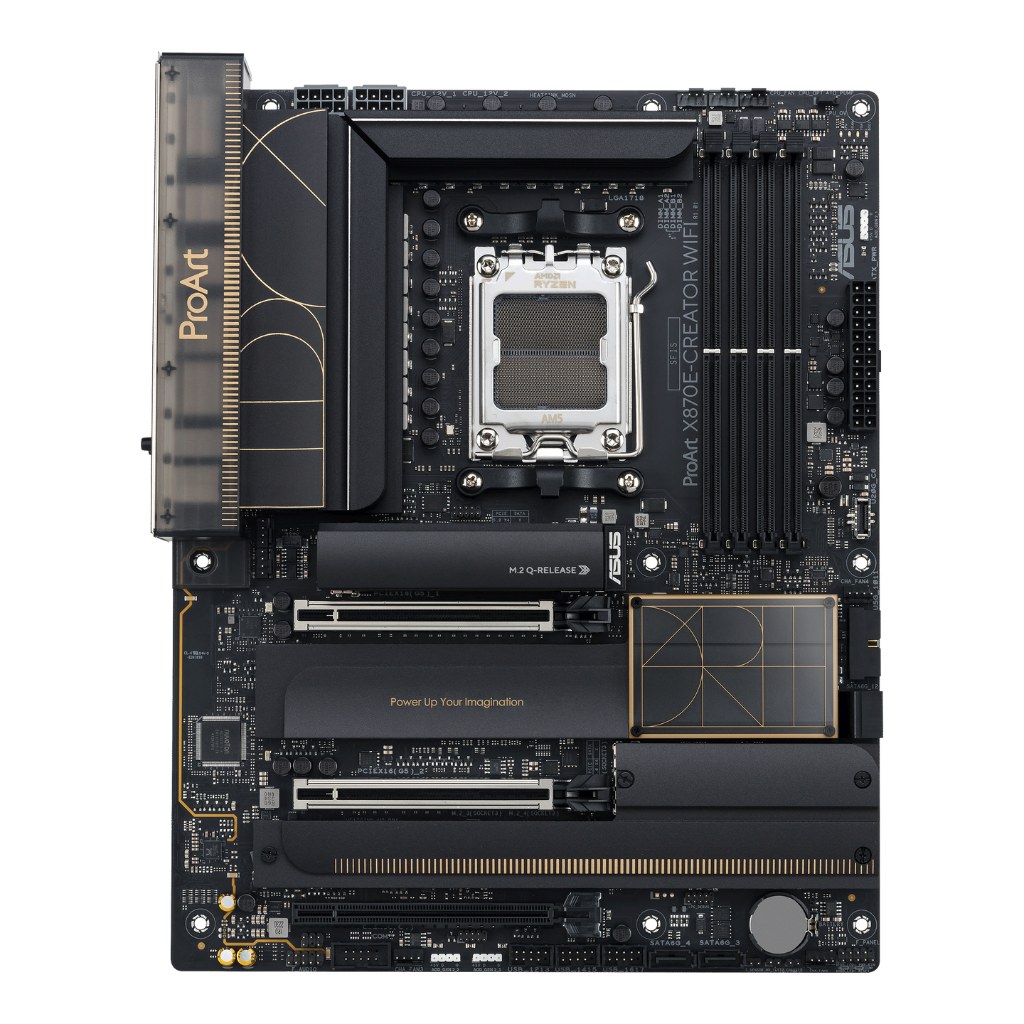

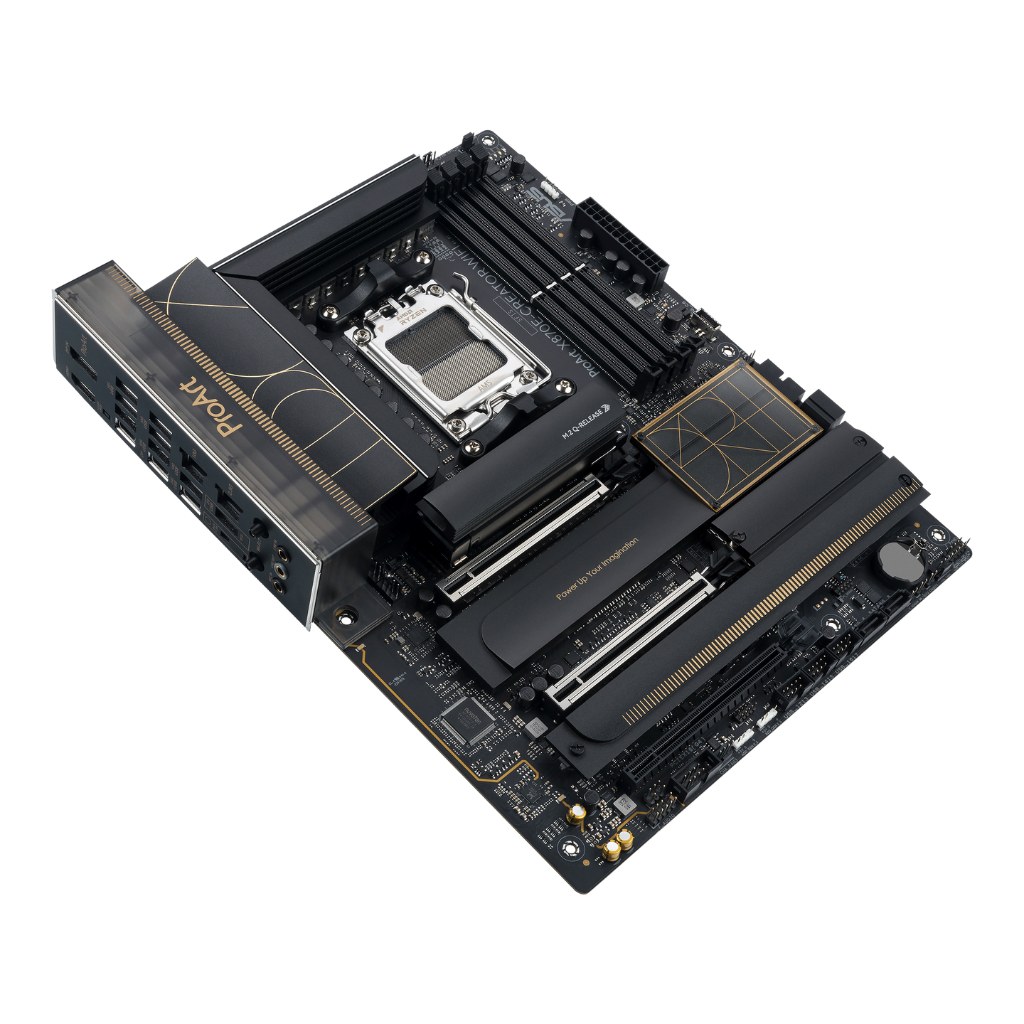

ASUS ProArt X870E-Creator WiFi DDR5 ATX AM5 AMD Motherboard – 90MB1IG0-M0EAY0
Full description ASUS.
- The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors.
- This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches.
- A translucent I/O cover also gives users a stylish peek at the premium connectors within.
- To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort
| Specifications | |
| Brand: | ASUS |
| Series: | X870 Series |
| Model: | 90MB1IG0-M0EAY0 |
| Technical Specs | |
| CPU Support: | AMD Socket AM5: – AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset: | AMD X870E |
| Memory: | 4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen™ 9000 Series Processors, 8000+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, – ECC and Non-ECC Un-buffered DIMM – Dual Channel Memory Architecture – Supports AMD Extended Profiles for Overclocking (EXPO™) – ASUS Enhanced Memory Profile (AEMP) |
| Onboard Graphics: | 1 x HDMITM port 2 x USB4 (40Gbps) ports support USB Type-C® display outputs |
| Audio: | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback* Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers – Unique de-pop circuit |
| Connectivity | |
| LAN: | 1 x Marvell® AQtion 10Gb Ethernet 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless: | Wi-Fi 7* – 2×2 Wi-Fi 7 (802.11be) – Supports 2.4/5/6GHz frequency band** – Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate. |
| Bluetooth: | Bluetooth v5.4 |
| Expansion Slots: | AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)** AMD X870E Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Storage Interface: | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** AMD X870E Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| On-Board Connectors | |
| USB: | Rear USB (Total 11 ports) 2 x USB4® (40Gbps) port(s) (2 x USB Type-C®) 1 x USB 20Gbps port(s) (1 x USB Type-C®) 7 x USB 10Gbps port(s) (7 x Type-A) 1 x USB 2.0 port (1 x Type-A) Front USB (Total 9 ports) 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)** 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports |
| Internal I/O Connectors: | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Chassis Intrusion header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |

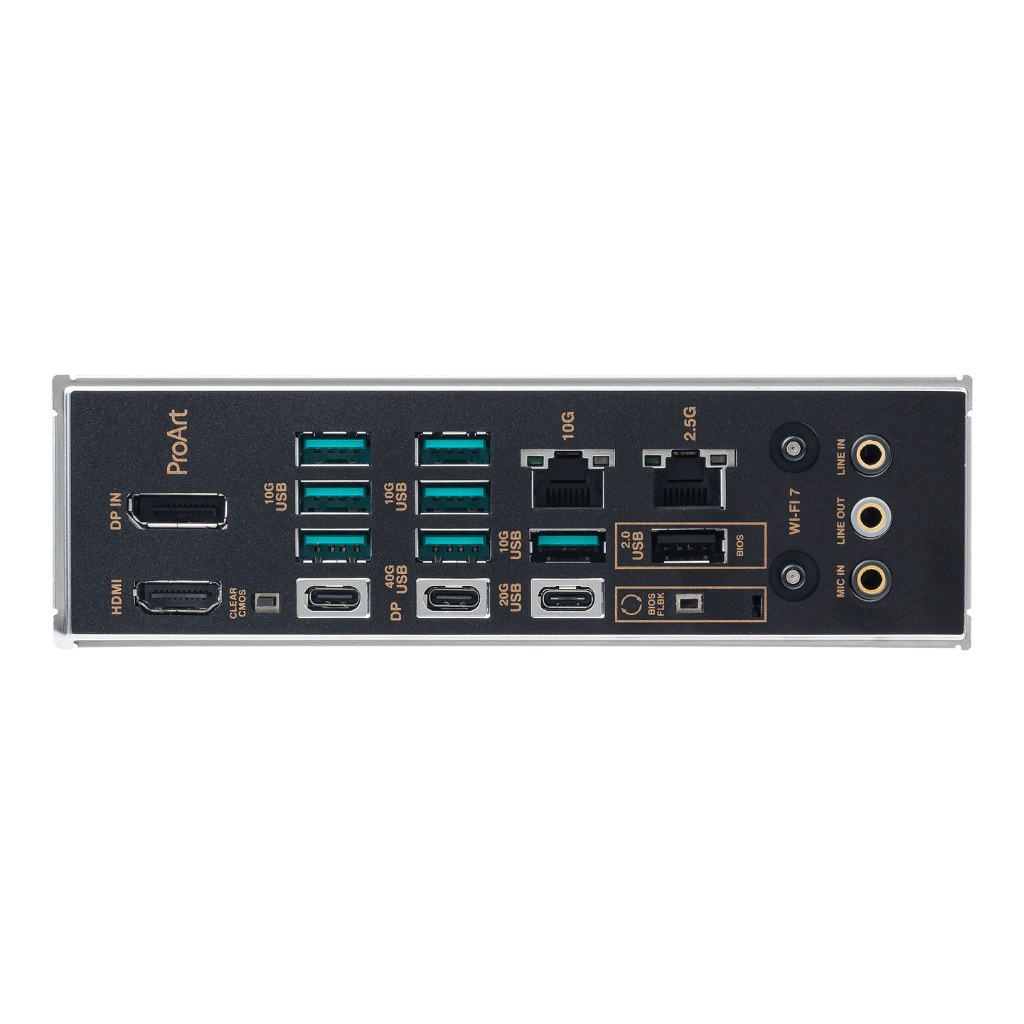

| Back Panel Connectors: | 2 x USB4® (40Gbps) port(s) (2 x USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C®) 7 x USB 10Gbps ports (7 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort (Input only) 1 x HDMITM port 1 x Wi-Fi Module 1 x Marvell® AQtion 10Gb Ethernet 1 x Intel® 2.5Gb Ethernet 3 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Software & Features | |
| BIOS: | 256 Mb Flash ROM, UEFI AMI BIOS |
| Software: | ASUS Exclusive Software |
| Features: | ASUS 5X PROTECTION III ASUS Q-Design |
| AURA Sync | |
| ASUS Thermal Solution | |
| Bespoke Motherboard Design & Business Focused Features | |
| Front Panel USB 20Gbps with Quick Charge 4+ Support | |
| General | |
| Operating System: | Windows 11 |
| Form Factor: | ATX (30.5 cm x 24.4 cm) |
| Warranty Information | |
| Warranty: | 5 Year Warranty |
ASUS ProArt X870E-Creator WiFi DDR5 ATX AM5 AMD Motherboard – 90MB1IG0-M0EAY0
Contact us if you would like to enquire about this product.
