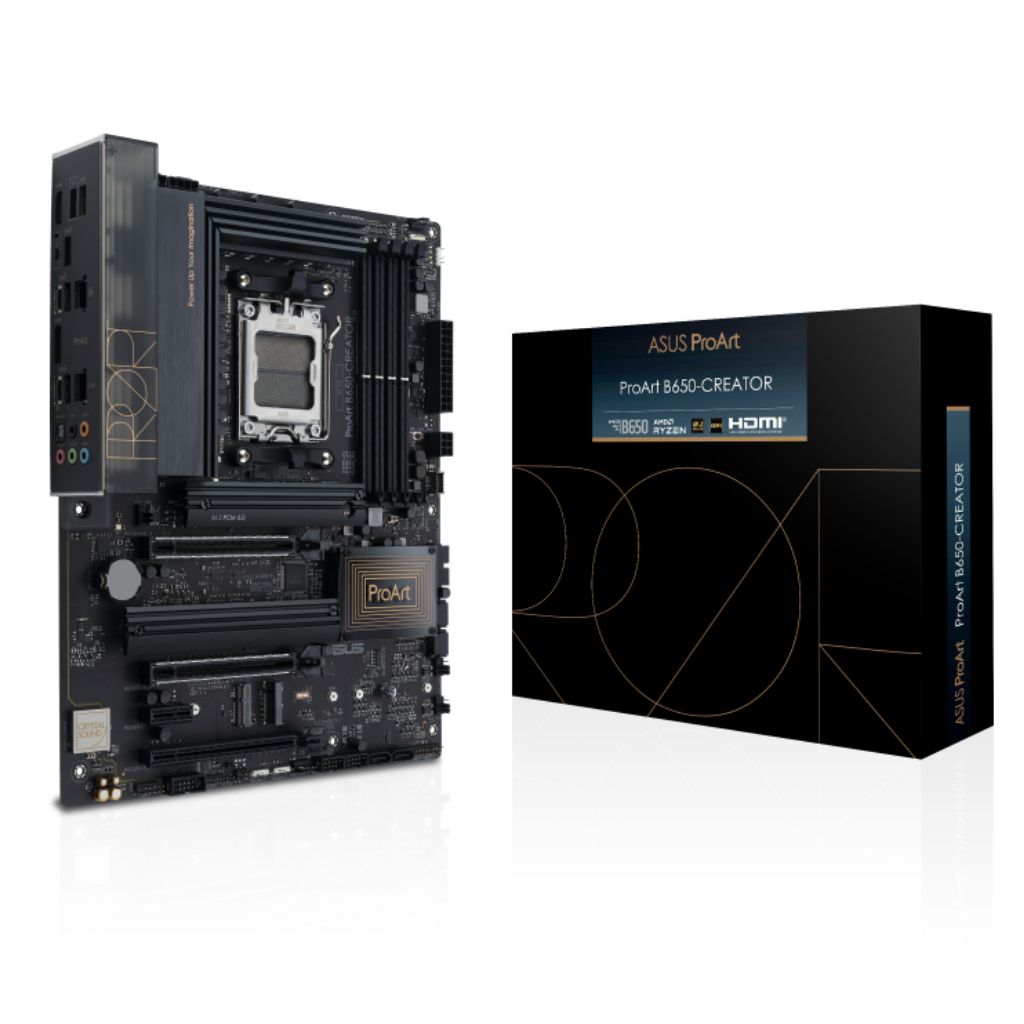

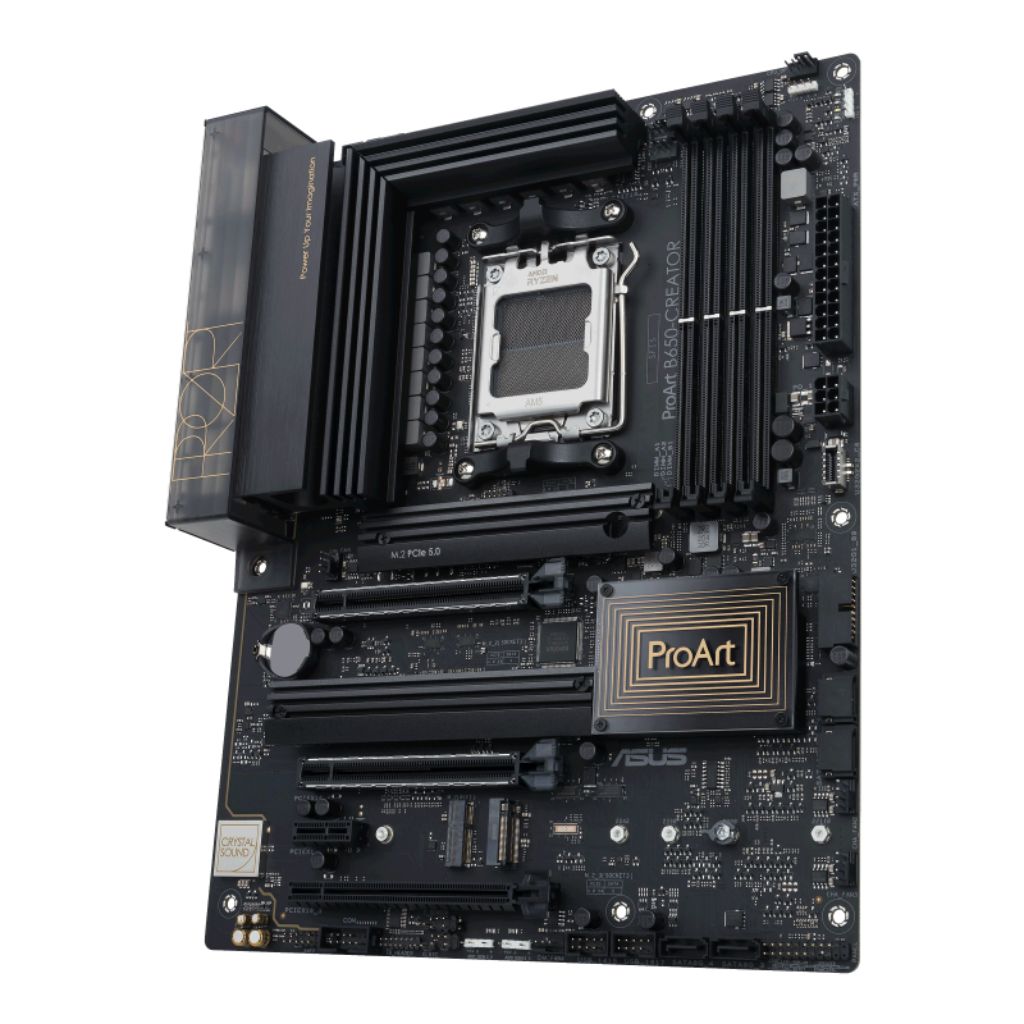

ASUS ProART B650-Creator DDR5 Motherboard
Full description ASUS.
- ProArt B650-Creator is an advanced motherboard designed for intensive content-creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of AMD Ryzen™ 7000 Series processors through robust power delivery and cooling design, and its comprehensive connectivity includes onboard 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2×2 Type-C® front-panel connector with Quick Charge 4+, and DisplayPort™ via USB-C.
- This USB Type-C® port delivers transfer speeds of up to 10 Gbps, and it supports an alternate mode that provides DisplayPort™ 1.4 output for up to 8K resolution at 60 Hz. This new feature gives creators premium-grade flexibility to choose between high-speed data or an additional hi-res display*.
- 2.5 Gb and 1 Gb Ethernet provide fast data transfers simultaneously for internet and for local network-attached storage (NAS), allowing for improved data organization and security.
- The ProArt B650-Creator features three onboard M.2 slots, one of which is PCIe 5.0-ready to offer blistering 16 GB/s speed, while the remaining pair can still deliver massive 8 GB/s transfers through their PCIe 4.0 interfaces.
Specifications |
|
| Brand: | ASUS |
| Series: | AMD B650 Series |
| Model: | 90MB1C40-M0EAY0 |
| Technical Specs | |
| CPU Support: | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors |
| Chipset: | AMD B650 Chipset |
| Memory: | 4 x DIMM, Max. 128GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II 4 x DIMM, Max. 192GB, DDR5 |
| Onboard Graphics: | 1 x HDMI® port** 1 x USB Type-C® port supports DisplayPort output*** * Graphics specifications may vary between CPU types. ** Supports 4K@60Hz as specified in HDMI 2.1. |
| Audio: | Realtek 7.1 Surround Sound High Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback” Audio Features – Power pre-regulator reduces power input noise to ensure consistent performance – Rear optical S/PDIF out port – Premium audio capacitors – Dedicated audio PCB layers – Audio cover – Unique de-pop circuit |
| Connectivity | |
| LAN: | 1 x Realtek 2.5Gb Ethernet 1 x Realtek 1Gb Ethernet ASUS LANGuard |
| Wireless: | N/A |
| Bluetooth: | N/A |
| Expansion Slots: | AMD Ryzen™ 7000 Series Desktop Processors* 2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes) AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)** 1 x PCIe 4.0 x1 slot |
| Storage Interface: | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports |
| On-Board Connectors | |
| USB: | Rear USB (Total 7 ports) 1 x USB 3.2 Gen 2 port (1 x USB Type-C®, shared with DisplayPort graphic output ) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with up to 60W PD/QC4+) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Internal I/O Connectors: | I/O ConnectorsFan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 1 x 6-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x 20-5 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header |
| Back Panel Connectors: | 1 x USB 3.2 Gen 2 port (1 x USB Type-C®, shared with DisplayPort graphic output ) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort (Input only) 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet 1 x Realtek 1Gb Ethernet 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button |
| Software & Features | |
| BIOS: | 256 Mb Flash ROM, UEFI AMI BIOS |
| Software: | ASUS Exclusive Software Armoury Crate AI Suite 3 ASUS CPU-Z IT Management software supported UEFI BIOS ASUS EZ DIY |
| Features: | ASUS 5X PROTECTION III AURA Sync |
| ASUS Q-Design ASUS Thermal Solution |
|
| ASUS EZ DIY | |
| Bespoke Motherboard Design & Business Focused Features | |
| Front Panel USB 3.2 Gen 2×2 with Quick Charge 4+ Support | |
| General | |
| Operating System: | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor: | ATX Form Factor (30.5 cm x 24.4 cm) |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
