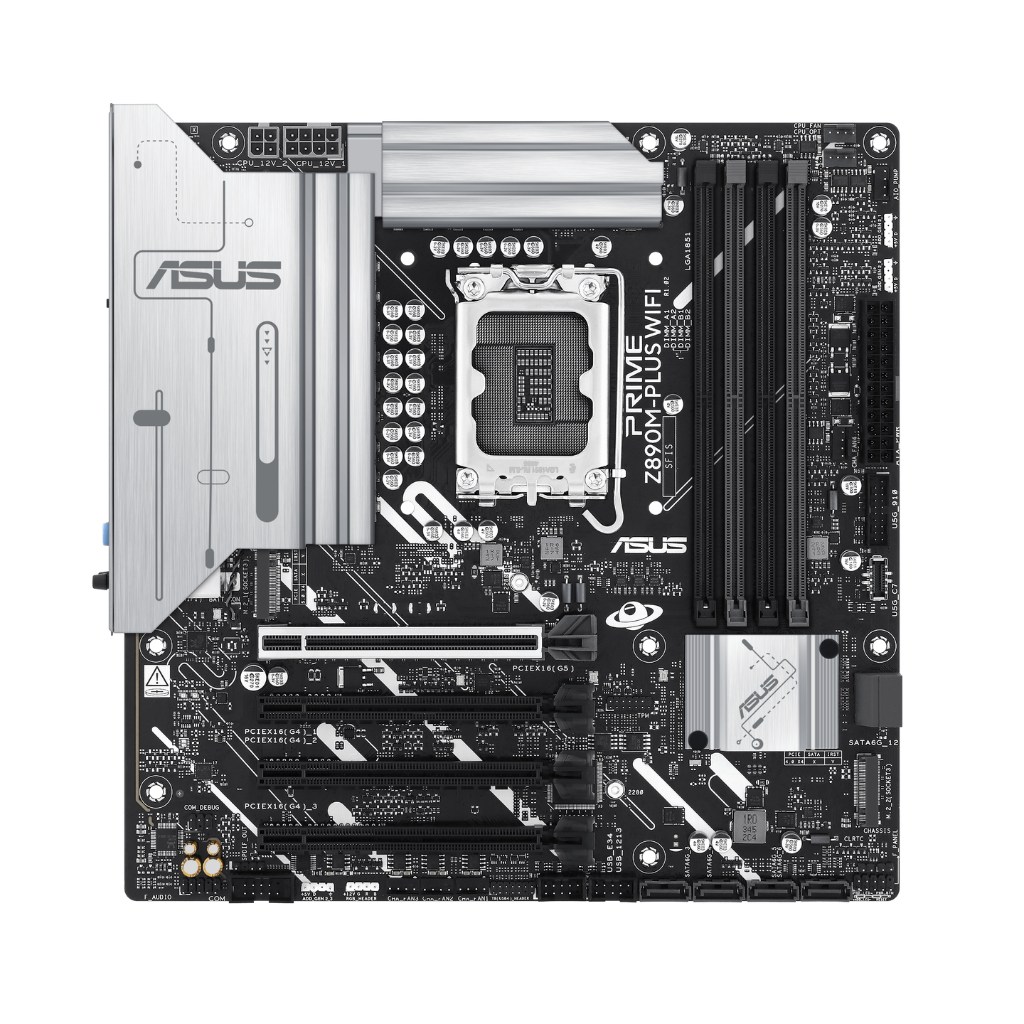

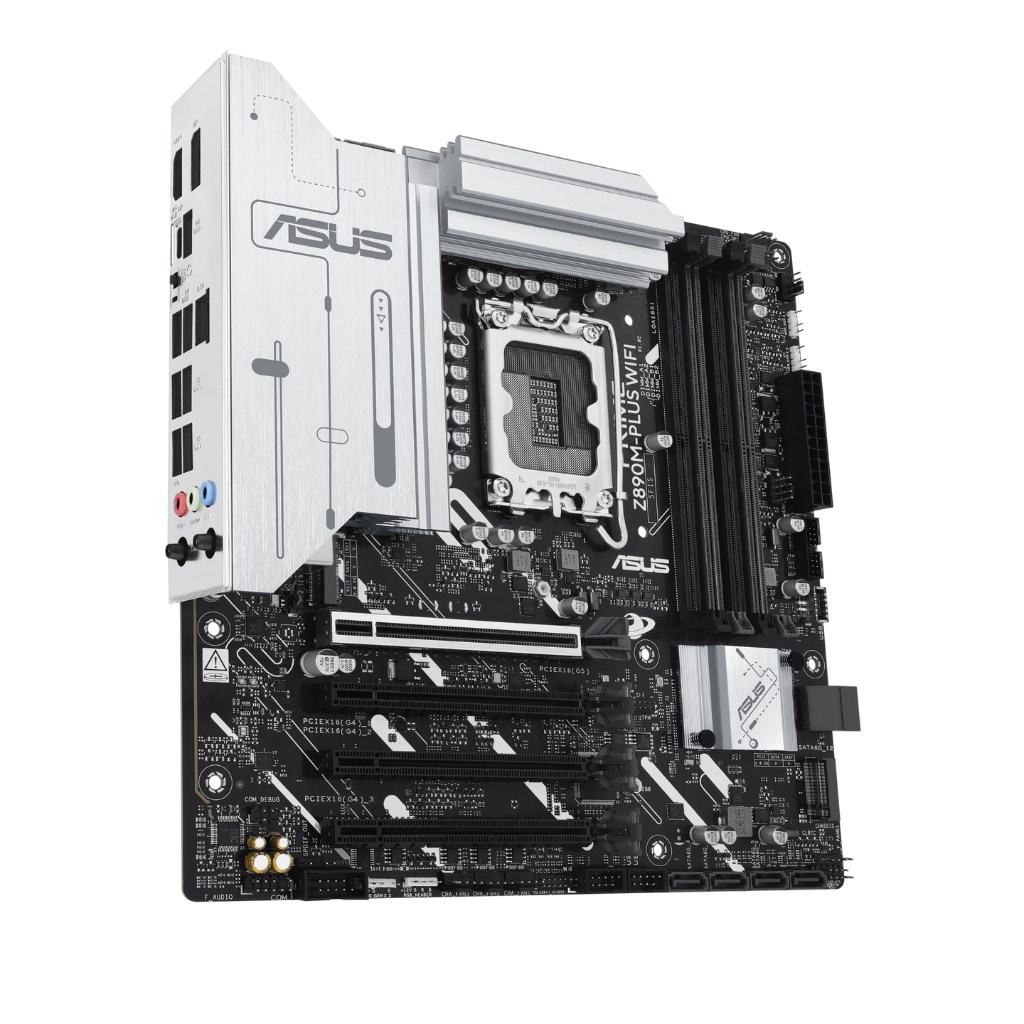

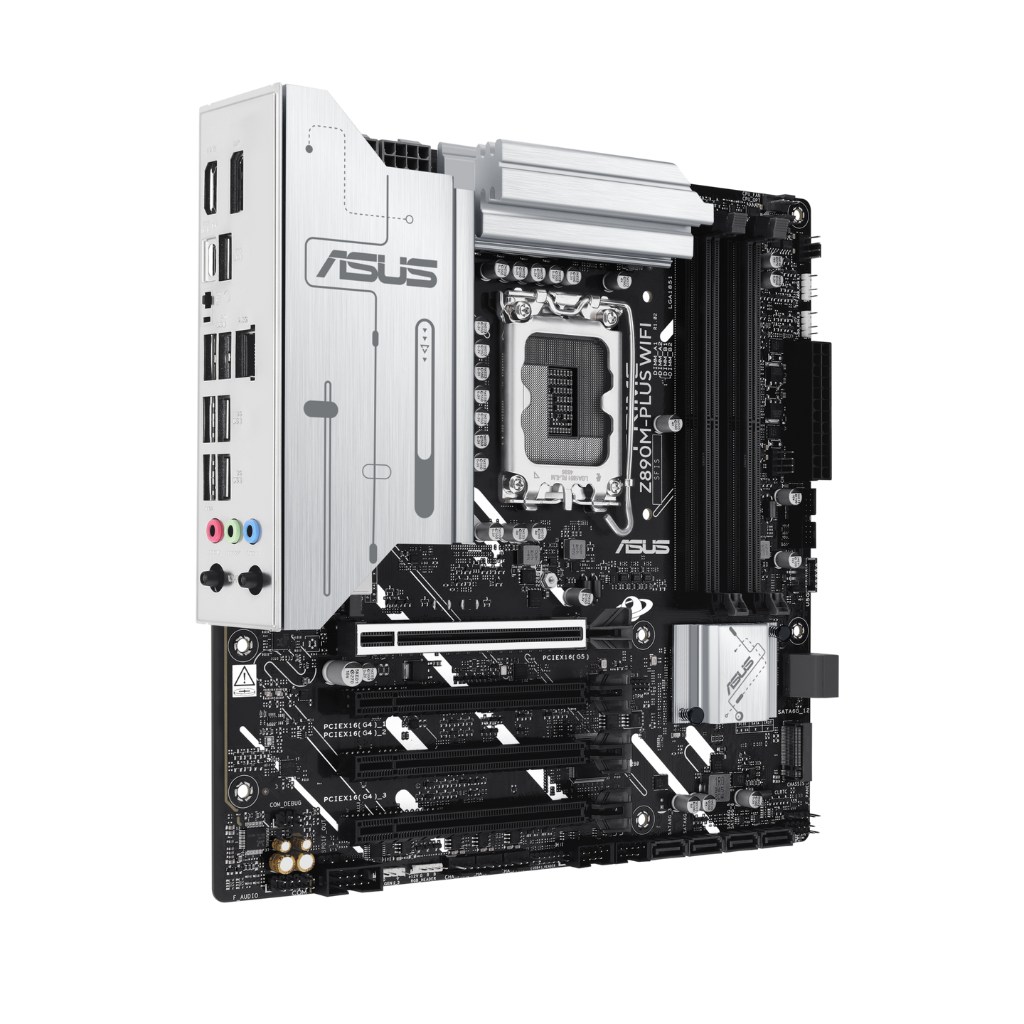

ASUS Prime Z890M-PLUS Wi-Fi 7 DDR5 Micro-ATX LGA 1851 Intel Motherboard – 90MB1J80-M0EAY0
Full description ASUS.
| Specifications | |
| Brand: | ASUS |
| Series: | Z890 Series |
| Model: | 90MB1J80-M0EAY0 |
| Technical Specs | |
| CPU Support: | Support Intel Core Ultra Processors (series 2), LGA1851 – Supports Intel Turbo Boost Technology 2.0 and – Support Intel Turbo Boost Max Technology 3.0 |
| Chipset: | Intel Z890 Chipset |
| Memory: | 4 x DIMM slots, max. 192GB, DDR5 Support up to7600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) – Dual channel memory architecture – DIMM Fit – Supports Intel® Extreme Memory Profile (XMP) |
| Onboard Graphics: | 1 x DisplayPort 1 x HDMI port 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output |
| Audio: | Realtek 7.1 Surround Sound High Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback” Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers |
| Connectivity | |
| LAN: | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Wireless: | Wi-Fi 7 – 2×2 Wi-Fi 7 (802.11be) – Supports 2.4/5/6GHz frequency band – Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. |
| Bluetooth: | Bluetooth v5.4 |
| Expansion Slots: | Intel Core Ultra Processors 1 x PCIe 5.0 x16 slot Intel Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x16 slots (support x1 mode) |
| Storage Interface: | Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel Core Ultra Processors – M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel Z890 Chipset – M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) – M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports |
| On-Board Connectors | |
| USB: | Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) 1x USB 10Gbps port (1 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Internal I/O Connectors: | Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector 1 x 4-pin +12V CPU Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header |

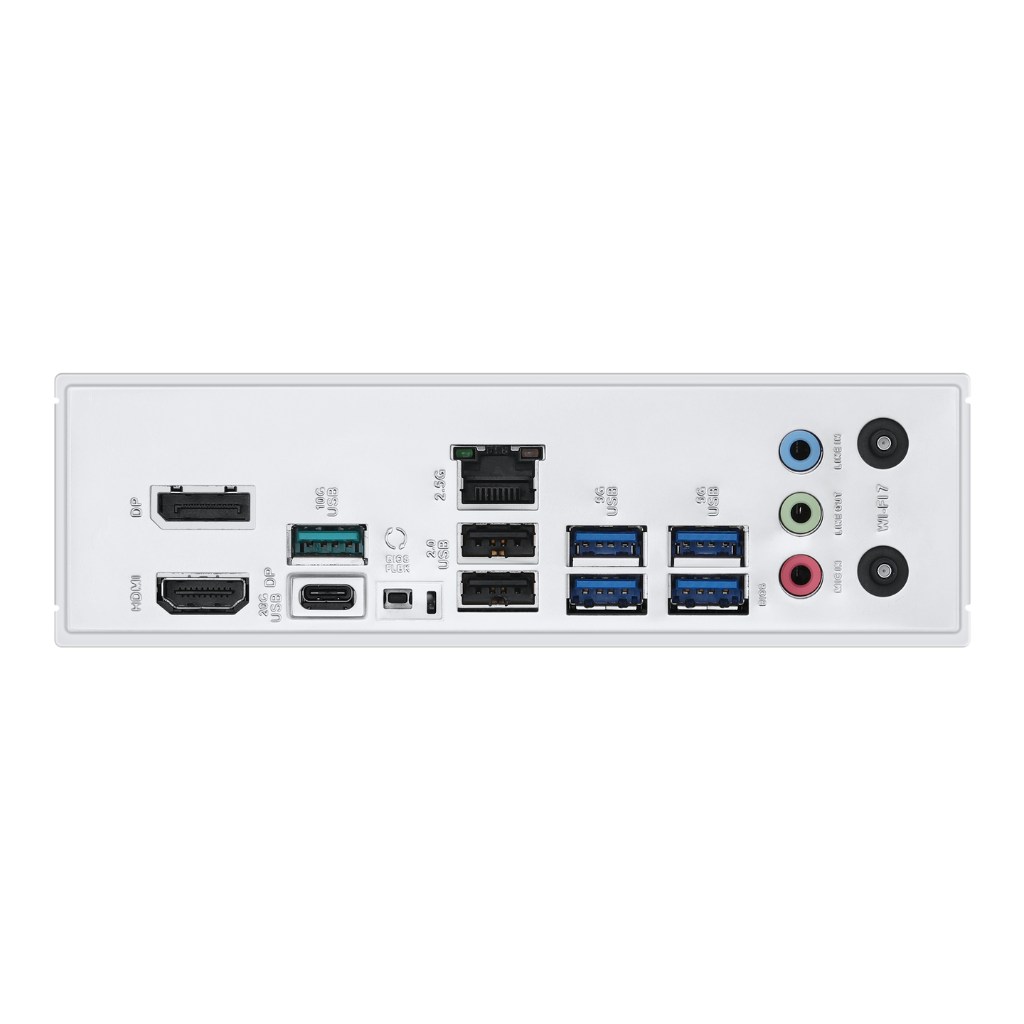

| Back Panel Connectors: | 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) 1x USB 10Gbps port (1 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet 3 x Audio jacks 1 x BIOS FlashBack button |
| Software & Features | |
| BIOS: | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS |
| Software: | ASUS Exclusive Software Armoury Crate |
| Features: | ASUS 5X PROTECTION III |
| ASUS Q-Design | |
| Aura Sync | |
| ASUS EZ DIY | |
| ASUS Thermal Solution | |
| General | |
| Operating System: | Windows 11 (22H2 & later) |
| Form Factor: | mATX Form Factor (24.4 cm x 24.4 cm) |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
