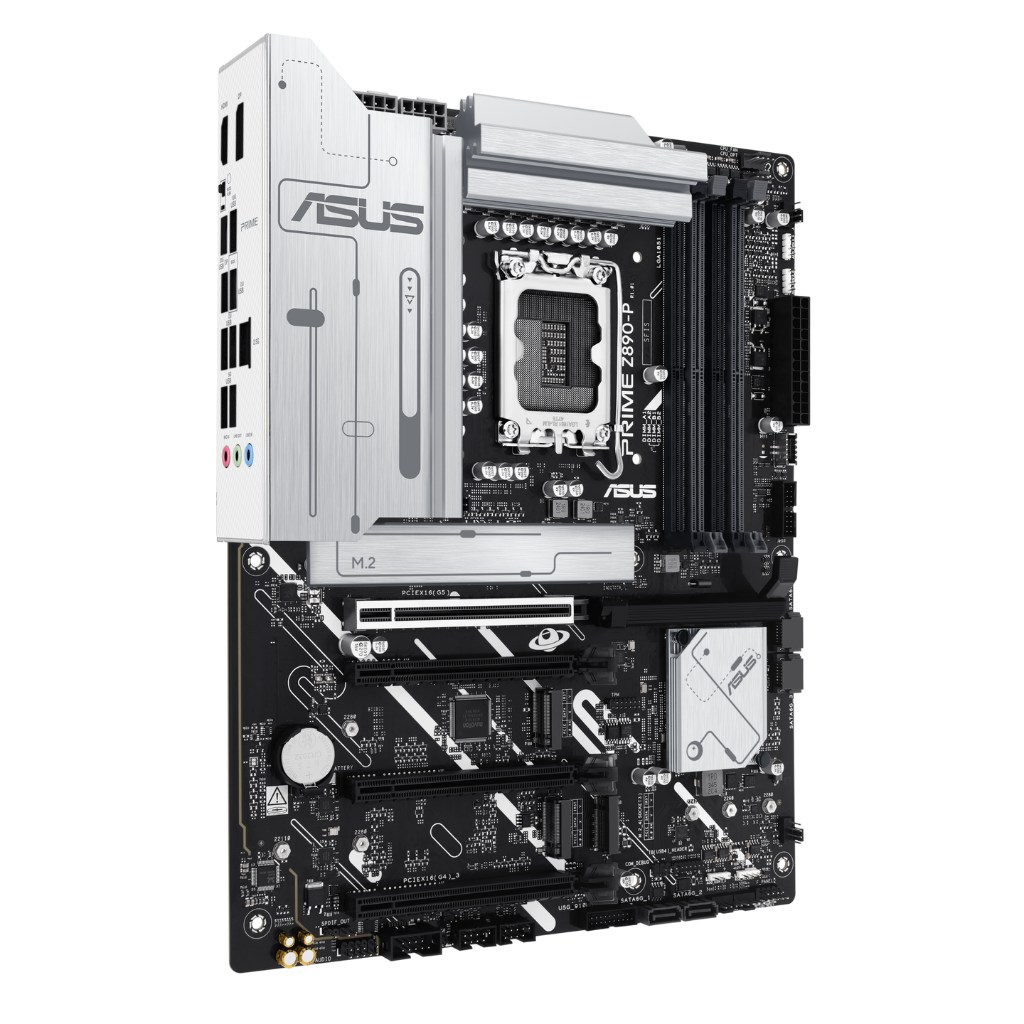

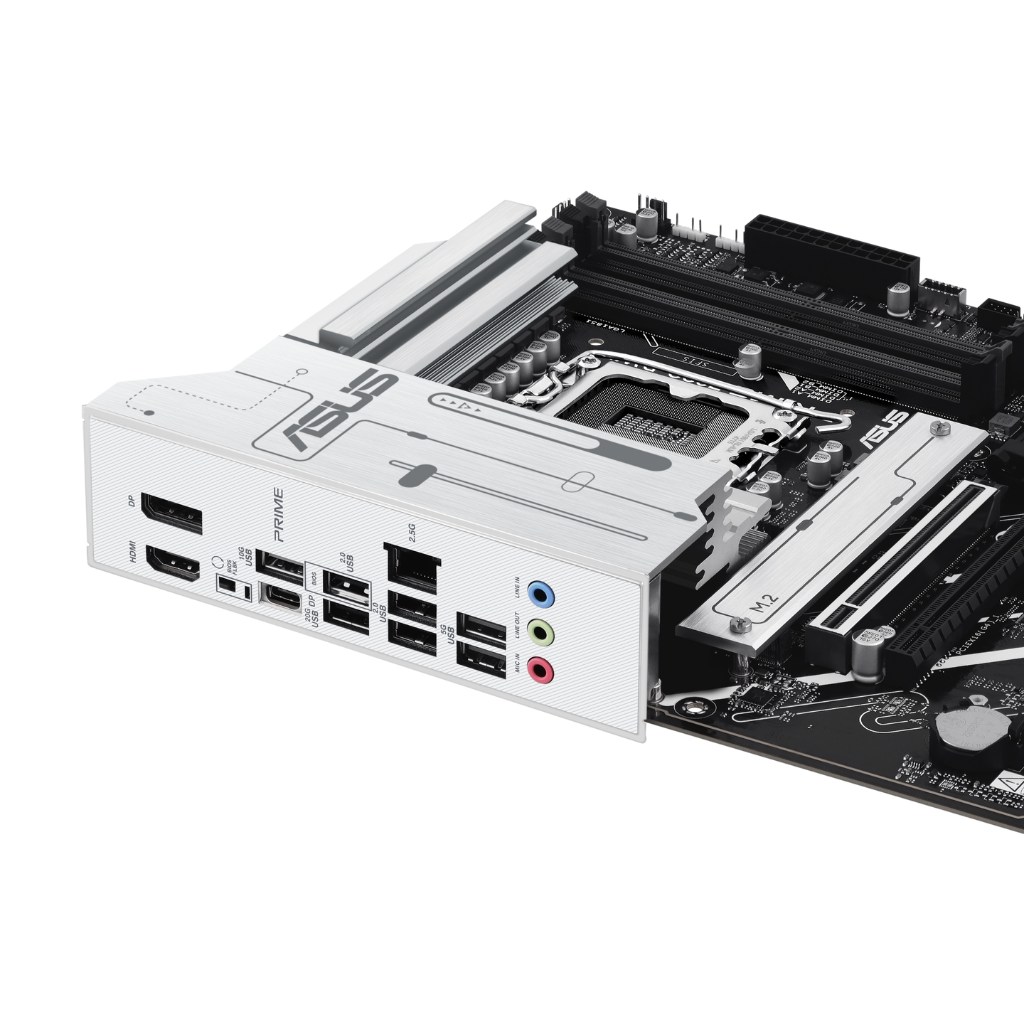

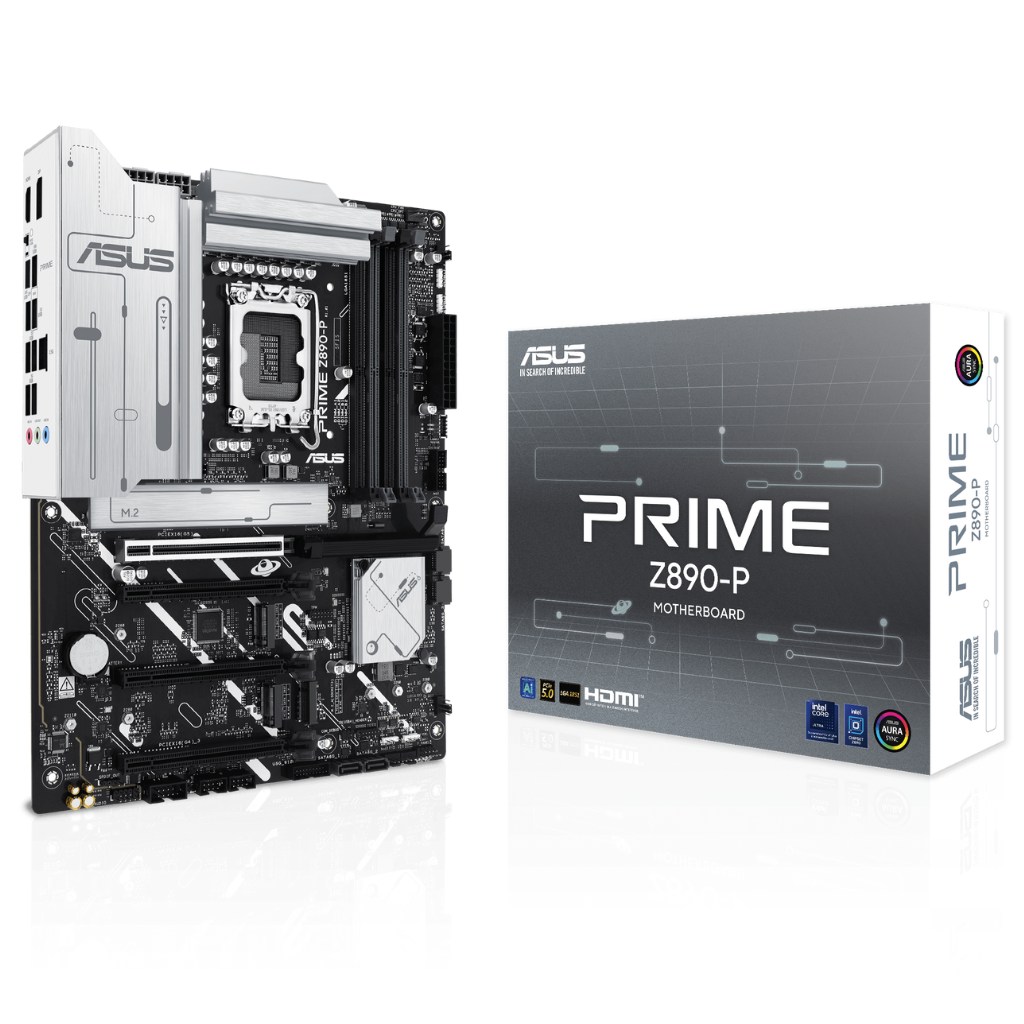

ASUS Prime Z890-P DDR5 LGA 1851 Intel Motherboard – 90MB1I50-M0EAY0
Full description ASUS.
| Specifications | |
| Brand: | ASUS |
| Series: | Z890 Series |
| Model: | 90MB1I50-M0EAY0 |
| Technical Specs | |
| CPU Support: | Support Intel Core Ultra Processors (Series 2), LGA1851 – Supports Intel Turbo Boost Technology 2.0 and – Supports Intel Turbo Boost Max Technology 3.0 |
| Chipset: | Intel Z890 Chipset |
| Memory: | 4 x DIMM slots, max. 192GB, DDR5 Support up to7600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) – Dual channel memory architecture – DIMM Fit – Supports Intel Extreme Memory Profile (XMP) memory module – ASUS Enhanced Memory Profile III(AEMPIII) |
| Onboard Graphics: | 1 x DisplayPort 1 x HDMI port 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output |
| Audio: | Realtek 7.1 Surround Sound High Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback” Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers |
| Connectivity | |
| LAN: | 1 x Realtek 2.5Gb Ethernet |
| Wireless: | N/A |
| Bluetooth: | N/A |
| Expansion Slots: | Intel Core Ultra Processors(series 2) 1 x PCIe 5.0 x16 slot Intel Z890 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode) |
| Storage Interface: | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors(series 2) – M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode) – M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel Z890 Chipset – M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) – M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| On-Board Connectors | |
| USB: | Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Internal I/O Connectors: | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header |

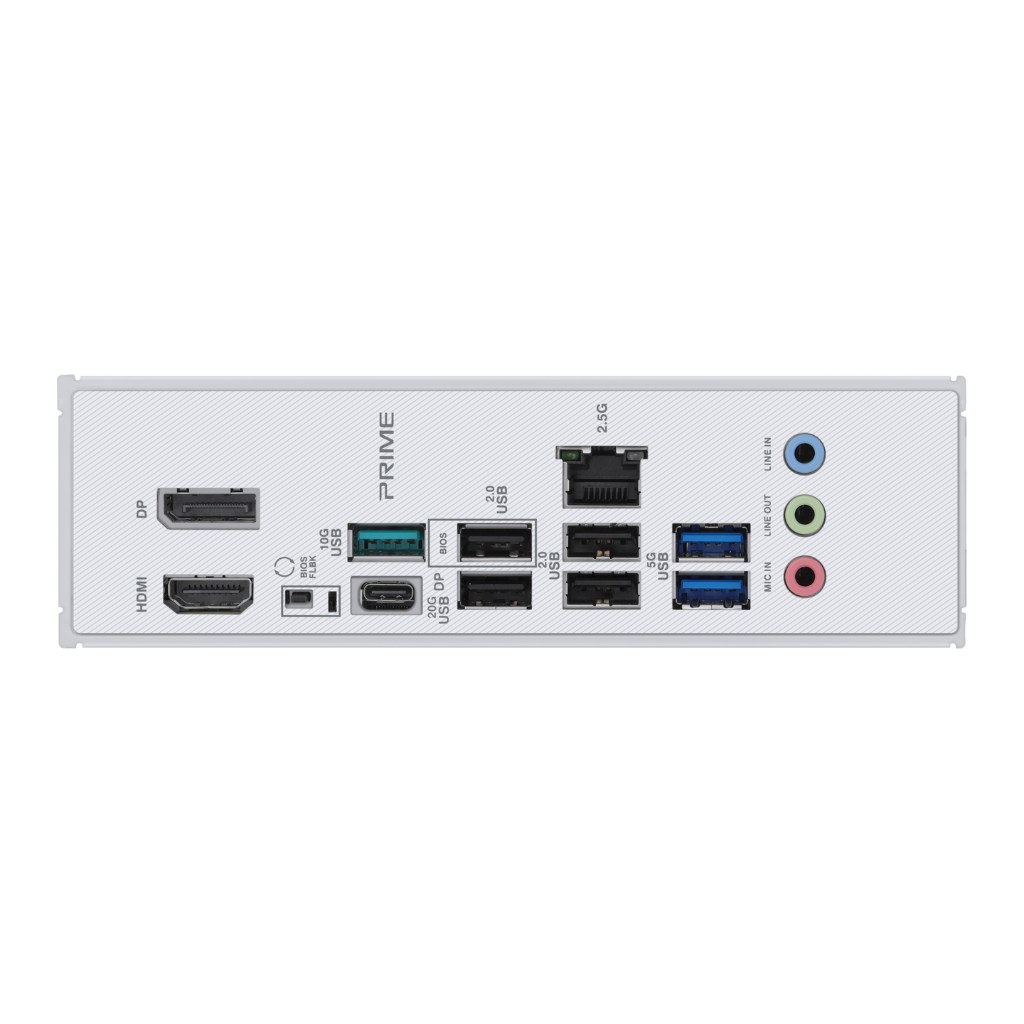

| Back Panel Connectors: | 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button |
| Software & Features | |
| BIOS: | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS |
| Software: | ASUS Exclusive Software Armoury Crate |
| Features: | ASUS 5X PROTECTION III |
| ASUS Q-Design | |
| Aura Sync | |
| ASUS EZ DIY | |
| ASUS Thermal Solution | |
| General | |
| Operating System: | Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later) |
| Form Factor: | ATX Form Factor (30.5 cm x 24.4 cm) |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
ASUS Prime Z890-P DDR5 LGA 1851 Intel Motherboard – 90MB1I50-M0EAY0
Contact us if you would like to enquire about this product.
