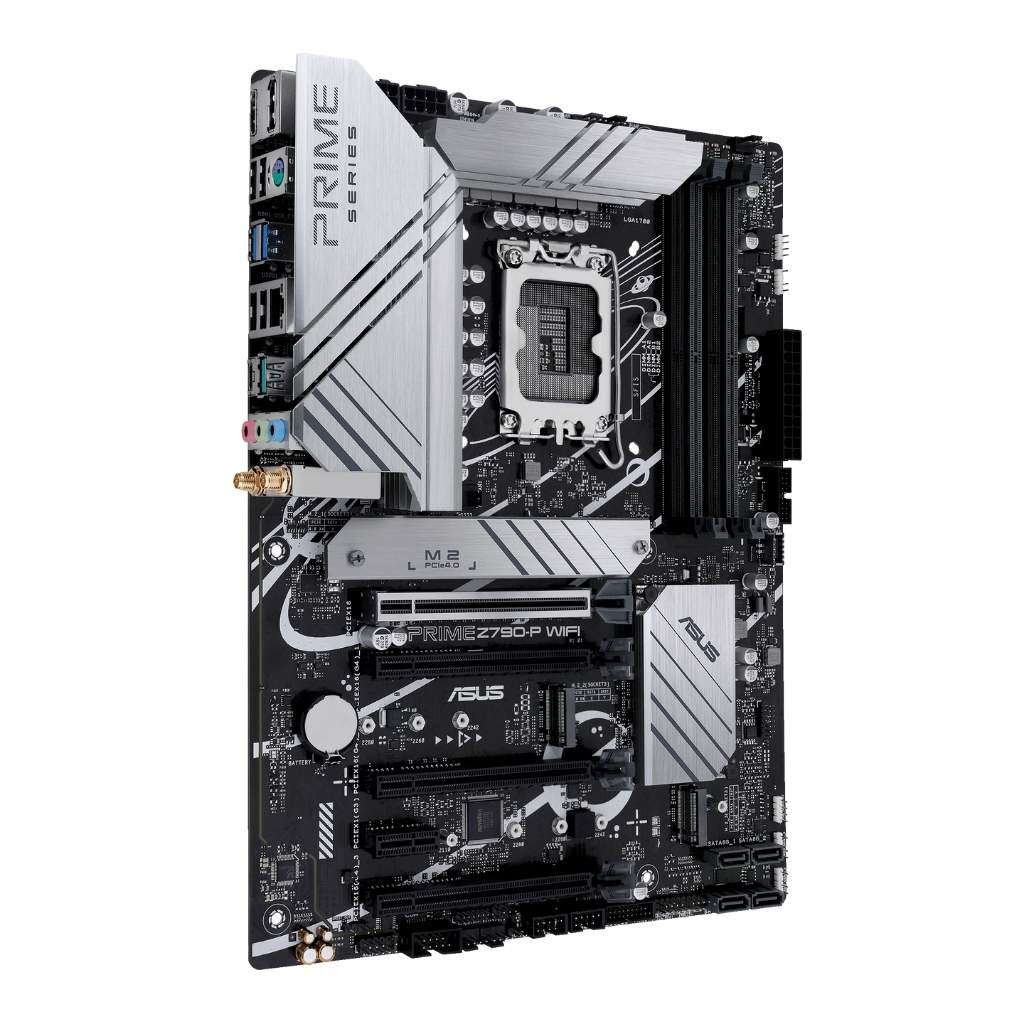

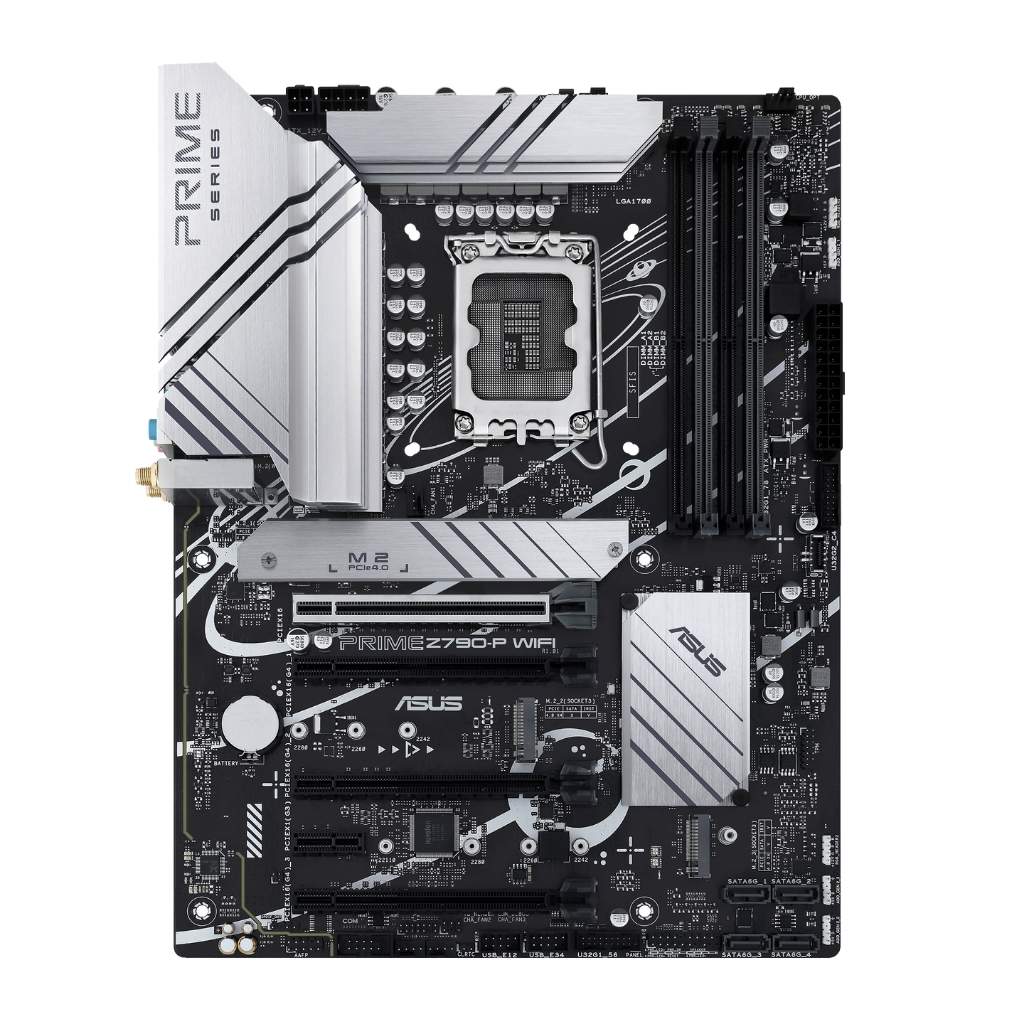

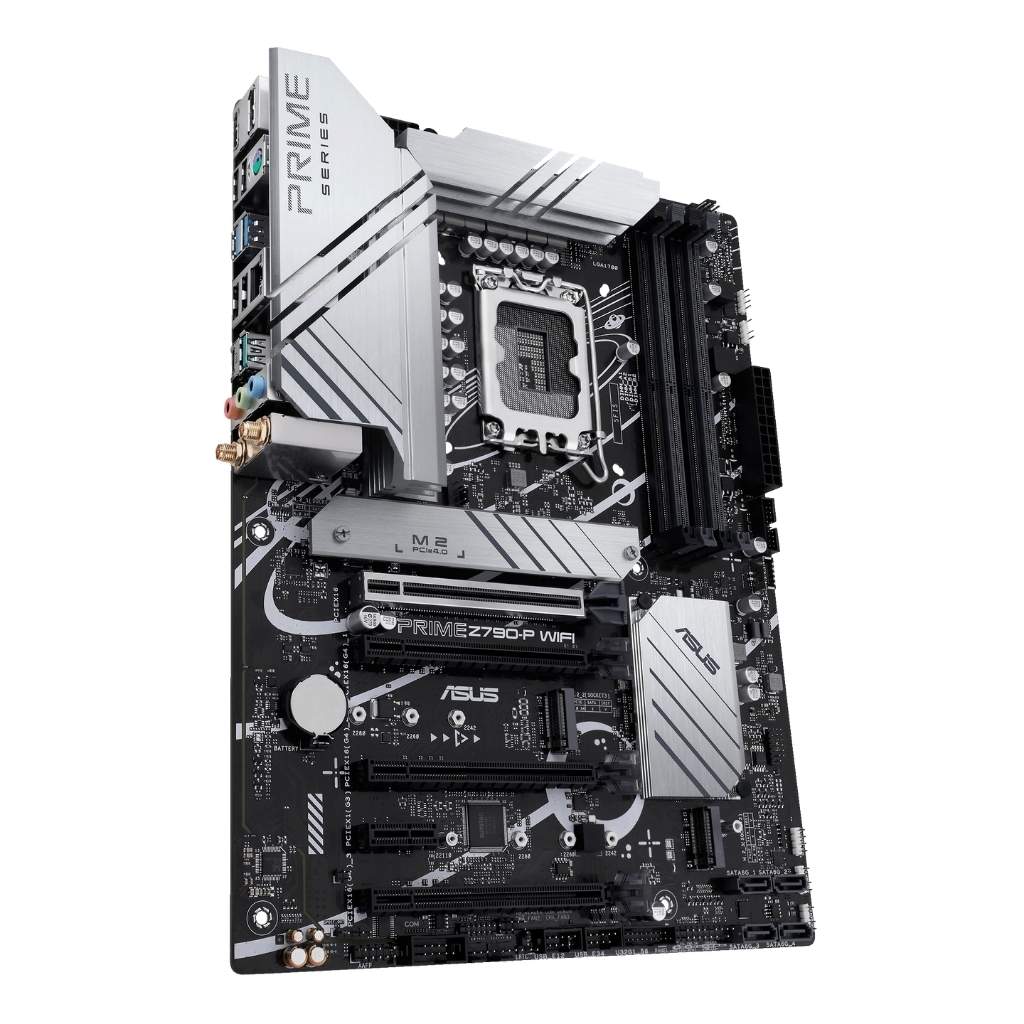

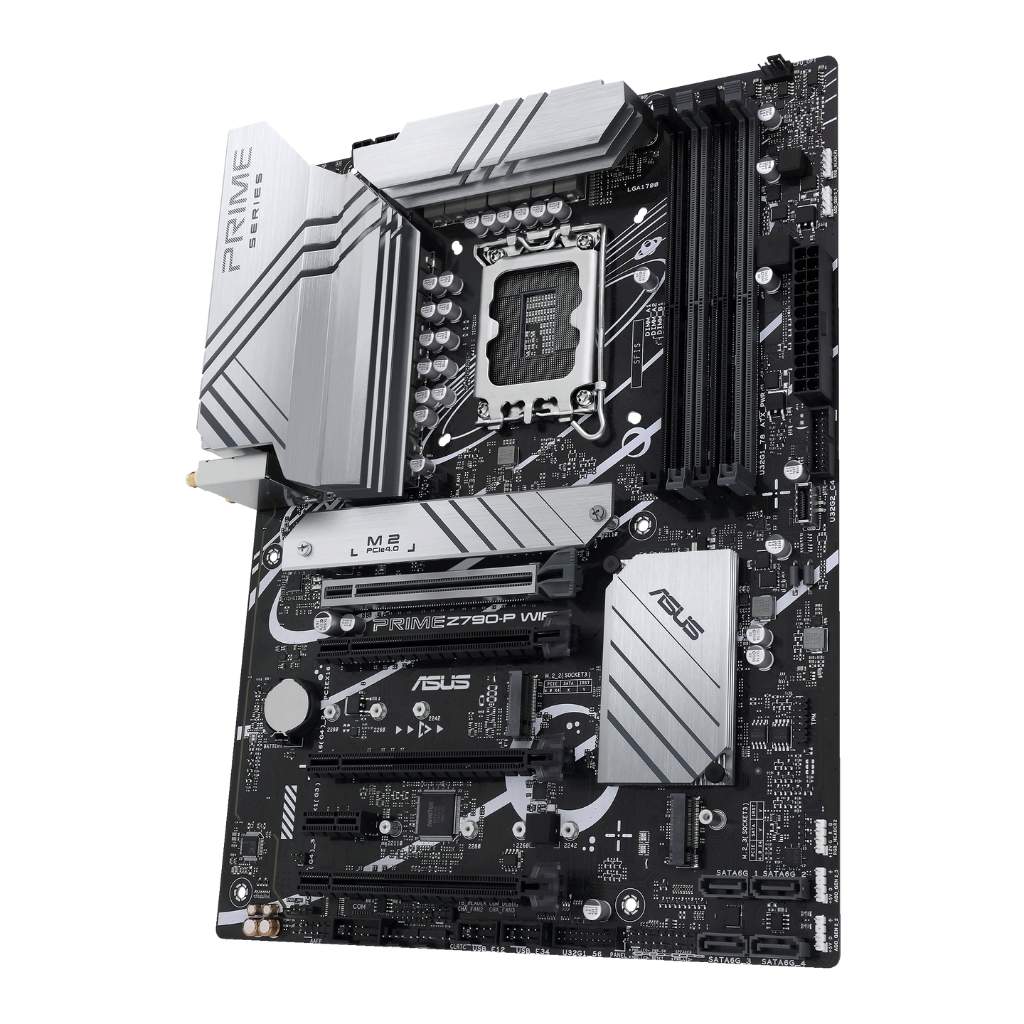

ASUS Prime Z790-P WiFi DDR5 Motherboard

Specifications

Supports Intel^® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to http://www.asus.com for CPU support list.

** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

1. Intel^® Z790 Chipset

1. 4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*

   Dual Channel Memory Architecture

   Supports Intel^® Extreme Memory Profile (XMP)

   OptiMem II

   * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to http://www.asus.com for memory support list.

   * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

1 x HDMI^® port***

*Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates.

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

1 x PCIe 5.0 x16 slot

Intel^® Z790 Chipset

3 x PCIe 4.0 x16 slots (support x4 mode)

1 x PCIe 3.0 x1 slot

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Intel^® 13^th & 12^th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110

(supports PCIe 4.0 x4 mode)

Intel^® Z790 Chipset

M.2_2 slot (Key M), type 2242/2260/2280

(supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280/22110

(supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

* Intel^® Rapid Storage Technology supports

PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

1. 1 x Realtek 2.5Gb Ethernet

2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Bluetooth^® v5.2

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C^®)

1 x USB 3.2 Gen 2 port (1 x Type-A)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 9 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C^®)

2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

* USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.

1. Realtek 7.1 Surround Sound High Definition Audio CODEC*

   – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

   – Supports up to 24-Bit/192 kHz playback

   Audio Features

   – Audio Shielding

   – Premium audio capacitors

   – Dedicated audio PCB layers

   * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

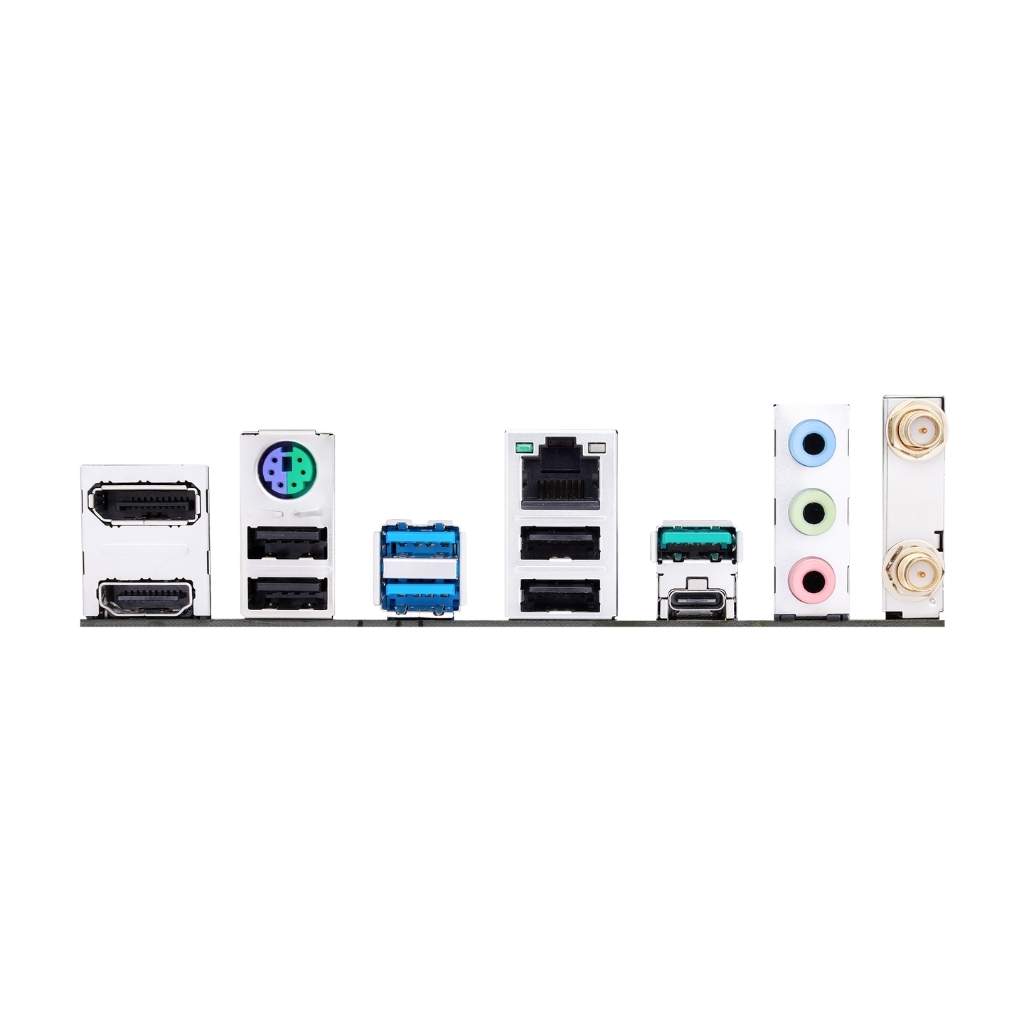

1. 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C^®)

   1 x USB 3.2 Gen 2 port (1 x Type-A)

   2 x USB 3.2 Gen 1 ports (2 x Type-A)

   4 x USB 2.0 ports (4 x Type-A)

   1 x DisplayPort

   1 x HDMI^® port

   1 x Wi-Fi Module

   1 x Realtek 2.5Gb Ethernet port

   3 x Audio jacks

   1 x PS/2 Keyboard/Mouse combo port

1. Fan and Cooling related

   1 x 4-pin CPU Fan header

   1 x 4-pin CPU OPT Fan header

   1 x 4-pin AIO Pump header

   3 x 4-pin Chassis Fan headers

   Power related

   1 x 24-pin Main Power connector

   1 x 8-pin +12V Power connector

   1 x 4-pin +12V Power connector

   Storage related

   3 x M.2 slots (Key M)

   4 x SATA 6Gb/s ports

   USB

   1 x USB 3.2 Gen 2 connector (supports USB Type-C^®)

   2 x USB 3.2 Gen 1 headers support  4 additional USB 3.2 Gen 1 ports

   2 x USB 2.0 headers support 4 additional USB 2.0 ports

   Miscellaneous

   3 x Addressable Gen 2 headers

   2 x Aura RGB headers

   1 x Clear CMOS header

   1 x COM Port header

   1 x Front Panel Audio header (AAFP)

   1 x S/PDIF Out header

   1 x SPI TPM header (14-1pin)

   1 x 20-5pin System Panel header

   1 x Thunderbolt™ (USB4^®) Header

• ASUS 5X PROTECTION III

  – DIGI+ VRM (- Digital power design with DrMOS)

  – LANGuard

  – Overvoltage Protection

  – SafeSlot Core+

  – Stainless-Steel Back I/O

  ASUS Q-Design

  – Q-DIMM

  – Q-Slot

  – Q-LED Core

  ASUS Thermal Solution

  – Flexible M.2 heatsink

  – VRM heatsink design

  ASUS EZ DIY

  – ProCool

  Aura Sync

  – Aura RGB headers

  – Addressable Gen 2 headers

1. 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

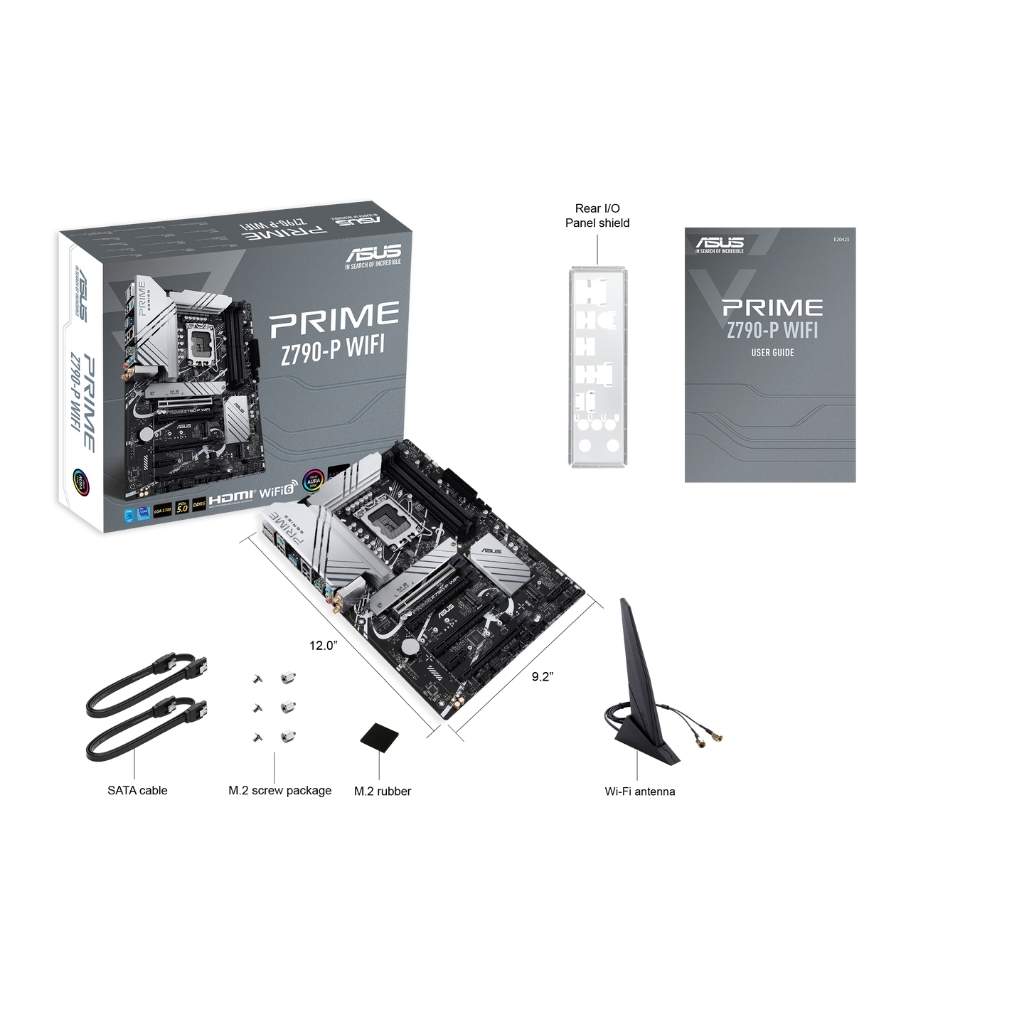

1. ATX Form Factor

   12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
