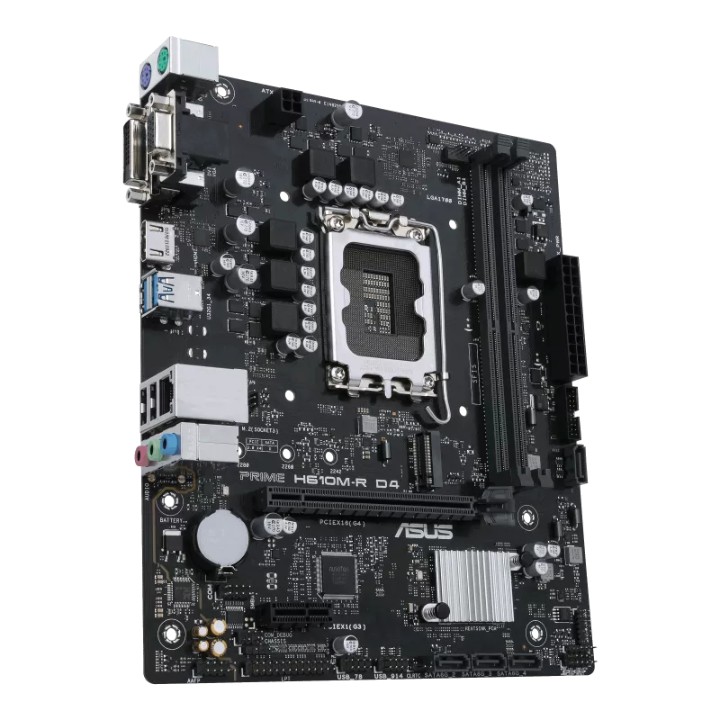

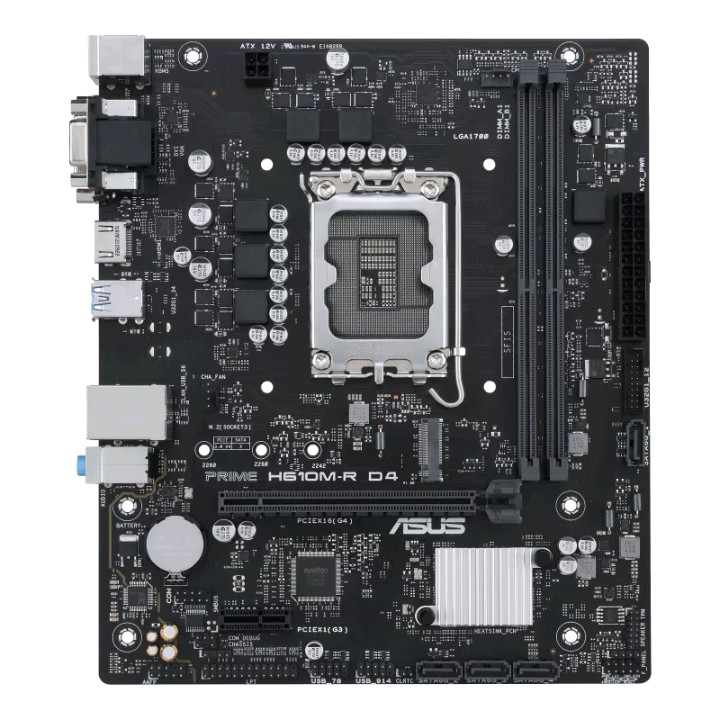

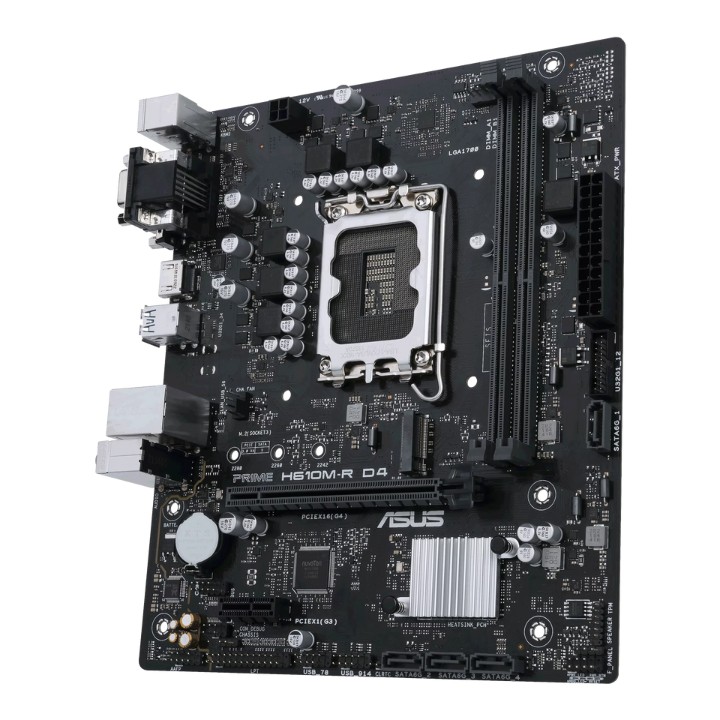

ASUS Prime H610M-R D4-SI DDR4 Micro-ATX LGA1700 Motherboard
Full description ASUS.
- Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
- Comprehensive cooling: PCH heatsink
- Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
- 5X Protection III: Multiple hardware safeguards for all-round protection
Specifications |
|
| Brand: | ASUS |
| Series: | Intel H610 Series |
| Model: | H610M-R D4-SI (90MB1B40-M0ECY0) |
| Technical Specs | |
| CPU Support: |
|
| Chipset: | Intel H610 Chipset |
| Memory: | 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/ 2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
| Onboard Graphics: | 1 x D-Sub
1 x DVI-D 1 x HDMI® port** |
| Audio: | Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers |
| Connectivity | |
| LAN: | 1 x Realtek 1Gb Ethernet |
| Wireless: | N/A |
| Bluetooth: | N/A |
| Expansion Slots: | Intel® 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot Intel® H610 Chipset 1 x PCIe 3.0 x1 slot |
| Storage Interface: | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports |
| On-Board Connectors | |
| USB: | Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Internal I/O Connectors: | Fan and Cooling related
1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x Speaker header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header |

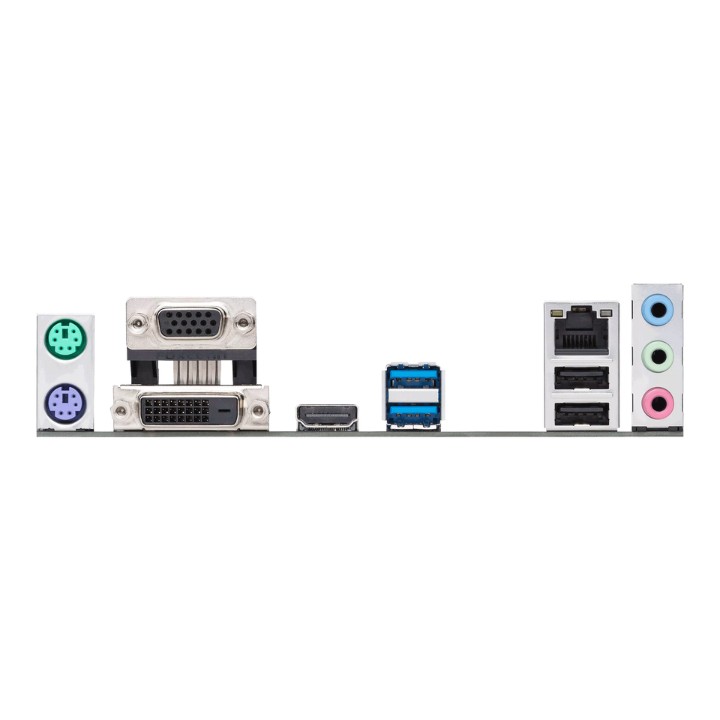

| Back Panel Connectors: | 2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A) 1 x D-Sub port 1 x DVI-D port 1 x HDMI® port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
| Software & Features | |
| BIOS: | 128 Mb Flash ROM, UEFI AMI BIOS |
| Software: | |
| Features: | Intel LGA 1700 socket |
| Ready for 12th Gen Intel processors | |
| Comprehensive cooling | |
| Ultrafast connectivity | |
| 5X Protection III | |
| General | |
| Operating System: | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor: | mATX Form Factor: (22.6 cm x 19.3 cm ) |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
