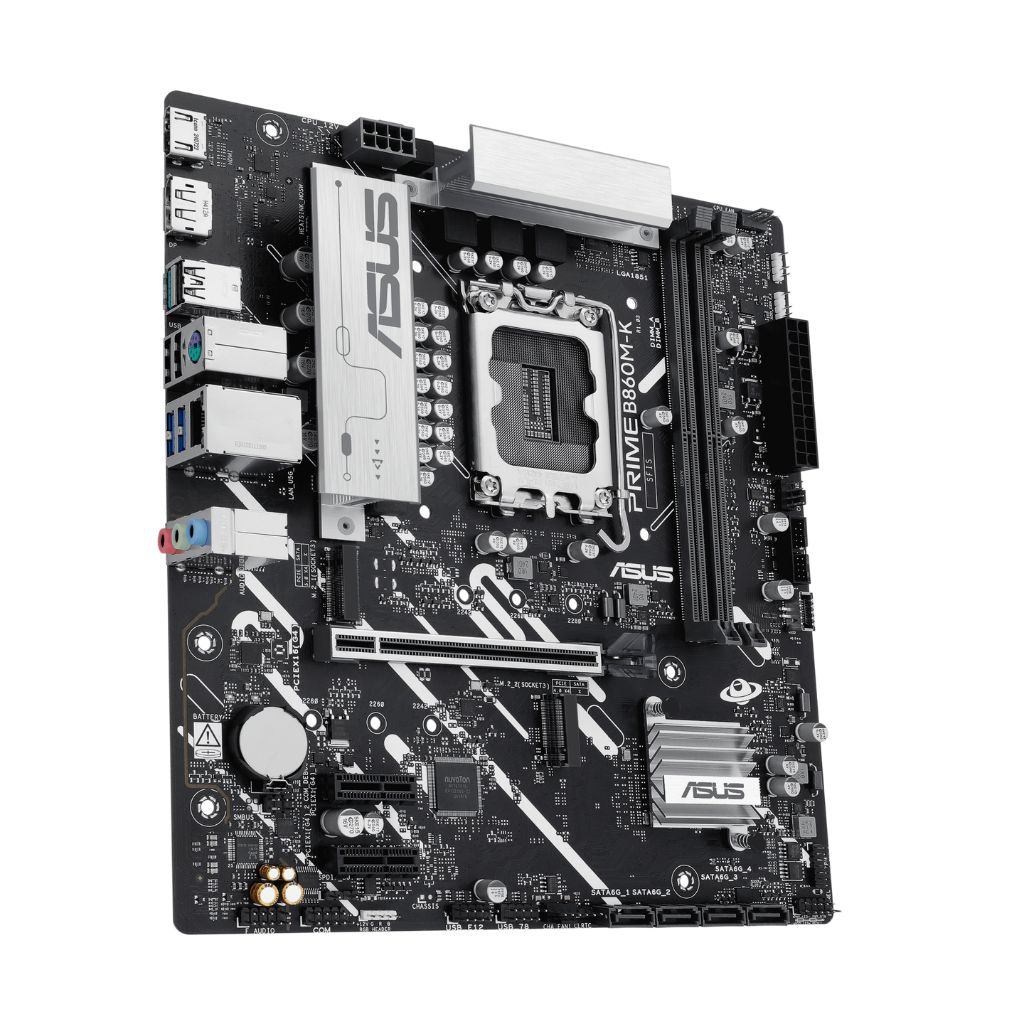

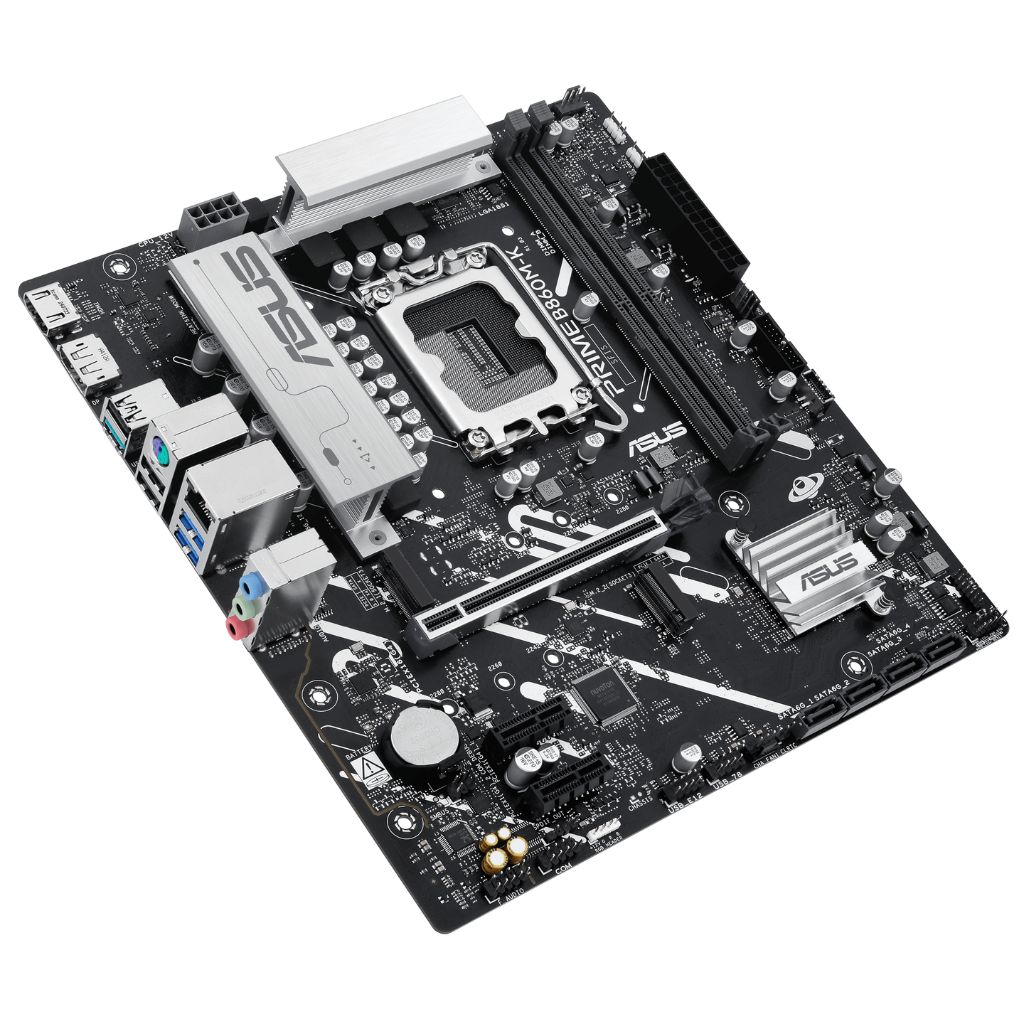

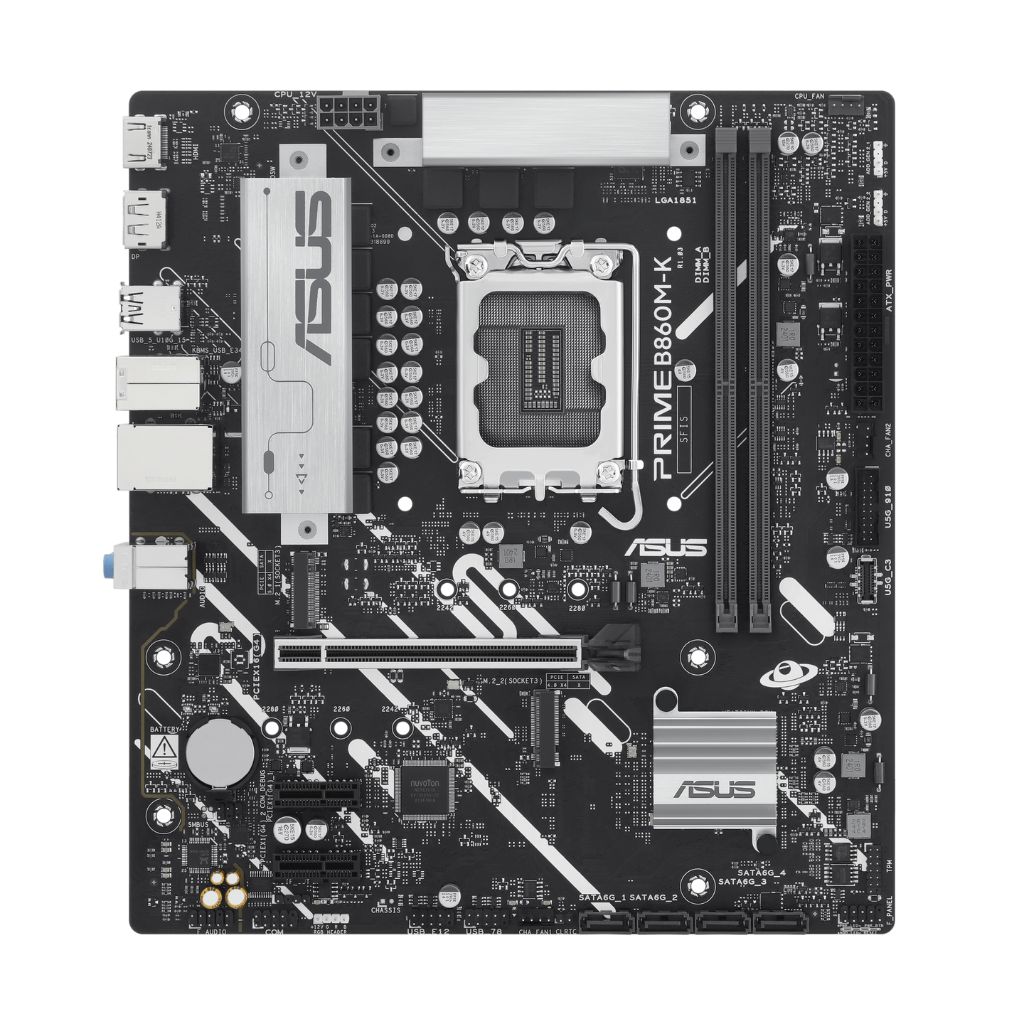

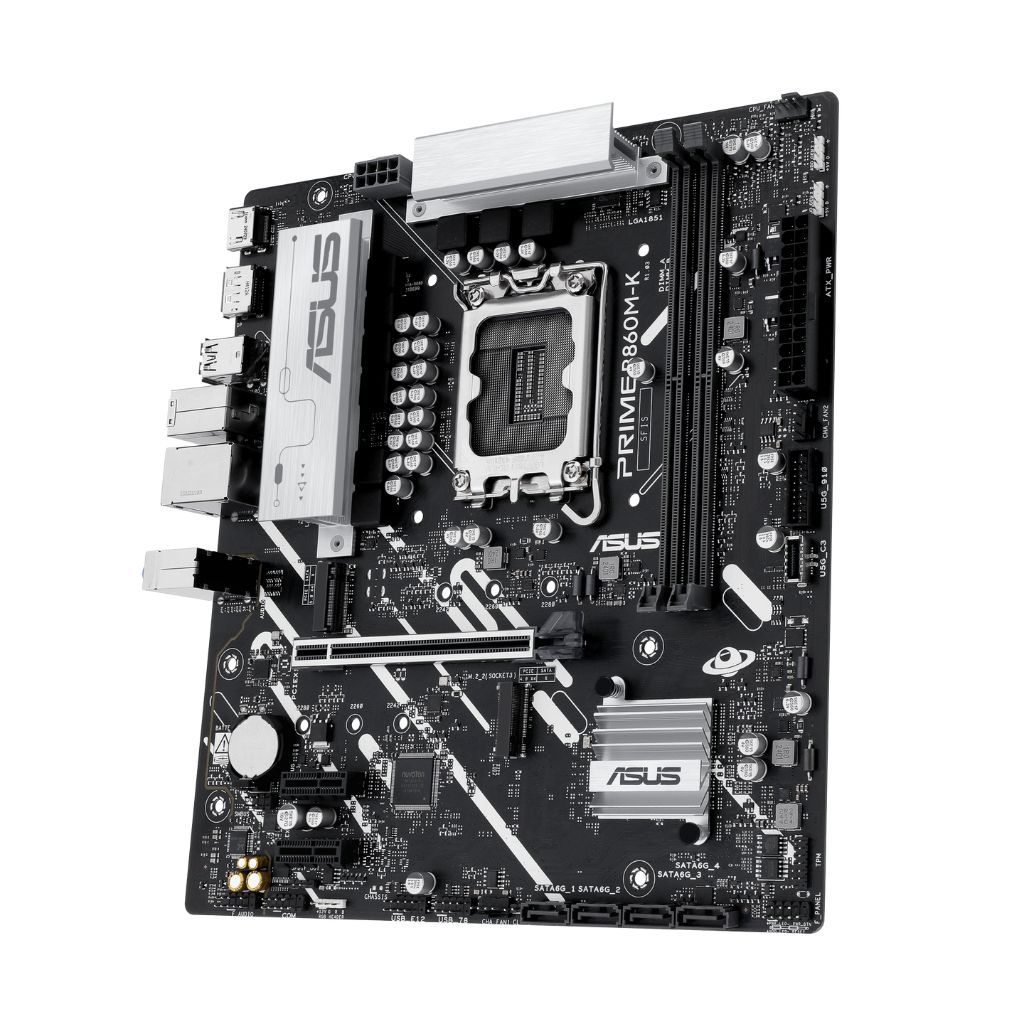

ASUS Prime B860M-K DDR5 Mirco-ATX LGA 1851 Intel Motherboard – 90MB1JT0-M0EAY0
Full description ASUS.
- ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2).
- Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
- It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
| Specifications | |
| Brand: | ASUS |
| Series: | Intel B860 series |
| Model: | 90MB1JT0-M0EAY0 |
| Technical Specs | |
| CPU Support: | Supports Intel Core Ultra Processors (Series 2), LGA1851 |
| Chipset: | B860 |
| Memory: | 2 x DIMM slots, max. 128GB, DDR5 Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* – Dual channel memory architecture – DIMM Fit – Supports Intel Extreme Memory Profile (XMP) memory module – ASUS Enhanced Memory Profile III(AEMPIII) |
| Onboard Graphics: | 1 x DisplayPort 1 x HDMI port |
| Audio: | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers |
| Connectivity | |
| LAN: | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Wireless: | – |
| Bluetooth: | – |
| Expansion Slots: | Intel Core Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel B860 Chipset 2 x PCIe 4.0 x1 slots |
| Storage Interface: | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2) – M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset – M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) – 4 x SATA 6Gb/s ports |
| On-Board Connectors | |
| USB: | Rear USB (Total 6 ports) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Internal I/O Connectors: | Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header |

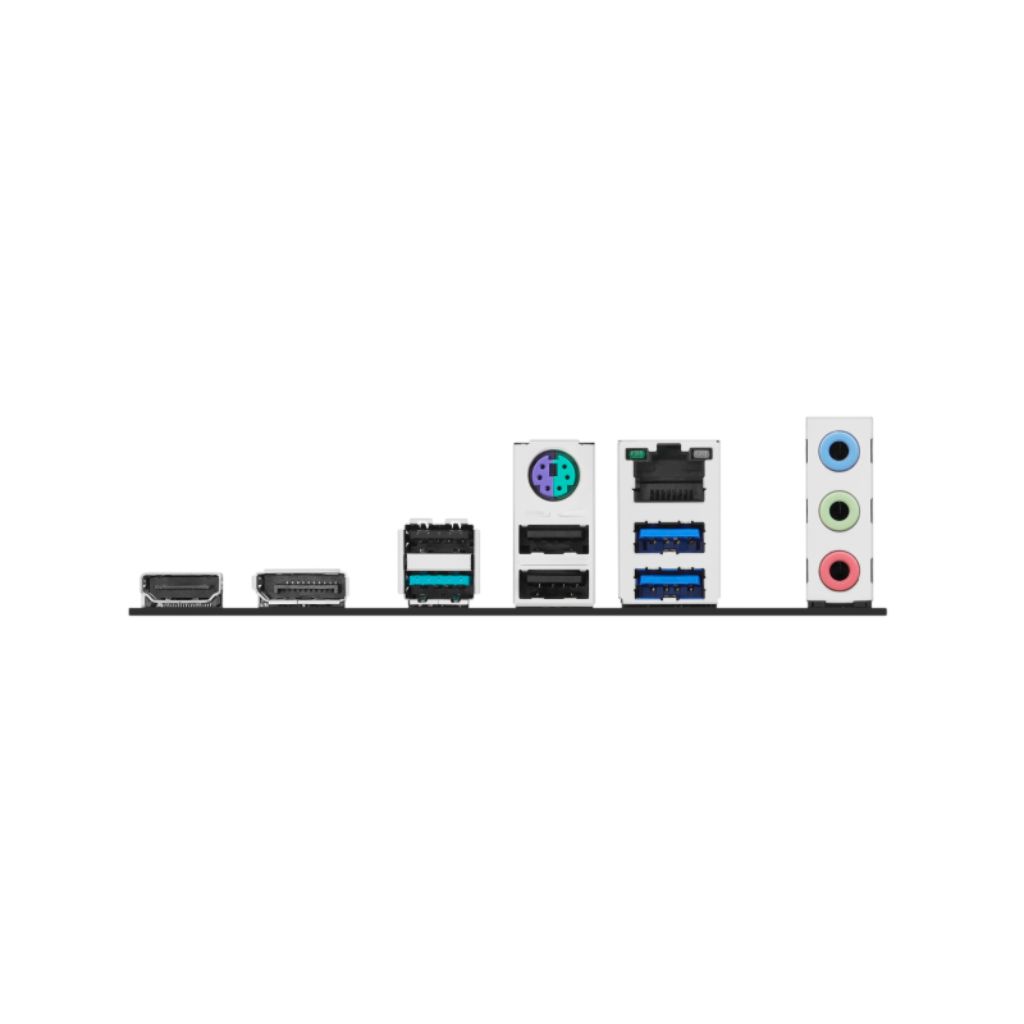

| Back Panel Connectors: | 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Software & Features | |
| BIOS: | 256(128+128) Mb Flash ROM, UEFI AMI BIOS |
| Software: | ASUS Exclusive Software |
| Features: | ASUS 5X PROTECTION III |
| ASUS EZ DIY | |
| ASUS Q-Design | |
| Aura Sync | |
| ASUS Thermal Solution | |
| General | |
| Operating System: | Windows 11(22H2 & later), Windows 10 64-bit(21H2 & later) |
| Form Factor: | micro-ATX Form Factor – (24.4cm x 22.2cm) |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
