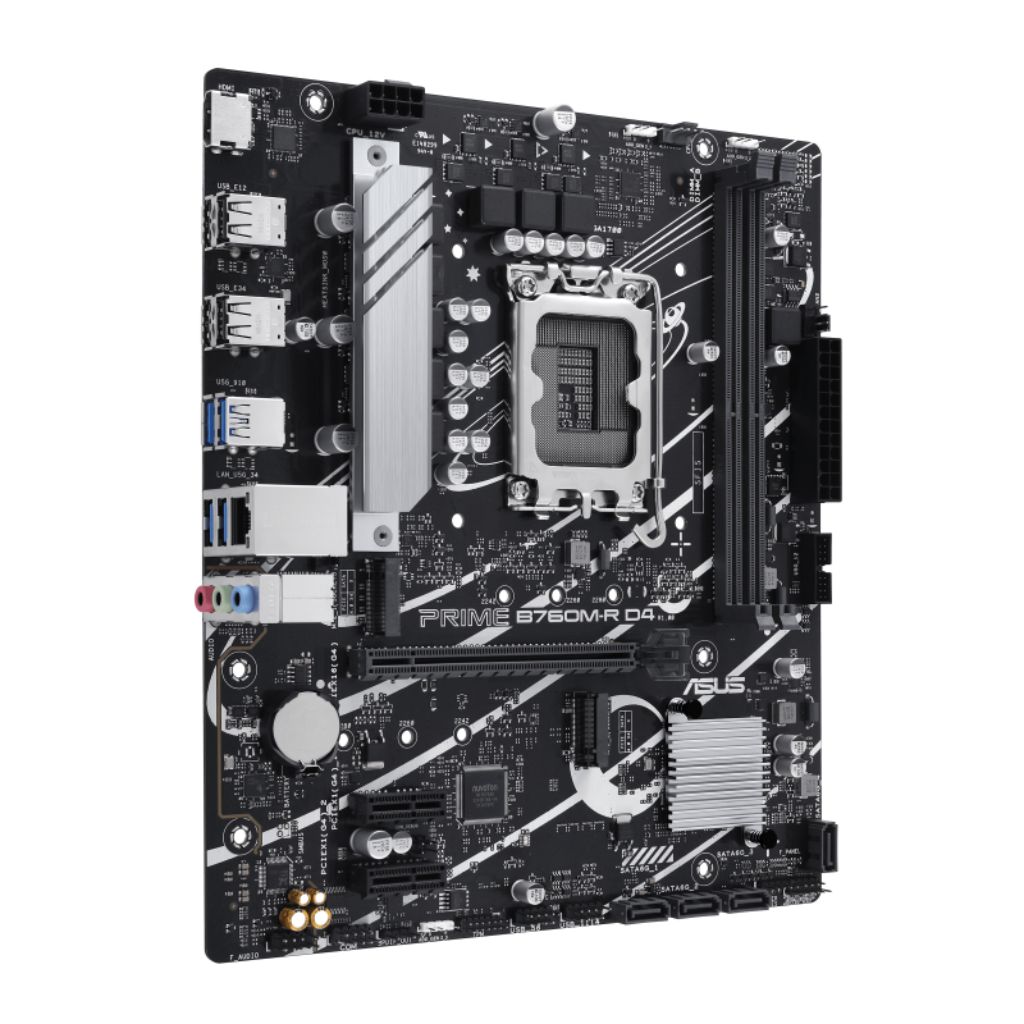

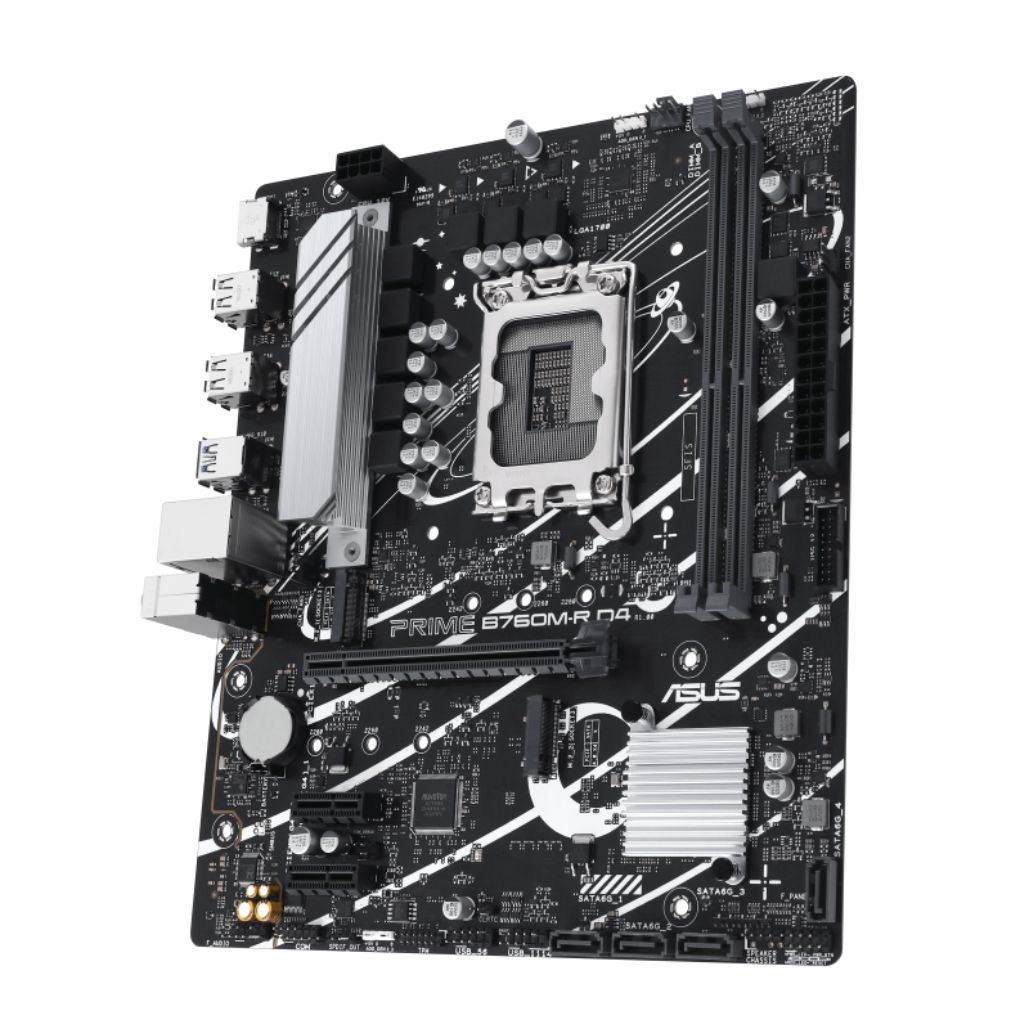

ASUS Prime B760M-R DDR4 micro-ATX LGA1700 Intel Motherboard
Full description ASUS.
- Intel® LGA 1700 Socket: Ready for 14th,13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 5Gbps support
- Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardwares
- Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
| Specifications | |
| Brand: | ASUS |
| Series: | B760 Series |
| Model: | 90MB1HA0-M0EAY0 |
| Technical Specs | |
| CPU Support: | – Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors – Intel Core 12th Gen, Pentium Gold and Celeron Processors – Supports Intel Turbo Boost Technology 2.0 and – Supports Intel Turbo Boost Max Technology 3.0 |
| Chipset: | b760 |
| Memory: | 2 x DIMM slots, Max. 64GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/ 4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/ 3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory – Dual channel memory architecture – Supports Intel Extreme Memory Profile (XMP) memory module |
| Onboard Graphics: | 1 x HDMI port |
| Audio: | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers |
| Connectivity | |
| LAN: | 1 x Realtek 2.5Gb Ethernet |
| Wireless: | n/a |
| Bluetooth: | n/a |
| Expansion Slots: | Intel® Core™ Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel® B760 Chipset 2 x PCIe 4.0 x1 slots |
| Storage Interface: | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| On-Board Connectors | |
| USB: | Rear USB (Total 8 ports) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A)* Front USB (Total 6 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Internal I/O Connectors: | Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front panel audio header (F_AUDIO) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |

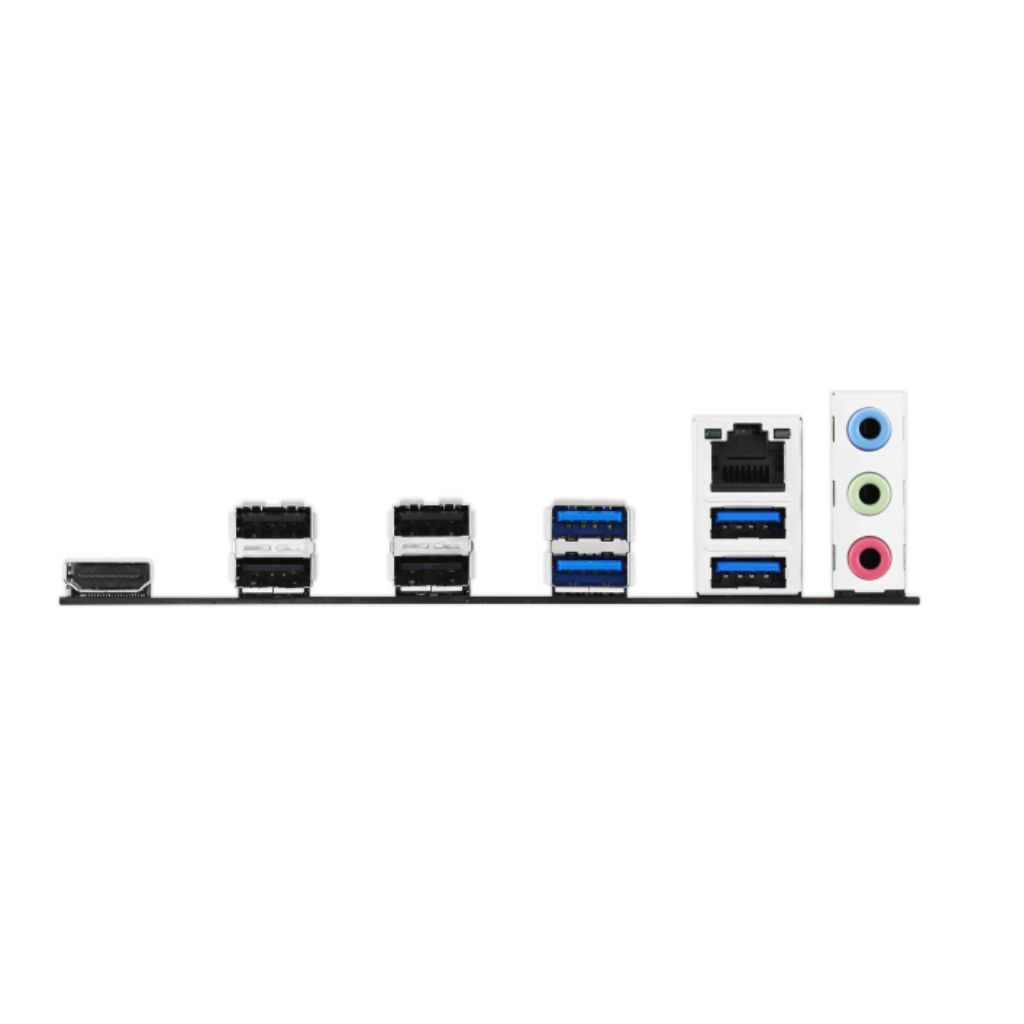

| Back Panel Connectors: | 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMITM port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks |
| Software & Features | |
| BIOS: | 128 Mb Flash ROM, UEFI AMI BIOS |
| Software: | ASUS Exclusive Software |
| Features: | ASUS 5X PROTECTION III |
| ASUS Q-Design | |
| EZ DIY | |
| ASUS Thermal Solution | |
| Aura Sync | |
| General | |
| Operating System: | Windows 11, Windows 10 64-bit |
| Form Factor: | micro-ATX Form Factor |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
ASUS Prime B760M-R DDR4 micro-ATX LGA1700 Intel Motherboard
Contact us if you would like to enquire about this product.
