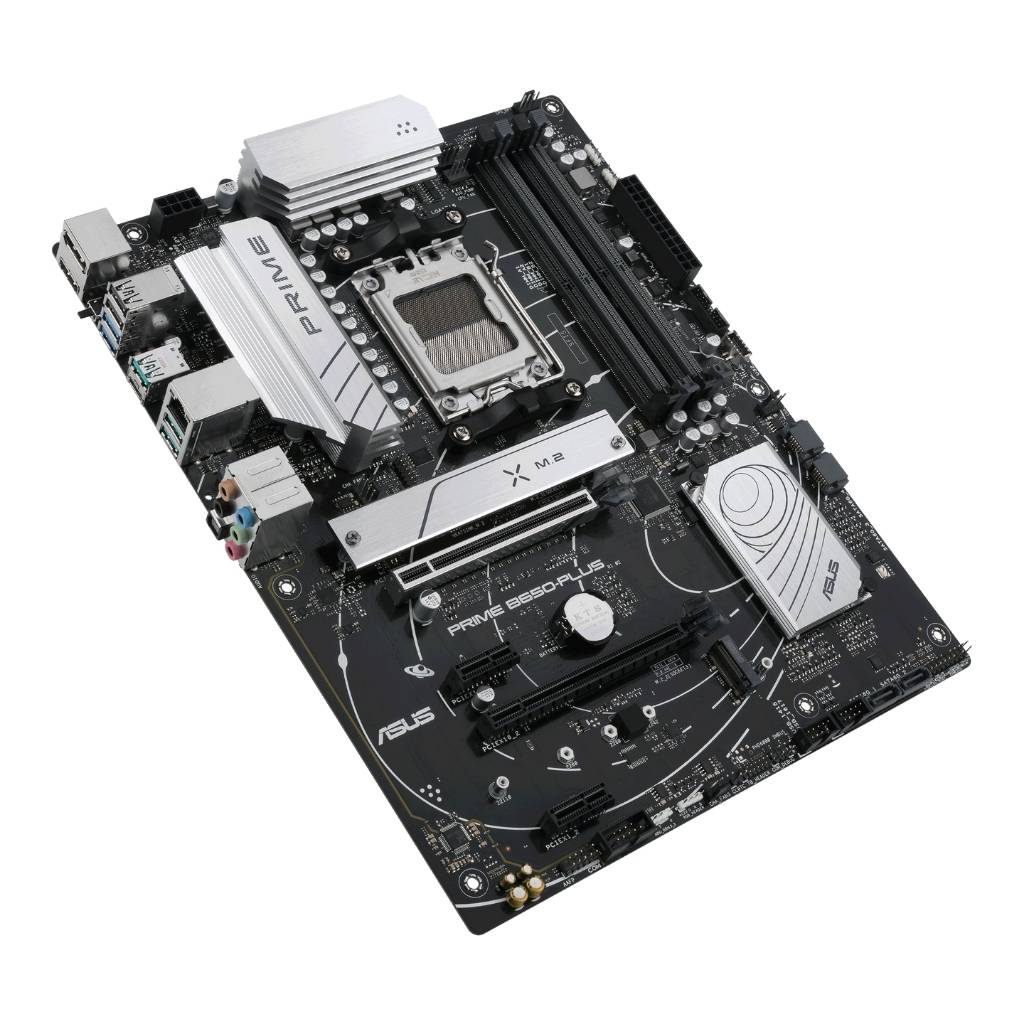

ASUS Prime B650-PLUS DDR5 AM5 ATX Motherboard

Specifications

1. AMD B650

1. 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*

   Dual Channel Memory Architecture

   Supports AMD Extended Profiles for Overclocking (EXPO^™)

   OptiMem II

   * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to http://www.asus.com for memory support list.

   * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

1 x HDMI^® port***

* Graphics specifications may vary between CPU types.

** Supports max. 8K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI^® 2.1.

1 x PCIe 4.0 x16 slot (supports x16 mode)

AMD B650 Chipset

1 x PCIe 4.0 x16 slot (support x4 mode)

2 x PCIe 4.0 x1 slots

* Please check the PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/.

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

AMD B650 Chipset

4 x SATA 6Gb/s ports

* AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.

1. 1 x Realtek 2.5Gb Ethernet

* Wi-Fi module is sold separately.

4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C^®)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 1 connector (supports USB Type-C^®)

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

1. Realtek 7.1 Surround Sound High Definition Audio CODEC

   – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

   – Supports up to 24-Bit/192 kHz playback

   Audio Features

   – Audio Shielding

   – Premium audio capacitors

   – Dedicated audio PCB layers

1. 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C^®)

   2 x USB 3.2 Gen 1 ports (2 x Type-A)

   2 x USB 2.0 ports (2 x Type-A)

   1 x DisplayPort

   1 x HDMI^® port

   1 x Vertical M.2 slot (Key E)

   1 x Realtek 2.5Gb Ethernet port

   5 x Audio jacks

   1 x Optical S/PDIF out port

   1 x BIOS FlashBack™ button

1. Fan and Cooling related

   1 x 4-pin CPU Fan header

   1 x 4-pin CPU OPT Fan header

   1 x 4-pin AIO Pump header

   3 x 4-pin Chassis Fan headers

   Power related

   1 x 24-pin Main Power connector

   1 x 8-pin +12V Power connector

   Storage related

   2 x M.2 slots (Key M)

   4 x SATA 6Gb/s ports

   USB

   1 x USB 3.2 Gen 1 connector (supports USB Type-C^® )

   1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

   2 x USB 2.0 headers support 4 additional USB 2.0 ports

   Miscellaneous

   3 x Addressable Gen 2 headers

   1 x Aura RGB header

   1 x Clear CMOS header

   1 x COM Port header

   1 x Front Panel Audio header (AAFP)

   1 x SPI TPM header (14-1pin)

   1 x 20-3 pin System Panel header with Chassis intrude function

   1 x Thunderbolt™ (USB4^®) header

• ASUS 5X PROTECTION III

  – DIGI+ VRM

  – LANGuard

  – Overvoltage Protection

  – Safeslot Core+

  – Stainless-Steel Back I/O

  ASUS Q-Design

  – Q-DIMM

  – Q-LED Core

  – Q-Slot

  ASUS Thermal Solution

  – Flexible M.2 heatsink

  – VRM heatsink design

  ASUS EZ DIY

  – BIOS FlashBack™ button

  – BIOS FlashBack™ LED

  – ProCool

  Aura Sync

  – Aura RGB header

  – Addressable Gen 2 headers

1. 256 Mb Flash ROM, UEFI AMI BIOS

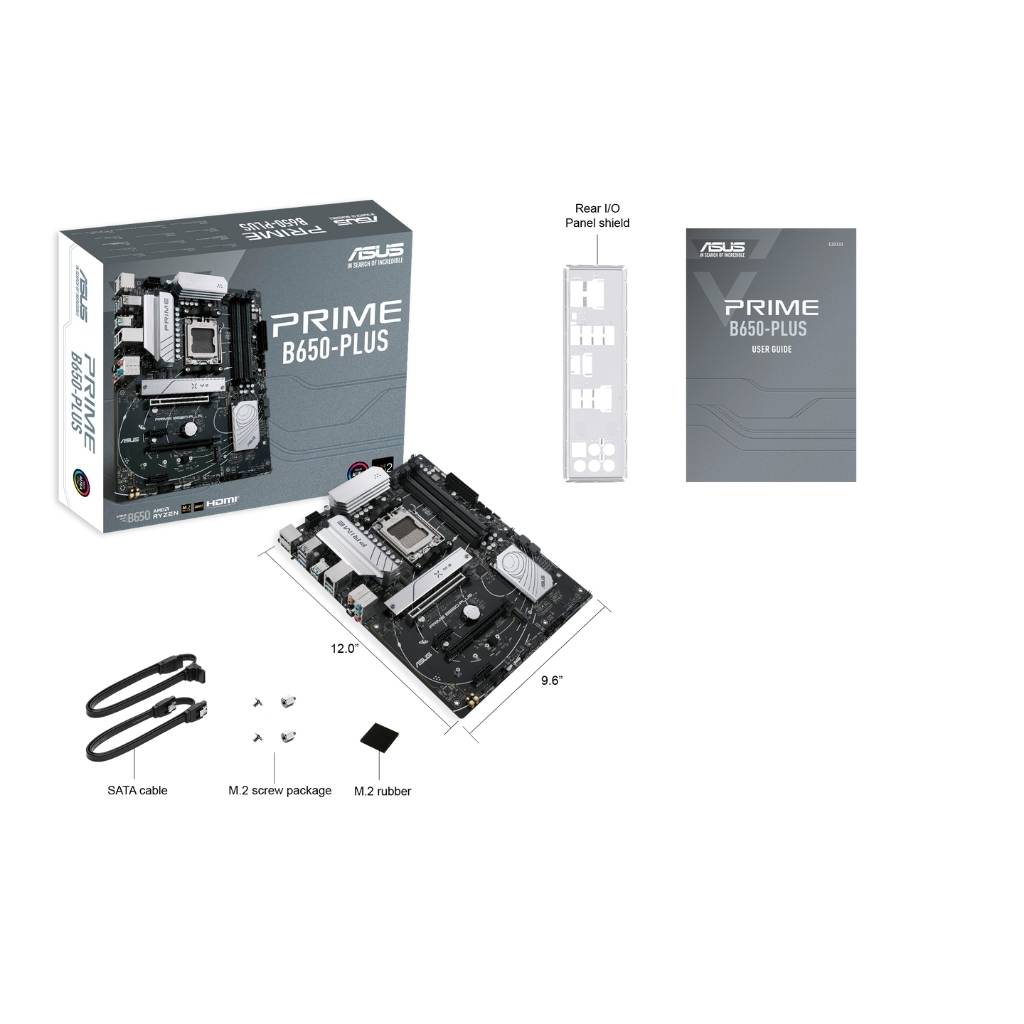

1. ATX Form Factor

   12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
