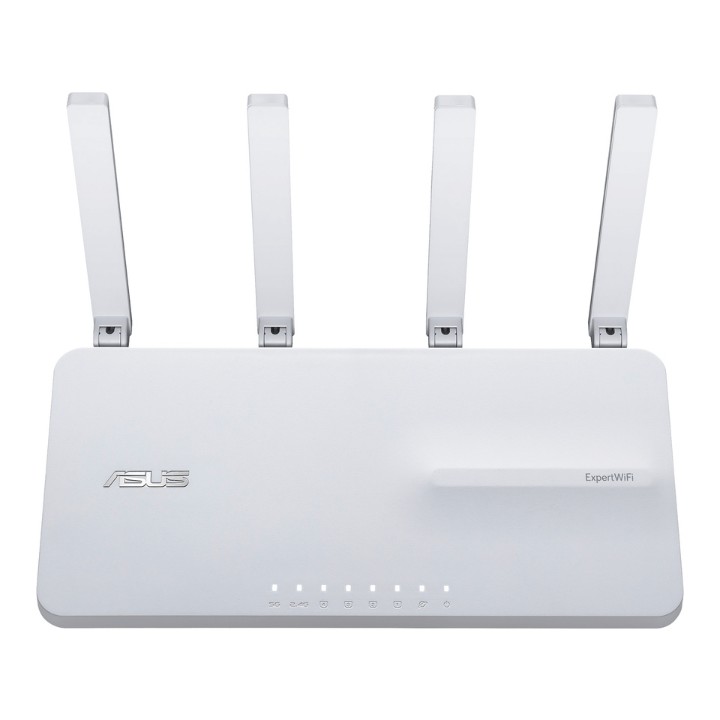

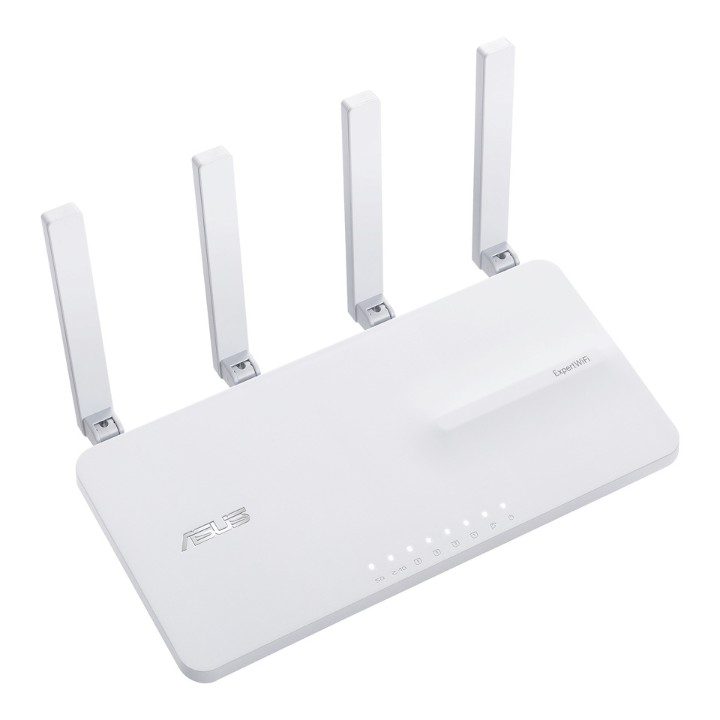

ASUS ExpertWiFi EBR63 AX3000 Dual-Band WiFi 6 All in One Access Point Commercial-Grade Wireless Router
Full description ASUS.
- Secure and Segmented Networking – Easy business WiFi network settings via Self-Defined Networks, and enhanced business security with VLAN support, offering up to five SSIDs for device segregation and prioritization in diverse business scenarios.
- Customizable Guest Portal – Guest portals can be tailored to meet your business needs, with custom portal types, branding and visual templates to fit particular business styles
- Backup WAN for Stable Connectivity –The USB port can be used as a backup WAN by connecting it to a mobile phone with hotspot to maintain a reliable internet connection
- Commercial-Grade Network Security and VPN – Safe Browsing, VPN features to connect easily and securely to public WiFi.
Specifications |
|
| Brand: | ASUS |
| Series: | ExpertWiFi Series |
| Model: | EBR63 (90IG0870-MO3C00) |
| Technical Specs | |
| Network Standard: | – IEEE 802.11a – IEEE 802.11b – IEEE 802.11g – WiFi 4 (802.11n) – WiFi 5 (802.11ac) – WiFi 6 (802.11ax) – IPv4 – IPv6 |
| WiFi Data Rate: | – 802.11a : up to 54 Mbps – 802.11b : up to 11 Mbps – 802.11g : up to 54 Mbps – WiFi 4 (802.11n) : up to 300 Mbps – WiFi 5 (802.11ac) : up to 1734 Mbps – WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps – WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps |
| Antenna: | 4 External Antenna |
| Transmit / Receive: | 2.4GHz 2×2 5GHz 2×2 |
| Processor: | 1.7GHz quad-core processor |
| Memory: | 256MB FLASH 512MB RAM |
| Boosts Speed: | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth |
| Operating Frequency: | 2.4 GHz 5 GHz |
| Operating Mode: | Wireless Router Mode AiMesh Node Mode Access Point Mode |

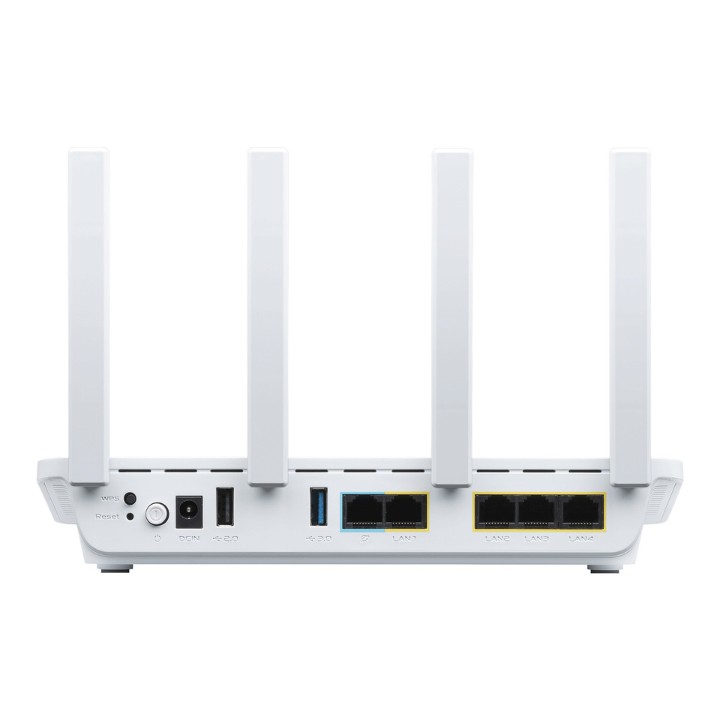

| I/O Ports: | RJ45 for Gigabits BaseT for WAN x 1 RJ45 for Gigabits BaseT for LAN x 4 USB 3.2 Gen 1 x 1 USB2.0 |
| Buttons: | WPS Button, Reset Button, Power Switch |
| LED Indicator: | POWER, WAN, LAN, 5G, 2.4G |
| Game Mode: | N/A |
| Security: | AiProtection VPN WPS Let’s Encrypt DNS-over-TLS SSH Firewall • Maximum Firewall Keyword Filter :64 • Maximum Firewall Network Service Filter :32 • Maximum Firewall URL Filter : 64 |
| LAN: | DHCP Server IGMP Snooping IPTV VLAN |
| Wireless: | MU-MIMO UTF-8 SSID WiFi MAC Address Filter • Maximum MAC Filters : 64 Wireless Scheduler |
| Features: | Customizable Guest Portal |
| Secure and Segmented Networking | |
| Backup WAN for Stable Connectivity | |
| Commercial-Grade Network Security and VPN | |
| Commercial-Grade Wireless Router | |
| General | |
| Dimensions: | 225 x 127 x 146mm |
| Weight: | 436g |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
ASUS ExpertWiFi EBR63 AX3000 Dual-Band WiFi 6 All in One Access Point Commercial-Grade Wireless Router
Contact us if you would like to enquire about this product.
