ASUS Dual RTX 3060Ti Mini OC 8GB Graphics Card
Full description Asus.
- NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
- 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
- 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
- This GeForce RTX 3060 Ti graphics card with LHR (lite hash rate) delivers 25 MH/s ETH hash rate (est.).
- OC Edition: Boost clock 1710 MHz (OC mode)/ 1680 MHz (Gaming mode).
SPECIFICATIONS |
|
| Brand | Asus |
| Series | Dual Series |
| Model | (DUAL-RTX3060TI-O8G-MINI-V2) |
| Chipset | |
| GPU | GeForce RTX 3060 Ti |
| Chipset Manufacturer | NVIDIA |
| Interface | PCI-E 4.0 |
| Engine Clock | |
| OC Mode | 1710 MHz (Boost Clock) |
| Gaming Mode | 1410 MHz (Base Clock) |
| 1680 MHz (Boost Clock) | |
| CUDA Cores | 4864 |
| GPU Architecture | NVIDIA Ampere Architecture |
| Memory | |
| Effective Memory Clock | 14 Gbps |
| Memory Size | 8GB |
| Memory Interface | 256-bit |
| Memory Type | GDDR6 |
| 3D API | |
| DirectX | Microsoft DirectX 12 Ultimate |
| OpenGL | 4.6 |
| Vulkan | Vulkan RT API |
| Connectivity | |

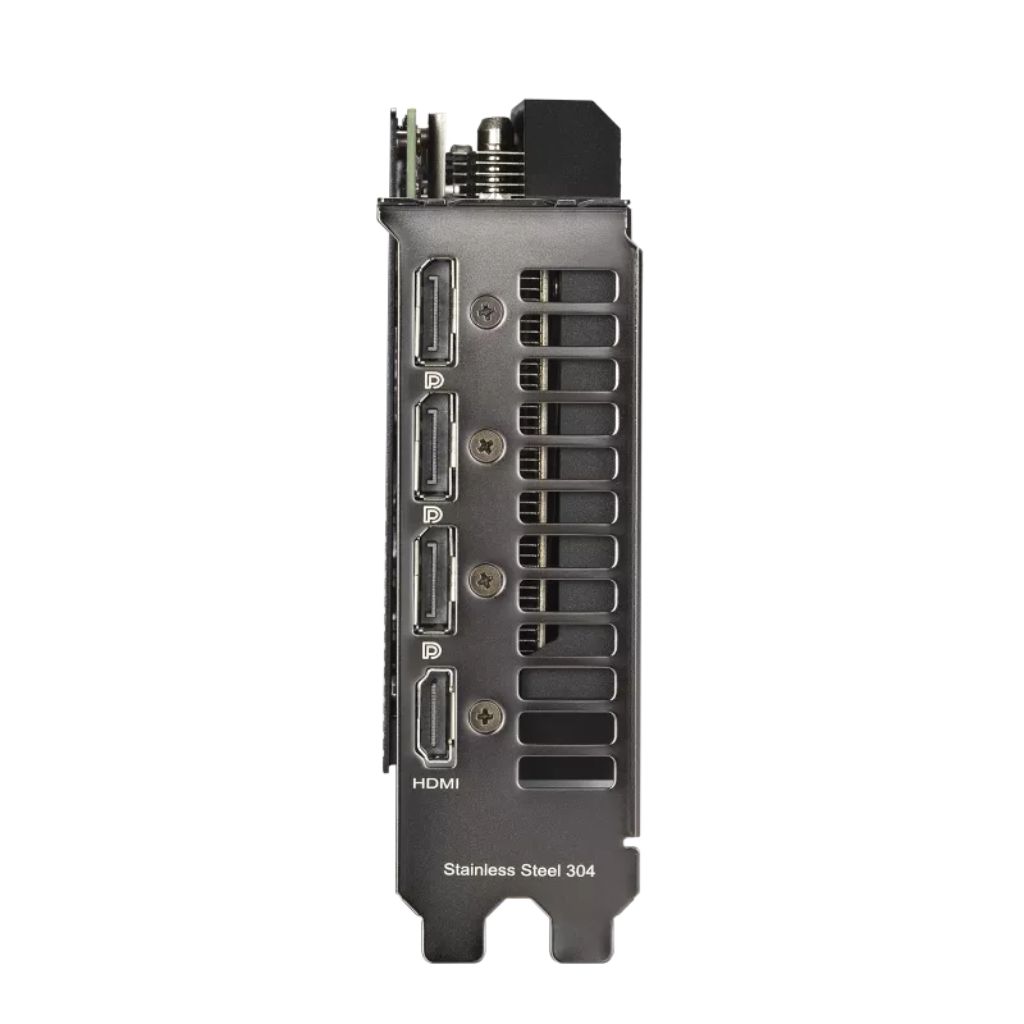

| Ports | 3x DisplayPort 1.4a |
| 1x HDMI 2.1 | |
| HDCP Support | v2.3 |
| Multi-Monitor Support | 4 |
| Maximum Digital Resolution | 7680 x 4320 |
| VR Ready | Yes |
| LHR | 25 MH/s ETH hash rate (est.) |
| General | |
| Features | OC Mode |
| Axial-tech Fan Design | |
| 0dB Technology | |
| Protective Aluminum Backplate | |
| Stainless Steel Bracket | |
| Top-Side RGB Element | |
| GPU Tweak II | |
| Game Ready Drivers | |
| 2nd Generation RT Cores | |
| 3rd Generation Tensor Cores | |
| NVIDIA Studio Drivers | |
| NVIDIA DLSS | |
| NVIDIA Ansel | |
| NVIDIA Reflex | |
| NVIDIA G-SYNC | |
| NVIDIA GPU Boost | |
| NVIDIA Broadcast | |
| NVIDIA FreeStyle | |
| NVIDIA ShadowPlay | |
| NVIDIA Highlights | |
| NVIDIA GeForce Experience | |
| NVIDIA Encoder, 7th Generation | |
| NVIDIA Decoder, 5th Generation | |
| NVIDIA Ampere Streaming Multiprocessors | |
| Power Requirements | |
| Recommended Power Supply | 750W |
| Power Connector | 1x 8-Pin |
| Physical Aspects | |
| Form Factor | ATX |
| Slot Width | Dual Slot |
| Dimensions | 20 x 12.3 x 3.8 cm (LxWxH) |
| Warranty Information | |
| Warranty | 3 Year Warranty |
ASUS Dual RTX 3060Ti Mini OC 8GB Graphics Card
Contact us if you would like to enquire about this product.
Luke –
Strong card, tends to run a little hot for me
