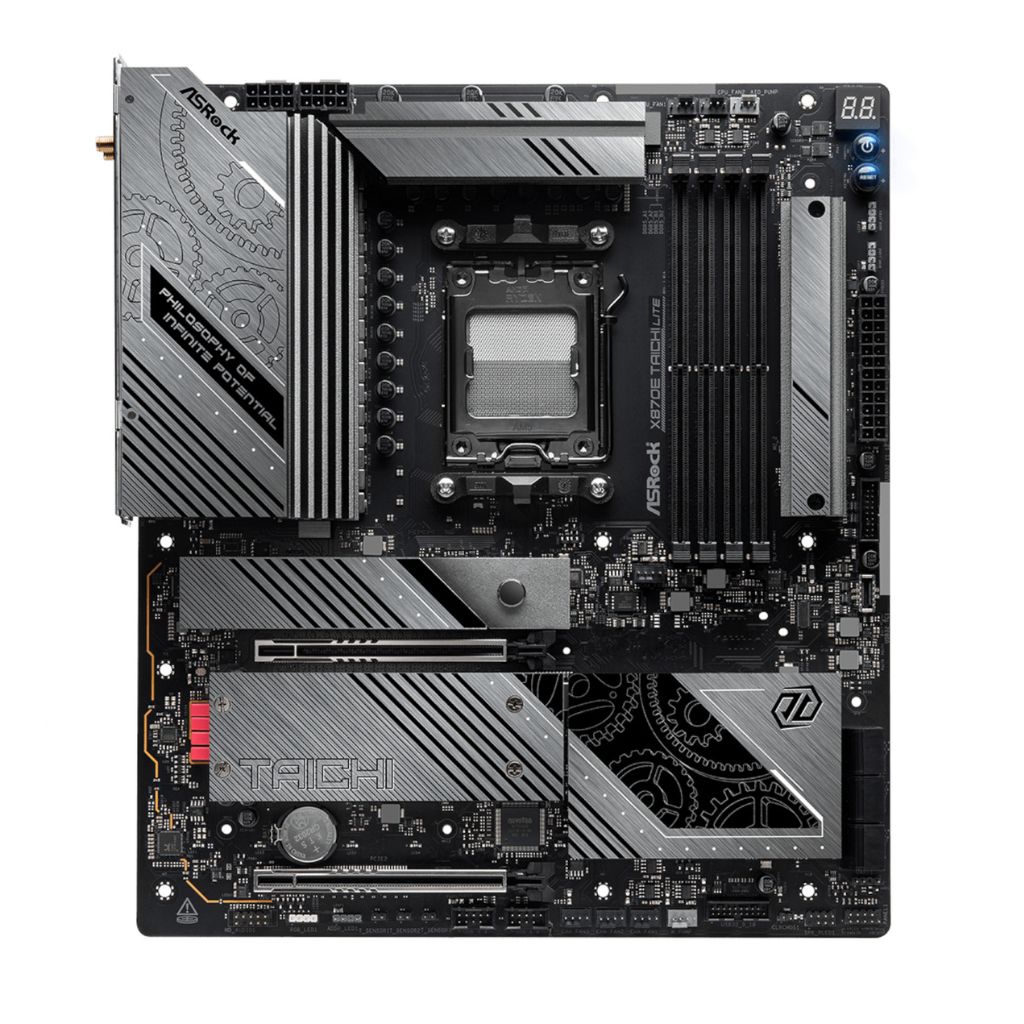

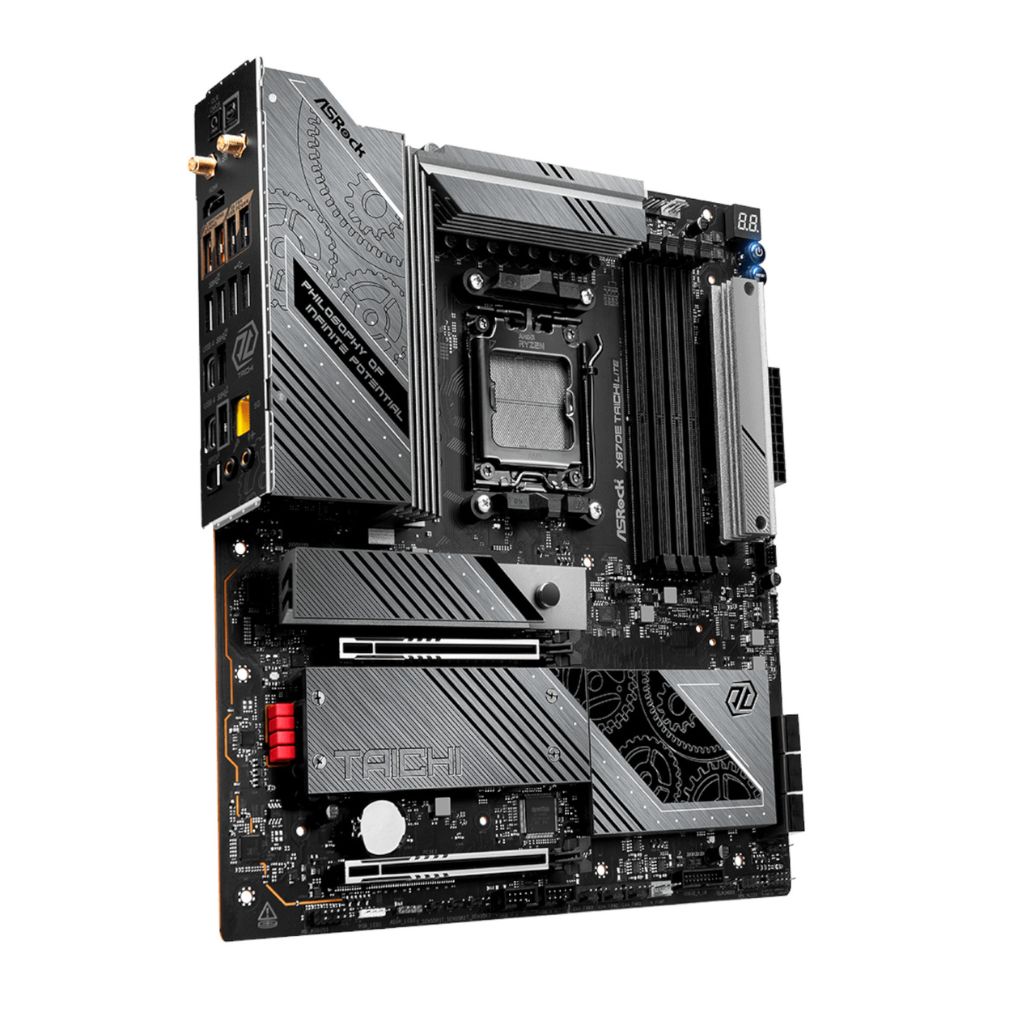

ASRock X870E Taichi Lite WiFi DDR5 ATX AM5 AMD Motherboard
Full description ASRock.
- Flagship AMD X870E Performance for Ryzen™ 9000 / 8000 / 7000 Series
Built on the high-end AMD X870E chipset with AM5 socket support, delivering next-generation PCIe 5.0 performance for GPUs and ultra-fast Gen5 NVMe SSDs. - Blazing-Fast DDR5 Memory up to 256GB
4x DDR5 DIMM slots with dual-channel architecture, supporting extreme overclocking via EXPO™ and XMP profiles for maximum system responsiveness and multitasking power. - PCIe 5.0 Graphics & Quad M.2 Storage Design
Dual PCIe 5.0 x16 slots plus multiple M.2 slots (including PCIe Gen5) for elite-level gaming rigs, content creation systems and workstation builds. - 5G LAN + WiFi 7 + USB4 40Gbps Connectivity
Equipped with 5G Ethernet, WiFi 7 (802.11be) and USB4 Type-C 40Gbps ports for ultra-fast networking, low-latency gaming and high-speed external storage. - Premium Power Design & Taichi-Class Build Quality
Robust 24+2+1 phase power design with premium components, integrated I/O shield, reinforced slots and advanced cooling for stable high-performance operation.
| Specifications | |
|---|---|
| Brand: | ASRock |
| Model: | X870E Taichi Lite WiFi |
| Chipset: | AMD X870E |
| Socket: | AM5 |
| Form Factor: | ATX (30.5 cm x 26.7 cm) |
| CPU Support | |
| Supported Processors: | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Memory | |
| Memory Type: | DDR5 |
| DIMM Slots: | 4 |
| Maximum Capacity: | 256GB |
| Memory Support: | Dual Channel, EXPO™, XMP |
| Expansion Slots | |
| PCIe x16 Slots: | 2x PCIe 5.0 x16 (configurable x16 / x8+x8) |
| PCIe Slots (Additional): | PCIe 4.0 slots (from chipset) |
| Storage | |
| M.2 Slots: | 4x M.2 (including PCIe 5.0 & PCIe 4.0) |
| SATA Ports: | 6x SATA 6Gb/s |
| RAID Support: | RAID 0 / 1 / 10 (SATA & NVMe) |
| Networking | |
| LAN: | 5G LAN (Realtek) |
| Wireless: | WiFi 7 (802.11be) |
| Bluetooth: | Bluetooth 5.4 |
| Graphics Outputs | |
| HDMI: | 1x HDMI |
| USB4 Display Output: | 1x USB4 Type-C (40Gbps) |
| Audio | |
| Audio Codec: | Realtek ALC4082 7.1 Channel HD Audio |
| Audio Features: | Nahimic Audio, Premium Audio Capacitors |
| USB (Rear) | |
| USB4 Type-C (40Gbps): | 2 |
| USB 3.2 Gen2 Type-A (10Gbps): | Multiple |
| USB 3.2 Gen1 Type-A (5Gbps): | Multiple |
| USB 2.0: | Available |
| Internal I/O Connectors | |
| 24-pin ATX Power Connector: | 1 |
| 8-pin + 8-pin 12V Power Connectors: | Yes |
| CPU Fan Headers: | Yes |
| AIO Pump Header: | Yes |
| Chassis Fan Headers: | Multiple (Smart Fan Control) |
| USB 3.2 Gen1 Headers: | Yes |
| USB 3.2 Gen2x2 Front Header: | Yes |
| USB 2.0 Headers: | Yes |
| RGB Headers: | RGB & Addressable RGB |
| TPM Header: | Yes |
| Front Panel Header: | Yes |
| Back Panel I/O Ports | |
| USB4 Type-C: | 2x 40Gbps |
| USB 3.2 Type-A Ports: | Multiple |
| HDMI Port: | 1 |
| LAN Port: | 1x 5G RJ-45 |
| WiFi Antenna Connectors: | 2 |
| Audio Jacks: | HD Audio Ports |
| Clear CMOS Button: | Yes |
| BIOS Flashback Button: | Yes |
| BIOS | |
| BIOS Type: | 256Mb AMI UEFI Legal BIOS |
| Operating System Support | |
| OS Support: | Windows® 10 64-bit / Windows® 11 64-bit |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
ASRock X870E Taichi Lite WiFi DDR5 ATX AM5 AMD Motherboard
Contact us if you would like to enquire about this product.
Reviews
There are no reviews yet
