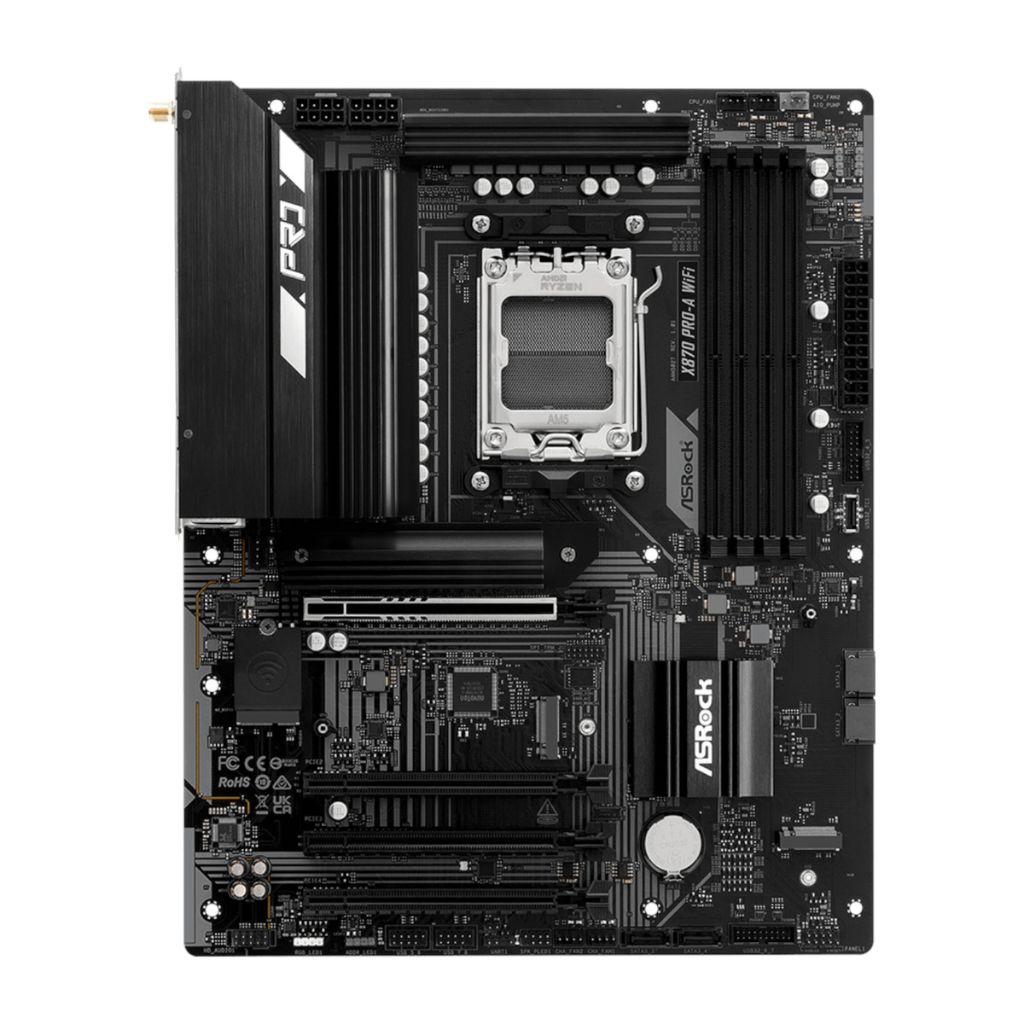

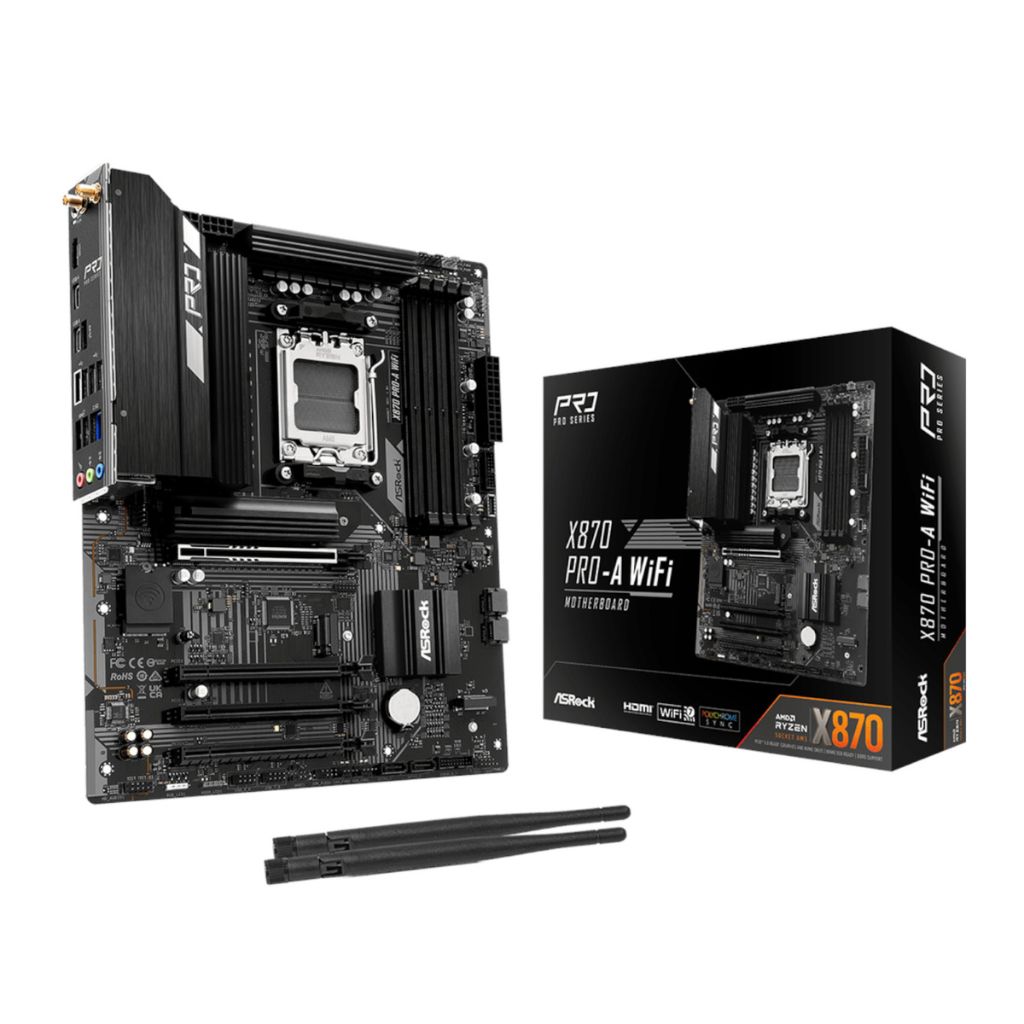

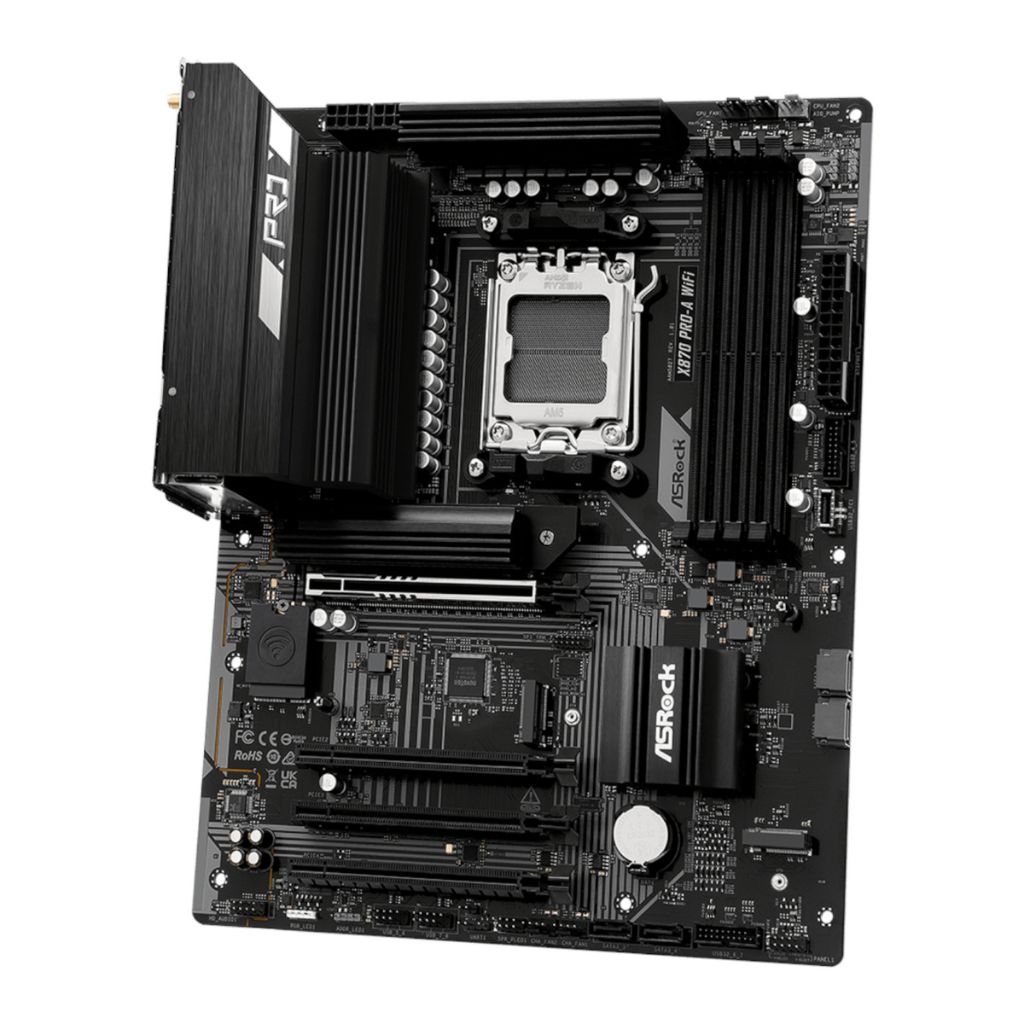

ASRock X870 Pro-A WiFi DDR5 ATX AM5 AMD Motherboard
Full description ASRock.
- Next-Gen AMD X870 Performance for Ryzen™ 9000 Series
Designed for AMD AM5 processors including Ryzen™ 9000, 8000 and 7000 Series, delivering PCIe 5.0 graphics and storage support for cutting-edge gaming and productivity systems. - DDR5 Memory up to 256GB with EXPO™ & XMP Support
Four DDR5 DIMM slots with dual-channel architecture and extreme overclocking support ensure high bandwidth and future-ready performance. - PCIe 5.0 x16 + Blazing Gen5 & Gen4 M.2 Storage
Equipped with a PCIe 5.0 x16 graphics slot and multiple Hyper M.2 slots (including Gen5), enabling ultra-fast NVMe SSD speeds for creators and gamers. - 2.5G LAN + WiFi 7 Connectivity
Integrated 2.5 Gigabit LAN and WiFi 7 (802.11be) with Bluetooth 5.4 provide fast, stable and low-latency networking for competitive gaming and streaming. - Robust Power Design with Enlarged Heatsinks
16+1+1 phase power design with high-quality components and reinforced cooling ensures stable CPU performance under heavy workloads.
| Specifications | |
|---|---|
| Brand: | ASRock |
| Model: | X870 Pro-A WiFi |
| Chipset: | AMD X870 |
| Socket: | AM5 |
| Form Factor: | ATX (30.5 cm x 24.4 cm) |
| CPU Support | |
| Supported Processors: | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Memory | |
| Memory Type: | DDR5 |
| DIMM Slots: | 4 |
| Maximum Capacity: | 256GB |
| Memory Support: | Dual Channel, XMP, EXPO |
| Expansion Slots | |
| PCIe x16 Slot (Primary): | 1x PCIe 5.0 x16 |
| PCIe x16 Slot (Secondary): | 1x PCIe 4.0 x16 (x4 mode) |
| PCIe x1 Slot: | 1x PCIe 4.0 x1 |
| Storage | |
| M.2 Slots: | 3x Hyper M.2 (Gen5/Gen4 depending on slot) |
| SATA Ports: | 4x SATA 6Gb/s |
| RAID Support: | RAID 0 / 1 / 10 (SATA & NVMe) |
| Networking | |
| LAN: | 2.5G LAN |
| Wireless: | WiFi 7 (802.11be) |
| Bluetooth: | Bluetooth 5.4 |
| Graphics Outputs | |
| HDMI: | 1x HDMI |
| USB4 Type-C (Display): | 2x USB4 40Gbps (DP 1.4 support) |
| Audio | |
| Audio Codec: | Realtek ALC897 7.1 Channel HD Audio |
| Audio Features: | Nahimic Audio Support |
| USB (Rear) | |
| USB4 Type-C (40Gbps): | 2 |
| USB 3.2 Gen2 Type-A (10Gbps): | 2 |
| USB 3.2 Gen1 Type-A (5Gbps): | 4 |
| USB 2.0: | 4 |
| Internal I/O Connectors | |
| 24-pin ATX Power Connector: | 1 |
| 8-pin + 8-pin 12V Power Connectors: | Yes |
| CPU Fan Headers: | Yes |
| AIO Pump Header: | Yes |
| Chassis Fan Headers: | Yes |
| USB 3.2 Gen1 Headers: | Yes |
| USB 3.2 Gen2x2 Front Header: | Yes |
| USB 2.0 Headers: | Yes |
| RGB Headers: | RGB & Addressable RGB |
| TPM Header: | Yes |
| Front Panel Header: | Yes |

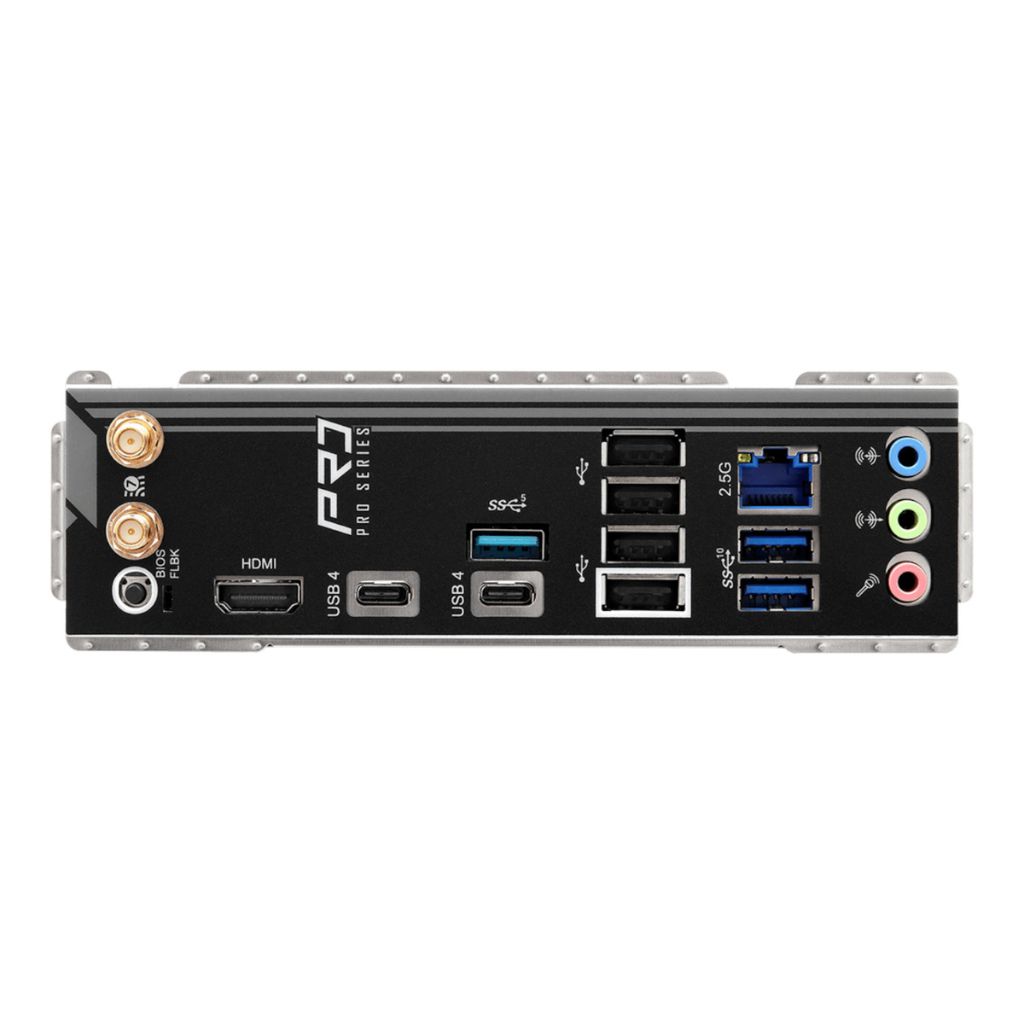

| Back Panel I/O Ports | |
| USB4 Type-C Ports: | 2 |
| USB 3.2 Type-A Ports: | Multiple |
| HDMI Port: | 1 |
| LAN Port: | 1x RJ-45 (2.5G) |
| WiFi Antenna Connectors: | 2 |
| Audio Jacks: | HD Audio Ports |
| BIOS Flashback Button: | Yes |
| BIOS | |
| BIOS Type: | 256Mb AMI UEFI BIOS |
| Operating System Support | |
| OS Support: | Windows® 10 64-bit / Windows® 11 64-bit |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
