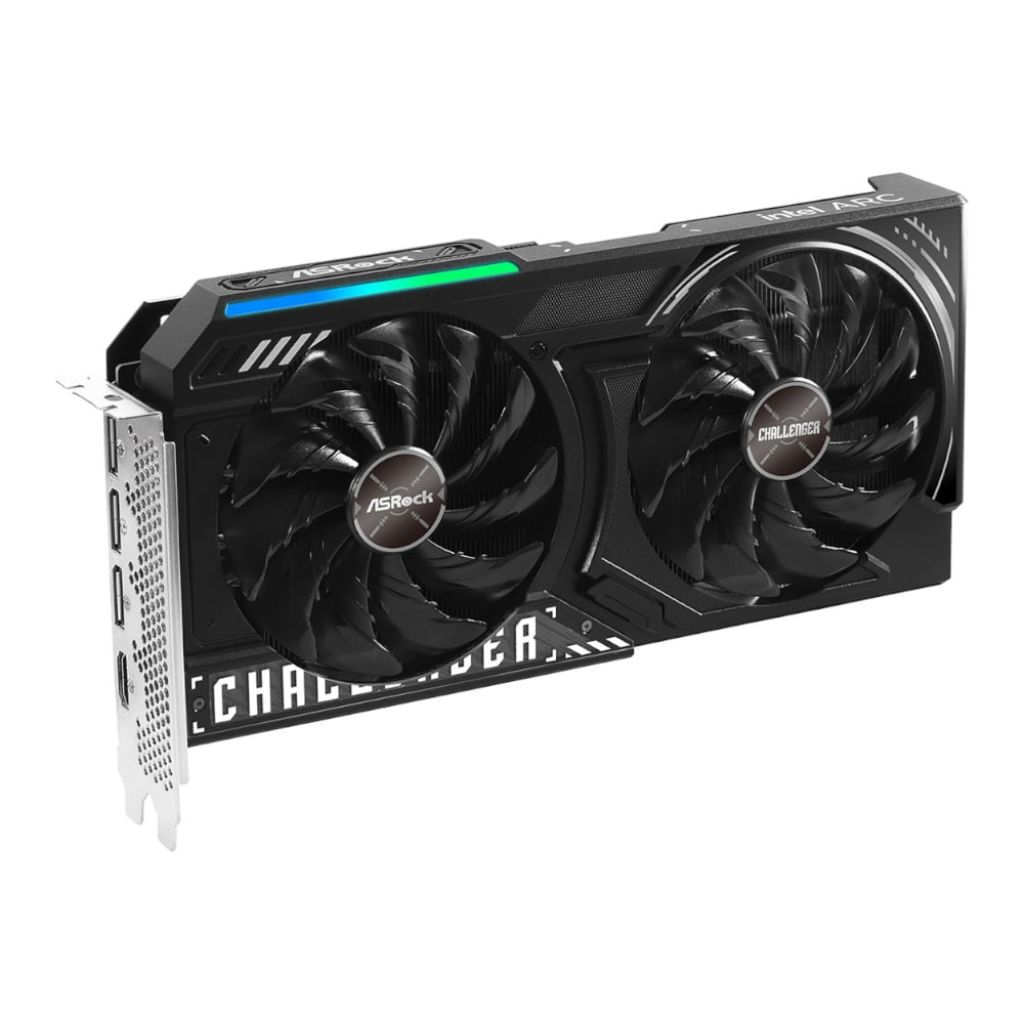

ASRock Intel Arc B570 Challenger 10GB OC GDDR6 Graphics Card – 90-GA5KZZ-00UANF
Full description ASRock.
- CLOCK: GPU / MEMORY
GPU Clock: 2600 MHz
Memory Clock: 19 Gbps - KEY SPECIFICATION
Intel® Arc™ B570 Graphics
10GB 160-bit GDDR6
Intel® Xe2-HPG Architecture
Intel® Xe Super Sampling 2 (Intel® XeSS 2)
| Specifications | |
| Brand: | ASRock |
| Series: | Intel B Series |
| Model: | 90-GA5KZZ-00UANF |
| Technical Specs | |
| Chipset Manufacturer: | Intel |
| Interface: | PCI Express4.0 x 8 |
| Clock Speeds: | 2600 MHz |
| XMX Engine: | 144 |
| GPU Architecture: | Intel Battlemage |
| Memory | |
| Memory Type: | GDDR6 |
| Memory Size: | 10GB |
| Memory Interface: | 160-bit |
| Memory Clock: | 19 Gbps |
| Software & Features | |
| DirectX: | 12 Ultimate |
| OpenGL: | 4.6 |
| Features: | Stylish Metal Backplate |
| Super Alloy Graphics Card | |
| LED Indicator | |
| 0dB Silent Cooling | |
| Striped Axial Fan | |
| General | |
| Connectivity Ports: | 1 x DisplayPort 2.1 (Primary, up to UHBR13.5) 2 x DisplayPort 2.1 (Up to UHBR10) |
| 1 x HDMI 2.1a | |
| Multi-Monitor Support: | Yes |
| Maximum Digital Resolution: | 7680 x 4320@60Hz |
| Recommended Power Supply: | 600W |
| Power Connectors: | 1 x 8-pin |
| Form Factor: | 2 Slot ATX |
| Dimensions: | 249 x 132 x 41mm, 2-slot |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
ASRock Intel Arc B570 Challenger 10GB OC GDDR6 Graphics Card – 90-GA5KZZ-00UANF
Contact us if you would like to enquire about this product.













Reviews
There are no reviews yet
