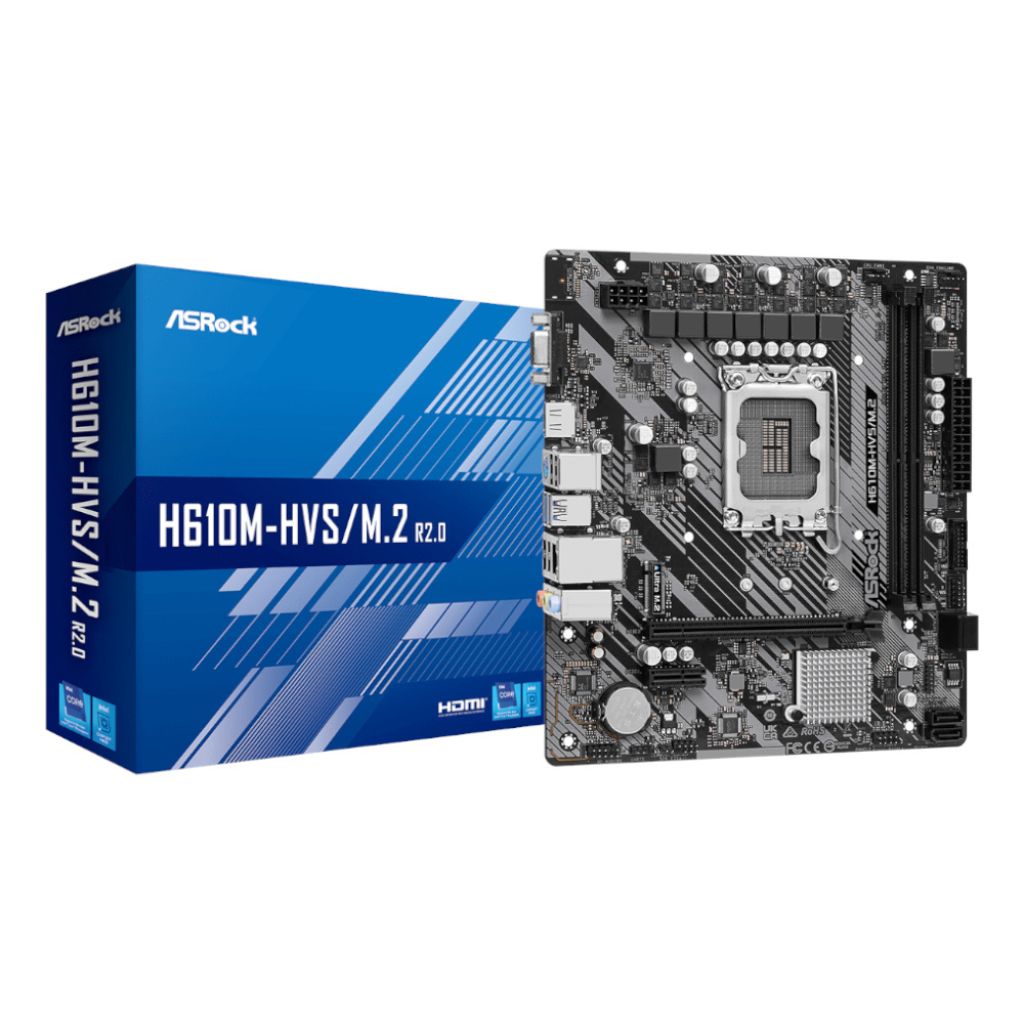

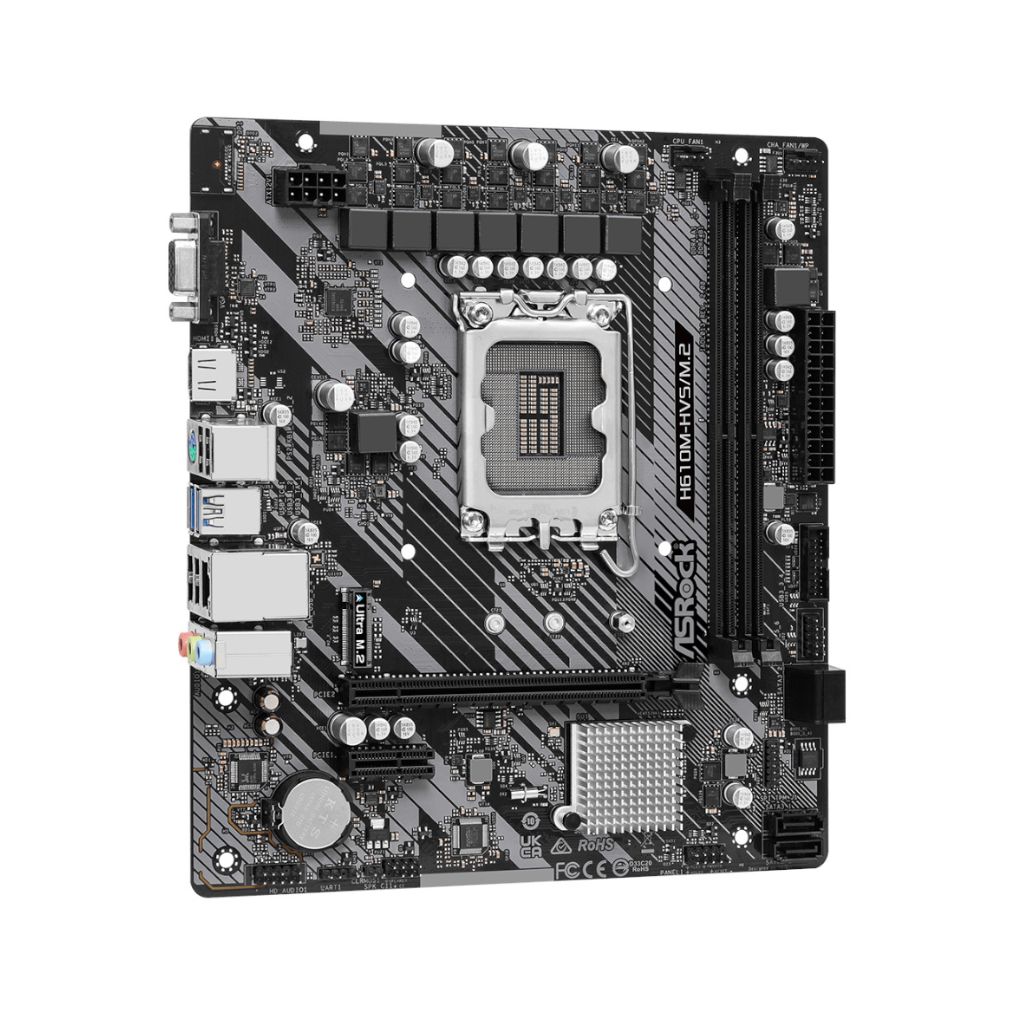

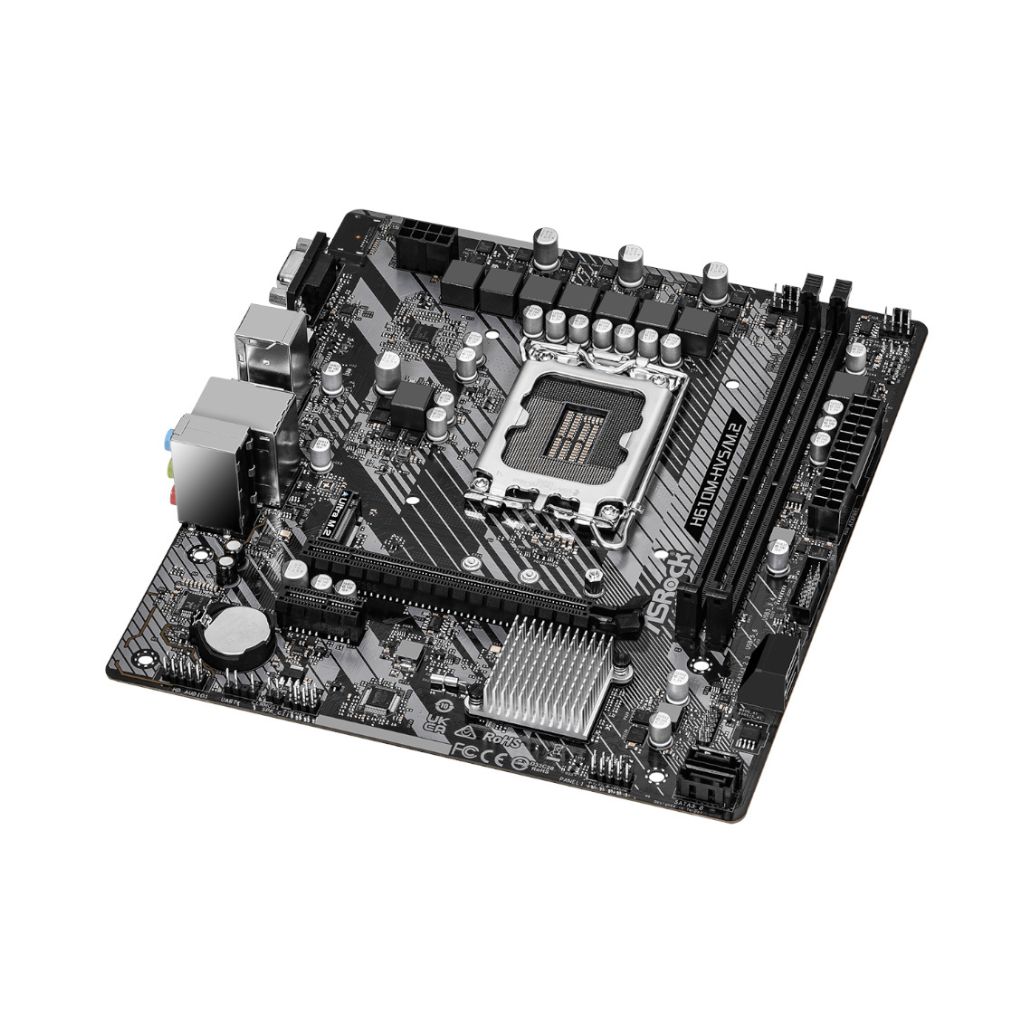

ASRock H610M-HVS-M2R2 DDR4 LGA1700 Intel Motherboard
Full description ASRock.
- Reliable Intel® 12th, 13th & 14th Gen Support (LGA1700)
Built for Intel® Core™, Pentium® Gold and Celeron® processors, delivering stable everyday performance for office, home and business PCs. - DDR4 Dual-Channel Memory up to 64GB
Supports up to 64GB DDR4 memory with XMP 2.0 support for optimized speeds and improved multitasking efficiency. - Ultra M.2 PCIe Gen3 x4 + SATA 6Gb/s Storage
Equipped with an Ultra M.2 slot for high-speed NVMe SSDs and four SATA III ports for flexible storage expansion. - 4K HDMI + D-Sub Display Outputs
Dual display outputs with HDMI 2.1 and D-Sub support, perfect for productivity setups and business environments. - ASRock Super Alloy Durability
Premium power choke, high-density glass fabric PCB and full spike protection ensure long-term reliability and stable operation.
| Specifications | |
|---|---|
| Brand: | ASRock |
| Model: | H610M-HVS/M.2 R2.0 |
| Chipset: | Intel® H610 |
| Socket: | LGA1700 |
| Form Factor: | Micro-ATX (22.0 cm x 19.3 cm) |
| CPU Support | |
| Supported Processors: | Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold, Celeron® |
| Memory | |
| Memory Type: | DDR4 |
| DIMM Slots: | 2 |
| Maximum Capacity: | 64GB |
| Memory Support: | Dual Channel, XMP 2.0, Non-ECC |
| Expansion Slots | |
| PCIe x16 Slot: | 1x PCIe 4.0 x16 |
| PCIe x1 Slot: | 1x PCIe 3.0 x1 |
| Storage | |
| M.2 Slots: | 1x Ultra M.2 (PCIe Gen3 x4) |
| SATA Ports: | 4x SATA 6Gb/s |
| RAID Support: | — |
| Networking | |
| LAN: | Realtek® RTL8111H Gigabit LAN |
| Graphics Outputs | |
| HDMI: | 1x HDMI 2.1 (4K @ 60Hz) |
| VGA (D-Sub): | 1x D-Sub |
| Audio | |
| Audio Codec: | Realtek® ALC897 7.1-Channel HD Audio |
| USB (Rear) | |
| USB 3.2 Gen1 (5Gbps): | 2 |
| USB 2.0: | 4 |
| Internal I/O Connectors | |
| 24-pin ATX Power Connector: | 1 |
| 8-pin 12V Power Connector: | 1 |
| CPU Fan Header: | 1 |
| Chassis Fan Header: | 1 |
| USB 3.2 Gen1 Header: | 1 |
| USB 2.0 Header: | 1 |
| Front Panel Audio Header: | Yes |
| TPM Header: | 1 |

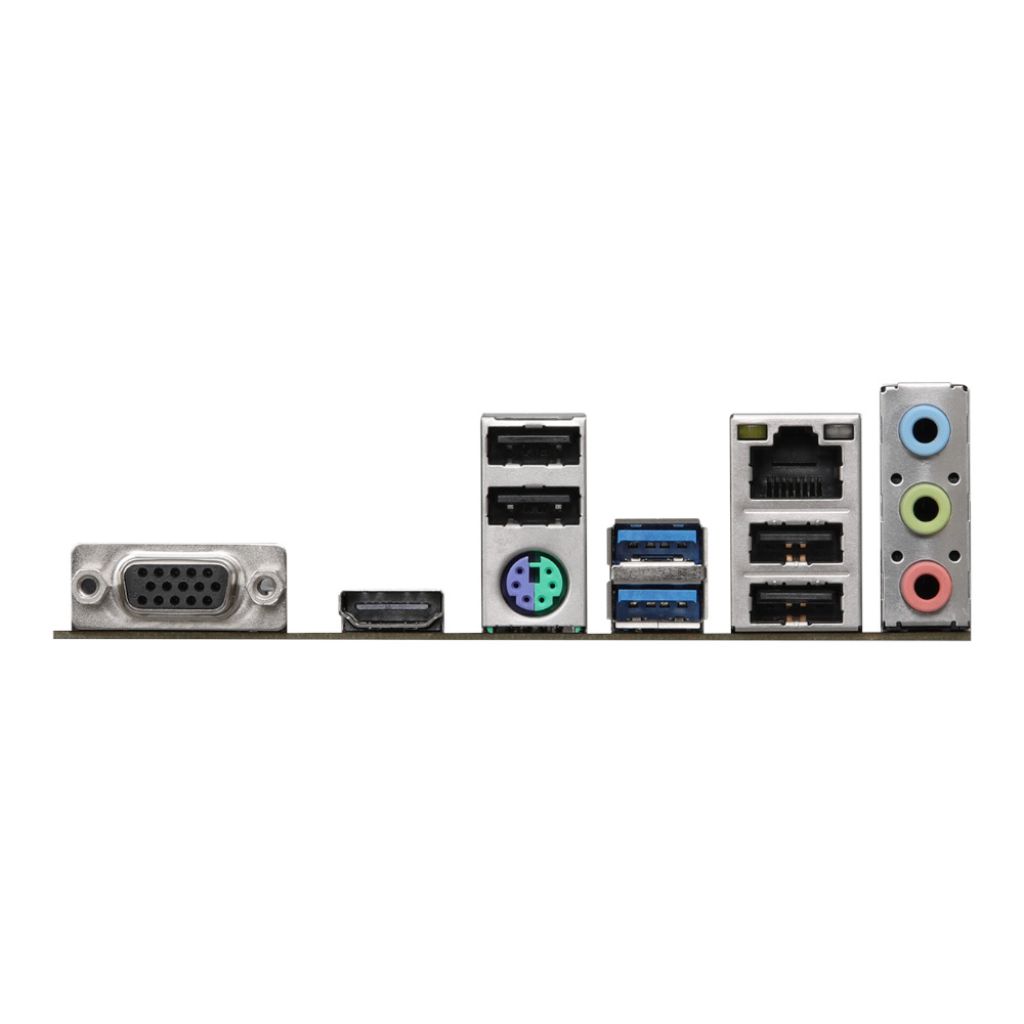

| Back Panel I/O Ports | |
| PS/2 Port: | 1 |
| HDMI Port: | 1 |
| D-Sub Port: | 1 |
| USB 3.2 Gen1 Ports: | 2 |
| USB 2.0 Ports: | 4 |
| LAN Port: | 1x RJ-45 |
| Audio Jacks: | Line In / Line Out / Mic |
| BIOS | |
| BIOS Type: | 128Mb AMI UEFI BIOS |
| Operating System Support | |
| OS Support: | Windows® 10 64-bit / Windows® 11 64-bit |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
