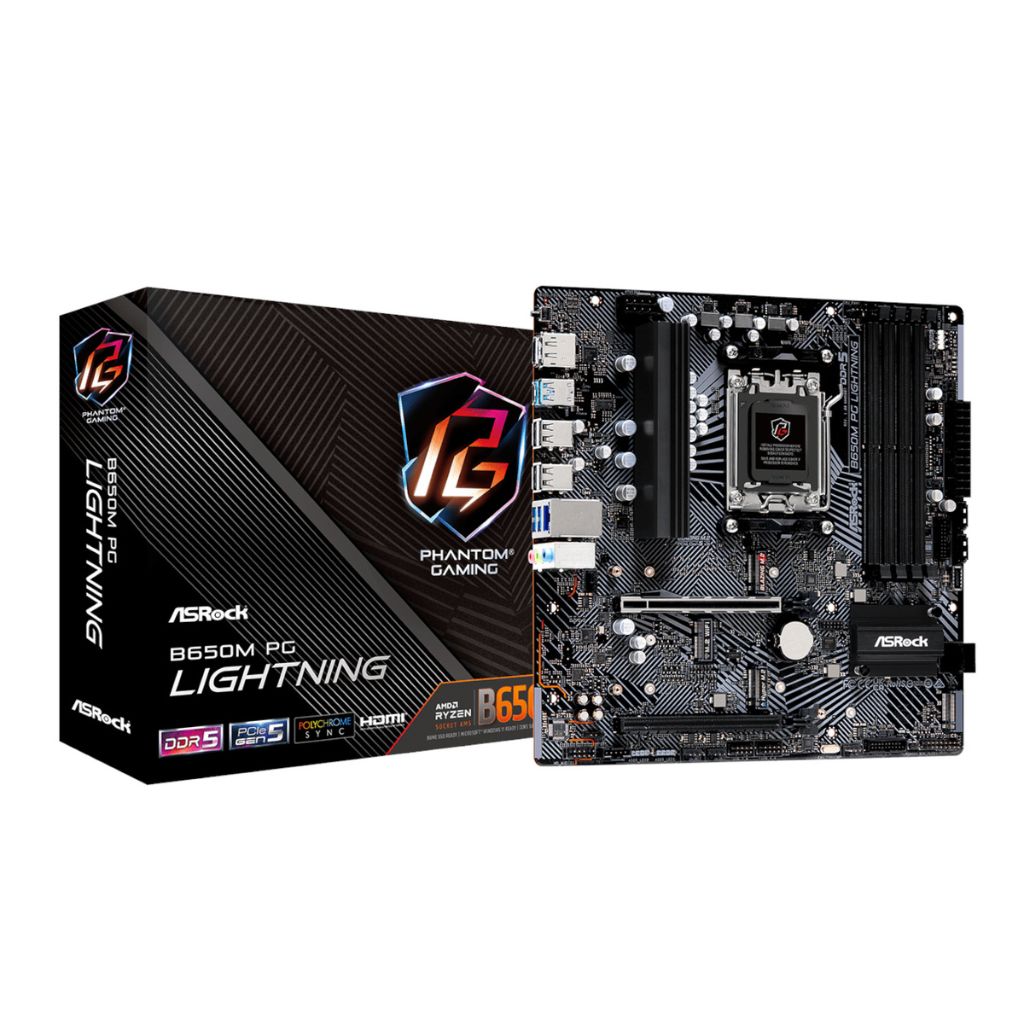

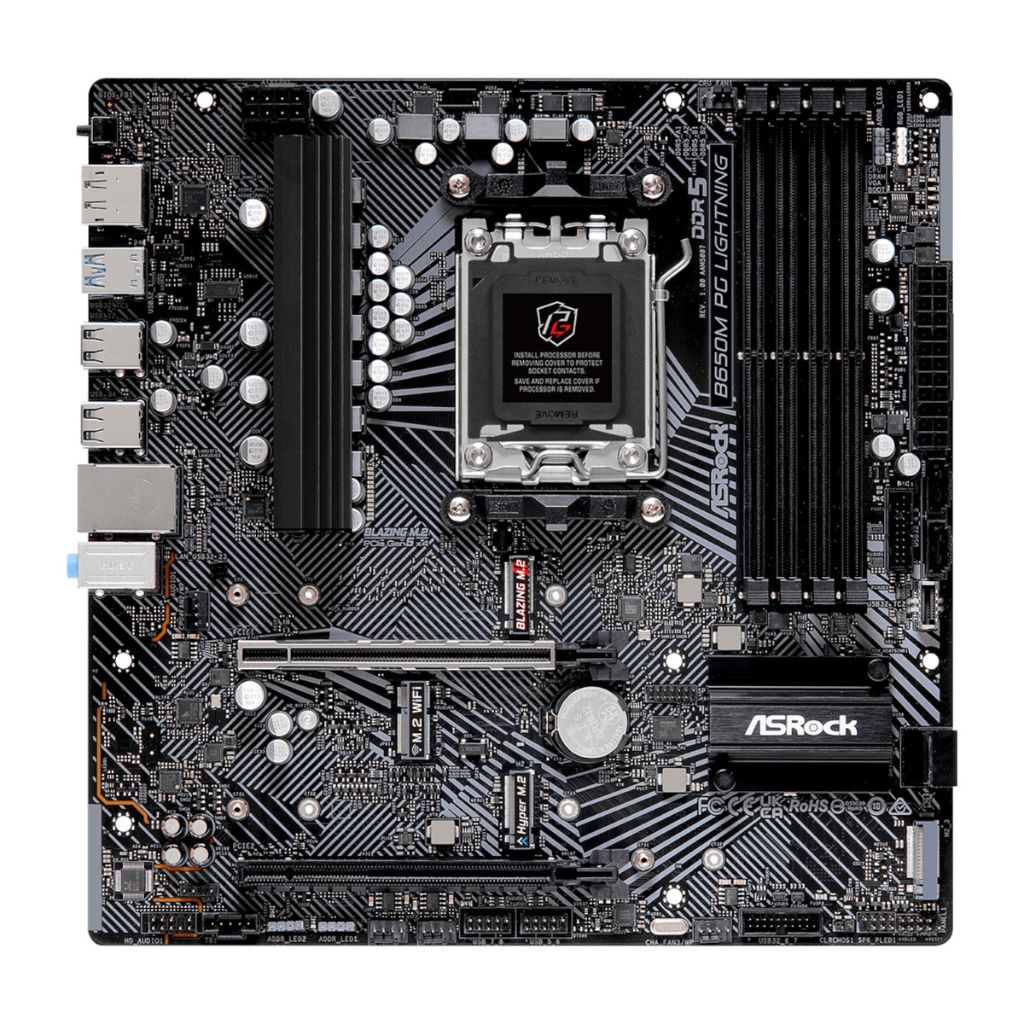

ASRock B650M PG Lightning DDR5 Micro-ATX AM5 AMD Motherboard
Full description ASRock.
- AM5 Platform for Ryzen 9000 / 8000 / 7000 Series
Built on the AMD B650 chipset, this Micro-ATX motherboard supports the latest Ryzen™ processors, delivering strong multi-core performance for gaming, streaming and productivity builds. - Triple M.2 Storage Including PCIe 5.0 Blazing Slot
Features a PCIe 5.0 x4 Blazing M.2 slot (128Gb/s) plus two additional M.2 slots, giving you next-generation NVMe speeds and flexible high-capacity storage expansion. - 6+2+1 Power Phase Design with 50A Dr.MOS
Reliable power delivery ensures stable performance under load, ideal for high-performance CPUs and long gaming sessions. - DDR5 Performance up to 7200+ MHz (OC)
Dual-channel DDR5 support with EXPO™ and XMP compatibility enables high-frequency memory tuning for improved system responsiveness. - 2.5GbE LAN, BIOS Flashback & ARGB Support
Fast Dragon 2.5G LAN for low-latency networking, BIOS Flashback for easy upgrades, and multiple RGB/ARGB headers for custom lighting builds.
| Specifications | |
|---|---|
| Brand: | ASRock |
| Model: | B650M PG Lightning |
| Chipset: | AMD B650 |
| Socket: | AM5 |
| Form Factor: | Micro-ATX (24.4 cm x 24.4 cm) |
| CPU Support | |
| Supported Processors: | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Memory | |
| Memory Type: | DDR5 |
| DIMM Slots: | 4 |
| Maximum Capacity: | 256GB |
| Memory Support: | Dual Channel, EXPO™, XMP, ECC/Non-ECC, Up to 7200+ MHz (OC) |
| Expansion Slots | |
| PCIe x16 Slot (Primary): | 1x PCIe 4.0 x16 |
| PCIe x16 Slot (Secondary): | 1x PCIe 3.0 x4 |
| M.2 (Key-E WiFi): | 1x M.2 Key-E (2230 WiFi/BT module support) |
| Storage | |
| M.2 Slot (CPU): | 1x Blazing M.2 PCIe 5.0 x4 (2260/2280) |
| M.2 Slot (Chipset 1): | 1x Hyper M.2 PCIe 4.0 x4 (2260/2280) |
| M.2 Slot (Chipset 2): | 1x M.2 PCIe 4.0 x2 (2260/2280) |
| SATA Ports: | 4x SATA 6Gb/s |
| RAID Support: | RAID 0 / 1 / 10 (SATA & NVMe) |
| Networking | |
| LAN: | Dragon RTL8125BG 2.5 Gigabit LAN |
| Graphics Outputs | |
| HDMI: | 1x HDMI 2.1 |
| DisplayPort: | 1x DisplayPort 1.4 |
| Audio | |
| Audio Codec: | Realtek® ALC897 7.1-Channel HD Audio |
| Audio Features: | Nahimic Audio |
| USB (Rear) | |
| USB 3.2 Gen2 Type-C: | 1 |
| USB 3.2 Gen2 Type-A: | 1 |
| USB 3.2 Gen1 Type-A: | 2 |
| USB 2.0: | 4 |
| Internal I/O Connectors | |
| 24-pin ATX Power Connector: | 1 |
| 8-pin 12V Power Connector: | 1 |
| CPU Fan Header: | 1 |
| Chassis/Water Pump Fan Headers: | 4 |
| Front Panel Audio Header: | 1 |
| SPI TPM Header: | 1 |
| USB 3.2 Gen1 Headers: | 2 |
| USB 2.0 Headers: | 2 |
| Front Panel Type-C Header: | 1x USB 3.2 Gen1 |
| Thunderbolt™ AIC Header: | 1 |
| RGB Header: | 1 |
| Addressable RGB Headers: | 3 |
| Back Panel I/O Ports | |
| HDMI Port: | 1 |
| DisplayPort: | 1 |
| USB Type-C (10Gb/s): | 1 |
| USB Type-A (10Gb/s): | 1 |
| USB Type-A (5Gb/s): | 2 |
| USB 2.0 Ports: | 4 |
| RJ-45 LAN Port: | 1x 2.5GbE |
| BIOS Flashback Button: | Yes |
| Audio Jacks: | Line In / Front Speaker / Microphone |
| BIOS | |
| BIOS Type: | 256Mb AMI UEFI BIOS |
| Operating System Support | |
| OS Support: | Windows® 10 64-bit / Windows® 11 64-bit |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
ASRock B650M PG Lightning DDR5 Micro-ATX AM5 AMD Motherboard
Contact us if you would like to enquire about this product.
