ASRock B450M-HDVR4 DDR4 Micro-ATX AM4 AMD Motherboard
Full description ASRock.
- Reliable AMD AM4 Platform for Ryzen Processors
Designed for AMD Ryzen™ 2000, 3000, 4000 G-Series and 5000 Series CPUs, the B450M-HDV R4.0 delivers a stable and cost-effective foundation for entry-level gaming and office builds. - Dual-Channel DDR4 Memory up to 64GB
Supports up to 64GB DDR4 memory with speeds up to 3200MHz (OC), ensuring smooth multitasking and responsive everyday performance. - Ultra M.2 NVMe & SATA Storage Support
Equipped with an Ultra M.2 slot (PCIe Gen3 x4) plus 4x SATA 6Gb/s ports for fast SSD performance and flexible storage configurations. - Triple Display Outputs for APU Builds
Features HDMI, DVI-D and D-Sub outputs, making it ideal for Ryzen APUs with integrated Radeon™ graphics for budget gaming or office systems. - Compact Micro-ATX with Essential Connectivity
Micro-ATX form factor with Gigabit LAN, USB 3.1 Gen1 ports, and solid capacitor design – perfect for compact and affordable PC builds.
| Specifications | |
|---|---|
| Brand: | ASRock |
| Model: | B450M-HDV R4.0 |
| Chipset: | AMD B450 |
| Socket: | AM4 |
| Form Factor: | Micro-ATX (23.0 cm x 20.1 cm) |
| CPU Support | |
| Supported Processors: | AMD Ryzen™ 2000 / 3000 / 4000 G-Series / 5000 Series |
| CPU Power Design: | Supports CPUs up to 105W |
| Memory | |
| Memory Type: | DDR4 |
| DIMM Slots: | 2 |
| Maximum Capacity: | 64GB |
| Memory Support: | Dual Channel, Up to 3200MHz (OC), Non-ECC |
| Expansion Slots | |
| PCIe x16 Slot: | 1x PCIe 3.0 x16 |
| PCIe x1 Slot: | 1x PCIe 2.0 x1 |
| Storage | |
| M.2 Slot: | 1x Ultra M.2 (PCIe Gen3 x4 & SATA3) |
| SATA Ports: | 4x SATA 6Gb/s |
| RAID Support: | RAID 0 / 1 / 10 |
| Networking | |
| LAN: | Realtek RTL8111H Gigabit LAN |
| Graphics Outputs | |
| HDMI: | 1x HDMI |
| DVI-D: | 1 |
| D-Sub (VGA): | 1 |
| Audio | |
| Audio Codec: | Realtek® ALC887 7.1-Channel HD Audio |
| Audio Features: | Surge Protection |
| USB (Rear) | |
| USB 3.1 Gen1 Type-A: | 4 |
| USB 2.0: | 2 |
| PS/2 Port: | 1 |
| Internal I/O Connectors | |
| 24-pin ATX Power Connector: | 1 |
| 8-pin 12V Power Connector: | 1 |
| CPU Fan Header: | 1 |
| Chassis Fan Headers: | 2 |
| USB 3.1 Gen1 Header: | 1 |
| USB 2.0 Header: | 1 |
| Front Panel Audio Header: | 1 |
| TPM Header: | 1 |
| COM Port Header: | 1 |

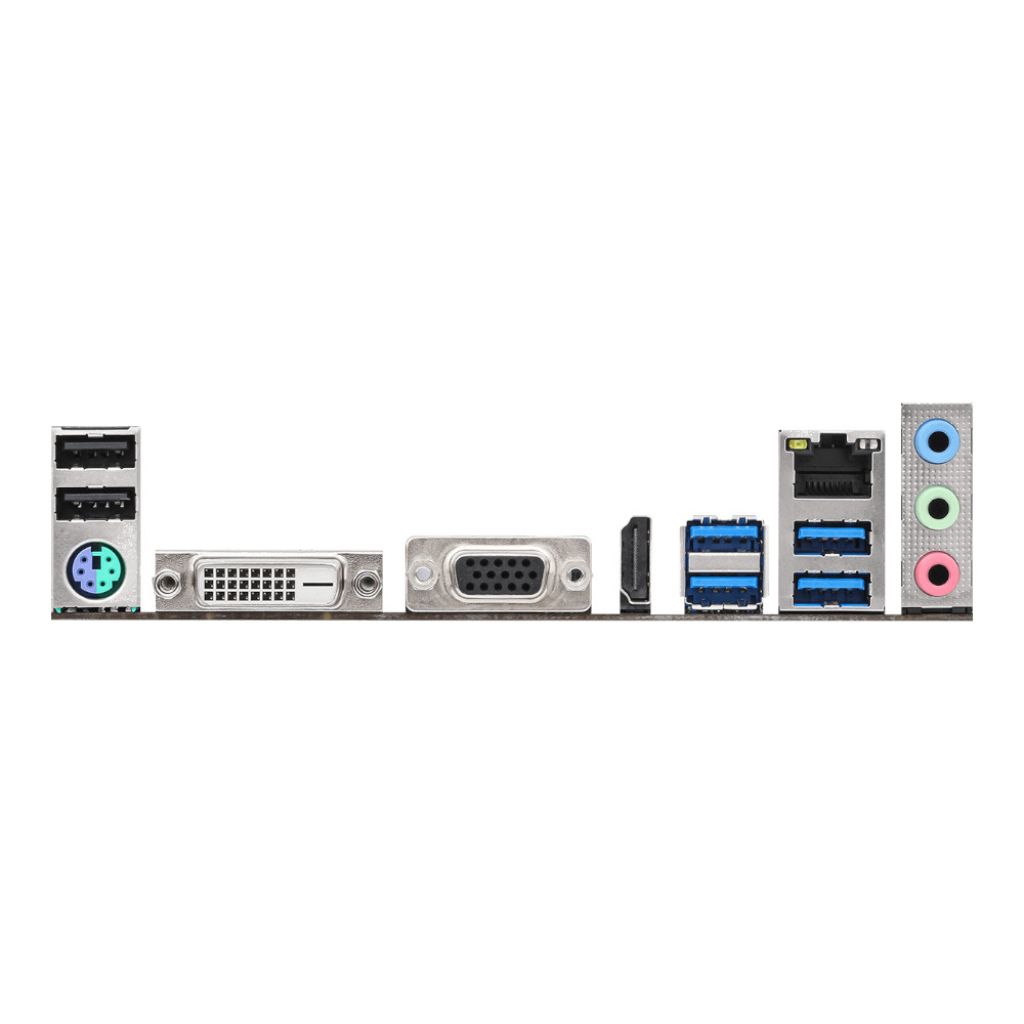

| Back Panel I/O Ports | |
| PS/2 Mouse/Keyboard: | 1 |
| D-Sub Port: | 1 |
| DVI-D Port: | 1 |
| HDMI Port: | 1 |
| USB 3.1 Gen1 Ports: | 4 |
| USB 2.0 Ports: | 2 |
| RJ-45 LAN Port: | 1 |
| Audio Jacks: | Line In / Line Out / Mic |
| BIOS | |
| BIOS Type: | 128Mb AMI UEFI BIOS |
| Operating System Support | |
| OS Support: | Windows® 10 64-bit / Windows® 11 64-bit |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
ASRock B450M-HDVR4 DDR4 Micro-ATX AM4 AMD Motherboard
Contact us if you would like to enquire about this product.
