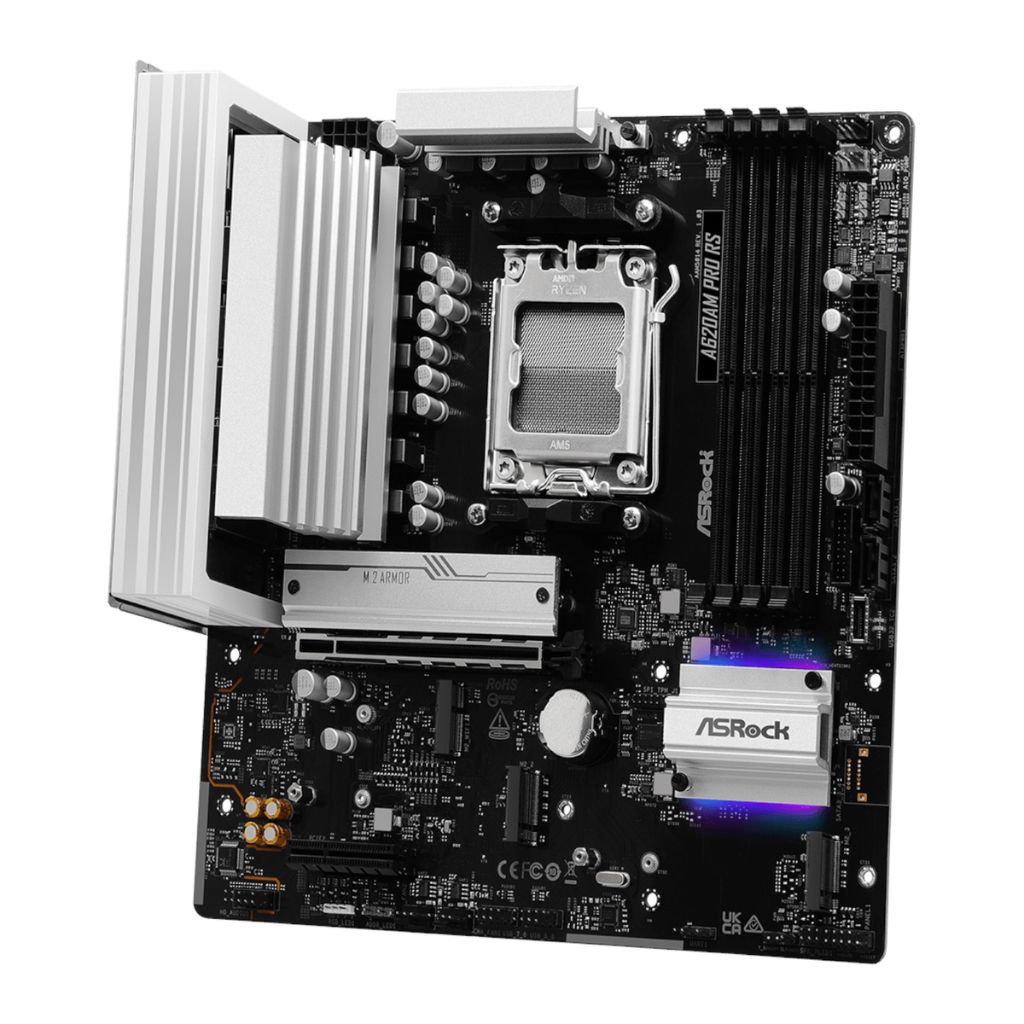

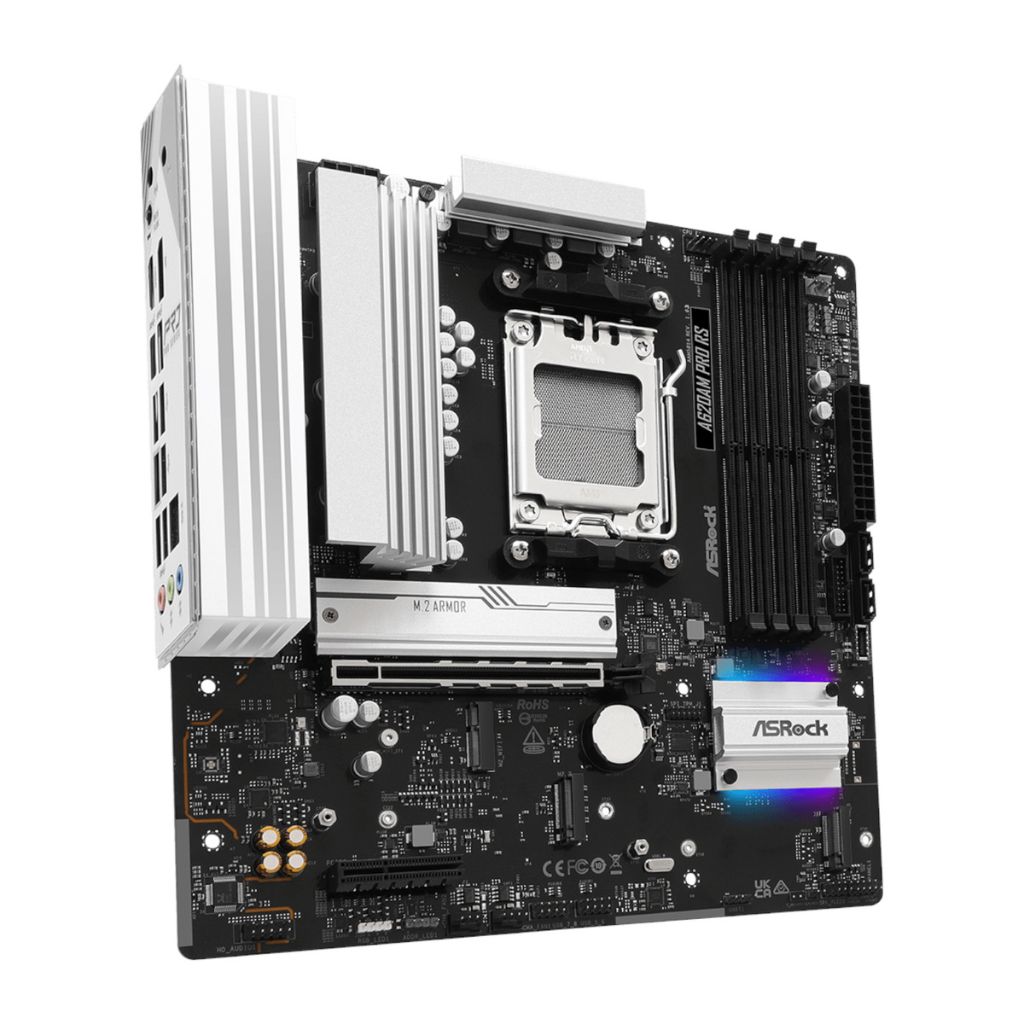

ASRock A620AM PRO RS DDR5 Micro-ATX AM5 AMD Motherboard
Full description ASRock.
- Built for AMD Ryzen™ 7000 / 8000 / 9000 Series (AM5)
Powered by the AMD A620 chipset, this Micro-ATX motherboard delivers a stable and affordable entry point into the AM5 platform, ready for the latest Ryzen™ processors. - DDR5 Performance up to 7200MHz (OC)
Supports up to 256GB DDR5 memory across 4 DIMM slots with EXPO™ support, giving you next-generation bandwidth for gaming, streaming, and productivity workloads. - Dual Hyper M.2 NVMe with PCIe Gen4 Support
Features dual Hyper M.2 slots (PCIe Gen4 x4) plus an additional Ultra M.2 slot for high-speed SSD storage, ensuring fast boot times and rapid data transfers. - 2.5G LAN & Modern Connectivity
Equipped with Dragon 2.5G LAN for faster networking, multiple USB 3.2 Gen1 ports, front Type-C header support, and BIOS Flashback for easy updates. - Durable Power Design with Pre-Installed I/O Shield
6+2+1 Dr.MOS power phase design, high-quality components, and a pre-installed I/O shield make this board reliable and builder-friendly for compact gaming or office PCs.
| Specifications | |
|---|---|
| Brand: | ASRock |
| Model: | A620M Pro RS |
| Chipset: | AMD A620 |
| Socket: | AM5 |
| Form Factor: | Micro-ATX (24.4 cm x 24.4 cm) |
| CPU Support | |
| Supported Processors: | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Memory | |
| Memory Type: | DDR5 |
| DIMM Slots: | 4 |
| Maximum Capacity: | 256GB |
| Memory Support: | Dual Channel, DDR5 up to 7200MHz (OC), EXPO™ |
| ECC Support: | ECC / non-ECC, un-buffered memory |
| Expansion Slots | |
| PCIe x16 Slot (CPU): | 1x PCIe 4.0 x16 |
| PCIe x1 Slot: | 1x PCIe 3.0 x1 |
| M.2 (WiFi Key E): | 1x M.2 Key E (2230 WiFi/BT module support) |
| Storage | |
| Hyper M.2 (CPU): | 1x PCIe Gen4 x4 (2280) |
| Hyper M.2 (CPU): | 1x PCIe Gen4 x4 (2260/2280) |
| Ultra M.2 (Chipset): | 1x PCIe Gen3 x4 (2260/2280) |
| SATA Ports: | 2x SATA3 6Gb/s |
| RAID Support: | RAID 0 / 1 / 10 (SATA) |
| RAID (NVMe): | RAID 0 / 1 / 10 (M.2 NVMe)* |
| Networking | |
| LAN: | Dragon RTL8125BG 2.5 Gigabit LAN |
| LAN Features: | Dragon 2.5G LAN Software |
| Graphics Outputs | |
| HDMI: | 1x HDMI 2.1 (up to 4K 120Hz)* |
| DisplayPort: | 1x DisplayPort 1.4 (up to 4K 120Hz)* |
| Audio | |
| Audio Codec: | Realtek® ALC897 7.1-Channel HD Audio |
| Audio Features: | Nahimic Audio |
| USB (Rear) | |
| USB 3.2 Gen1 Type-A: | 3 |
| USB 3.2 Gen1 Type-C: | 1 |
| USB 2.0: | 4 |
| BIOS Flashback Button: | 1 |
| RJ-45 LAN Port: | 1 |
| Audio Jacks: | Line In / Front Speaker / Microphone |
| Internal I/O Connectors | |
| 24-pin ATX Power Connector: | 1 |
| 8-pin 12V Power Connector: | 1 |
| CPU Fan Header: | 1 |
| CPU/Water Pump Fan Header: | 1 |
| Chassis/Water Pump Fan Headers: | 3 |
| USB 2.0 Headers: | 2 (Supports 4 USB 2.0 ports) |
| USB 3.2 Gen1 Header: | 1 (Supports 2 USB 3.2 Gen1 ports) |
| Front Panel Type-C Header: | 1 (USB 3.2 Gen1) |
| RGB LED Header: | 1 |
| Addressable LED Headers: | 3 |
| SPI TPM Header: | 1 |
| Front Panel Audio Header: | 1 |
| Back Panel I/O Ports | |
| HDMI Port: | 1 |
| DisplayPort: | 1 |
| USB 3.2 Gen1 Type-A: | 3 |
| USB 3.2 Gen1 Type-C: | 1 |
| USB 2.0 Ports: | 4 |
| RJ-45 LAN Port: | 1 |
| BIOS Flashback Button: | 1 |
| Audio Jacks: | 3 |
| BIOS | |
| BIOS Type: | 256Mb AMI UEFI BIOS |
| Operating System Support | |
| OS Support: | Windows® 10 64-bit / Windows® 11 64-bit |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
