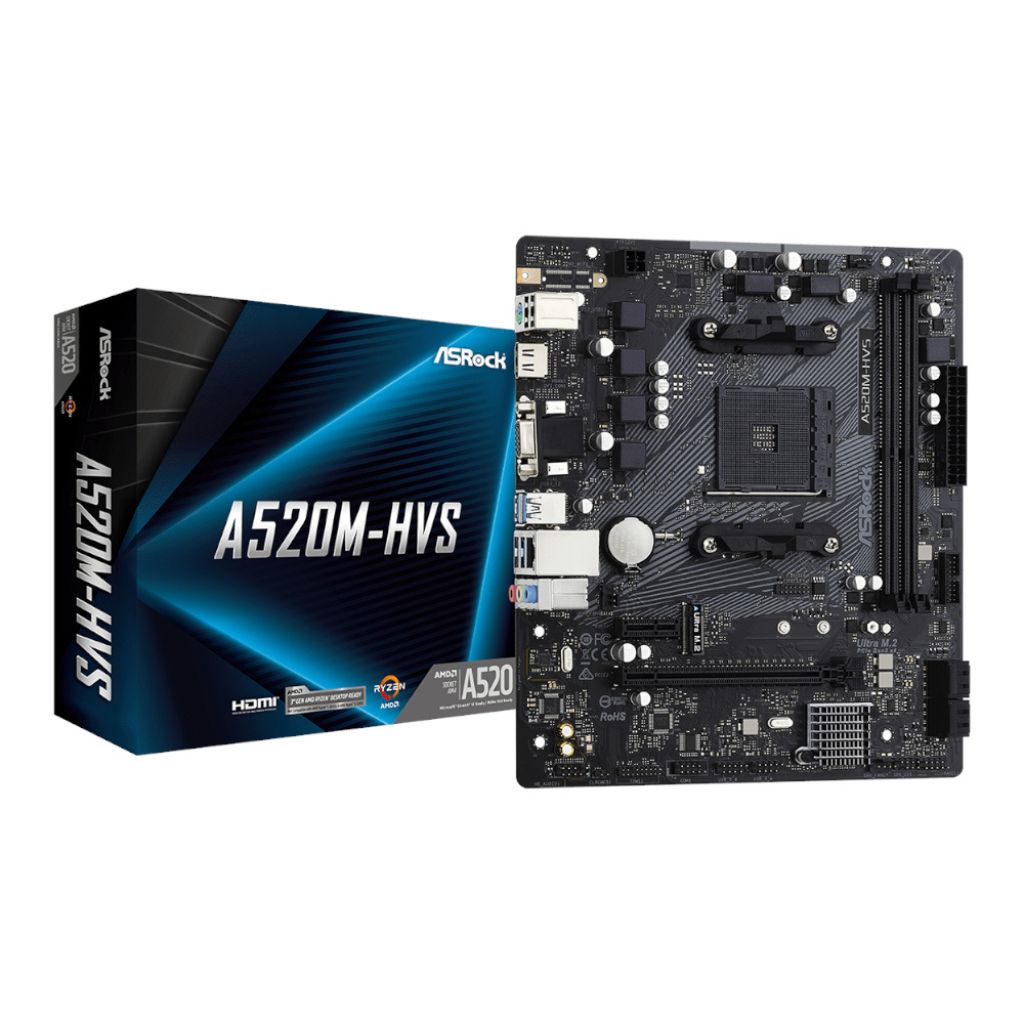

ASRock A520M-HVS DDR4 Micro-ATX AM4 AMD Motherboard
Full description ASRock.
- AMD AM4 Ready – Ryzen™ 3000 / 4000G / 5000 Series Support
Built on the AMD A520 chipset, the A520M-HVS supports a wide range of AMD Ryzen™ processors, making it ideal for budget gaming, office, or home PC builds. - DDR4 Performance up to 4733MHz (OC)
Dual-channel DDR4 memory support up to 64GB with XMP compatibility ensures smooth multitasking and responsive system performance. - Ultra M.2 NVMe + SATA Storage Flexibility
Features an Ultra M.2 slot (PCIe Gen3 x4) for high-speed NVMe SSDs plus 4x SATA3 ports for expanded storage capacity. - Reliable 6-Phase Power Design
Durable power delivery with quality components ensures stable performance for everyday computing and entry-level gaming systems. - Essential Connectivity with HDMI & D-Sub
Includes HDMI and D-Sub display outputs, USB 3.2 Gen1 ports, Gigabit LAN, and full audio connectivity for versatile system integration.
| Specifications | |
|---|---|
| Brand: | ASRock |
| Model: | A520M-HVS |
| Chipset: | AMD A520 |
| Socket: | AM4 |
| Form Factor: | Micro-ATX (23.0 cm x 20.1 cm) |
| CPU Support | |
| Supported Processors: | AMD Ryzen™ 3000 / 4000 G-Series / 5000 / 5000 G-Series Desktop Processors |
| Power Design: | 6 Power Phase Design |
| Memory | |
| Memory Type: | DDR4 |
| DIMM Slots: | 2 |
| Maximum Capacity: | 64GB |
| Memory Support: | Dual Channel DDR4 up to 4733MHz (OC) |
| ECC Support: | ECC & non-ECC, un-buffered memory* |
| XMP Support: | Yes |
| Expansion Slots | |
| PCIe x16 Slot: | 1x PCIe 3.0 x16 |
| PCIe x1 Slot: | 1x PCIe 3.0 x1 |
| Storage | |
| Ultra M.2 Slot: | 1x M.2 (PCIe Gen3 x4 / SATA3, 2242/2260/2280) |
| SATA Ports: | 4x SATA3 6Gb/s |
| RAID Support: | RAID 0 / 1 / 10 (SATA) |
| Graphics Outputs | |
| HDMI: | 1x HDMI (up to 4K @ 60Hz)* |
| D-Sub (VGA): | 1x D-Sub (up to 1920×1200 @ 60Hz)* |
| Audio | |
| Audio Codec: | Realtek® ALC887/897 7.1-Channel HD Audio |
| Audio Features: | Surge Protection |
| Networking | |
| LAN: | Realtek® RTL8111H Gigabit LAN (10/100/1000 Mb/s) |
| LAN Features: | Wake-On-LAN, PXE, ESD Protection |
| USB (Rear) | |
| USB 3.2 Gen1: | 2 |
| USB 2.0: | 2 |
| PS/2 Port: | 1 |
| RJ-45 LAN Port: | 1 |
| Audio Jacks: | Line In / Front Speaker / Microphone |
| Internal I/O Connectors | |
| 24-pin ATX Power Connector: | 1 |
| 8-pin 12V Power Connector: | 1 |
| CPU Fan Header: | 1 |
| Chassis Fan Headers: | 2 |
| USB 2.0 Headers: | 2 (Supports 4 USB 2.0 ports) |
| USB 3.2 Gen1 Header: | 1 (Supports 2 USB 3.2 Gen1 ports) |
| Front Panel Audio Header: | 1 |
| SPI TPM Header: | 1 |
| COM Port Header: | 1 |

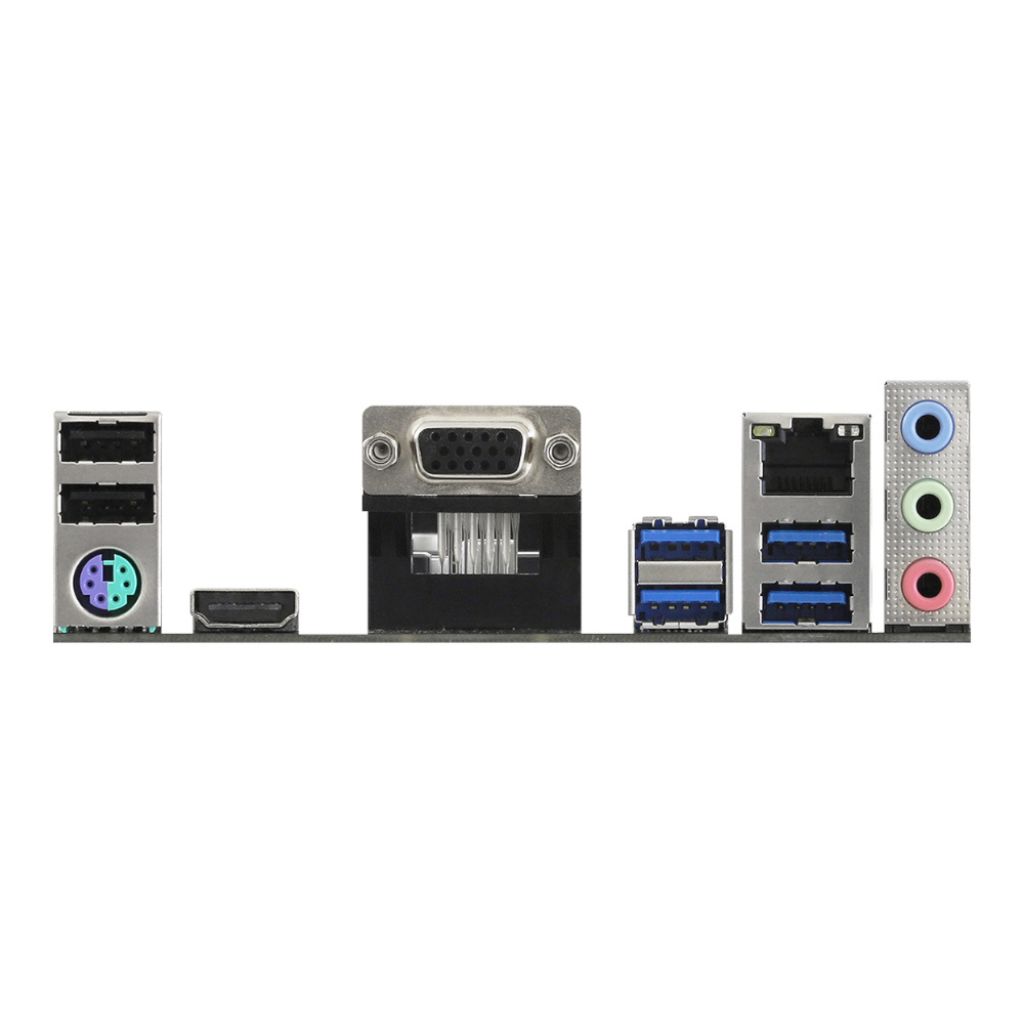

| Back Panel I/O Ports | |
| PS/2 Keyboard/Mouse Port: | 1 |
| HDMI Port: | 1 |
| D-Sub Port: | 1 |
| USB 3.2 Gen1 Ports: | 2 |
| USB 2.0 Ports: | 2 |
| RJ-45 LAN Port: | 1 |
| Audio Jacks: | 3 |
| BIOS | |
| BIOS Type: | 128Mb AMI UEFI BIOS |
| Operating System Support | |
| OS Support: | Windows® 10 64-bit / Windows® 11 64-bit |
| Warranty Information | |
| Warranty: | 3 Year Warranty |
