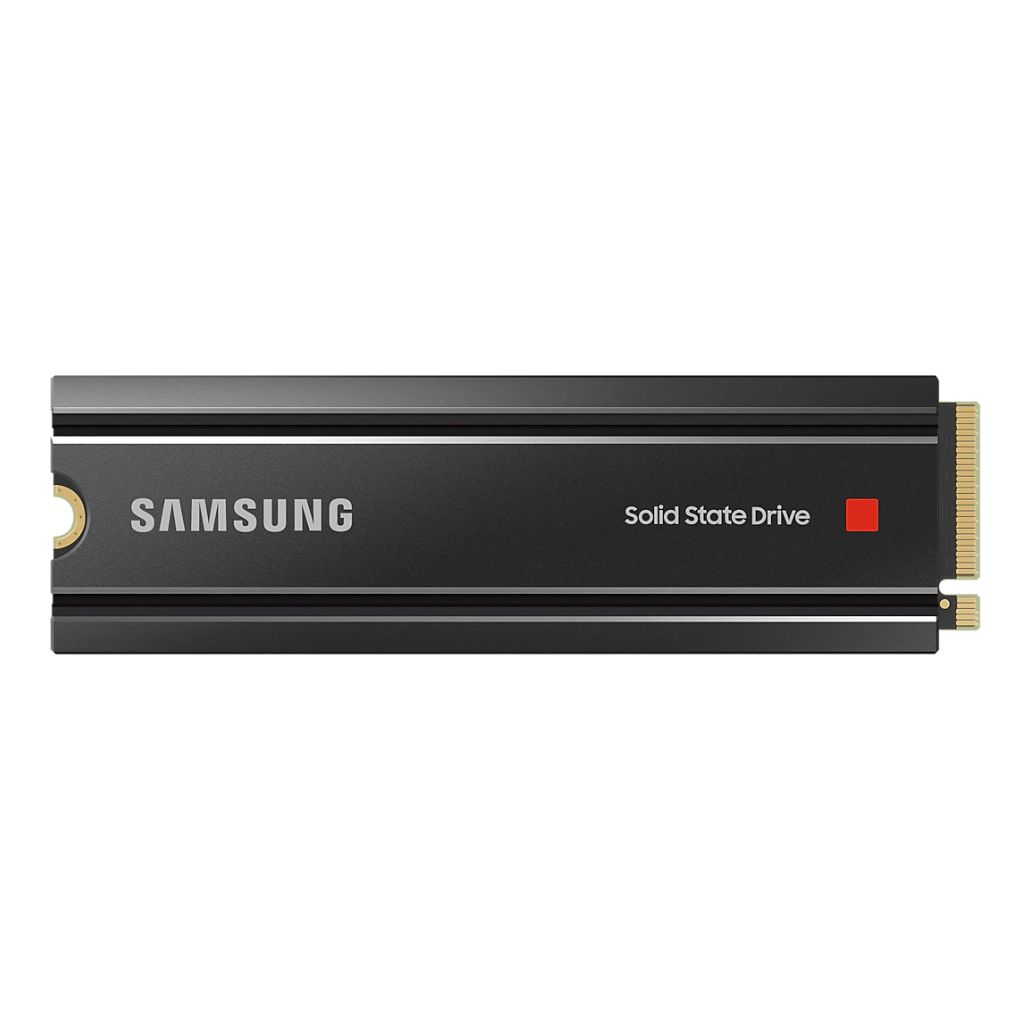

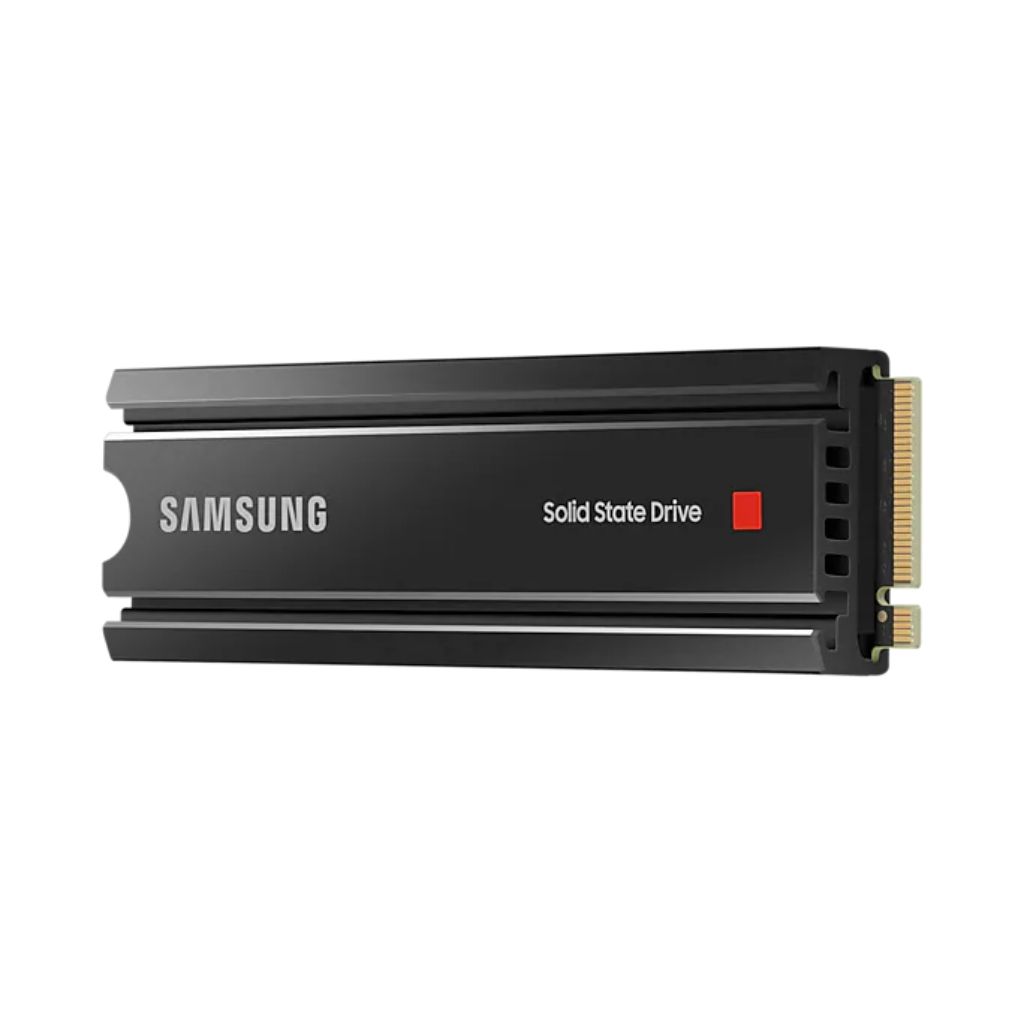

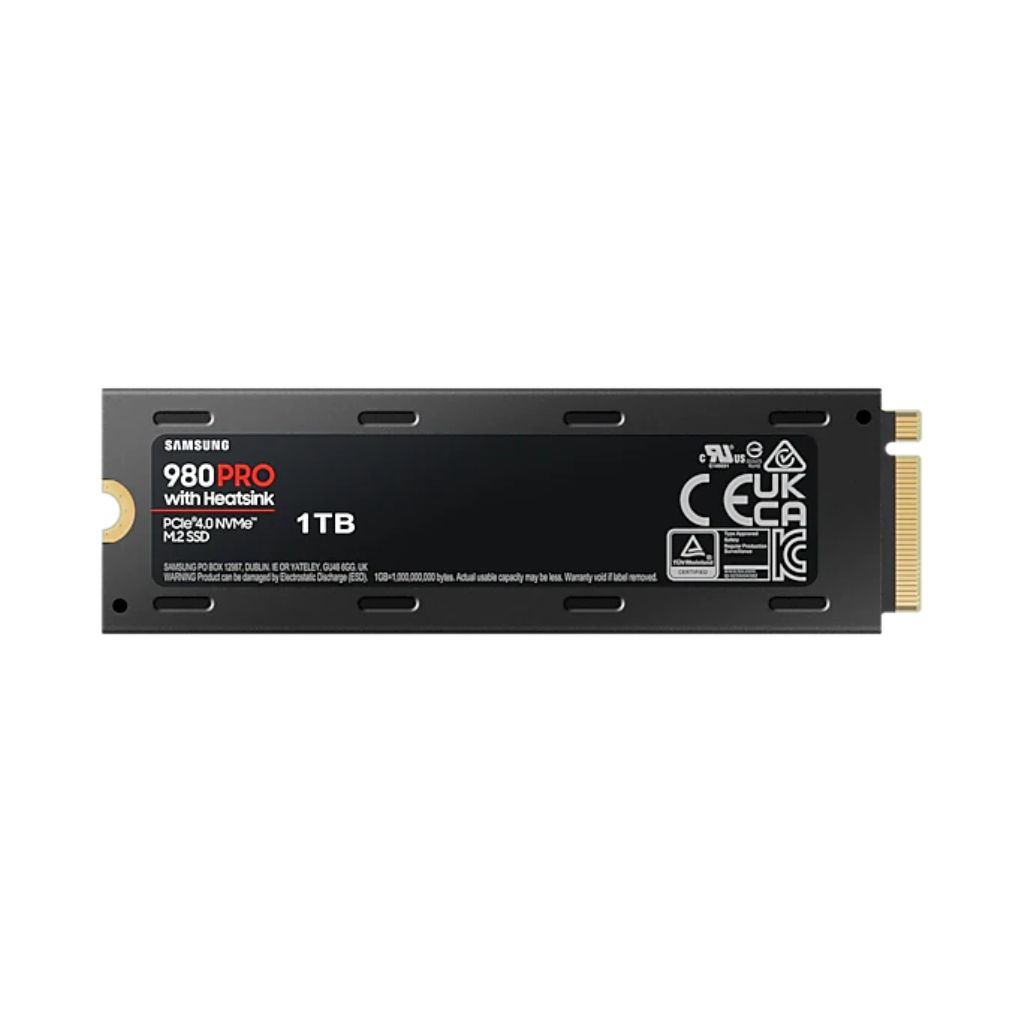

Samsung 980 PRO 1TB NVMe PCIe Gen4 M.2 SSD
Full description Samsung.
- Unleash the power of the PCIe® 4.0 NVMe™ SSD 980 PRO for next-level computing. The PCIe® 4.0 delivers 2x the data transfer rate of PCIe® 3.0 while staying backward compatible for total versatility. The added heatsink elevates speed, power efficiency, and thermal control to maximize gameplay.
- With Samsung’s in-house controller for PCIe® 4.0 SSD, the 980 PRO Series is optimized for speed. It delivers read speeds up to 7,000 MB/s, 2x faster than PCIe® 3.0 SSDs and 12.7x faster than SATA SSDs. The 980 PRO series achieves max speeds on PCIe® 4.0 and may vary in other settings.
- Samsung’s nickel-coated controller reliably manages NAND chip heat levels. The 980 PRO’s heat spreader label allows thermal control access. The 980 PRO Heatsink uses proven data center SSD technology to dissipate heat, for continuous high-performance gaming on most consoles and PC systems.
- Gamers, techies, and designers benefit from thermal control, high-performance bandwidth, and sustained performance for heavy-duty applications. Games load fast for more play, less wait. Smart heat management reduces distracting noise and cooling fan work for uninterrupted, fully immersive gaming.
SPECIFICATIONS |
|
Brand | Samsung |
Series | 980 PRO With Heatsink |
Model | MZ-V8P1T0CW |
General | |
Capacity | 1TB |
Form Factor | 2280 M.2 |
Interface | PCI-Express Gen 4.0 x4 |
NVMe 1.3c | |
NV Memory | Samsung V-NAND TLC |
Controller | Samsung Elpis Controller |
Cache Memory | Samsung 1GB Low Power DDR4 SDRAM |
Dimensions (WxHxD) | 24mm x 80mm x 8.6mm |
Weight | 30.5g |
Management Software | Magician Software for SSD Management |
Compatibility | PC & Playstation 5 |
Key Features | |
TRIM Support | Yes |
S.M.A.R.T Support | Yes |
Garbage Collection | Auto Garbage Collection Algorithm |
Encryption Support | AES 256-bit (SED) |
TCG V2.0 | |
Encrypted Drive (IEEE1667) | |
Thermal Protection | Heatsink complying PCI-SIG D8 standard |
Device Sleep Mode Support | Yes |
Performance | |
Sequential Read | Up to 7,000 MB/s |
Sequential Write | Up to 5,000 MB/s |
Random Read | Up to 1,000,000 IOPS |
Random Write | Up to 1,000,000 IOPS |
Environment | |
Average Power Consumption | Average: 6.2 W |
Maximum: 8.9 W (Burst mode) | |
Power consumption (Idle) | Max. 35 mW |
Reliability (MTBF) | 1.5 Million Hours |
Warranty Information | |
Warranty | 5 Year Warranty or 600 TBW |
