MSI MAG Z790 Tomahawk WiFi DDR5 Motherboard
MSI MAG Z790 Tomahawk WiFi
MSI Z790 Tomahawk WiFi
MSI MAG Z790 Tomahawk

MSI MAG Z790 Tomahawk WiFi DDR5 Motherboard

R 0.00

Prices Displayed are for EFT Only.

  • Brand: MSI
  • Series: MAG
  • Model: MAG Z790 TOMAHAWK WIFI
  • Chipset: Intel Z790
  • CPU Support: Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
SKU Z790 TOMAHAWK WIFI Categories , ,

Out of stock

Gauteng: 1 - 3 Business days

Other: 2 - 7 Business days

Description

MSI MAG Z790 Tomahawk WiFi DDR5 Motherboard

Full description MSI.

  • Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 7200+(OC) MHz
  • Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material



Specifications
CPU
  1. Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
Chipset


  1. Intel® Z790 Chipset
Memory


  1. 4x DDR5, Maximum Memory Capacity 128GB
    Memory Support 7200+(OC)/7000(OC)/
    6800(OC)/6600(OC)/6400(OC)/6200(OC)
    /6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/
    5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 7200+ MHz
    • 1DPC 2R Max speed up to 6600+ MHz
    • 2DPC 1R Max speed up to 6400+ MHz
    • 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP3.0 OC
    Supports Dual-Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory
Graphics



 1x HDMI™
1x DisplayPort
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slots



 2x PCI-E x16 slot
Supports x16/x4
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Storage



 4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
7x SATA 6G port
Ethernet


  1. Intel® 2.5Gbps LAN
Wireless & Bluetooth



 Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.

USB





 4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
Audio
  1. Realtek® ALC4080 Codec
    7.1-Channel USB High Performance Audio
    Supports S/PDIF output
    Supports up to 32-Bit/384 kHz playback on front panel

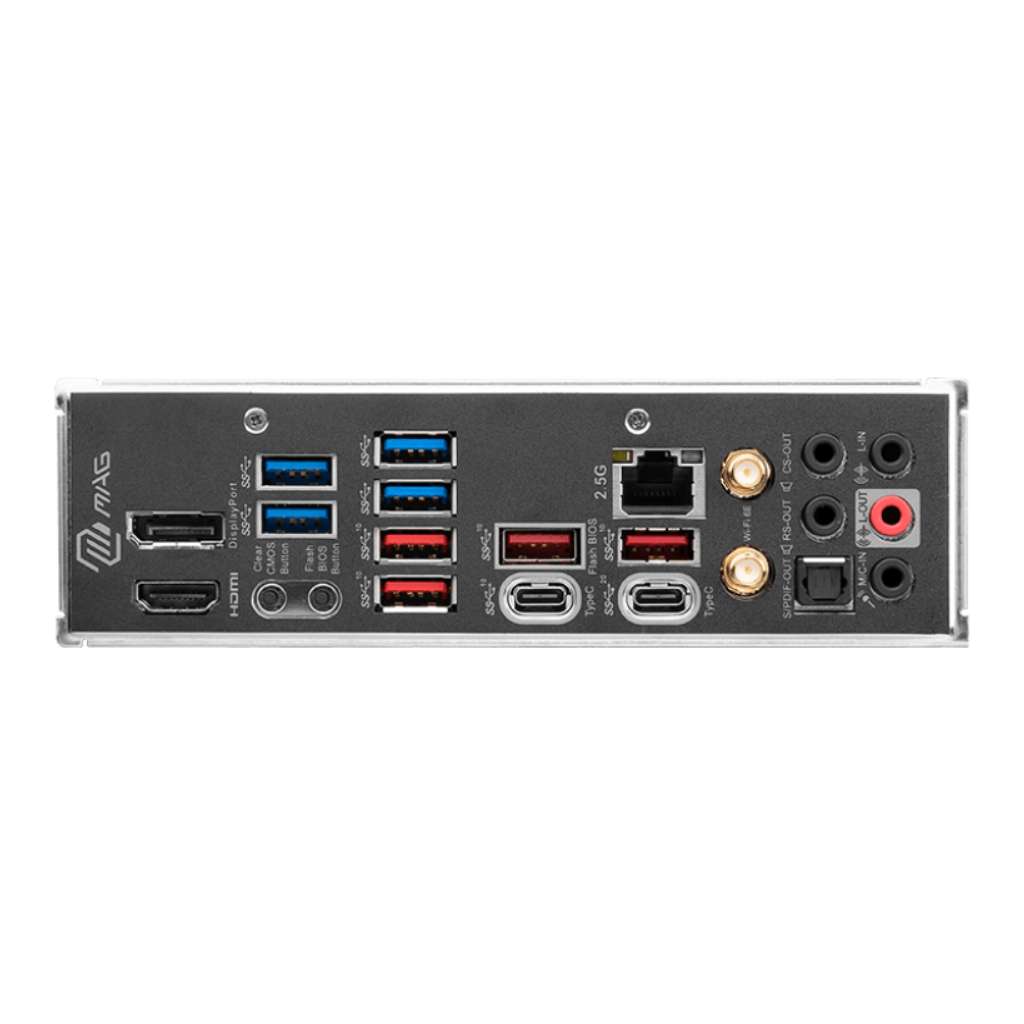

Back Panel I/O Ports




  1. DisplayPort 1.4
  2. USB 3.2 Gen 1 5Gbps Type-A
  3. USB 3.2 Gen 2 10Gbps Type-A
  4. 2.5G LAN Port,
  5. HD Audio Connectors
  6. HDMI™ 2.1 Port
  7. Clear CMOS Button
  8. Flash BIOS Button
  9. USB 3.2 Gen 2 10Gbps Type-C
  10. USB 3.2 Gen 2×2 20Gbps Type-C
  11. Wi-Fi / Bluetooth Antenna
  12. Optical S/PDIF OUT

Internal I/O Connectors
  1. 1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    6x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x TBT connector (JTBT, supports RTD3)
    1x Tuning Controller connector(JDASH)
    3x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0
    2x USB 3.2 Gen1 Type A
    1x USB 3.2 Gen2 Type C
LED Special Features


  1. 4x EZ Debug LED
BIOS


Operating System


  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bi
Form Factor


  1. ATX
    243.84mmx304.8mm
Warranty Information
Warranty 3 Years



MSI MAG Z790 Tomahawk WiFi DDR5 Motherboard

Contact us if you would like to enquire about this product.

Additional information

Intel Motherboard Chipset

Intel Z790
Intel Motherboard Form Factor

ATX
Intel Motherboard Manufacturer

MSI
Intel Motherboard Socket

LGA 1700
