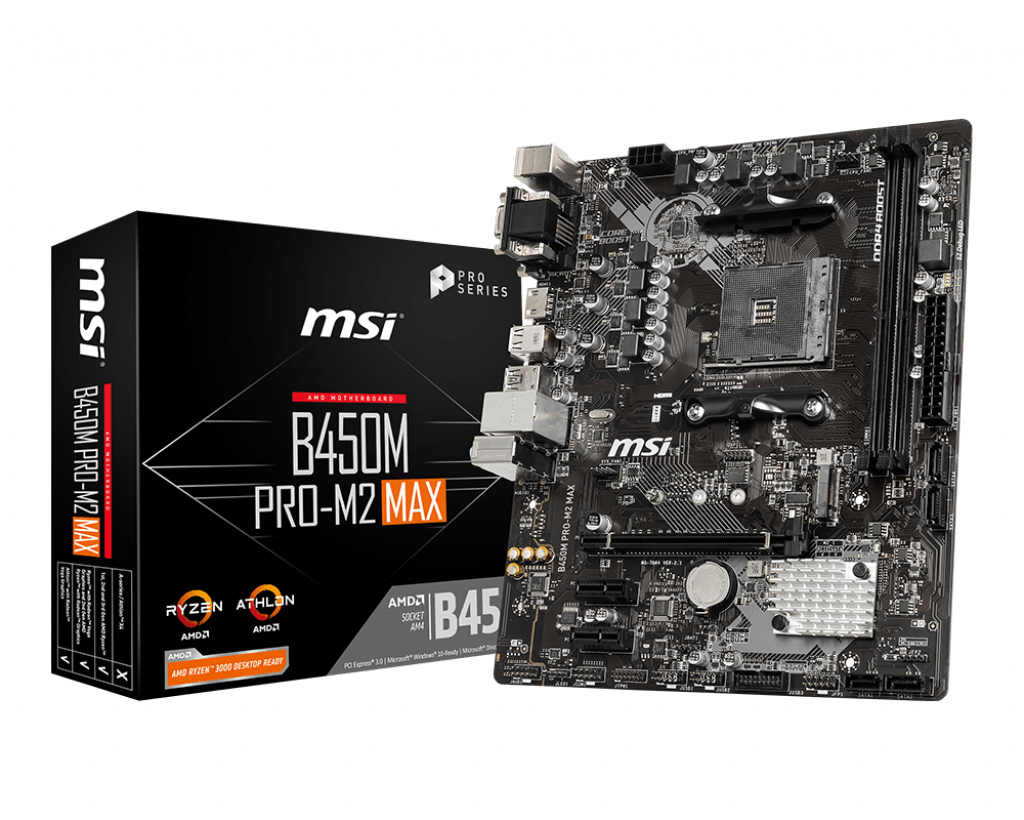

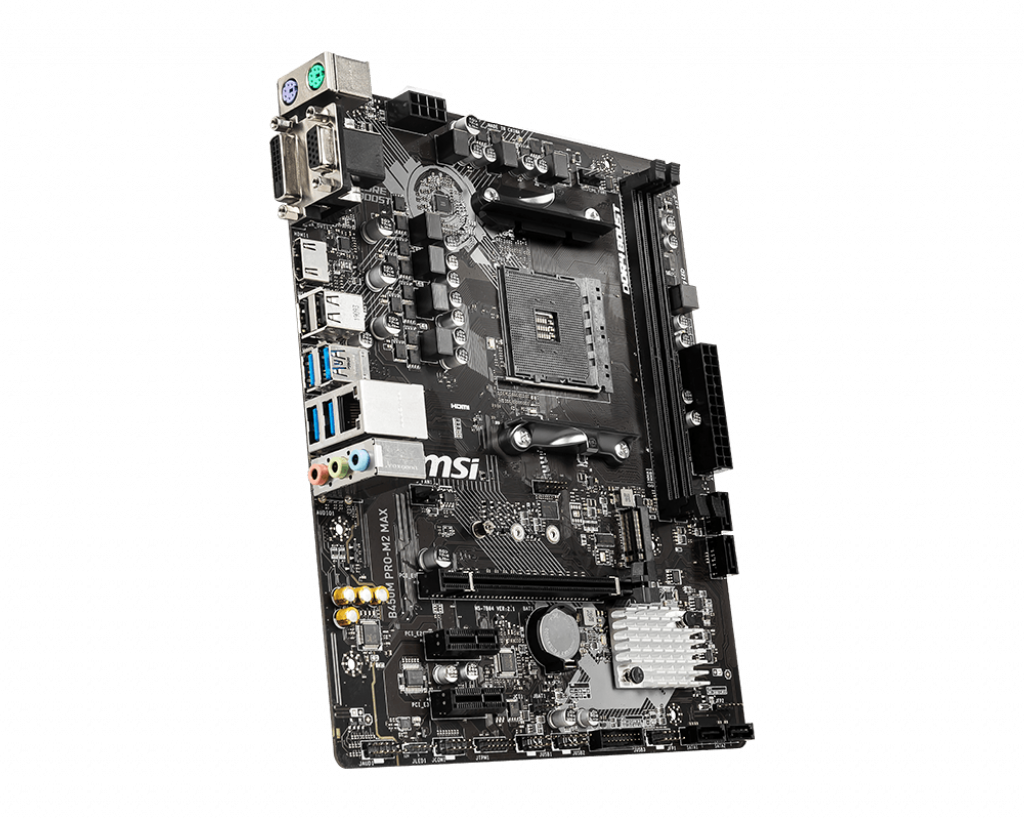

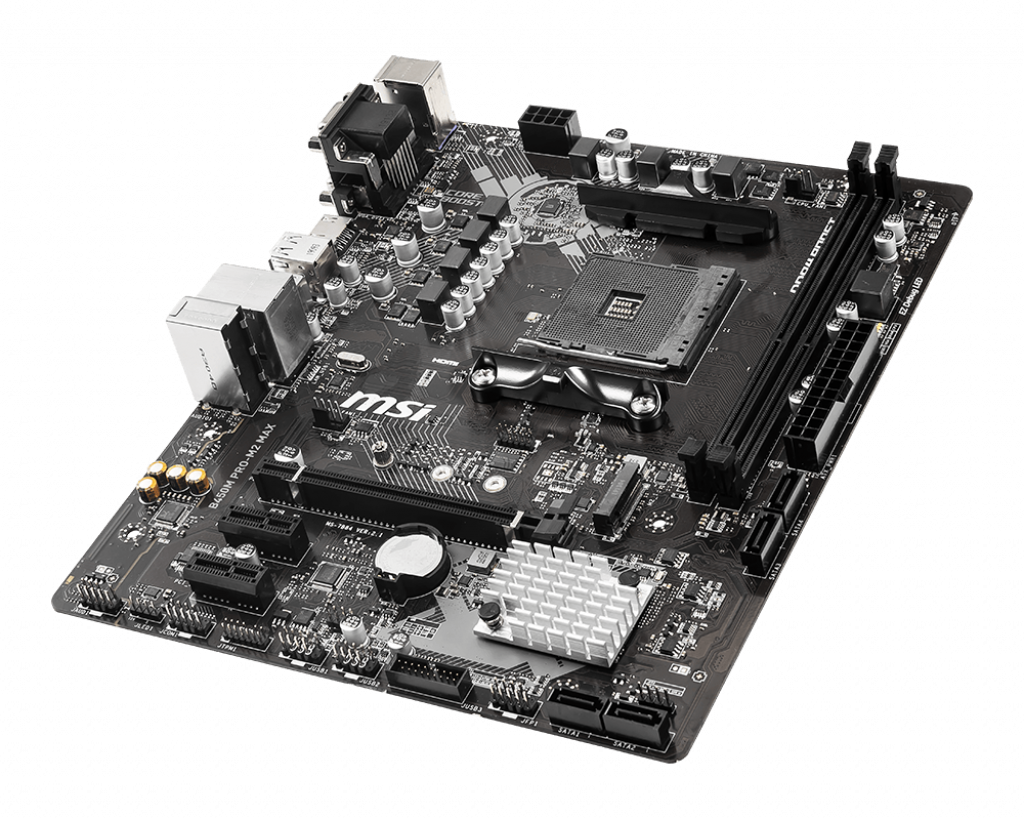

MSI B450M PRO-M2 MAX Motherboard
Full description MSI.
AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2
Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
Supports DDR4 Memory, up to 3466+(OC) MHz
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
Audio Boost: Reward your ears with studio grade sound quality.
EZ Debug LED: Easiest way to troubleshoot
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
PCI-E Steel Slot: Protecting VGA cards against bending.
- Model Name: B450M PRO-M2 MAX
- CPU Support: Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
- CPU Socket: Socket AM4
- Chipset: AMD® B450 Chipset
- Graphics Interface: 1 x PCI-E 3.0 x16 slot

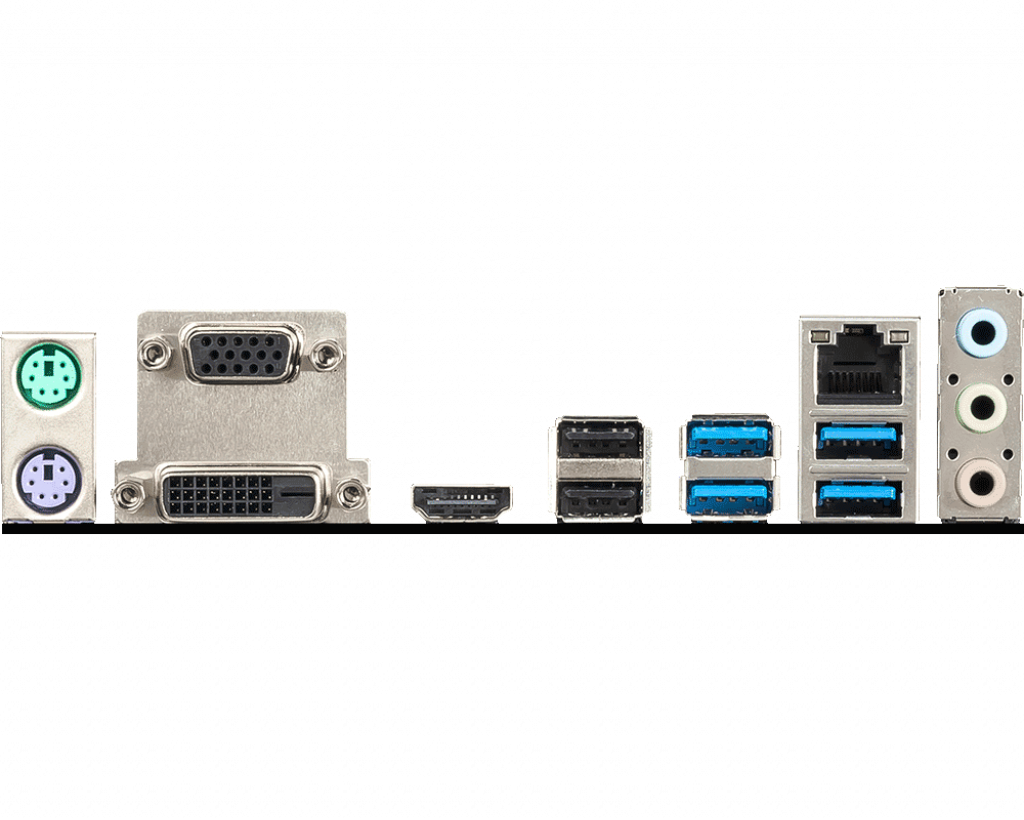

- Display Interface: VGA, DVI-D, HDMI – Requires Processor Graphics
- Memory Support: 2 DIMMs, Dual Channel DDR4 up to 4133(OC) MHz
- Expansion Slots: 2 x PCI-E 3.0 x1 slots
- Storage: 1 x Turbo M.2 slot, supports 4 x SATA 6Gb/s
- USB ports: 6 x USB 3.2 Gen1 + 6 x USB 2.0
- LAN: Realtek® 8111H Gigabit LAN
- Audio: 8-Channel(7.1) HD Audio with Audio Boost
What’s In The Box:
- MSI B450M Mortar PRO-M2 Max AMD AM4 m-ATX Gaming Motherboard x 1
- User Manual x 1
