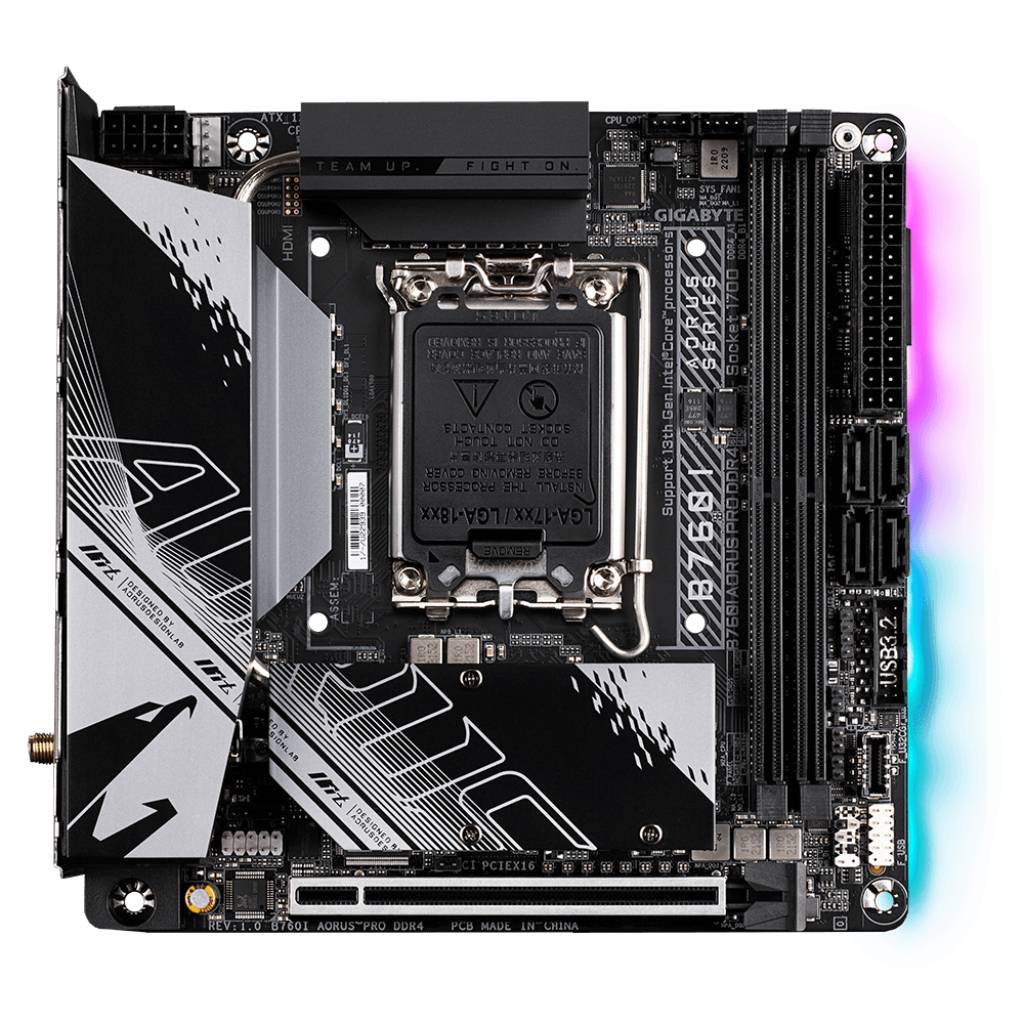

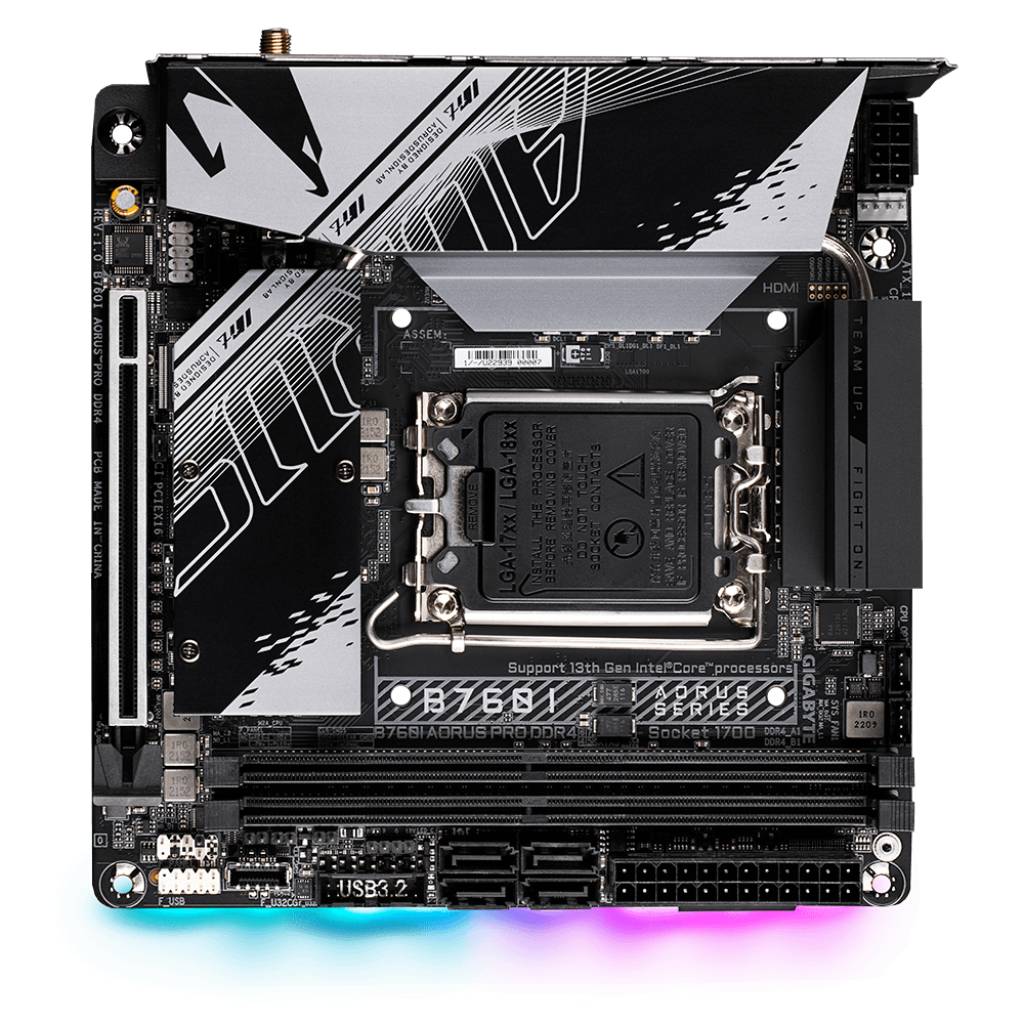

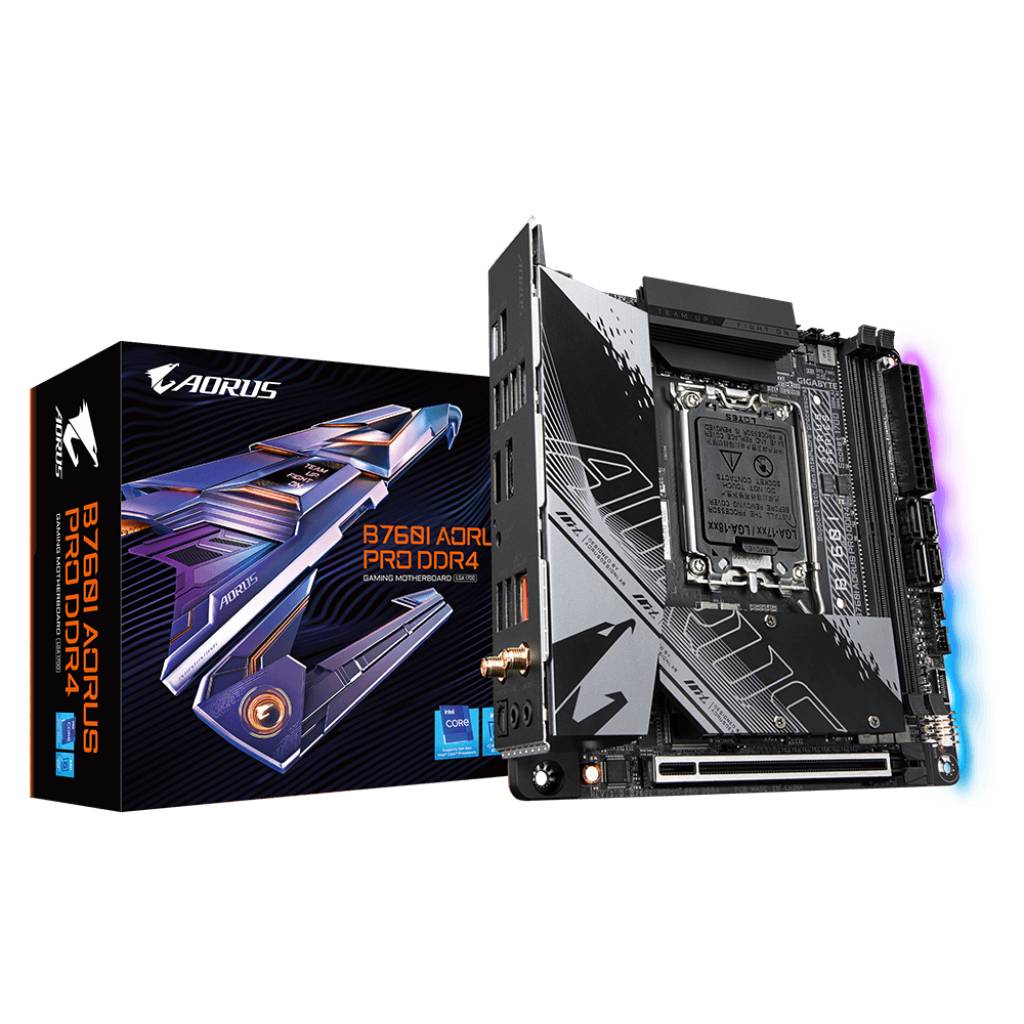

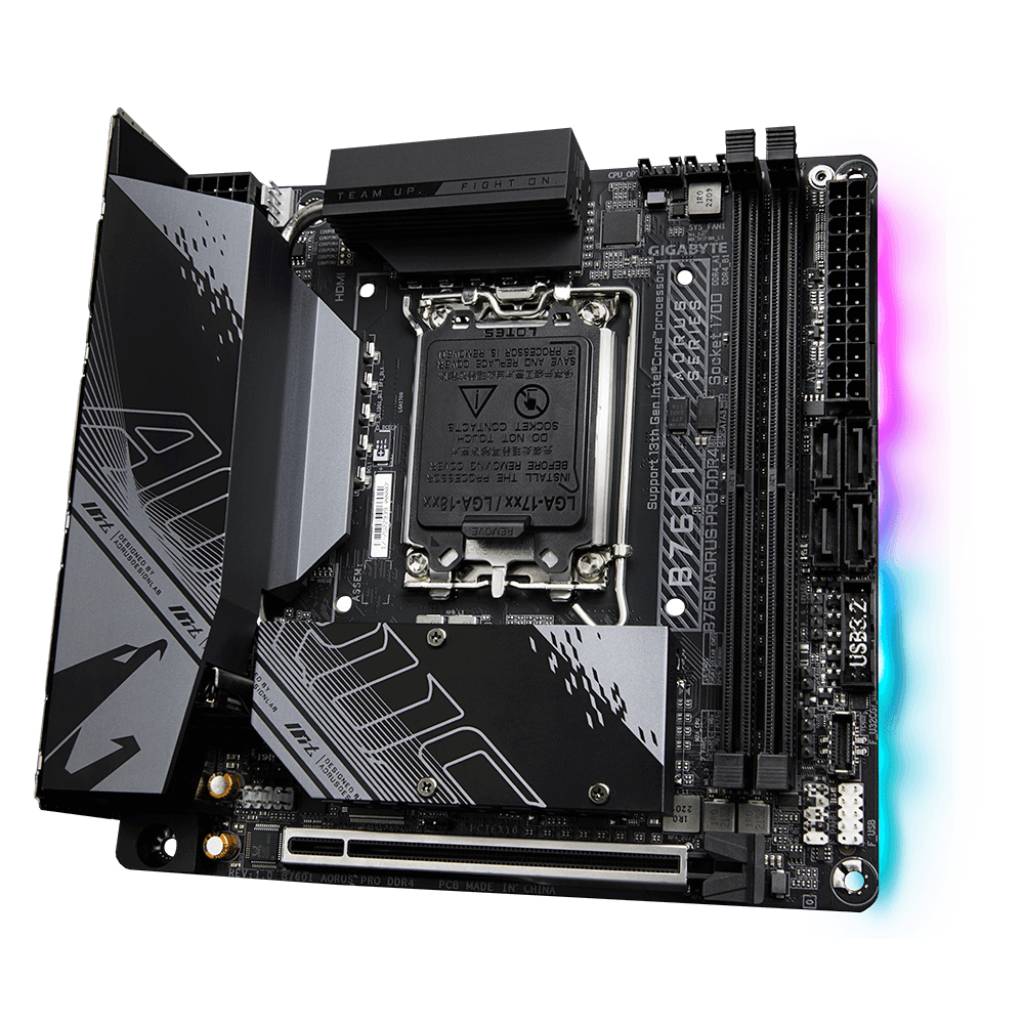

Gigabyte B760i AORUS PRO DDR4 WiFi ITX Motherboard

SKU MB-GB760IAPD4+W Categories All Products, Intel Gigabyte, Intel Motherboards, Motherboards

Gigabyte B760i AORUS PRO DDR4 WiFi ITX Motherboard

R5849,00

Brand: Gigabyte
Series: B760I AORUS PRO DDR4
Model: GA-B760I-AORUS-PRO-DDR4
CPU: LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors

In stock

Browse More Products

Description

Gigabyte B760i AORUS PRO DDR4 WiFi ITX Motherboard

Full description Gigabyte.

Intel^® Socket LGA 1700：Support 13th and 12th Gen Series Processors
Unparalleled Performance：Direct 8+1+1 Phases Digital VRM Solution
Dual Channel DDR4：2*DIMMs with XMP Memory Module Support
Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design：Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink, Aluminum Baseplate
Fast Networks：Intel^® 2.5GbE LAN & Wi-Fi 6 802.11ax
Extended Connectivity：Front USB3.2 Gen 1 USB-C^®, Rear USB-C^® 10Gb/s, DP, HDMI
RGB FUSION：Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

SPECIFICATIONS
Brand	Gigabyte
Series	B760I AORUS PRO DDR4
Model	GA-B760I-AORUS-PRO-DDR4
CPU	LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors*
CPU	L3 cache varies with CPU
Chipset	Intel B760 Express Chipset
Memory	Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules
	2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support:
	1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
	* Support for DisplayPort 1.2 version and HDCP 2.3
	1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
	* Support for HDMI 2.0 version and HDCP 2.3.
Audio	Realtek Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
	Support for S/PDIF Out
LAN	Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication Module	Intel Killer Wi-Fi 6 AX1650
	WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
	BLUETOOTH 5.2
	Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Expansion Slots	CPU:
Expansion Slots	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Storage Interface	CPU:
	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
	4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset:
	1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
	1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
	1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
	2 x USB 3.2 Gen 1 ports available through the internal USB header
	4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
	Chipset USB 3.2 Gen 1 Hub:
	4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors	1x 24-pin ATX main power connector
	1x 8-pin ATX 12V power connector
	1x CPU fan header
	1x CPU fan/water cooling pump header
	1x system fan header
	1x addressable LED strip header
	1x RGB LED strip header
	2x M.2 Socket 3 connectors
	4x SATA 6Gb/s connectors
	1x front panel header
	1x front panel audio header
	1x speaker header
	1x USB Type-C header, with USB 3.2 Gen 1 support
	1x USB 3.2 Gen 1 header
	1x USB 2.0/1.1 header
	1x reset jumper
	1x Clear CMOS jumper
	1x chassis intrusion header
Back Panel Connectors	1x USB Type-C port, with USB 3.2 Gen 2 support
	1x USB 3.2 Gen 2 Type-A port (red)
	4x USB 3.2 Gen 1 ports
	2x USB 2.0/1.1 ports
	1x DisplayPort
	1x HDMI port
	1x Q-Flash Plus button
	1x RJ-45 port
	2x SMA antenna connectors (2T2R)
	1x optical S/PDIF Out connector
	2x audio jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Mini-ITX Form Factor
Form Factor	17.0cm x 17.0cm
Warranty Information
Warranty	3 Year Warranty

Gigabyte B760i AORUS PRO DDR4 WiFi ITX Motherboard

Additional information

Intel Motherboard Chipset	Intel B760
Intel Motherboard Form Factor	Mini-ITX
Intel Motherboard Socket	LGA 1700
Intel Motherboard Manufacturer	Gigabyte
