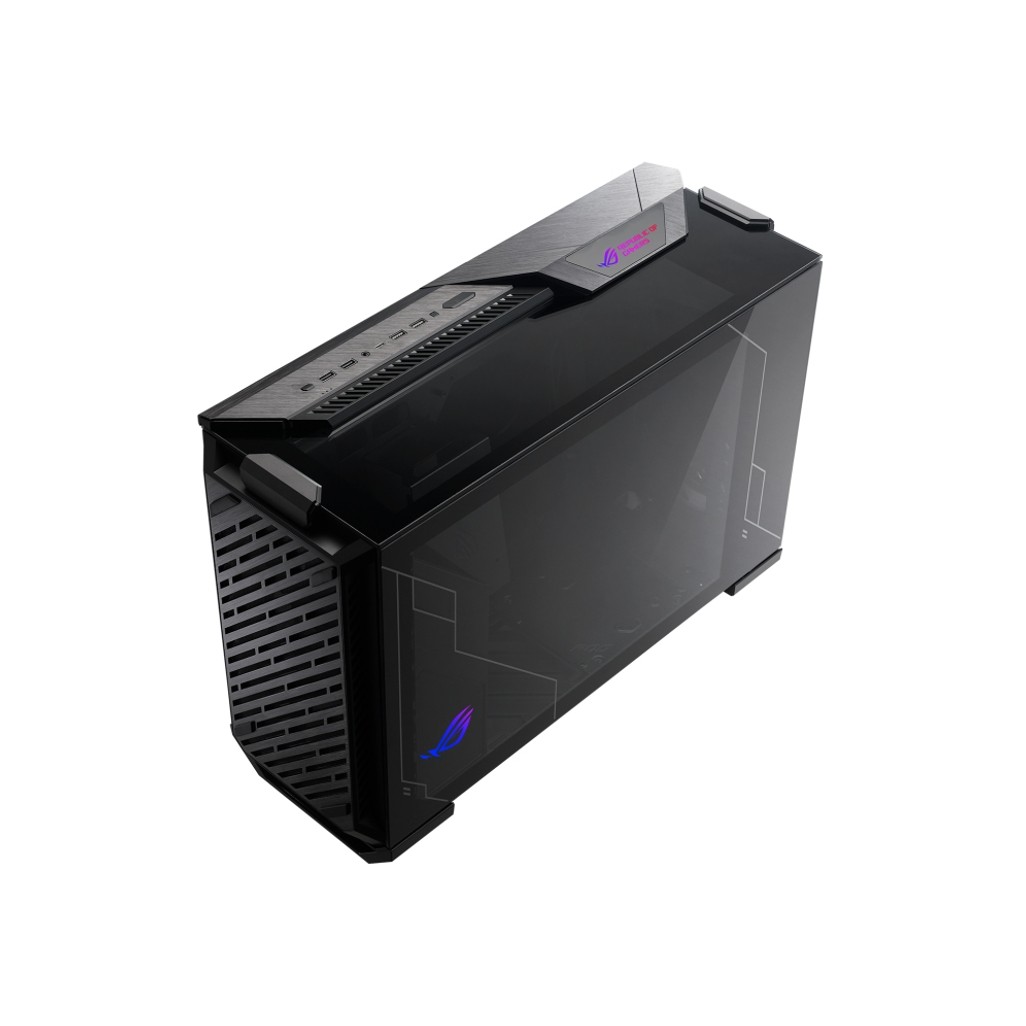

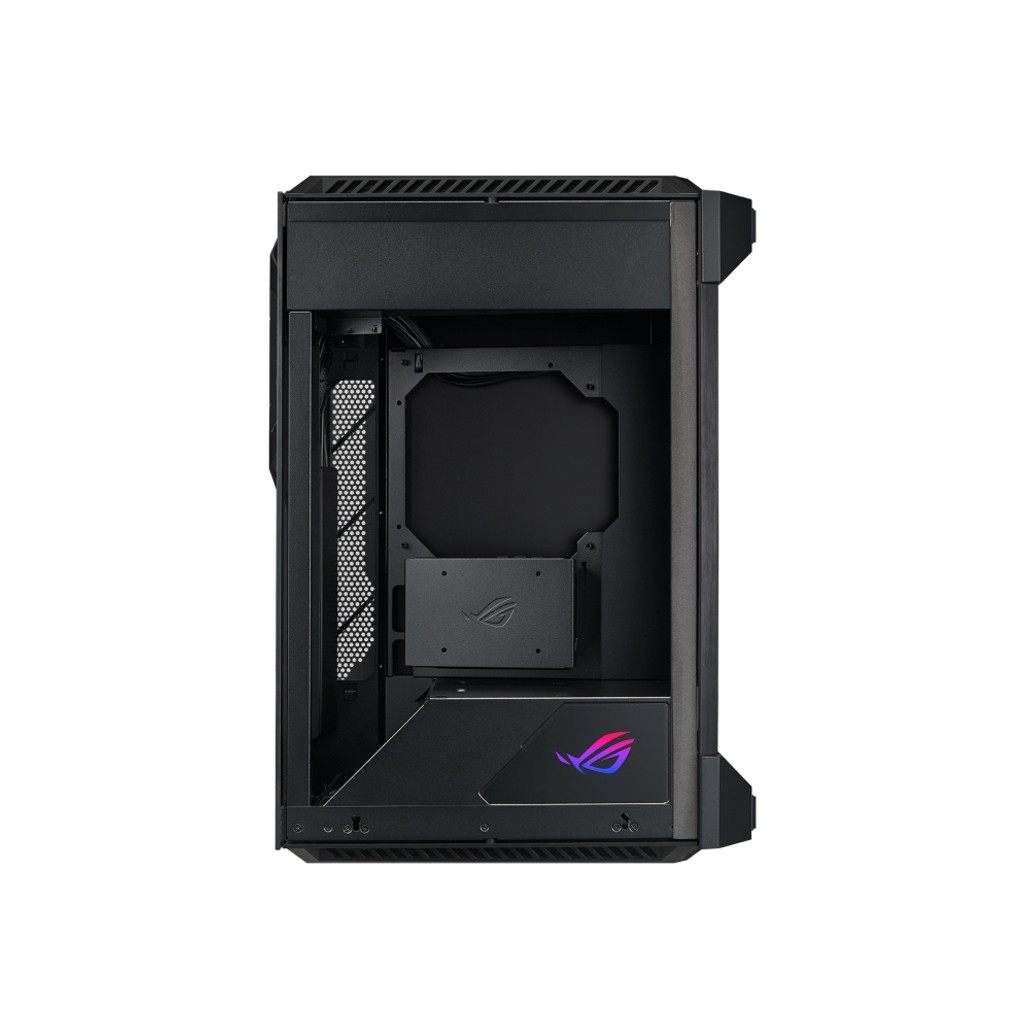

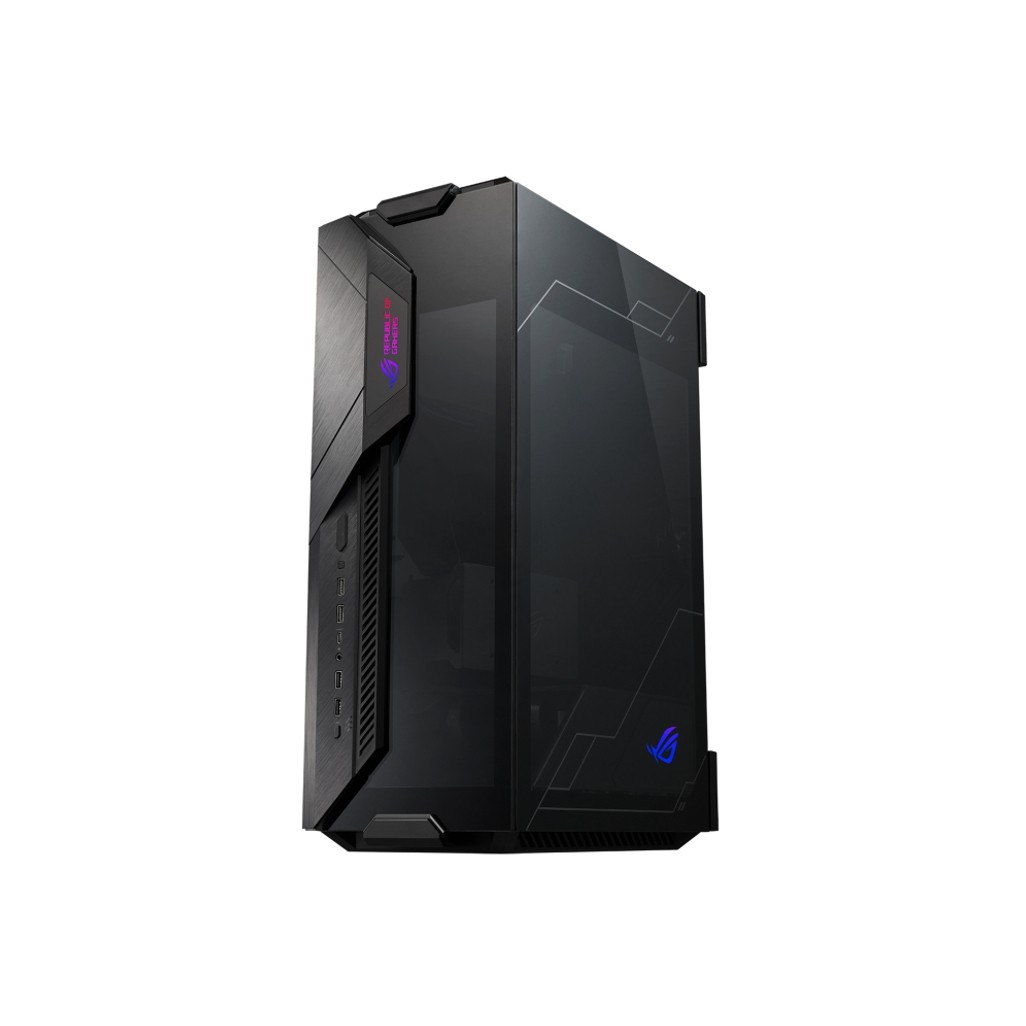

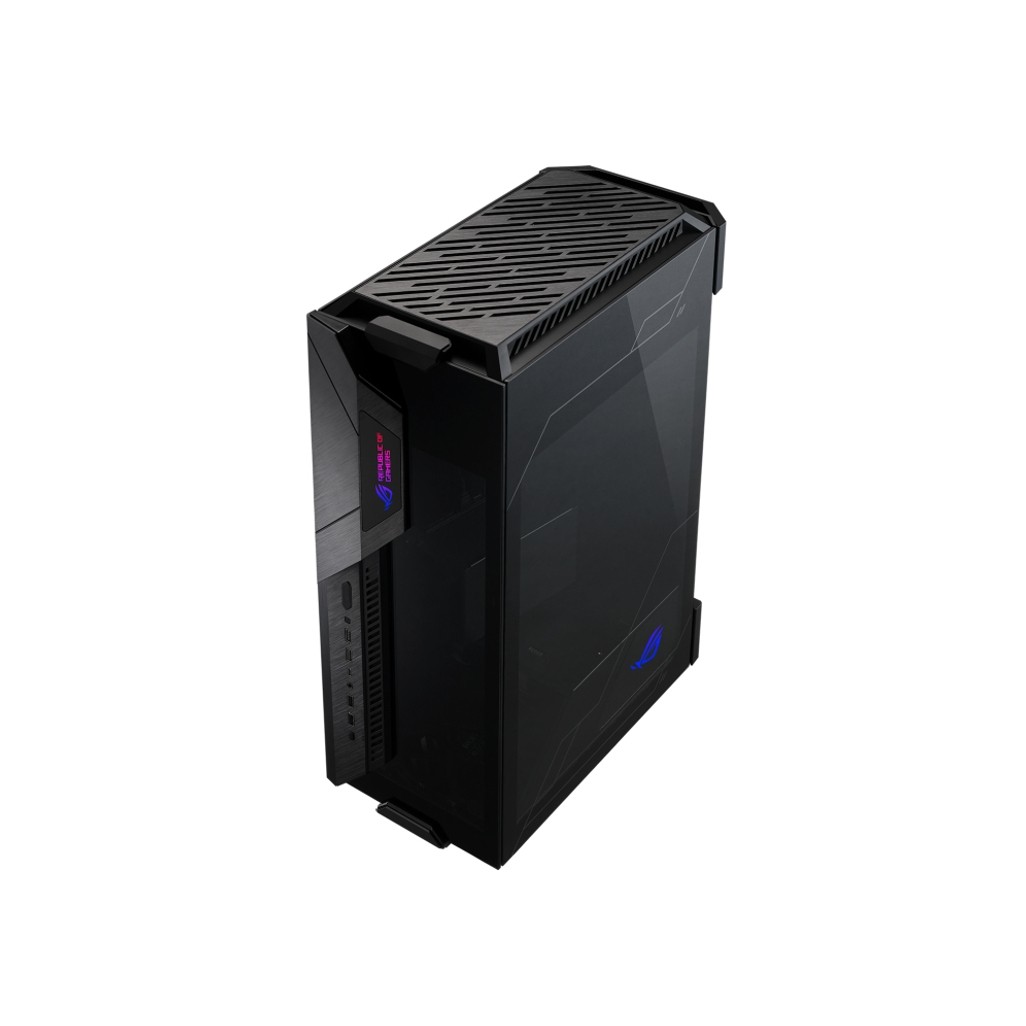

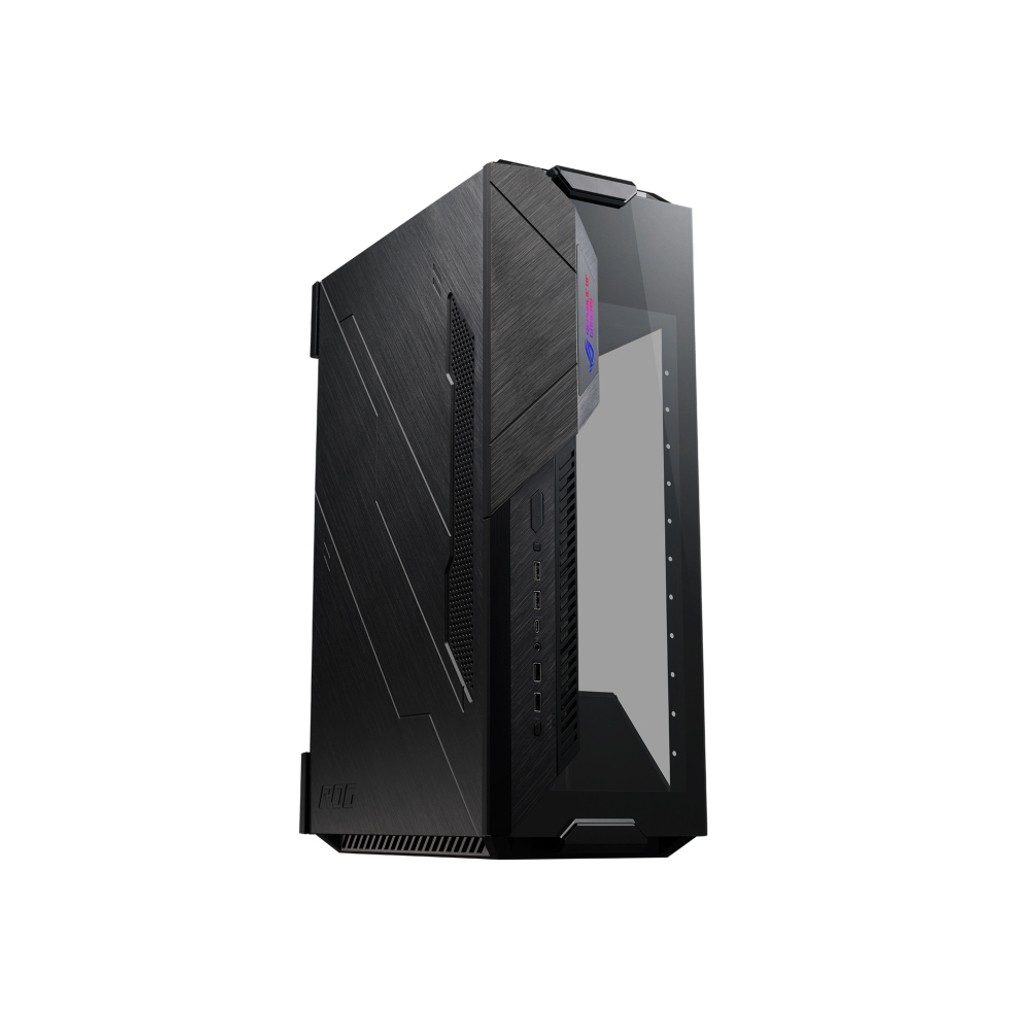

Asus Rog Z11 Gaming Case – Black
Full description Asus.
ROG Z11 is a premium Mini-ITX/DTX case with a sleek and stylish look that rises above the competition by empowering users to showcase compact builds without compromise. Each feature has been designed conscientiously with the user in mind to maximize utility, flexibility and connectivity. The patented 11° tilt design provides optimized airflow and heat dissipation to create an innovative solution that maximizes thermal performance with demanding hardware—such as an ATX power supply or a 3-slot graphics card without a riser cable. For fans of water cooling, Z11 offers ample space and the option of a custom liquid cooling loop. Adding style to substance, internal build components are beautifully illuminated by Aura Sync lighting that can be seen through the front and right-side 4 mm grey tempered glass panels.
- ASUS ROG Z11
- Form factor: Mini Tower
- Type: PC
- Product colour: Black
- Rear fans diameters supported: 120 mm
- Top fans diameters supported: 120,140 mm
- Front radiator fan sizes supported: 120,240 mm
- Supported HDD sizes: 2.5,3.5″
- Width: 194 mm, Depth: 386 mm, Height: 531 mm
Patented 11° Tilt Design

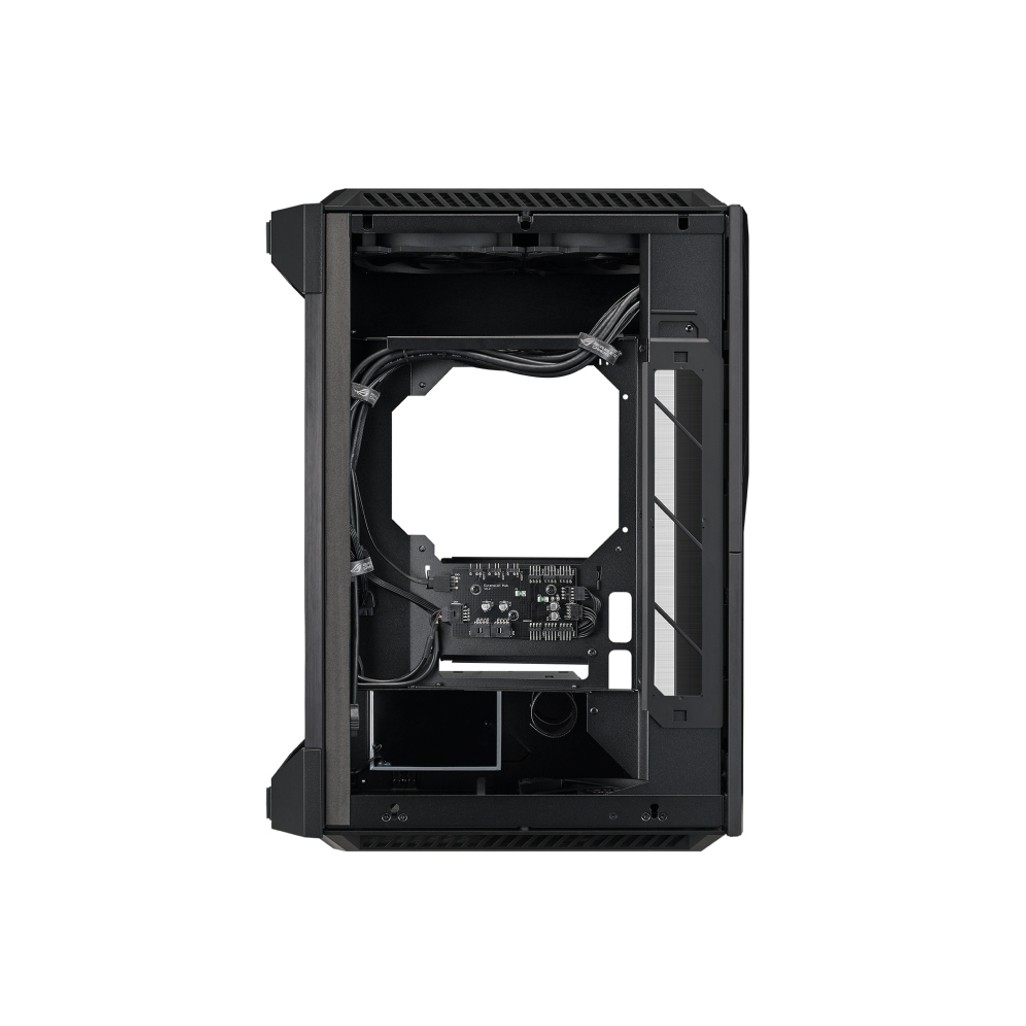

Optimized airflow and superior thermal performance are critical in high-powered systems with compact form factors, and ROG Z11 delivers this with a patented interior layout that tilts the motherboard tray at an 11° angle, providing an additional 40 mm of space at the back of the motherboard. This additional space enhances heat dissipation around the CPU and graphics card, as well as the M.2 SSD that can be installed on the back of the motherboard. The layout also enables compatibility with a 3-slot graphics card without a riser cable and creates a striking visual display of components.
ROG Z11 is built for optimized cooling performance. The entire design is conducive to efficient heat discharge from the case via the chimney effect and negative air pressure, which is generated by the fans expelling hot air at a faster rate than intake. With the choice of up to five 120 mm fans, or three 140 mm plus two 120 mm fans, users can maximize airflow and have the flexibility to customize.
Extra Cable Routing Space
A built-in extension hub enables builders to connect up to six PWM fans and three addressable RGB fans or LED strips, and offers an extra USB 2.0 port to make assembly easier. Plenty of I/O ports and an ARGB lighting control button on the front panel make connecting components and devices a breeze.
Removable Dust Filters
Aura Sync RGB Lighting
Custom Liquid Cooling
ROG Z11 offers an expansive setup for liquid cooling. The case reserves space for a water-cooling pump and reservoir above the power supply unit shroud, providing mini-ITX/DTX enthusiasts with the flexibility to customize their liquid-cooling loop solution.
Ports & interfaces
|USB 2.0 ports quantity||2|
|USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity||2|
|USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity||1|
|Number of 3.5″ bays||1|
|Number of 2.5″ bays||4|
|Maximum PSU length||160|
|Tempered glass panel(s)||Y|
|Form factor||Mini Tower|
|Maximum graphics card length||320|
|Supported motherboard form factors||Mini-ATX, Mini-DTX|
|Maximum CPU cooler height||130|
Weight & dimensions
|Supported HDD sizes||2.5,3.5|
|Number of rear fans supported (max)||2|
|Rear fans diameters supported||120|
|Number of top fans supported (max)||2|
|Top fans diameters supported||120,140|
|Front radiator fan sizes supported||120,240|
|Power supply included||N|
