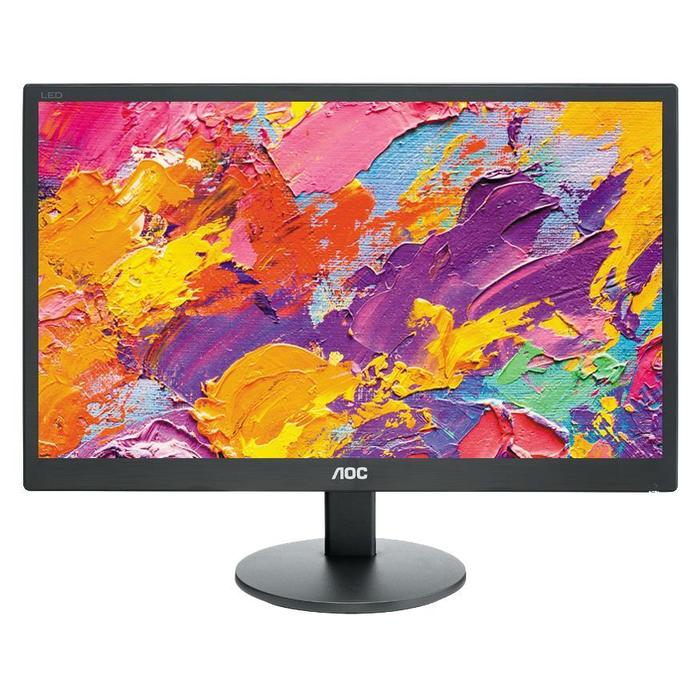

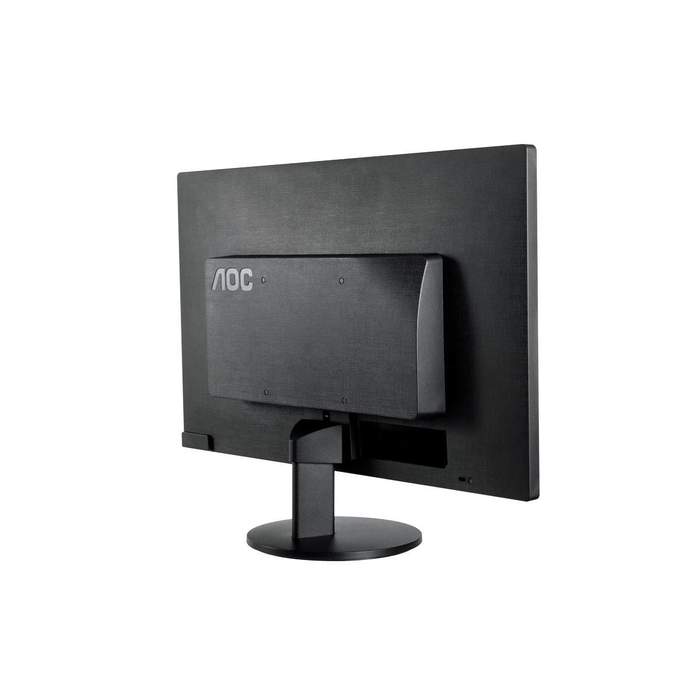

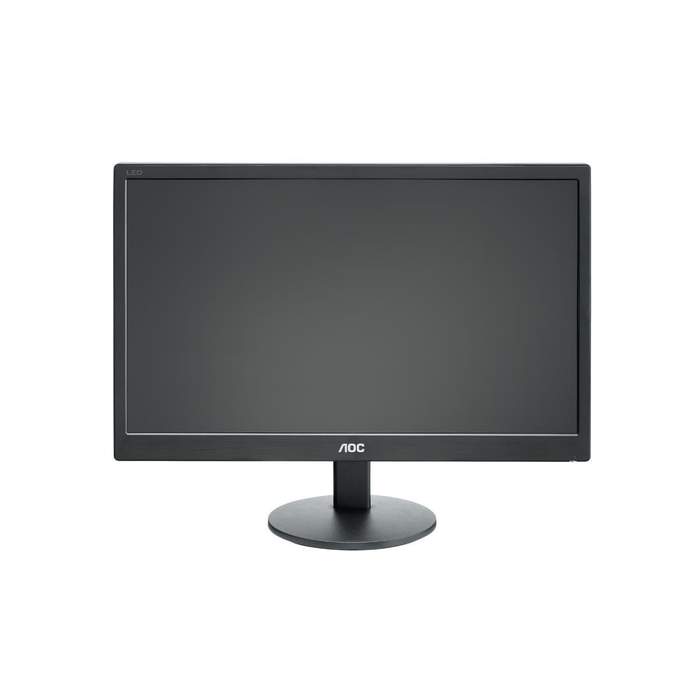

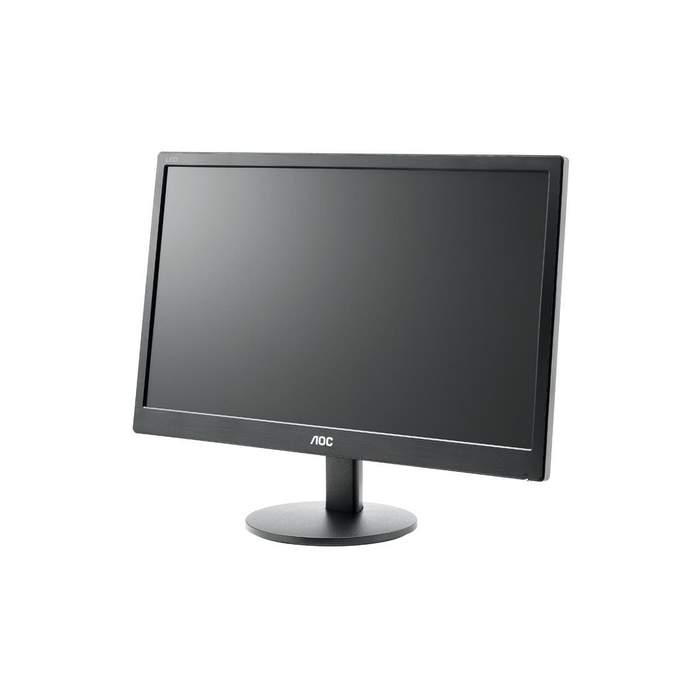

AOC Basic-line 18.5″ 60Hz 5ms WXGA Monitor
E970SWN
Full description AOC.
- AOC Basic-line E970SWN
- Display diagonal: 47 cm (18.5″)
- Display resolution: 1366 x 768 pixels
- HD type: WXGA
- Display technology: LCD
- Display surface: Matt
- Response time: 5 ms
- Native aspect ratio: 16:9
- Viewing angle, horizontal: 90°
- Viewing angle, vertical: 65°
- VESA mounting
Ports & Interfaces
| DVI port |
N |
| VGA (D-Sub) ports quantity |
1 |
| Built-in USB hub |
N |
| AC (power) in |
Y |
| HDCP |
N |
Display
| Display resolution |
1366 x 768 |
| Aspect ratio |
16:9 |
| Screen shape |
Flat screen |
| Panel type |
TN |
| Maximum refresh rate |
60 |
| Display brightness (typical) |
200 |
| Native aspect ratio |
16:9 |
| Response time |
5 |
| 3D |
N |
| Viewing angle, horizontal |
90 |
| Viewing angle, vertical |
65 |
| Display number of colours |
16.78 million colours |
| Display surface |
Matt |
| Backlight type |
W-LED |
| Display diagonal |
18.5 |
| HD type |
WXGA |
| Display technology |
LCD |
| Supported graphics resolutions |
1366 x 768 |
| Contrast ratio (dynamic) |
20000000:1 |
| Display diagonal (metric) |
47 |
| Contrast ratio (typical) |
700:1 |
| Pixel pitch |
0.3 x 0.3 |
| Horizontal scan range |
30 – 80 |
| Vertical scan range |
50 – 76 |
| Viewable size, horizontal |
409.8 |
| Viewable size, vertical |
230.4 |
| Pixel frequency |
85.5 |
Design
| Product colour |
Black |
| Market positioning |
Home |
| Feet colour |
Black |
| Energy Star certified |
Y |
| Heavy metals free |
Hg (mercury),Pb (lead) |
| Mean time between failures (MTBF) |
50000 |
| RoHS compliance |
Y |
| Certification |
TÜV GS, TÜV Bauart, CE, FCC, GOST, ISO 9241-307 |
| EPEAT compliance |
EPEAT Silver |
| Bezel thickness type |
Normal |
| Front bezel colour |
Black |
Performance
| NVIDIA G-SYNC |
N |
| AMD FreeSync |
N |
Power
| AC input voltage |
100 – 240 |
| AC input frequency |
50 – 60 |
| Power consumption (typical) |
10.52 |
| Power consumption (standby) |
0.14 |
| Power consumption (off) |
0.08 |
| External power adapter |
N |
Packaging Data
| Stand included |
Y |
| Cables included |
AC,VGA |
| DisplayPort cable length |
1.8 |
| HDMI cable length |
1.8 |
| Package type |
Box |
| Power cable length |
1.2 |
| Package width |
490 |
| Package depth |
102 |
| Package height |
345 |
| Package weight |
2800 |
| VGA cable length |
1.8 |
Ergonomics
| VESA mounting |
Y |
| On/off switch |
Y |
| Tilt adjustment |
Y |
| Tilt angle range |
-5 – 15 |
| Cable lock slot |
Y |
| Height adjustment |
N |
| Panel mounting interface |
100 x 100 |
| On Screen Display (OSD) |
Y |
| On Screen Display (OSD) languages |
CHI (SIMPL),CHI (TR),CZE,DEU,DUT,ENG,ESP,FIN,FRE,ITA,JPN,KOR,POL,POR,RUS,SWE |
| Number of OSD languages |
16 |
| Cable lock slot type |
Kensington |
| Plug and Play |
Y |
| Pivot |
N |
| Swivelling |
N |
| LED indicators |
Power |
Multimedia
| Built-in speaker(s) |
N |
| Built-in camera |
N |
| TV tuner integrated |
N |
Operational Conditions
| Operating temperature (T-T) |
0 – 40 |
| Operating relative humidity (H-H) |
10 – 85 |
| Storage relative humidity (H-H) |
5 – 93 |
| Storage temperature (T-T) |
-25 – 55 |
| Operating altitude |
0 – 3658 |
| Non-operating altitude |
3658 – 12192 |
Weight & Dimensions
| Width |
437.4 |
| Depth |
48 |
| Height |
273.1 |
| Width (with stand) |
437.37 |
| Depth (with stand) |
271.6 |
| Height (with stand) |
271.6 |
| Weight (with stand) |
2150 |
Other Features
| On/off switch |
Y |
| TV tuner integrated |
N |
| Power cable length |
1.2 |
| Bezel thickness type |
Normal |
| Mean time between failures (MTBF) |
50000 |
